Dual Spindle Lathe Power Supply Control Unit

Syntec 22 TB Dual Spindle Lathe Power Supply Control Unit

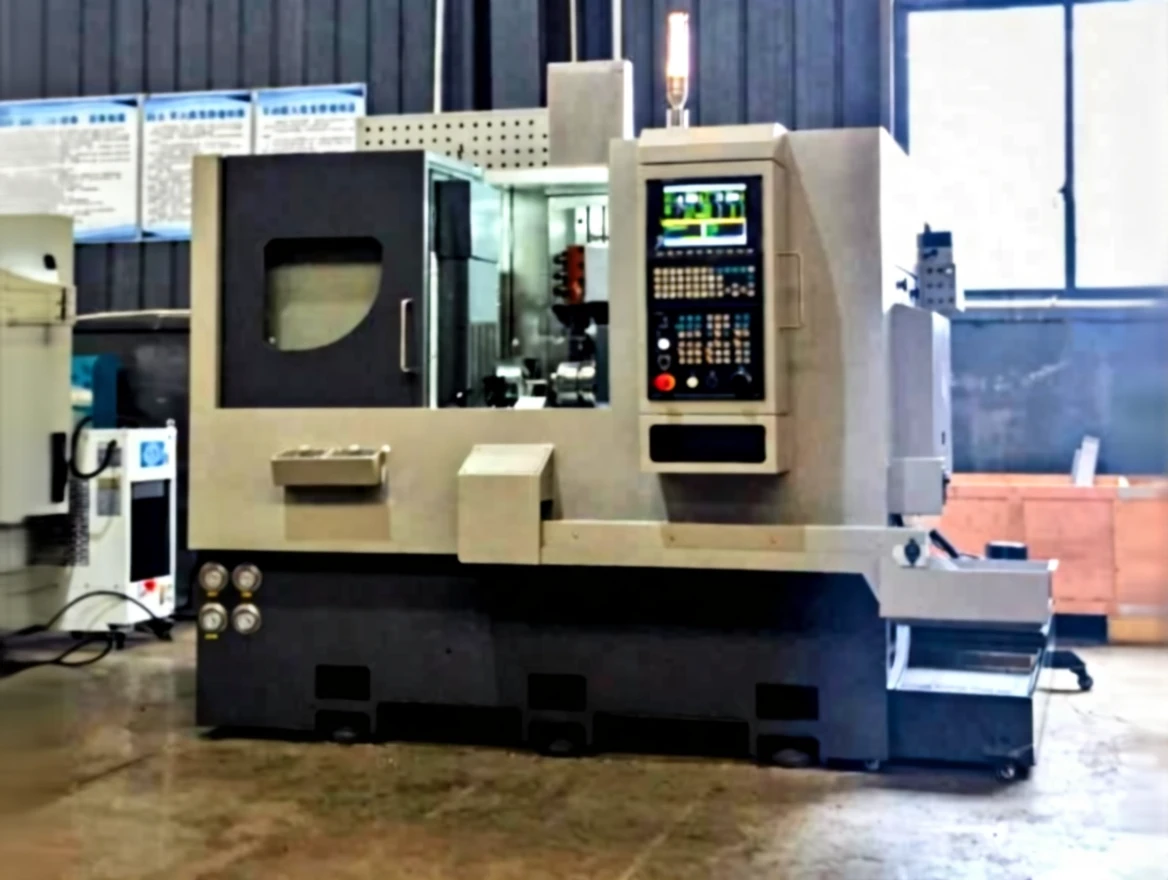

The CNC dual spindle lathe equipped with a control unit is designed for serial production applications that require high precision and efficiency. The integrated structure that works with a chip conveyor, CE equipment, and part catching system ensures continuity and safety in the production process. It operates in harmony with automatic feeding systems thanks to the bar feeder preparation.

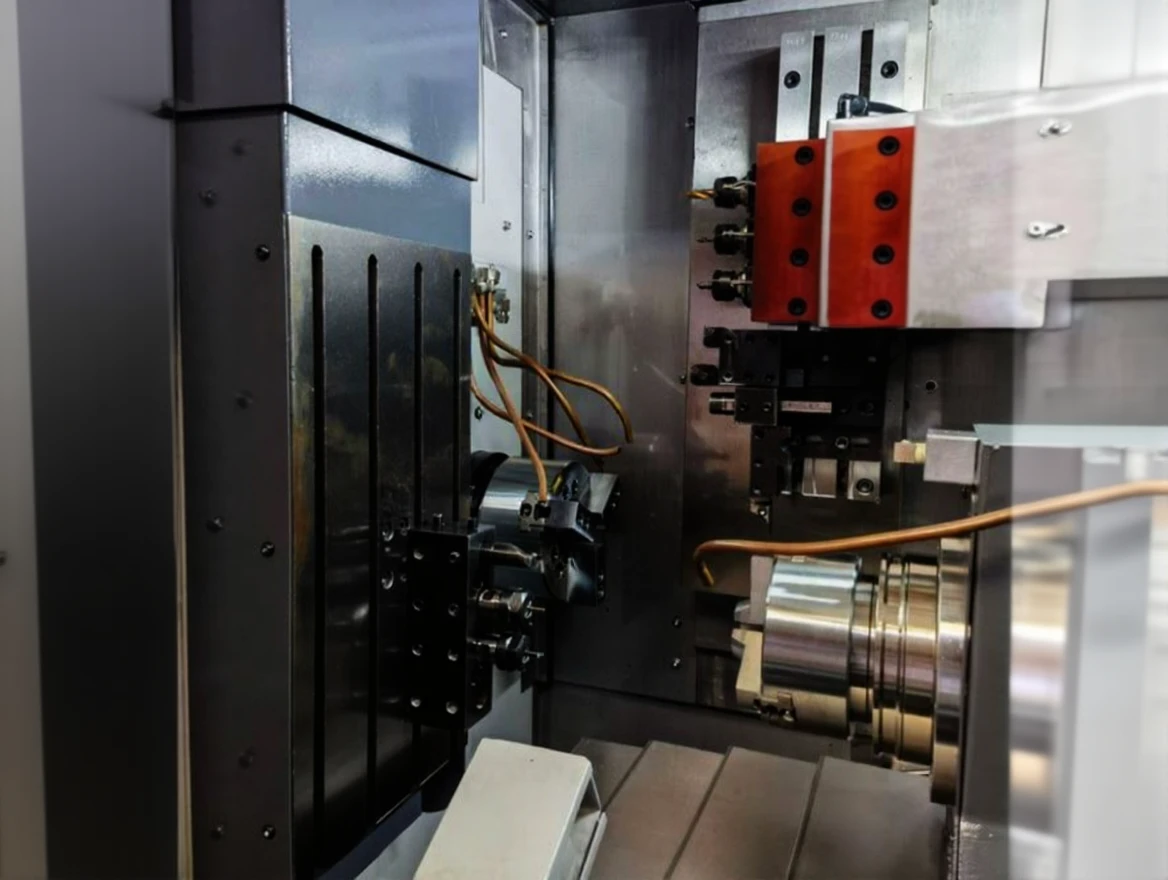

This CNC lathe, equipped with two independent spindles, reduces cycle times by performing operations simultaneously or sequentially. Both spindles, with an internal motor power of 5.5 kW, offer high speed and stable performance. Reliable results are achieved in the production of complex parts thanks to precise axis movements and high positioning accuracy.

Ideal for businesses engaged in metal processing, automotive sub-industry, machine manufacturing, and serial part production, this CNC lathe can be easily integrated into the production line with its compact structure and advanced control system. High repeatability and low tolerance values elevate quality standards to a higher level.

Technical Specifications

General Equipment

• Control Unit: Syntec 22 TB

• Chip Conveyor: Yes

• CE Equipment: Yes

• Part Catching: Yes

• Bar Feeder: Compatible (Prepared)

Capacity

• Chuck Size: 6 inches

• Max. Swing Diameter (Over Bed): Ø350 mm

• Max. Turning Length: 250 mm

• Max. Turning Diameter: Ø200 mm

1st Spindle

• Spindle Hole: Ø42 mm

• Spindle Speed: 5000 rpm

• Max. Bar Diameter: Ø44 mm

• Motor Power: 5.5 kW (Built-in)

2nd Spindle

• Spindle Hole: Ø42 mm

• Spindle Speed: 5000 rpm

• Max. Bar Diameter: Ø44 mm

• Motor Power: 5.5 kW (Built-in)

Axis Movements

• X1 / Z1: 480 / 180 mm

• X2 / Z2: 460 / 220 mm

• X1 / X2 / Z1 / Z2 Idle Feed Rate: 28 m/min

Precision

• Positioning Accuracy (X, Y, Z): 0.005 mm

• Repeatability (X, Y, Z): ≤ 0.005 mm
