Dust Collection Filter
| Brand | Milleral |
|---|---|
| Model Type |
MSF 104 |
Description

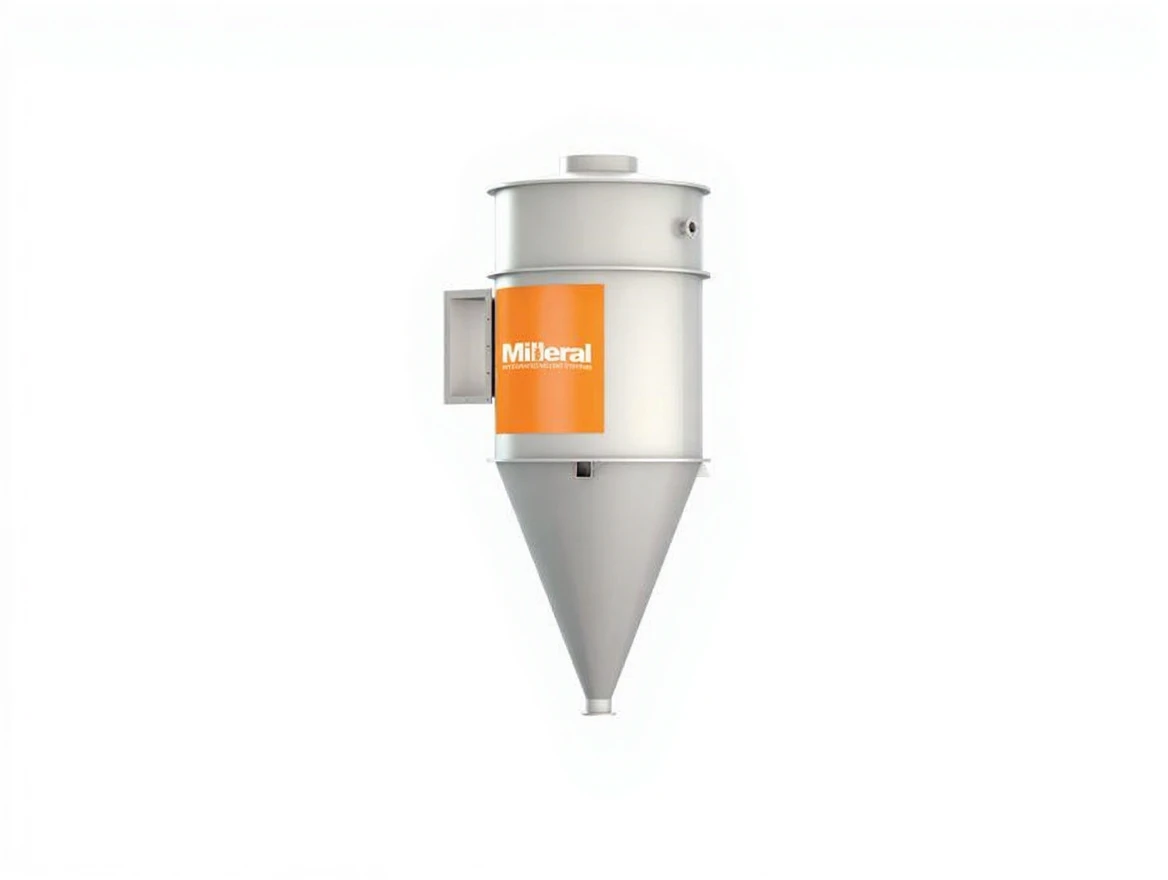

Milleral MSF 104 Dust Collection Filter

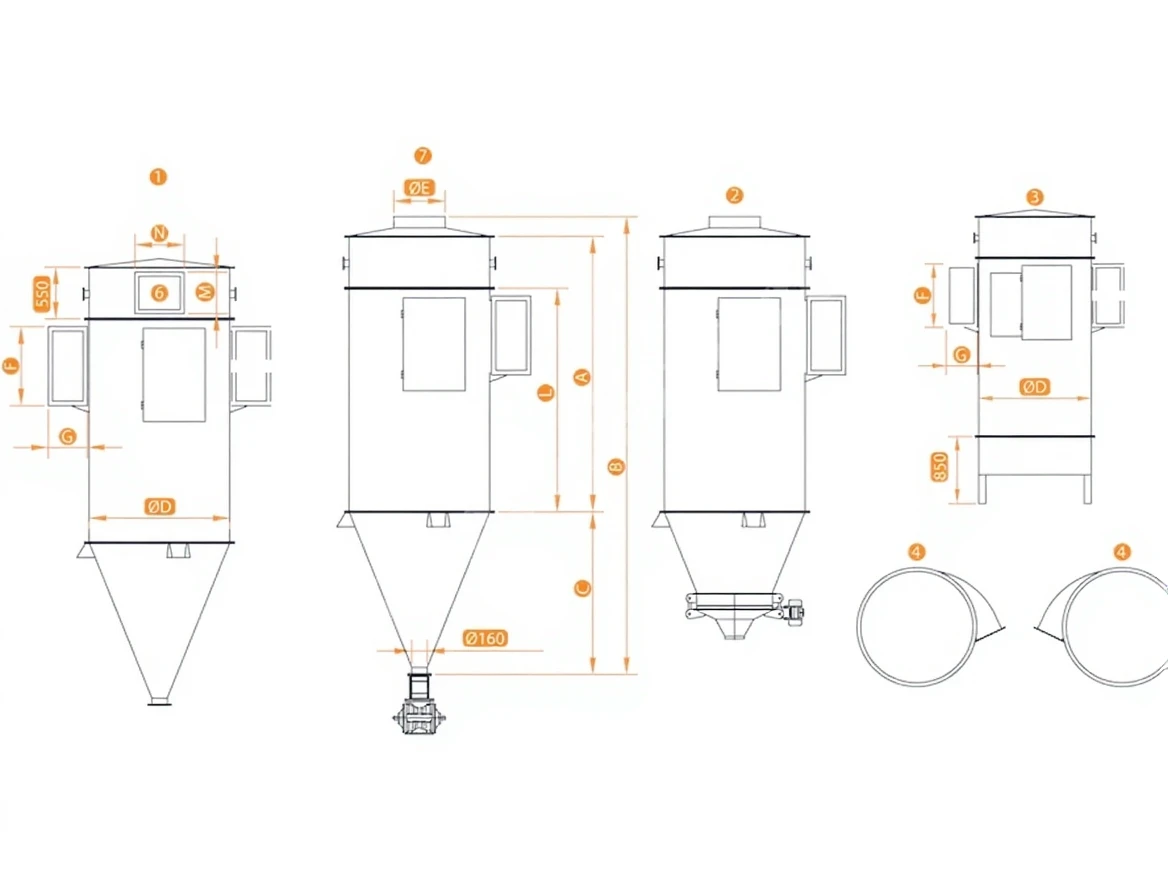

Milleral MSF 104 Technical Specifications
| Model | MSF 10 | MSF 18 | MSF 26 | MSF 39 | MSF 52 | MSF 78 | MSF 104 | |||||||||||||||||||||
| Shirt Length | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 |
| Filter Area | 4.5 | 6.8 | 9 | 11.3 | 8.1 | 12.2 | 16.3 | 20.4 | 11.7 | 17.6 | 23.5 | 29.5 | 17.6 | 26.5 | 35.3 | 44 | 23.5 | 35.3 | 47 | 58.8 | 35.2 | 52.9 | 70.5 | 88.2 | 47 | 70.5 | 94 | 117.5 |
| A | 1750 | 2350 | 2950 | 3550 | 1600 | 2200 | 2800 | 3400 | 1650 | 2250 | 2850 | 3450 | 1700 | 2300 | 2900 | 3500 | 1700 | 2300 | 2900 | 3500 | 1700 | 2300 | 2900 | 3500 | 1700 | 2300 | 2900 | 3500 |
| B | 2640 | 3240 | 3840 | 4440 | 2960 | 3560 | 4160 | 4760 | 3340 | 3940 | 4540 | 5140 | 3610 | 4210 | 4810 | 5410 | 3830 | 4430 | 5030 | 5630 | 4060 | 4660 | 5260 | 5860 | 4390 | 4990 | 5590 | 6190 |
| C | 800 | 1000 | 1300 | 1600 | 1850 | 2300 | 2300 | |||||||||||||||||||||
| ØD | 850 | 1000 | 1140 | 1340 | 1500 | 1840 | 2020 | |||||||||||||||||||||
| ØE | 250 | 400 | 450 | 500 | 600 | 700 | 750 | |||||||||||||||||||||
| F | 400 | 500 | 650 | 750 | 800 | |||||||||||||||||||||||
| G | 210 | 250 | 270 | 300 | 350 | 500 | ||||||||||||||||||||||
| M | 450 | 470 | ||||||||||||||||||||||||||
| N | 450 | 500 | 650 | 1000 | 1200 | |||||||||||||||||||||||
| L | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 | 1200 | 1800 | 2400 | 3000 |
| Weight | 285 | 320 | 355 | 390 | 485 | 545 | 605 | 665 | 585 | 655 | 725 | 795 | 890 | 995 | 1100 | 1215 | 1115 | 1240 | 1365 | 1500 | 1615 | 1790 | 1965 | 2460 | 2120 | 2375 | 2630 | 2885 |
