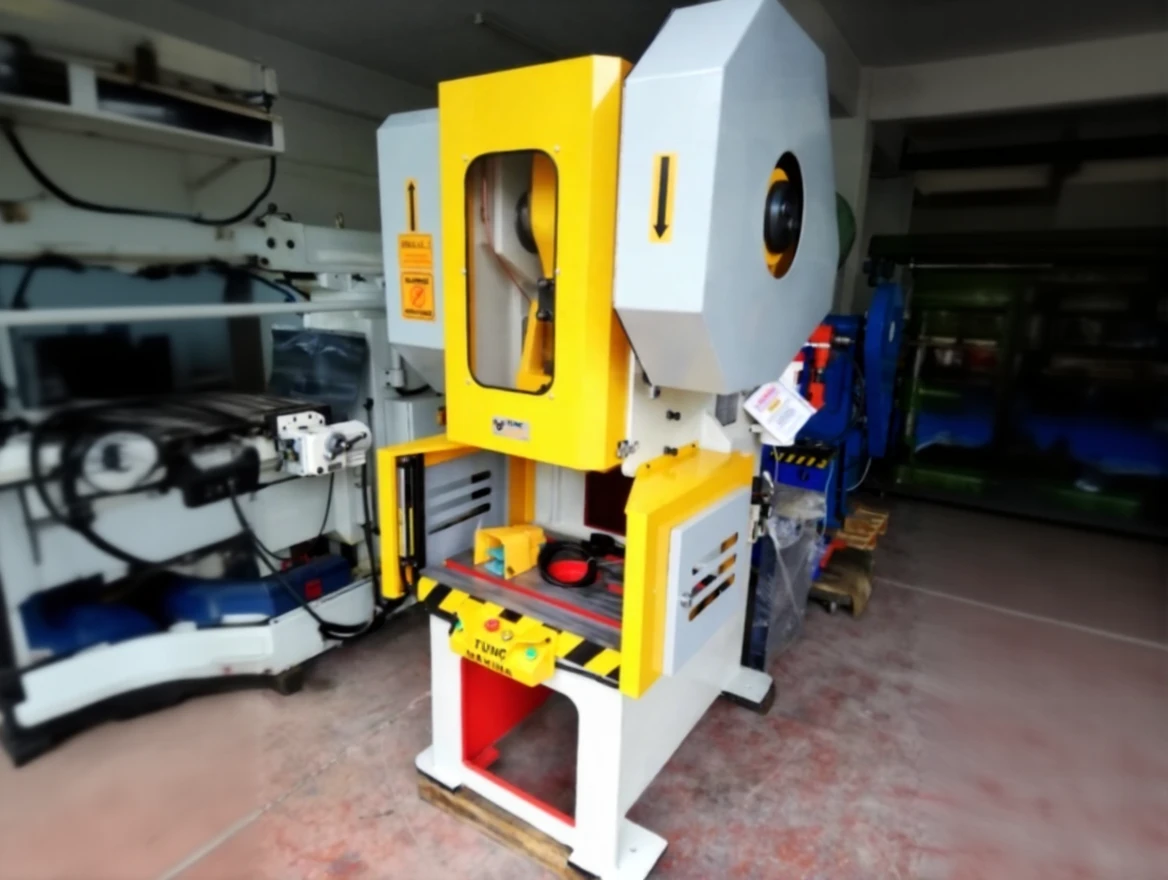

E EP003 (60 Ton) Air Clutch Eccentric Press
| Brand | Tunç |
|---|---|
| Model Type |
E-EP003 |
Description
Eccentric Press Machine 60 Ton
Air Clutch
| STEEL BODY | ||
| NEW MODEL | ||
| Bottom Table Size | mm | 500×710 |
| Bottom Table Hole Diameter Ø | mm | 185 |
| Bottom Table Thickness | mm | 75 |
| Top Table Size | mm | 250×420 |
| Top Table Hole Diameter Ø | mm | 35 |
| Distance Between Two Tables | mm | 365 |
| Stroke | mm | 95 |
| Number of Strokes Per Minute | d/min | |
| Main Motor | kW | 5.5 |
| Weight | kg | |
| Dimensions (height x width x depth) | cm | 1600x1500x2300 |
| Origin | ||
| Accessories | Serial Working System | |
| Fixed Hand Control | ||
| Foot Pedal | ||
| Central Manual Lubrication | ||
| Wall Type Panel | ||
| Mechanical Fuse | ||
| Front Cover | ||
| Flywheel Cover | ||
| Table Side Guard Enclosure | ||
| Pneumatic Light Curtain |
