E8 512İ Solvent Printing Machine

E8 512İ Solvent Printing Machine

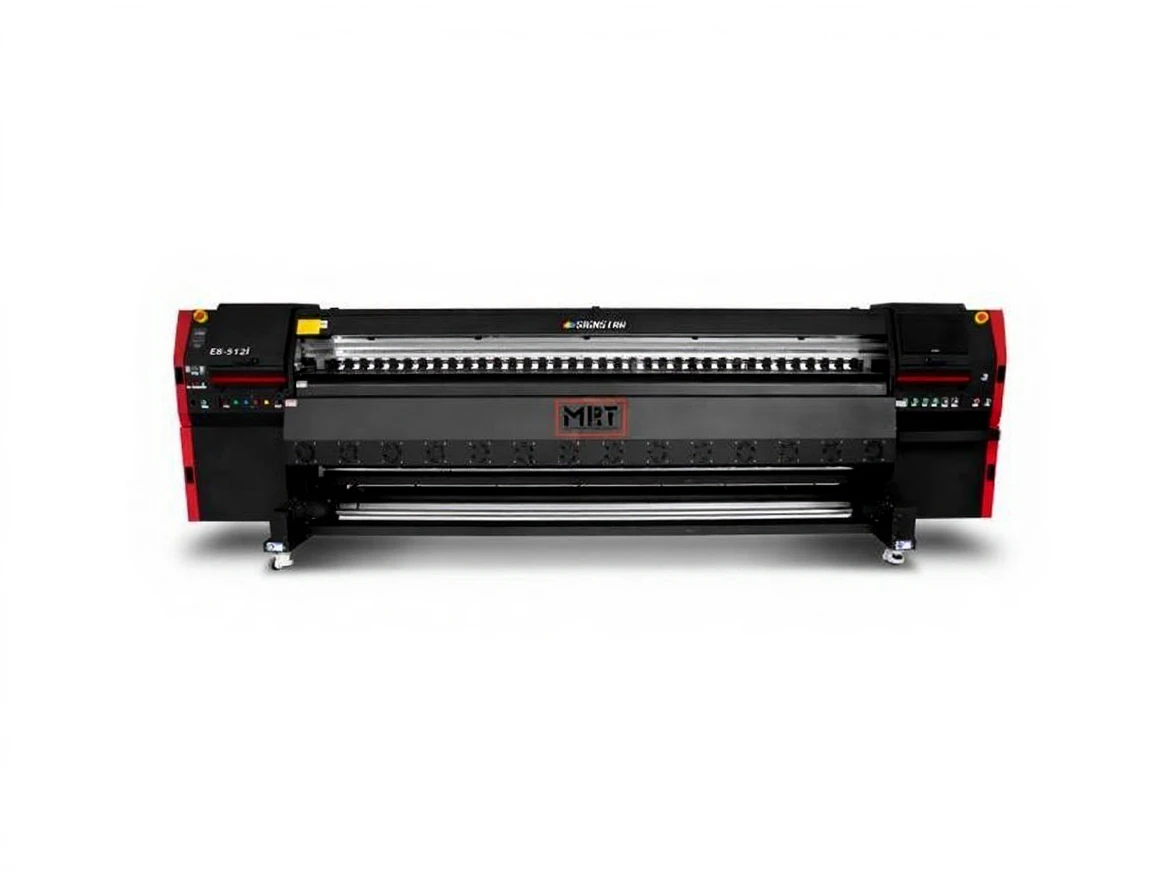

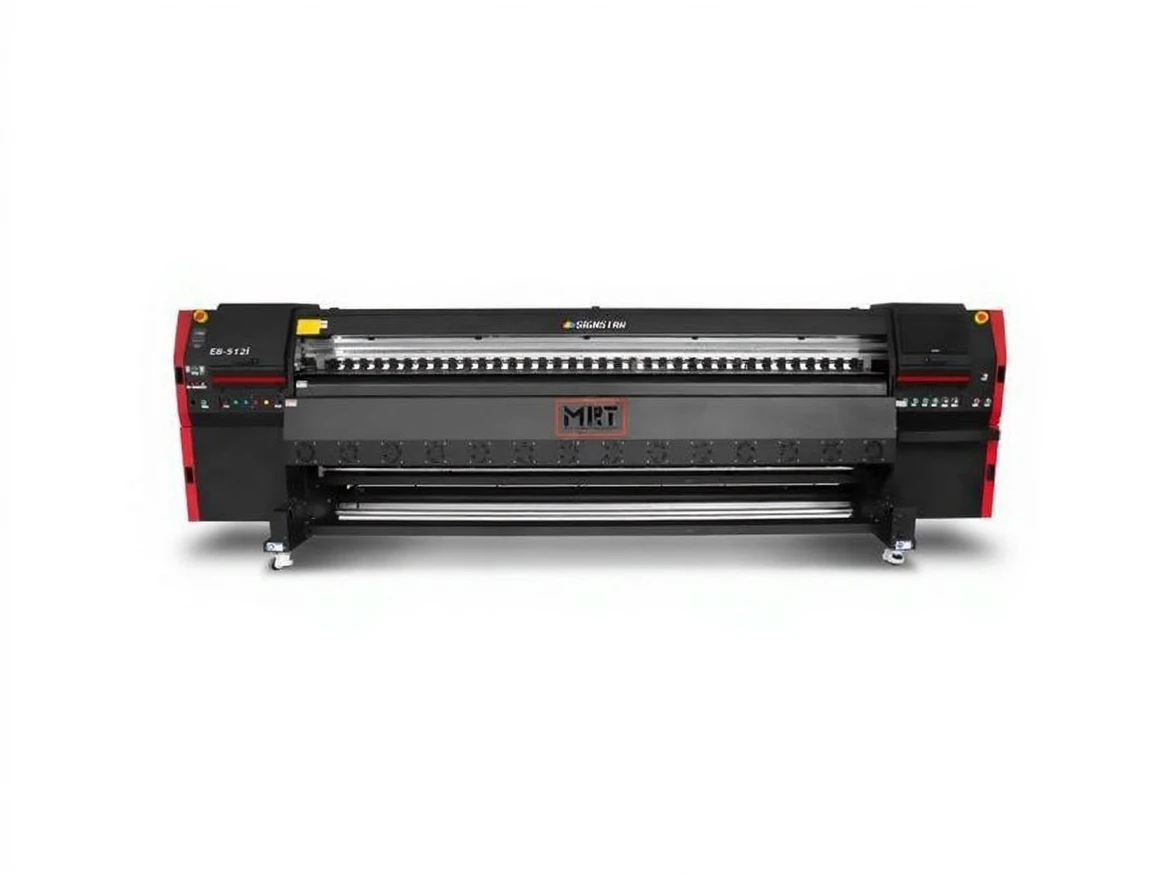

Signstar E8 512i

• Luxurious printer body
• High-quality super wide printing bed
• Heavy aluminum beam
• Multifunctional feeding system
• Computer and LCD working platform
• LED lights in the cleaning position and on the printing bed
• 4 heating systems in the machine: rear, middle, front, and head heaters (all in one)
• Stable negative pressure system
• Automatic print head protection
• Adjustable vacuum on the printing section platen
• Adjustable head height
• Unique print head protection section

Print Head / Quantity: Konica 512i / 8 heads
Ink Type / Colors / Droplet: Solvent ink / 4 colors CMYK / 30pl
Maximum Material / Print Width: 3.2m / 3.2m
Resolution: 360 dpi – 540 dpi
Print Modes: 3 / 2 Pass
Print Speeds: 140 sqm/h – 280 sqm/s
Drying System: Drying fan and infrared
Material Feeding System: Automatic winding system
Print File Format: PSD/DWG/HPG/PLT/PS/EPS/2GP
Printing Process: Direct output from RIP software
Head Protection: Automatic protective cap system
Print Connection: USB
Software: Photoprint 12.0 / Ultraprint / Maintop
Machine Dimensions and Weight: L: 5.55 m W: 1.12 m H: 1.08 m / 1050 Kg
