Eea362 Mig Mma Tig 420 3 Function Gasless Gas Submerged Welding Machine

Bosch Plus Starfix EEA362 MIG MMA TIG 420 3 Function Gasless Gas Under Welding Machine

The Starfix model is available for use in 2 types, as a normal electrode welding or as a gasless wire welding. It has 3 functional features for tig mig and mma welding.

Tig (Argon) welding: Argon Welding (TIG Welding) is a welding process that uses electricity to melt and bond metal parts. TIG (Argon) welding is suitable for a wide range of metal thicknesses. It is even suitable for very thin materials that are difficult (or impossible) to weld with other welding techniques.

MIG welding: Metal Inert Gas (MIG) welding is a sub-type of gas metal arc welding (GMAW). In this welding process, the main materials are joined with a welding current. The filler metal is continuously fed from the welding gun. While the electric arc melts the electrode wire, it is melted together with the main metals in the welding pool. At the same time, protective gas moves along the welding gun to keep the weld away from atmospheric pollution.

MMA welding: Shielded Metal Arc Welding (MMA) is a manual arc welding method where the necessary heat for welding is generated between the coated consumable electrode and the workpiece through the arc formed. The tip of the electrode, the welding bath, the arc, and the areas close to the weld of the workpiece are protected by gases produced by the burning and decomposition of the coating material from the harmful effects of the atmosphere.

It works with a 1 kg wire and is compatible with wires up to 0.8 mm, 0.9 mm, and 1 mm. We also have wires available in our store for the gasless machine to work wirelessly from the coil to the torch.

220-volt bag-type gas under welding machine 200 ampere features, 1 phase 230V-50/60 Hz grid voltage and works with generators, tolerates up to 15% voltage fluctuations.

Thanks to inverter technology, it is more energy-efficient compared to conventional machines. It offers excellent welding characteristics with steel, aluminum, and various wire types. It has positive (+) and negative (-) polarizing options.

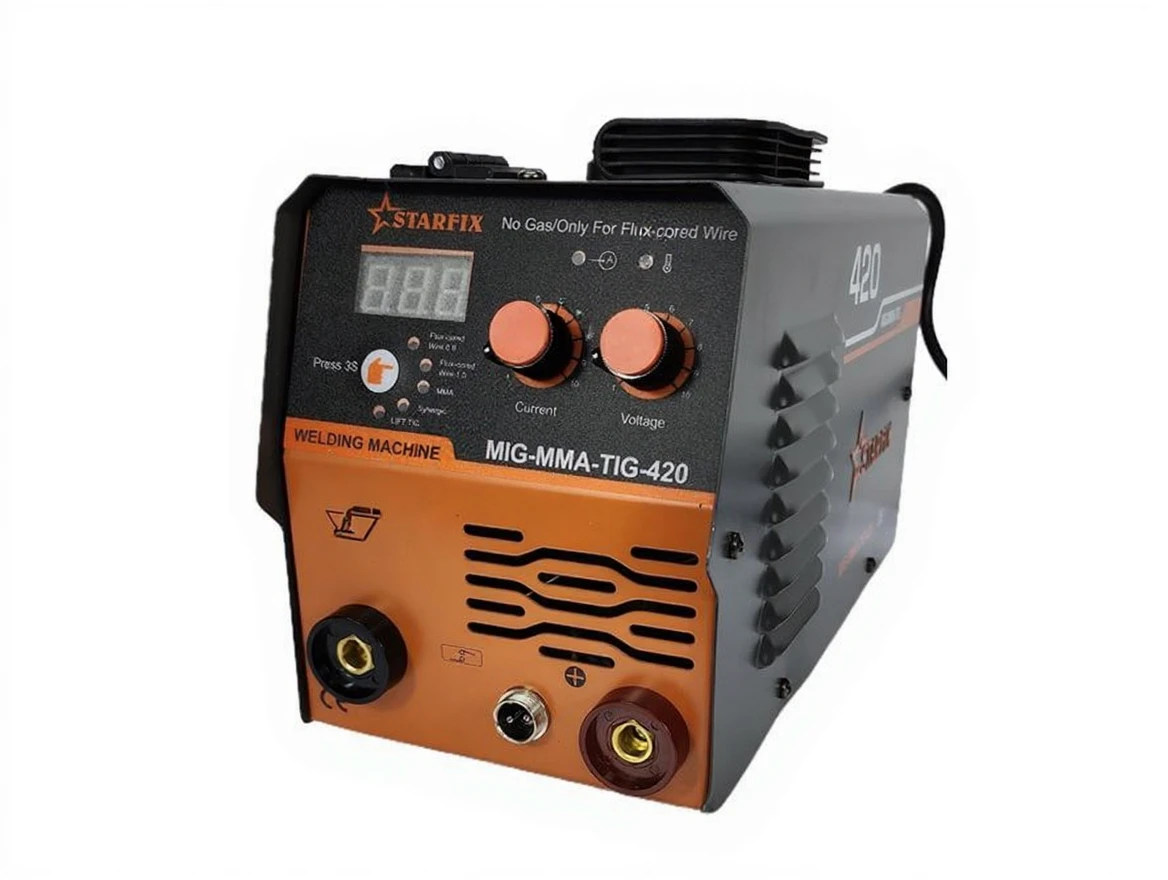

Welding voltage, wire feeding speed (current), soft start, pre-gas, post-gas, burn-back settings, and 2/4 trigger option are made from the front panel. Welding parameters are easily monitored with large digital displays. There are free wire feeding and gas test buttons.

Technical Specifications

Type: Gasless Gas Under Welding Machine

Power: 8.21 (20%) kVA
Voltage: 220-230 volts 50Hz
Current Range: 30-250 Ampere
Min. Generator Power: 7kVA
MMA Electrode Diameter: [ PHONE HIDDEN ]
Protection Degree: IP23
Product Weight: 4kg
Product Size: 340 x 200 x 180mm
Protection Class: p21
Wire Feeding System: Welding wire diameter [ PHONE HIDDEN ]mm, Standard wire spool size [ PHONE HIDDEN ]mm
Wire Spool Size: 1x30mm
Wire Feeding Speed: 1 – 18m/min
Torch Trigger Control: 2/4
Welding Thickness: 1 ~ 5mm
Wire Spool Capacity: 1kg
Cooling System: Fan cooling
Color: Blue
Parts: 1 machine box, 1 body, Extra parts

Functions

• Ø300, Ø270 and Ø200 mm reels, drum packaging (accessory attachment needed) and spool gun with Ø100 mm reels can be used.

• It is compact and easy to carry into the workshop and field.

• Fan-cooled and thermally protected against overheating.

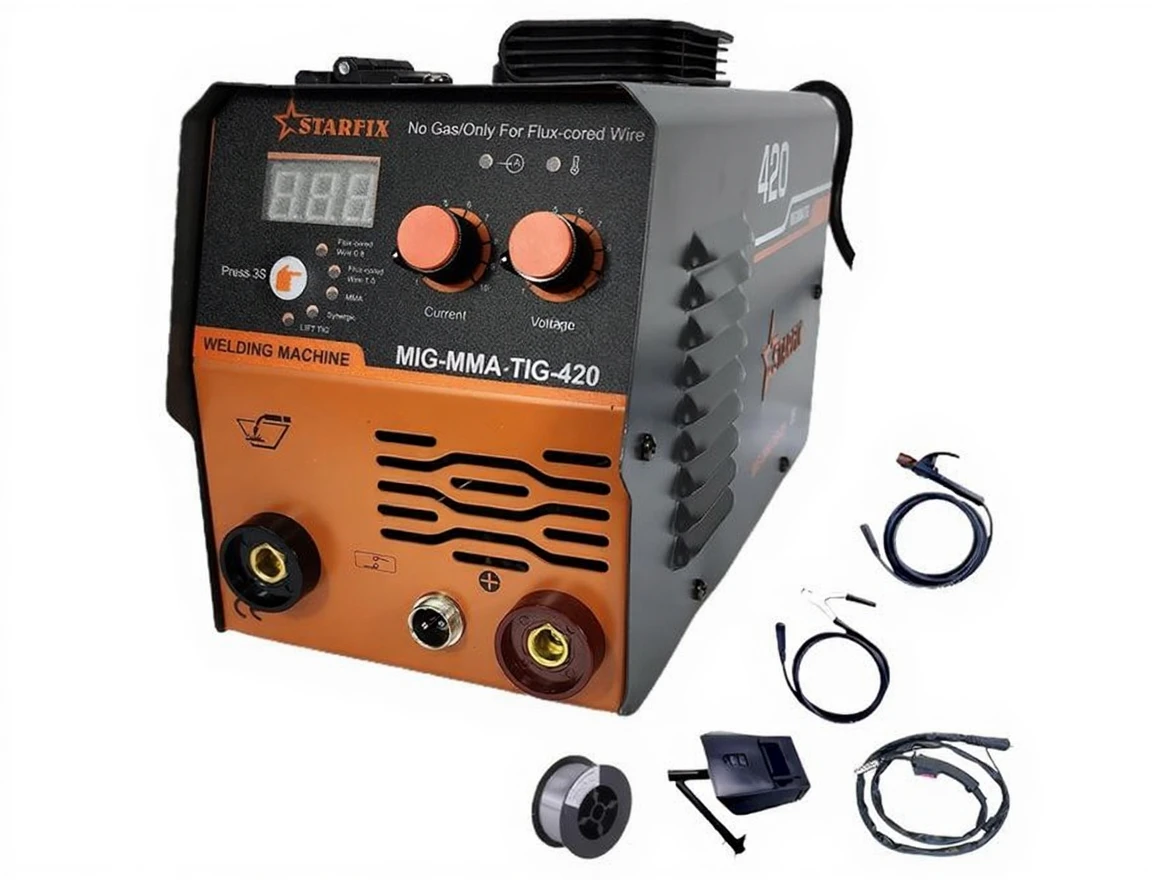

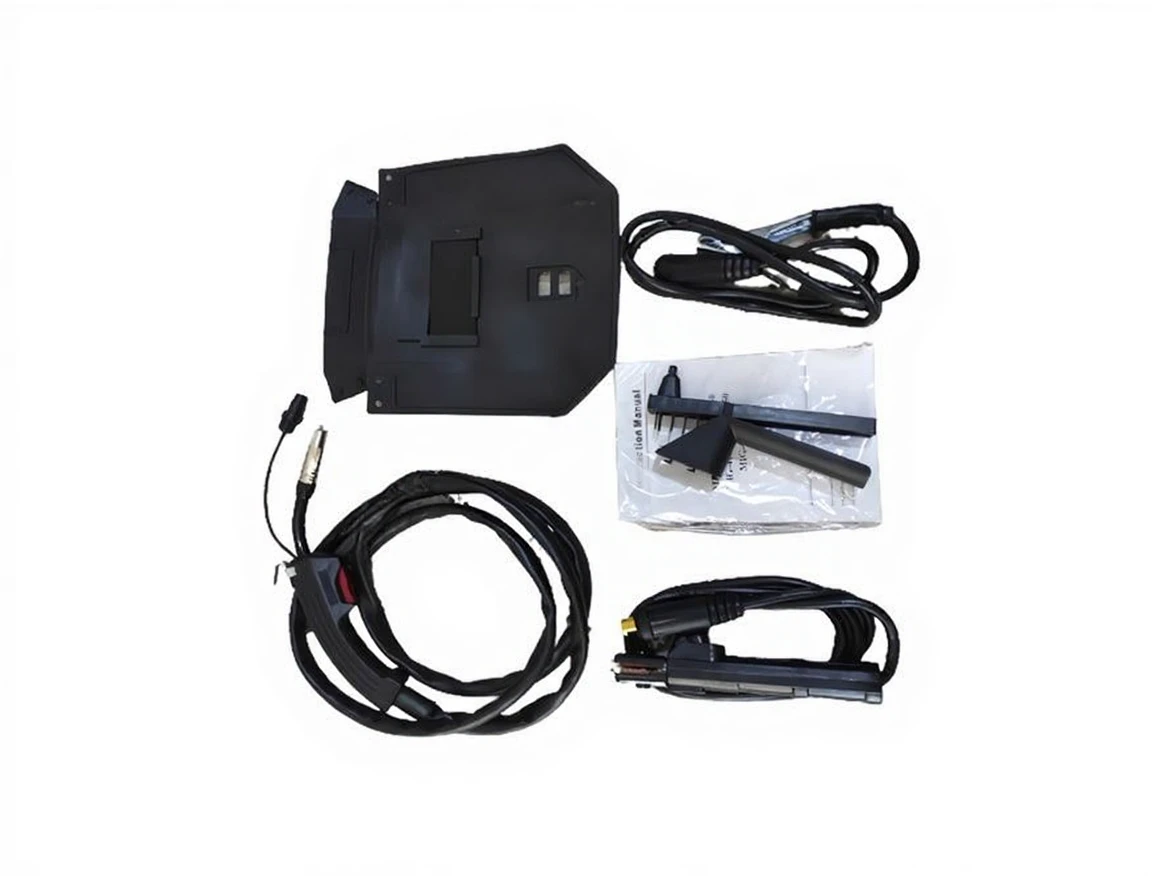

• Standard accessories come with the machine.

• There are free wire feeding and gas test buttons.

• 3D cooling system

• It can be used as gas under or normal electrode welding

• 1 kg wire capacity

• The new generation gasless gas under welding machine has mig-Tig-Mma welding machine welding machine arc/mig/tig modes, is user-friendly, the adjustment method is integrated, easy, welding machine has function switching buttons and current and voltage control buttons

• Intelligent digital display, makes your work easier.

• 3 potential settings hot start works to get a high current value at the beginning of welding even at low current values to ensure easy electrode grip

• Arc force provides a more stable arc, preventing the electrode from sticking to the workpiece and cutting the arc.
