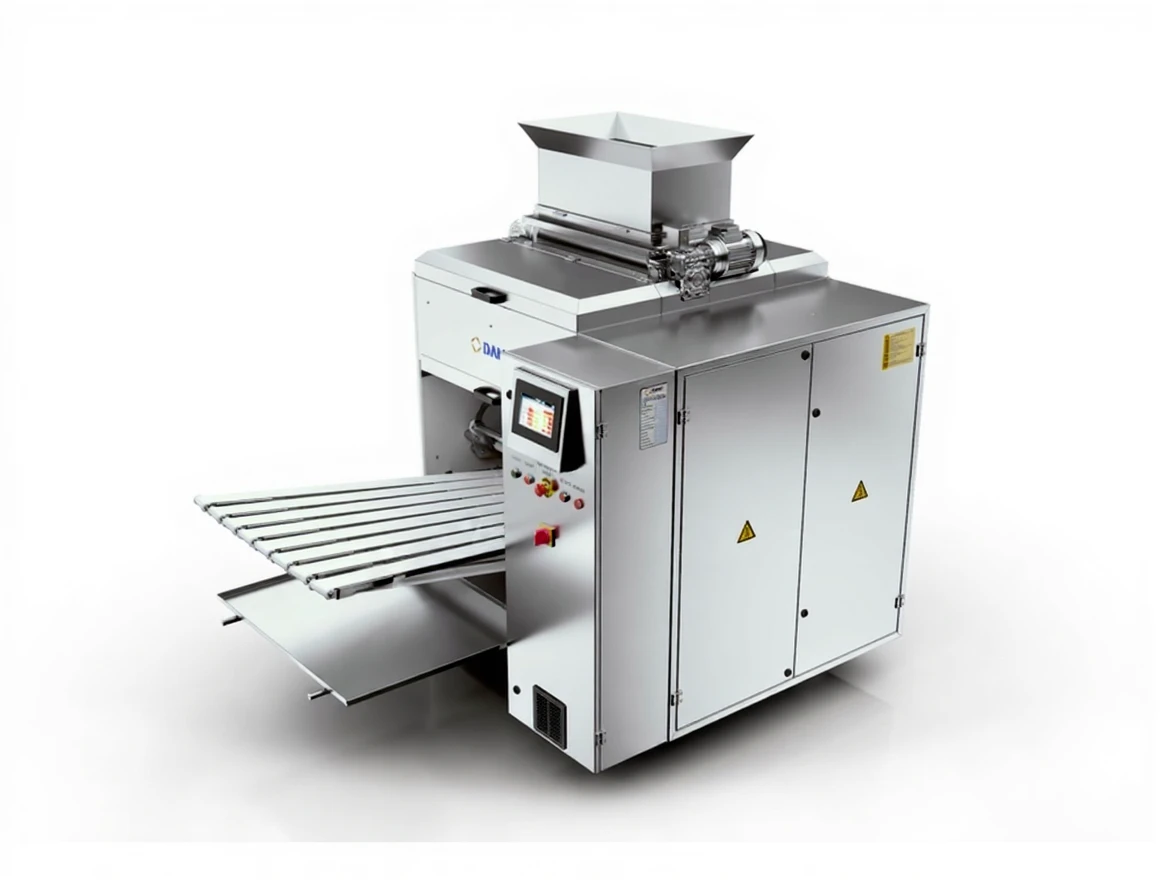

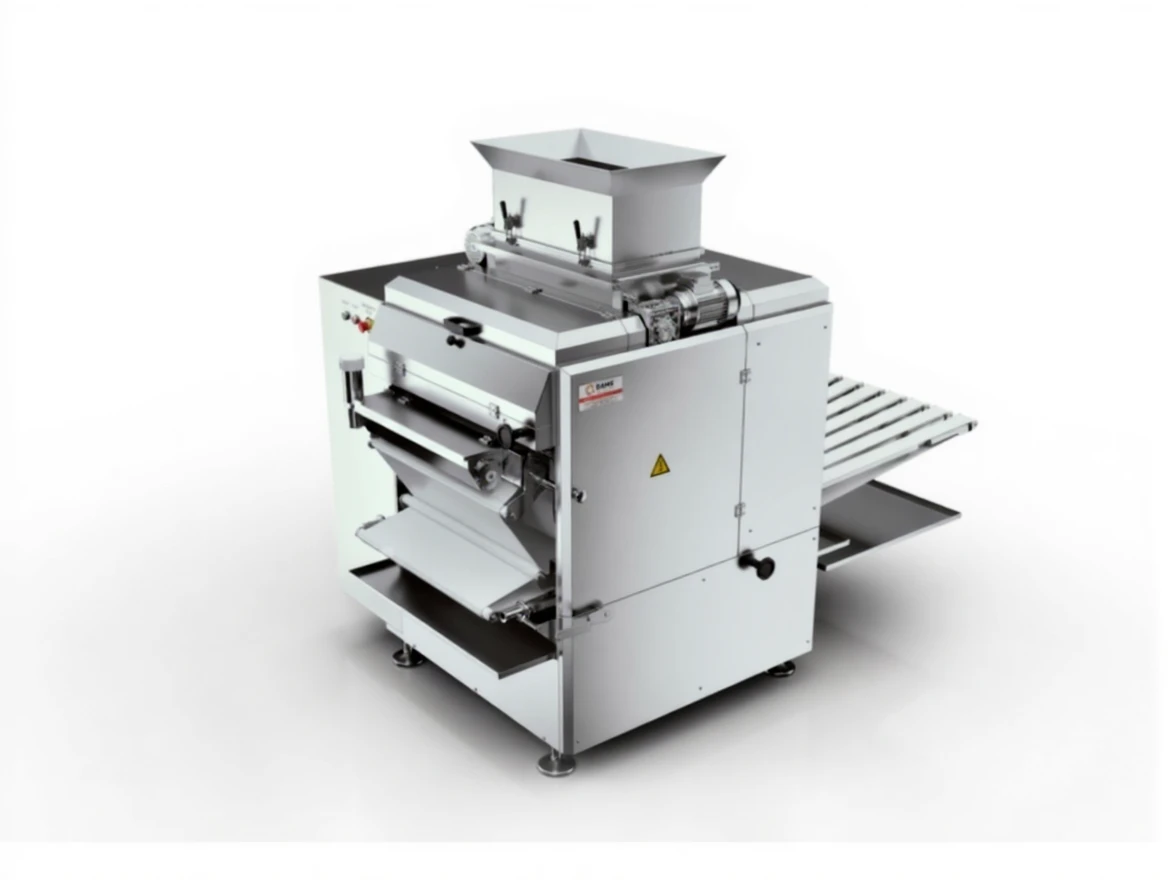

Eight-Head Dough Cutting and Rolling Machine

Dams 11000 Pieces / Hour Eight-Head Dough Cutting and Rolling Machine

The DAMS Eight-Head Dough Cutting and Rolling Machine optimizes your dough processing processes with its high capacity and efficient working principle. Designed to meet the needs of your business with its adjustable features and user-friendly structure. Thanks to its superior performance and durability, it provides long-lasting and trouble-free use.

General Features

• Settings can be easily made from the PLC controlled touch screen.

• Mechanical adjustments are simple and easy to use and learn.

• Usage information is stored in memory for continuous use.

• Daily cleaning is easy; especially the disassembly and reassembly of belts and working parts is simple.

• The speeds of all belts can be adjusted to the desired level.

• Electrical and electronic faults are indicated on the PLC screen with images and text.

• In case of a fault, intervention can be made remotely via the PLC program (Optional).

Cutting Section

• The outer casing and surfaces in contact with the dough are made of 304 chrome and chrome plating.

• Dough cutting is in the range of 25-90 grams or 30-110 grams.

  • Different outer drums are used for these weight ranges.

  • The machine must be manufactured according to the dough cutting weight range.

• The maximum rolling bread dough and rolling capacity is 15,000 pieces per hour.

• Since very little flour is used in dough cutting, the dough surface is flour-free and provides a clean working environment.

• The amount of flour given to the cut dough can be adjusted.

• The lubrication system is automatically adjusted during the dough cutting process.

• Non-pressurized cutting does not damage the dough.

• Our company reserves the right to make changes to the specified technical features.

• Note: Since there are pneumatic pistons on the machine, a minimum air pressure of 4 bar is required for the machine to operate. A 5*2.5 multi-cable should be pulled for electricity. To prevent voltage fluctuations that may damage the automation products used in the machine, a suitable regulator is recommended.

Technical Specifications

Machine Width: 1480 mm
Voltage: 380 V
Machine Length: 2220 mm
Current: 25 Amper
Machine Height: 1840 mm
Frequency: 50 Hertz
Machine Weight: 1700 kg
Maximum Power: 5 kW
Capacity (Maximum): 15,000 Pieces/Hour
Average Power: 4 kW
