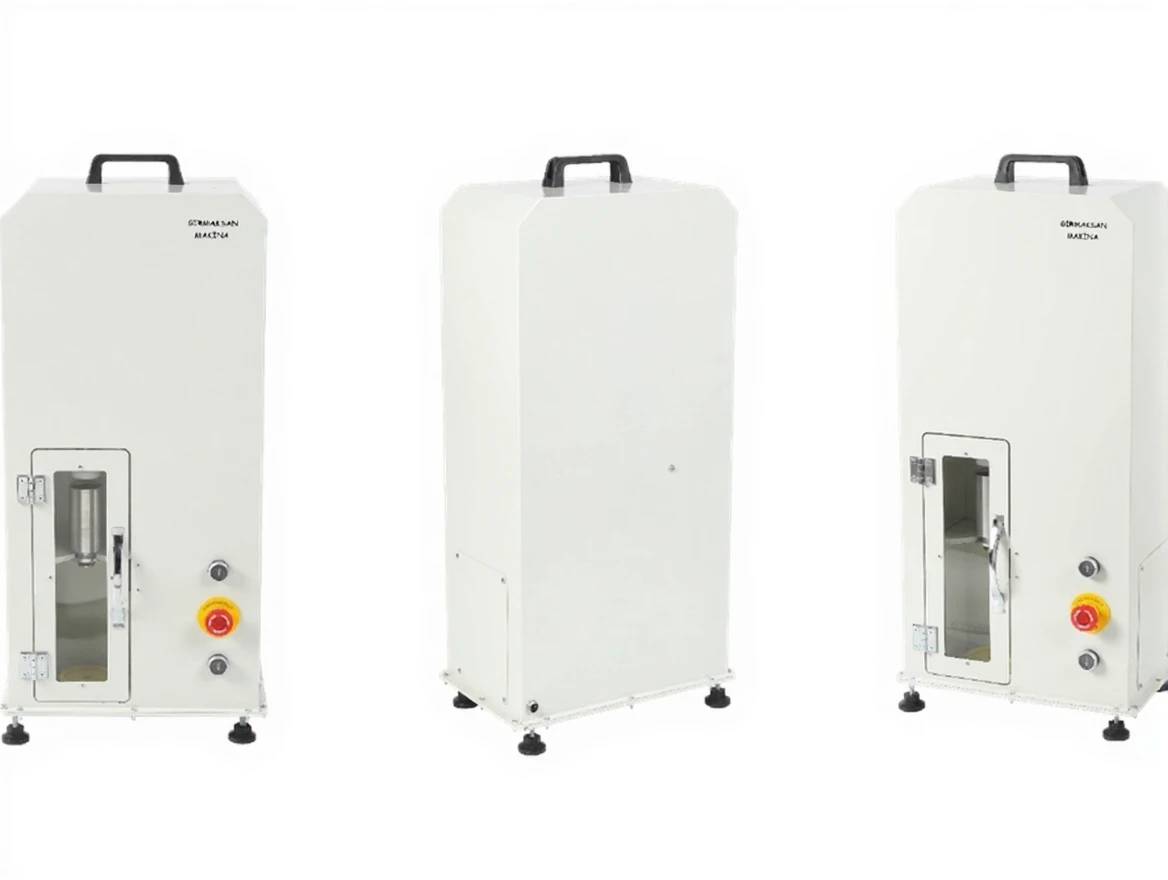

Electric Spray Paint Filling Machine

The electric spray paint filling machine is used to fill empty aerosol cans with paint, primer, varnish, and other chemicals in desired colors and shades.

The spray paint filling machine operates on 220 volts of energy.

There is a 220-volt electrical energy input socket on the back of the machine.

No compressor is used in the electric spray paint filling machine system.

Since there is no need for a compressor in the electric spray paint filling machine, there will be no cost for an air compressor.

The electric spray paint filling machine operates more quietly compared to pneumatic spray paint filling machines.

The spray paint filling machine is designed for single filling.

The machine is compatible with all standard empty aerosol cans  (400 Ml.).

Before filling the empty aerosol can, the height adjustment will be done manually.

The machine has 1 filling chamber.

There is 1 teflon piece that pushes into the chamber on the machine.

The up-and-down movement of the filling system is performed by an electro-driven mechanical system.

The lower and upper working limits of the filling system are controlled by sensors.

The electric spray paint filling machine will not operate unless the front protective cover of the machine is closed.

The filling time for the empty aerosol can is 4-5 seconds.

The return time after the filling process is 4.5 seconds.

The machine can fill 4-5 aerosol cans per minute (The filling process varies according to the user’s speed in filling the paint into the chamber and placing it in the machine).</li >

The machine is painted with 9002 electrostatic powder paint.

Girmaksan  reserves the right to change the design of the machine.

The dimensions of the unpackaged machine are 260*380*830 mm.

The dimensions of the packaged machine are 310*440*890 mm.

The weight of the machine without packaging is 44 kg.

The weight of the machine with packaging is 54 kg.
