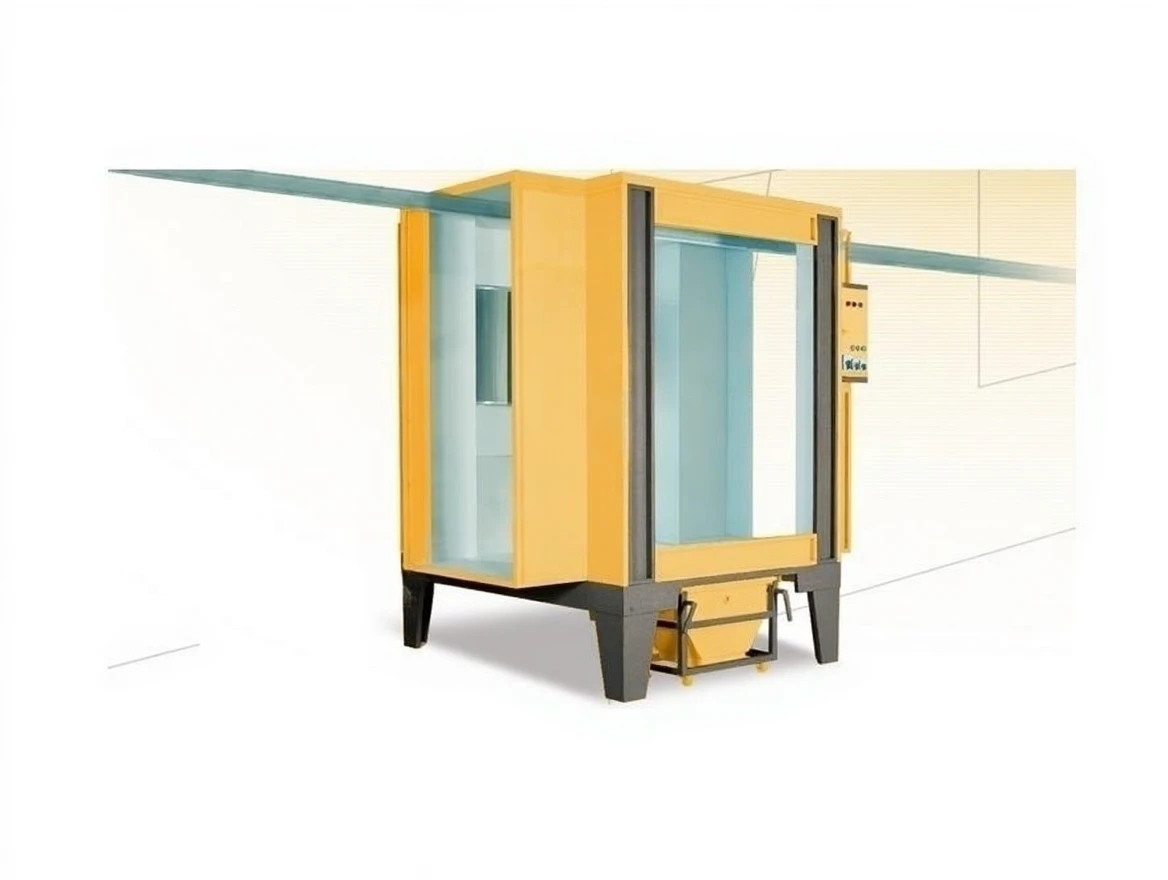

Electrostatic Filtered Conveyor Pass Powder Coating Cabin
| Brand | Elektrosprey |
|---|---|
| Model Type |
FT 320 |
Spray Metal FT 320
Electrostatic Filtered Powder Coating Cabin
Conveyor Pass
It is used by many manufacturers in the Powder Coating Industry.
Filtered Powder Coating Cabinets are environmentally friendly products with high dust retention capacity.
Filtered cabinets are preferred for easy color change.
In Filtered Powder Coating Cabinets, the dust paint particles absorbed by the fan adhere to the filter.
The dust paint particles adhering to the filter are discharged into the cabin through automatic blow-off valves.
The dust paint particles poured into the cabin are transferred to the sieve system or drawer located under the cabin, separated from foreign materials, and then transferred to the Powder Coating Gun Reservoir.
The number of filters in the cabin is determined by the fan flow rate, the size of the part to be painted, and the number of guns in the cabin.
Filtered Powder Coating Cabinets are produced from Stainless Steel, PVC, ST 37 (Painted Sheet), or Galvanized Sheet material based on customer preference.
Spray Metal FT 320 Technical Specifications
-
Powder coating cabinets are manufactured modularly from 1.5mm and 2mm DKP sheet.
-
They can be manufactured from ST37 (Painted Sheet), Galvanized sheet, PVC, or stainless steel material upon request.
-
All parts of the cabin are disassembled and all connections are bolted.
-
The inner and outer surfaces of the cabins are coated with electrostatic powder paint.
-
An automatic sieve reservoir can be added to the bottom of the cabin optionally.
-
The dust paint accumulated in the cabin filters can be reused.
-
Reverse pressure is applied to the filters to prevent paint accumulation.
-
Filter blow-off can be done manually or automatically upon request.
-
The powder paint filters are Ø320x600mm in size.
-
The powder paint filters have a dust retention capacity of 10 microns.
-
The suction fans used in the powder coating cabin are radial type.
-
Special manufacturing is done outside of the standard.
