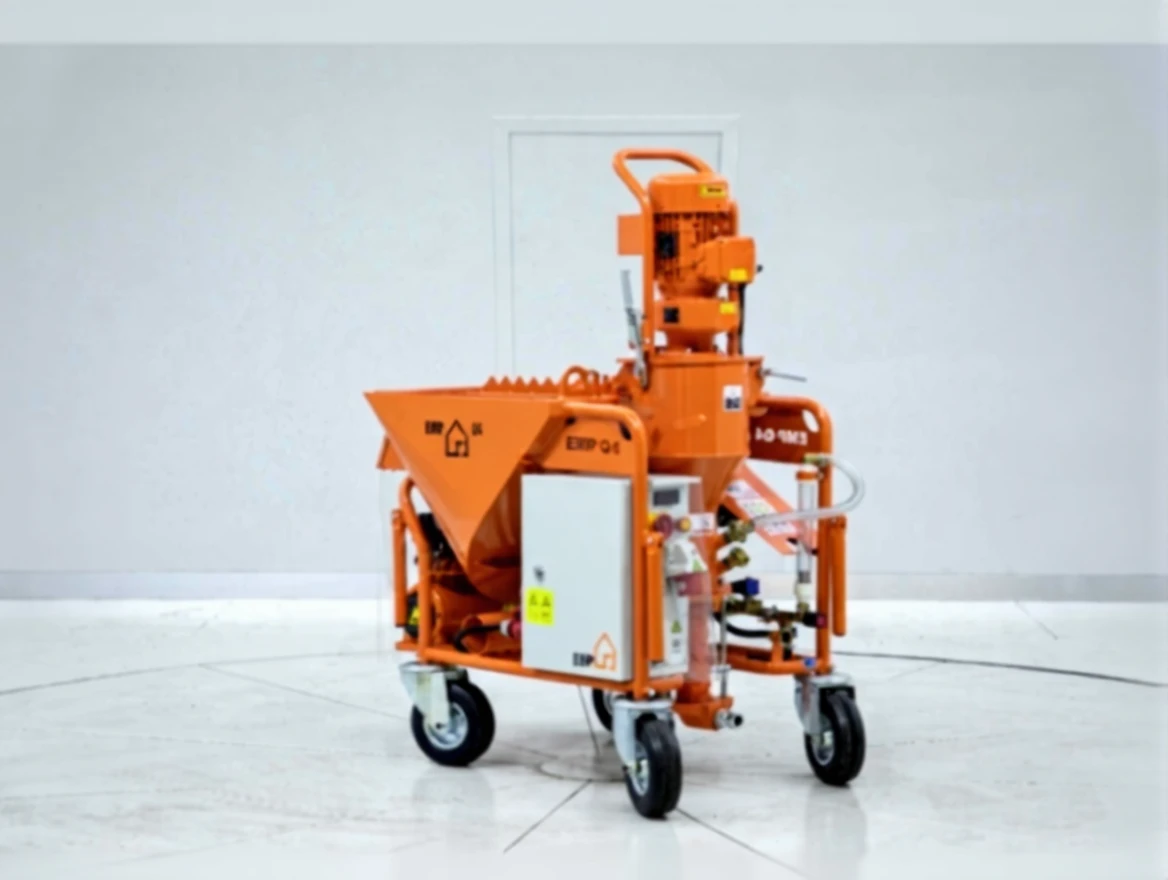

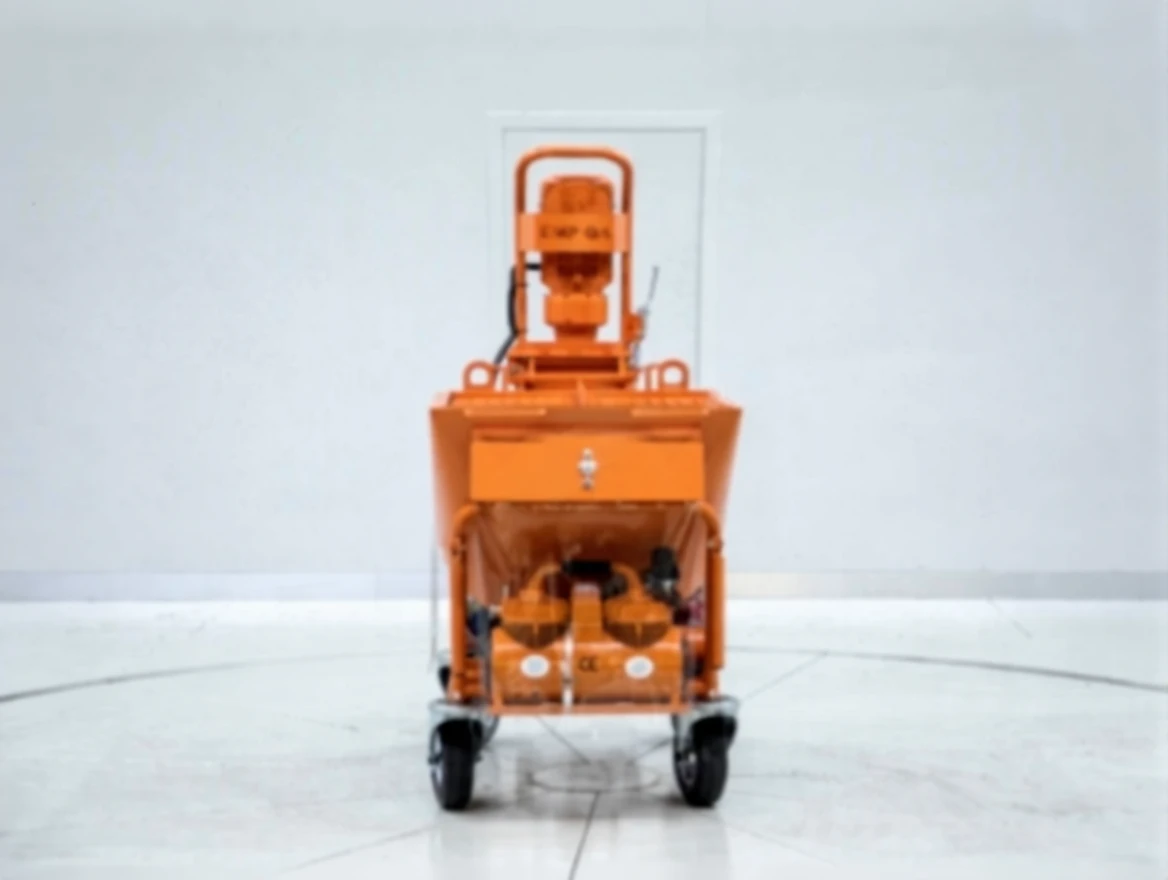

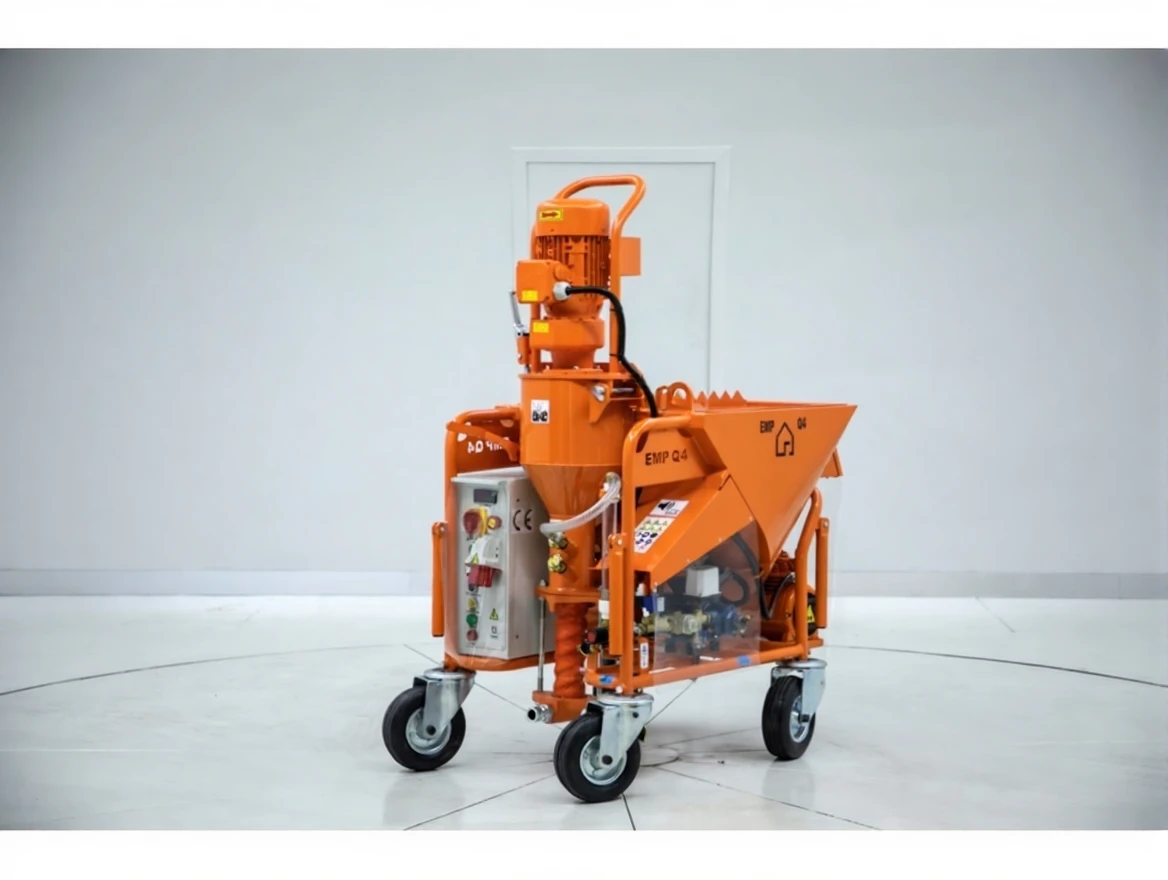

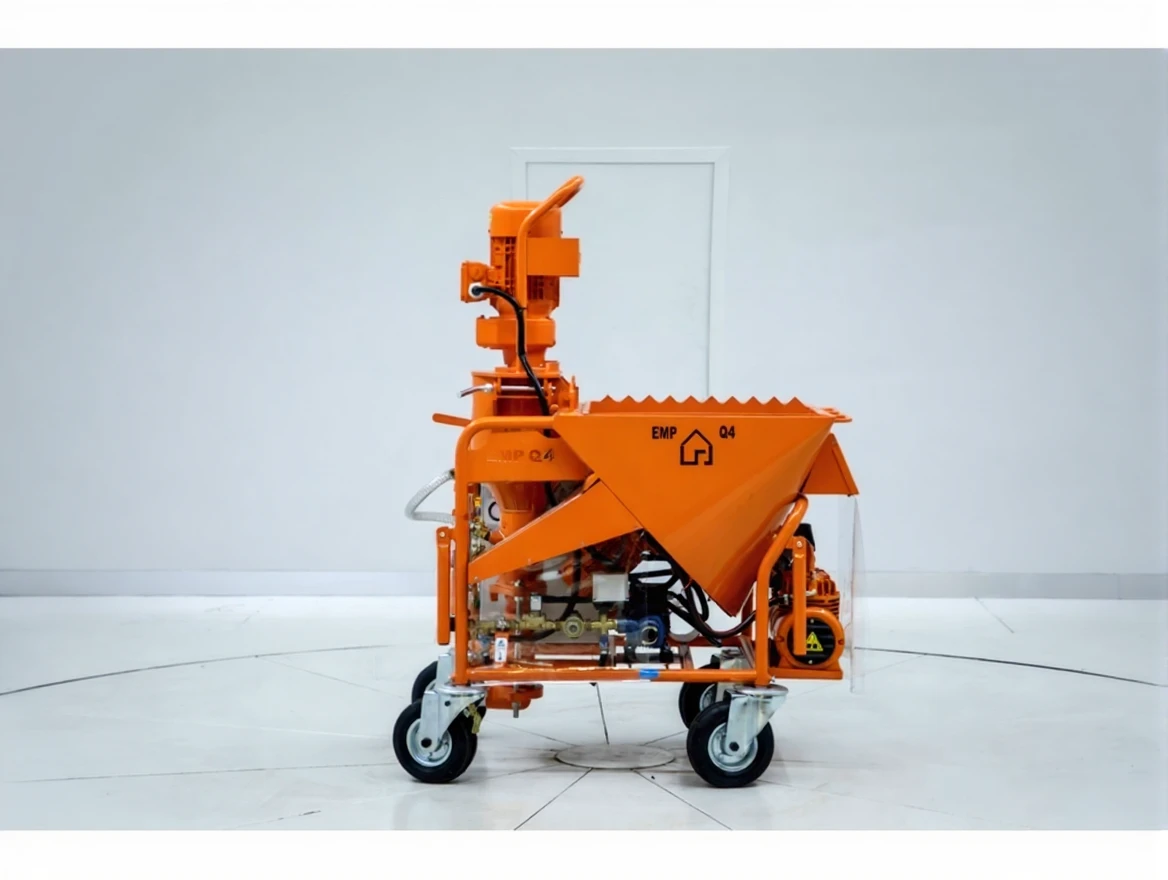

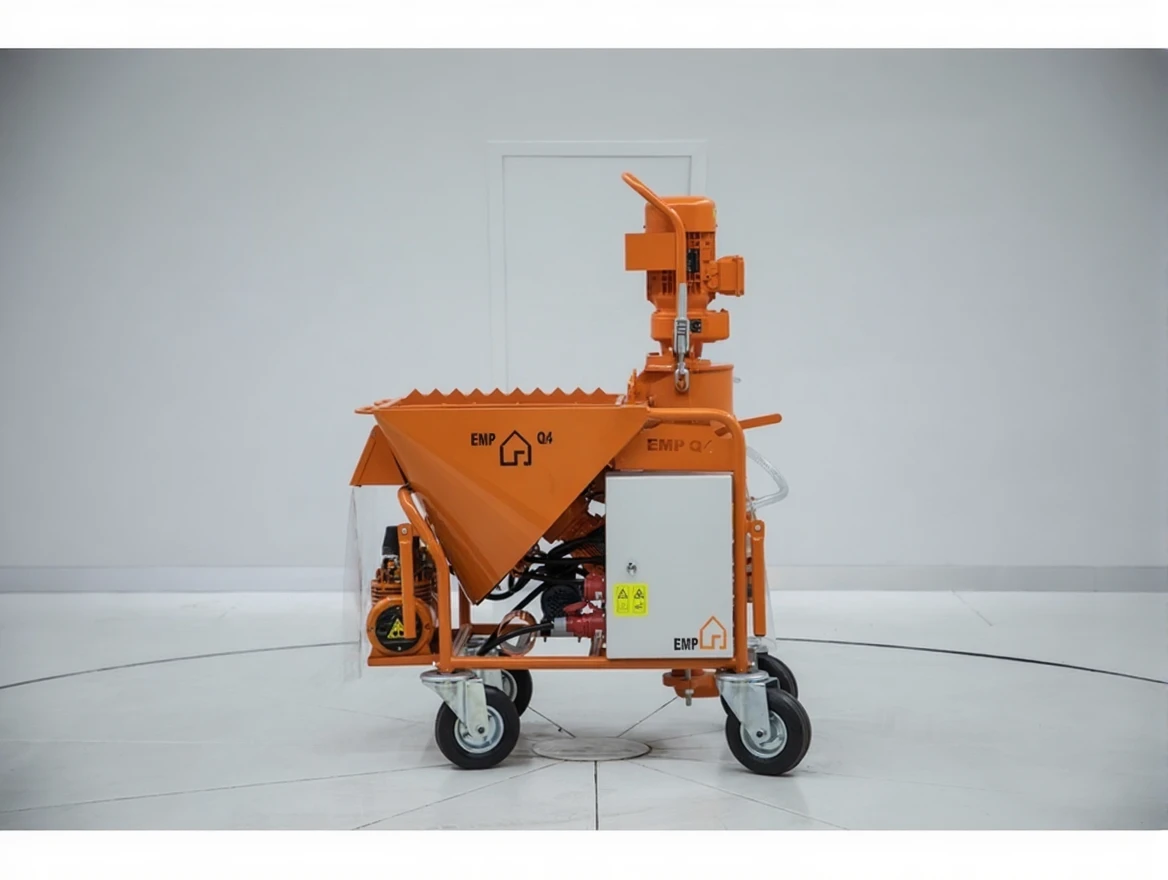

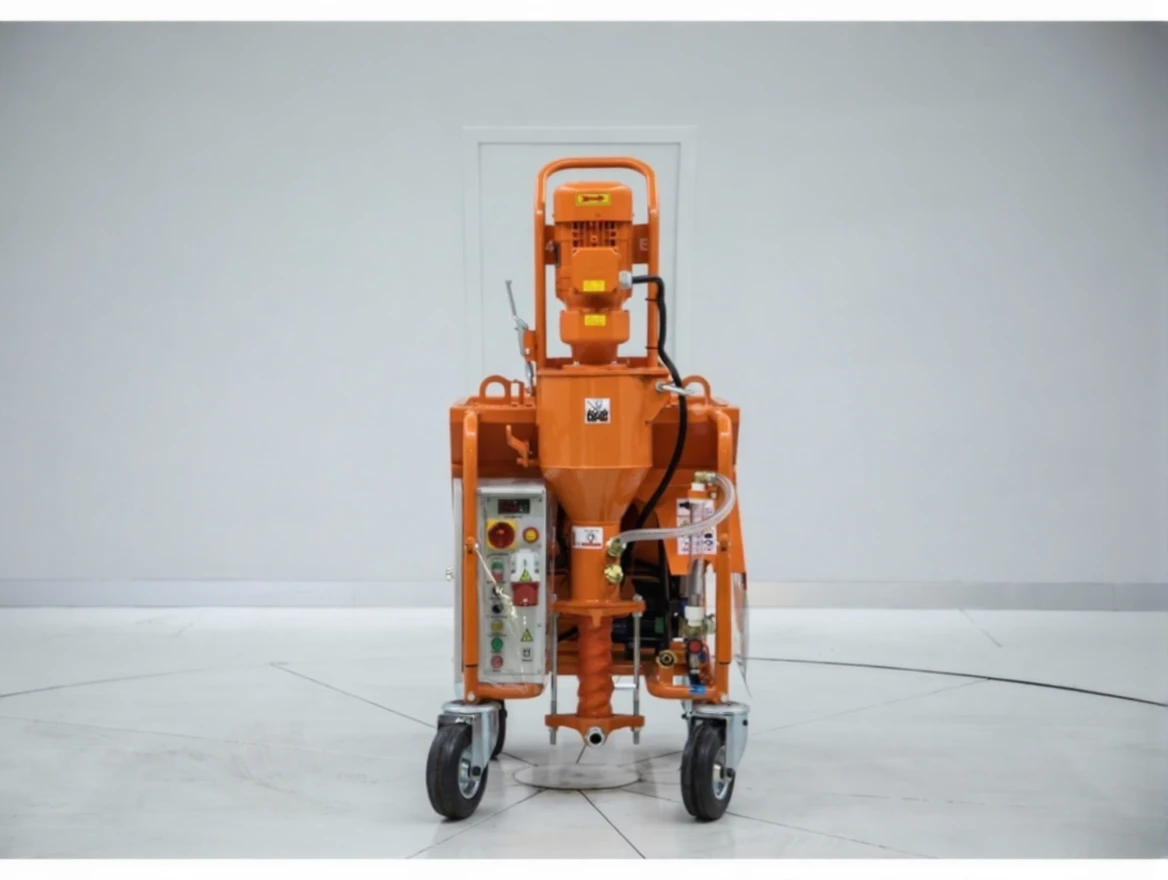

Emp Q4 Next Generation Gypsum Plaster Machine

Empati Makina Emp Q4

Emp Q4 Next Generation Gypsum Plaster Machine

Standard Equipment

• Pump set – D6-3

• Gearmotor (mixer) 5.50 kW

• Gearmotor (mill)0.55 kW

• Mortar hose 40 bar Ø 25 mm, 15 m, with coupling

• Air hose 12 mm 16 m, with Geka coupling

• Water hose with 3/4 valve, 7m

• Control panel with phase sequence relay (protection fuse)

• Spray gun (long slide) Ø 25 mm, nozzle 14 mm

• Electric cable 4*6 mm2 TTR, 33 m

• Compressor, 250 l/min. 6 bars

• Water pump 0.5 HP

• Water flowmeter 150-1,500 l/h.

• Mixer shaft

• Cleaning apparatus

• Cleaning ball 30 mm, 2 pieces

• War

• Tool set

• Cleaning war

• 6cm spatula

• Wire brush

• Utility knife

• Manual rotor removal tool

Application Areas



Fabricated dry premixed pumpable mortars of the following pumpable types

• Plaster mortars

• Injection mortars

• Reinforcement and adhesive mortars

• Self-leveling screeds

• Lime-gypsum mortars

• Cement mortars

• Lime mortars

• Lime-cement mortars

• Fango materials

• Insulation plasters

• Embedded mortars

• External rough plaster

• Surface screed

• Wall mortar

• Premix (premixed box) mortar

• Insulation materials and much more…

EMP Q4 New Experience in Quality and Value

• The difference is in the details.

• Consolidated pipe casing can easily withstand large loads.

• Maximum stability thanks to the solid frame structure with consolidated wheel support.

• Safe transportation with four handles at the same height and reliable folding mechanism.

• It does not suffer any damage as its parts and switches are protected on the inner contour of the enclosure.

• Greater transport safety as there are no protruding plugs.

• Large control box: excellent maintainability and optimized dust protection.

• By tilting the pump to the side, it provides improved water output and optimum frost protection as remaining water can be completely drained.

• Also available as a switchable version FU 230/400.

• Smooth operation thanks to small mesh and large diameter fine filters.

• Easy replacement of faucet parts.

• Easy to install mixing pipe with the help of the new mixing pipe support.

• Easy cleaning and maintenance thanks to optional, interchangeable rubber mixing zone.

• Safe transportation thanks to four carrying handles of the same height and reliable folding mechanism.

• Better carrying possibility thanks to two additional handles on the container.

• Suitable toolbox to support the mixing tube cleaning unit and clean the shaft and/or spray gun.

• If transportation is done by crane, the air compressor is automatically fixed during transportation.

• The tool box on the air compressor and optionally available splash covers protect the compressor from dirt.

• Metal cover and optionally available PVC protective foil protect the connection parts from dirt.

• Integrated fixture for rotor switch.

• Very maintenance-friendly thanks to the trouble-free accessibility of tap parts and pressure switches.

• Since the protective grid remains inside the material feeding container, the injection hood can be put into operation safely. Thanks to the redesigned support, better adjustment of the injection hood is possible.

• High transport safety thanks to easily accessible and reinforced lifting arms.

• Best protection and transportation thanks to the rotating engine protection frame.

• Low exposure to dust: Subsequent installation of the optionally available deflector element prevents air from swirling in the material feeding container.

• High feed rate, up to 85 l/min in case of leveling screed application, with a simple star wheel change (up to now it was only 55 liters per minute).

• Since the screws are protected from dust, the side feed tray nut can be easily opened even after a long period of operation
