EPS Block Machine
| Brand | İzomak |
|---|---|
| Model Type |
DBM-4000 |
Description

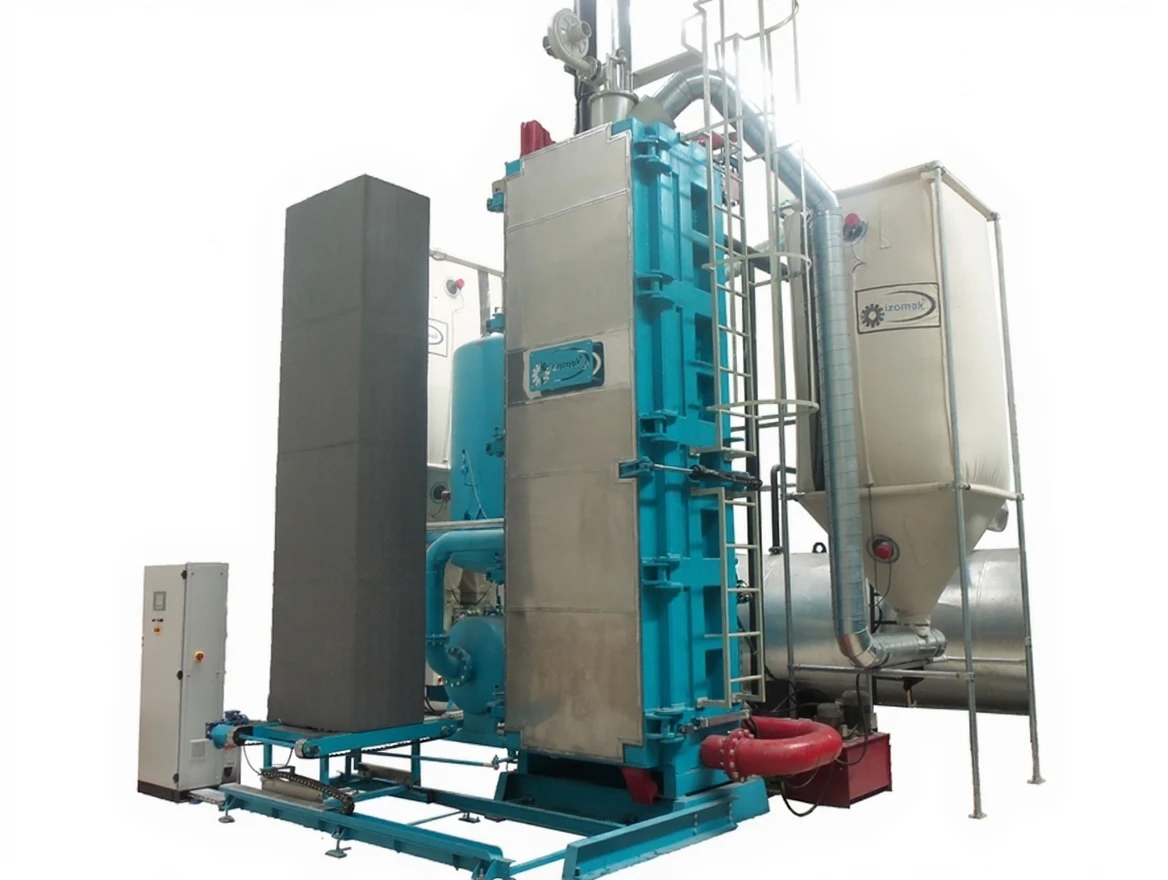

EPS Block Machine
Izomak DBM 4000
Technical Specifications and Capacity
| IZOMAK 4000 – DBM | ||
|---|---|---|
| Molding Dimensions (LxWxH) | 4000x1000x600 | 4000x1200x1000 |
| Steam Operating Pressure | Max 1.2 bar | Max 1.2 bar |
| Steam Consumption | 30-50 kg/cycle | 60-100 kg/cycle |
| Air Operating Pressure | 6 bar | 6 bar |
| Total Power | 13.05 kw | 16.55 kw |
| Capacity | 18-20 blocks/hour | 15-17 blocks/hour |
Izomak EPS Block Machine has the following features:
- Ability to produce between 8-40 kg/m³ densities.
- Ability to operate with and without vacuum.
- Easy access to machine production equipment.
- Material filling silo.
- Ability to fill quickly with vacuum filling system.
- Special seal design that eliminates steam leaks.
- Material pressure control system that shortens the machine’s waiting time.
- Stainless steel steaming plates.
- Pressure safety valve.
- Easy to clean plate system.
