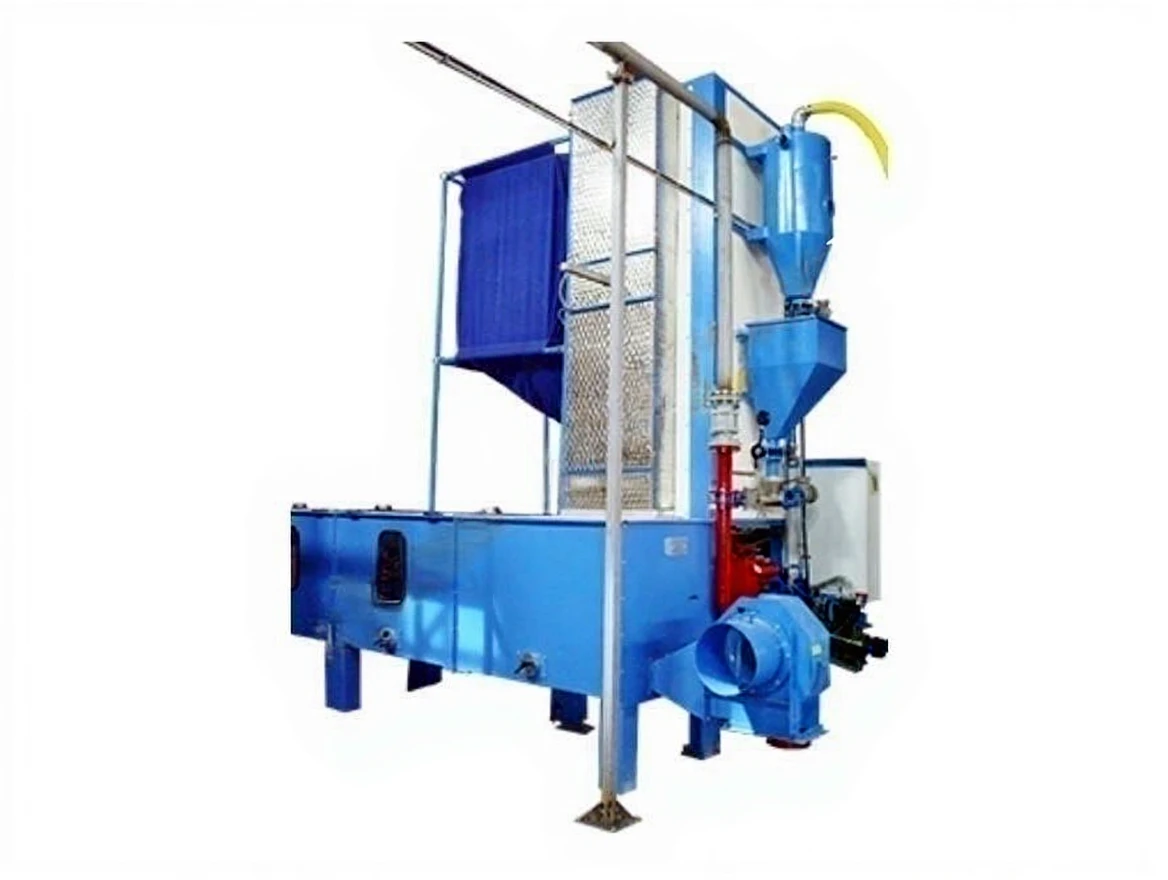

EPS Blowing Machine

EPS Blowing Machine

Izomak Continius

Body Group

• Automatic raw material feeding.
• Control system with PLC and touch panel.
• Temperature and overcurrent control.
• Body insulated with 10cm rock wool.
• Operating Range: 10 – 40 kg/m3 Density.
• Production efficiency is 2 to 3 times higher than an ordinary machine.
• Therefore, it can reduce energy consumption by 25%.
• AISI 304 quality body and mixing group.
• Easy to change bearing and seal system.
• Mixing Motor.
• 1.8 m3 Volume.

Drying Chamber

• Drying Fan.
• Expanded drying surface dryer.
• 3.6 m3 Volume.

Conveyor Rotary

• Conveyor fan.
• Sieve system.

1st Blowing Unit

• Densities below 13 – 40 kg/m3, 500kg-18g/l or 700kg-20g/l (may vary ± %10 depending on the ambient temperature and the properties of the raw material used).
• Automatic filling.
• Filling screw and raw material bunker.

2nd Blowing Unit

• Density 7-14 kg/m3.
• 2nd blowing dosing silo.
• Silo level sensor.
