EPS Blowing Machine
| Brand | İzomak |
|---|---|
| Model Type |
Batch 1600 |

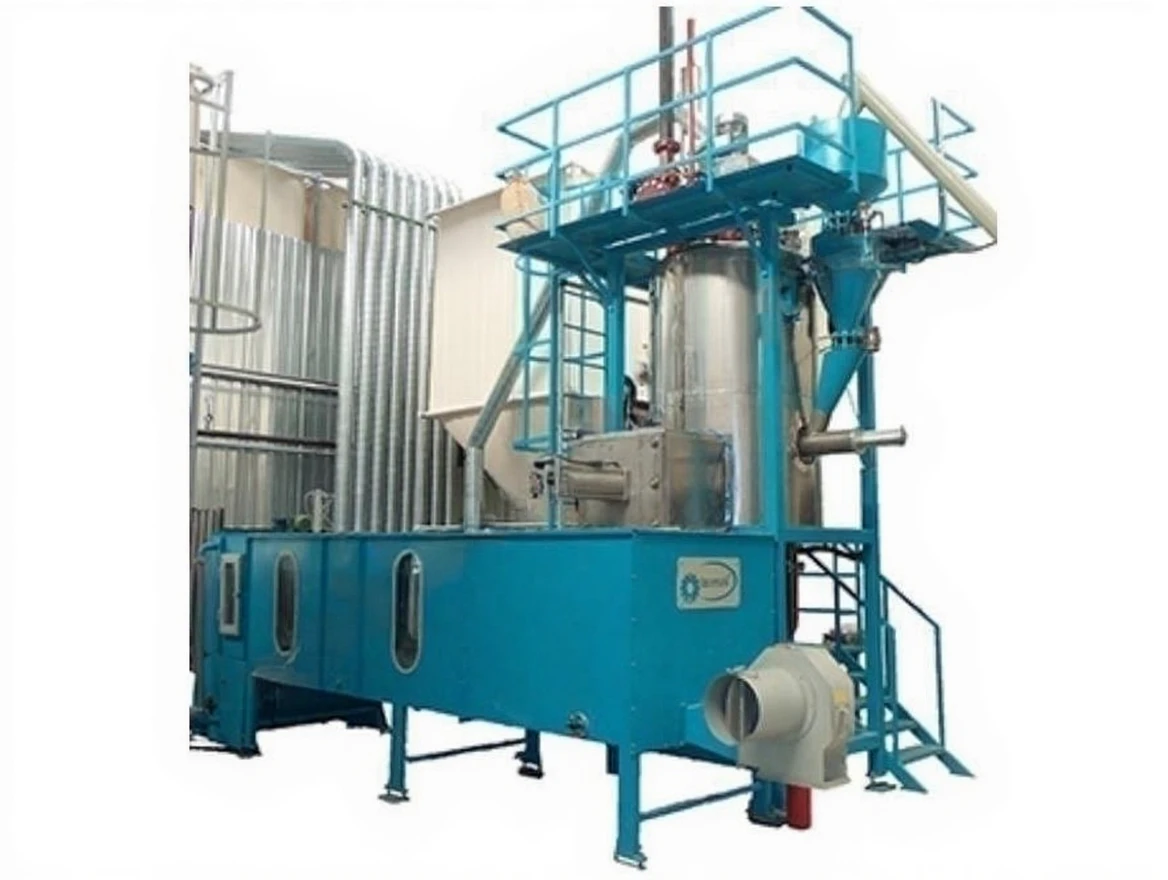

EPS Blowing Machine
Izomak Batch 1600
Technical Specifications and Capacity
| IZOMAK 1600-B | |
|---|---|
| Steam Operating Pressure | Max 0.3 bar |
| Steam Consumption | Min 20.8 kg/cycle Max 41.6 kg/cycle |
| Air Operating Pressure | 6 bar |
| Total Capacity | 120 lt/cycle |
| Capacity | 13 g/l (936 kg/s) 15 g/l (1080 kg/s) 18 g/l (1550 kg/s) 22g/l (1900 kg/s) 26 g/l (2244 kg/s) |
| Second Expansion Capacity | 7-8 g/l (60 m3/h) |
- EPS Blowing Machine – Batch Type
- Ability to produce between 7-40 kg/m3 densities.
- Production capability at lower densities with the second blowing unit.
- Electronic controlled mixer safety system to prevent overloading of the mixer.
- Discharge system to prevent mixing of different densities in the drying bed.
- Safety system that cools the machine and steam in case of overload.
- Density control unit.
- Ability to connect a printer for production parameters.
Batch Type EPS Blowing Machine
Izomak Batch Type EPS Blowing Machine includes PLC and touch panel for automatic production tracking, automatic feeding, electronic weighing system, temperature control, and material level control.
With the electronic weighing system and level control system, the density of the material is adjusted to hold the bead particles homogeneously.
The heat and pressure inside the tank are controlled by a high precision pressure control system, ensuring the desired heat and pressure are applied to the particles.
The automatic material feeding system and weighing system increase efficiency.
Closed type fixed pressure tank has high heat efficiency. It provides 50% energy savings compared to continuous blowing.
The machine is connected to a fluid drying bed. This bed automatically dries the blown particles and sends them to the resting silos after filtering.
