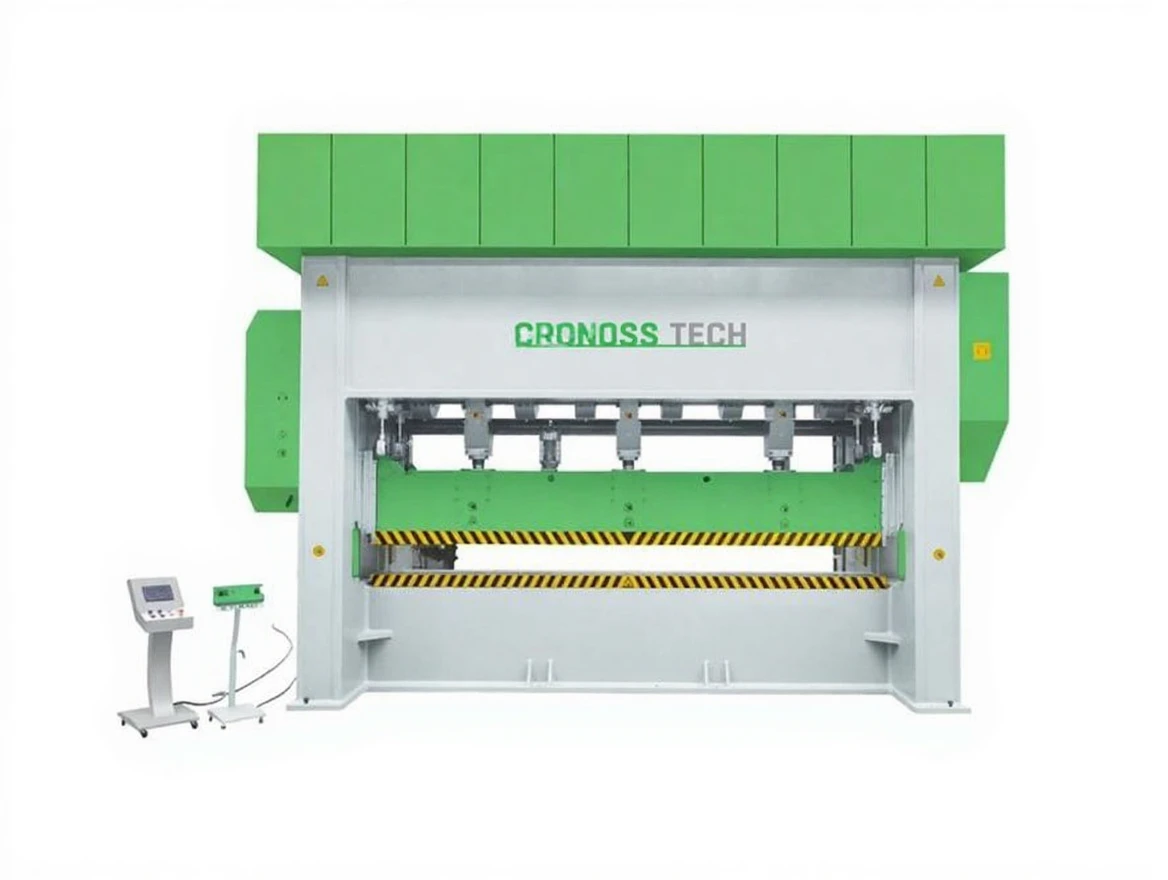

Espagnolette Type Eccentric Presses
| Brand | Cronosstech |
|---|---|
| Model Type |
CEEHP 200-300-400 |
Description
Camlock Type Eccentric Press – CEEHP Series ([ PHONE HIDDEN ] Tons)
Standard Features
-
Steel construction body
-
Pneumatic clutch – brake system
-
T channel additional ram plate
-
8 point gib guided ram
-
Adjustable stroke on single crank arm
-
Balancer piston on ram
-
Full automatic thin oil lubrication system
-
PLC control system
-
Grand piano type control panel
-
Touchscreen LCD screen
-
Motor reverse movement
-
Overload hydraulic fuse
-
Motorized ram adjustment mechanism
-
Photoelectric safety curtain
-
Gear arrangement in closed oil tank
-
Double coiled safety valve
-
Compliance with CE standards
Optional Features
-
Press feeding systems
-
Waste material unloading systems
-
Sliding safety cover in front of the table
-
Mold with desired specifications
Technical Specifications
| Feature | CEEHP 200 | CEEHP 300 | CEEHP 400 |
|---|---|---|---|
| Capacity | 200 Tons | 300 Tons | 400 Tons |
| Stroke (Fixed) | 60 mm | 60 mm | 80 mm |
| Speed | 70 spm | 65 spm | 60 spm |
| Table – Ram Distance | 400 mm | 400 mm | 400 mm |
| Table Dimension | 400 × 3000 mm | 400 × 3000 mm | 500 × 4500 mm |
| Max. Mold Height | 340 mm | 340 mm | 340 mm |
| Adjustment Distance | 100 mm | 100 mm | 120 mm |
| Side Window Width | 500 mm | 600 mm | 800 mm |
| Motor Power | 18.5 kW | 22 kW | 30 kW |
Manufacturing Information
This machine is manufactured by CronossTech in Turkey.
