FAR-442 Small and Medium Sized Paper Punching Machine

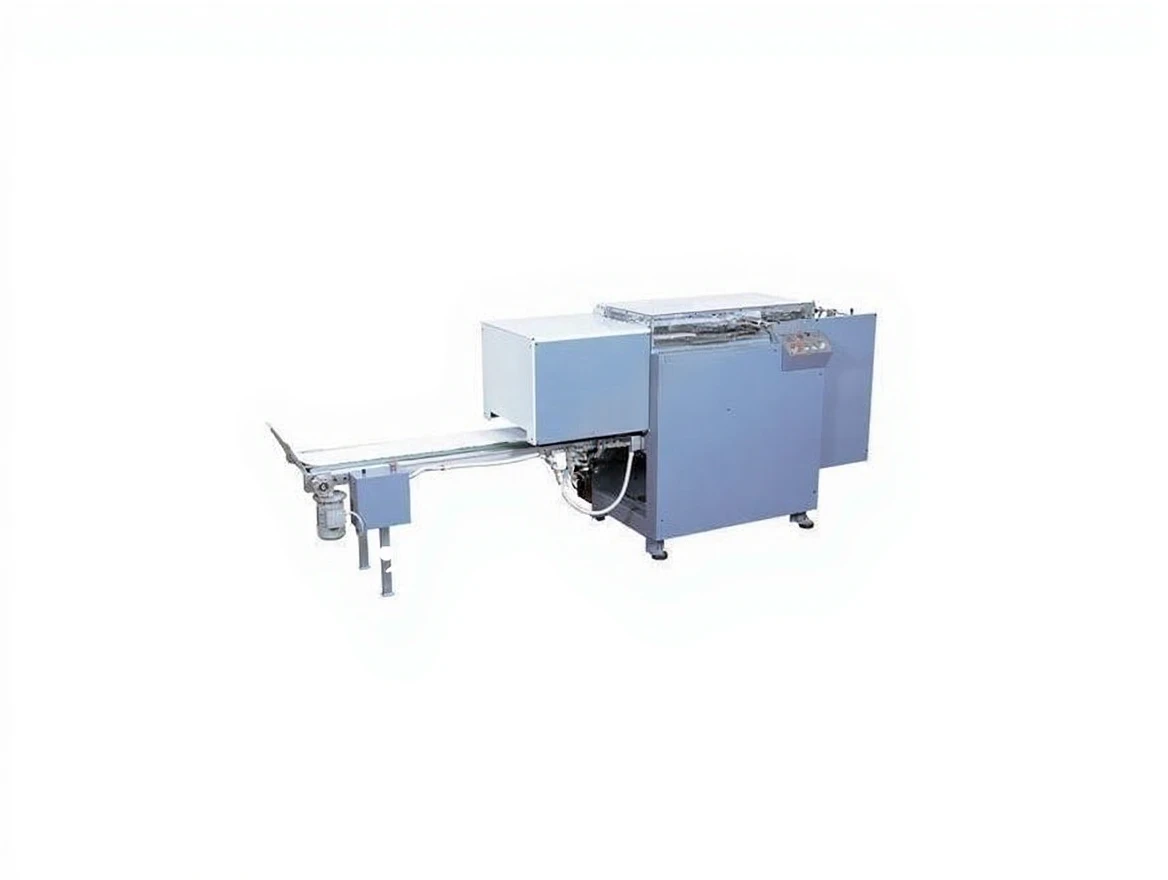

Rilecart Far-442 Small and Medium Sized Punching Machine

This automatic model is designed specifically for punching papers of small and medium sizes.

With the option to use various punching tools and its practical use, it is ideal for agenda and notebook type jobs.

Working Method

After placing materials of different thicknesses (paper, cardboard, etc.) into the machine’s chamber, they are taken in batches of 1.5-2.0 mm from the elevator top and sent to the punching station.

Here, the punched materials are stacked on the collection belt in a fishbone pattern without disturbing their numerical order, using a belt.

Product Features

– Punches a maximum of 2.5 mm (standard 1.5 mm) material per stroke.

– Maximum paper size 400 x 300 mm

– Minimum paper size 110 x 90 mm

– Speed: 150 strokes/min.

– Edge punching distance 2.0 mm – 6.0 mm

– The operator ensures continuous operation by loading continuously

– The collection belt is a variable speed conveyor that collects in a fishbone pattern

Standard Punching Tools

– GF400/3: 400mm, pitch 3:1, 48 holes, 3.7×4.0mm

– GF400/3 4×5: 400mm, pitch 3:1, 48 holes, 4.0×5.0mm

– GF400/2: 400mm, pitch 2:1, 32 holes, 4.7×5.0mm

– GF400/3 4×5 6×6: 400mm, pitch 2:1, 32 holes, 6.0×6.0mm

Other punching tools are provided upon request.
