(FH6) Panel Sizing Machine up to 6 Plates

Panel Sizing Machine Up to 6 Sheets

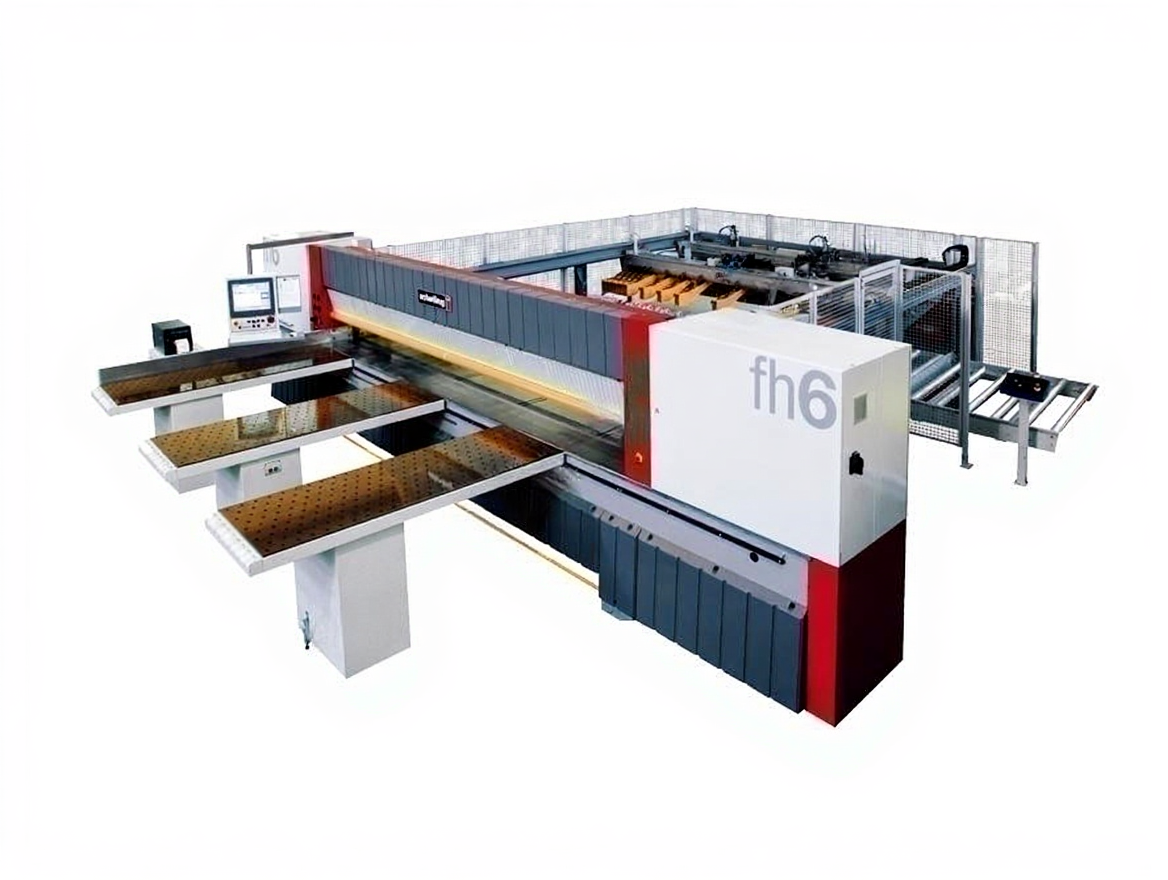

Schelling FH6 is an industrial machine that offers a high-capacity and effective solution for panel sizing operations. Designed especially for large-scale production facilities and workshops, this machine has the capacity to size up to 6 sheets of chipboard and laminate, standing out with its modern technology and durable structure. Schelling FH6 excels with its high performance and excellent cutting quality.

Product Features

• Product Name: Schelling FH6 Panel Sizing Machine Up to 6 Sheets

• Manufacturer: Schelling

Technical Specifications

• Cutting Length: Maximum cutting length can extend up to 4300 mm (for FH6 430 model).

• Panel Feed Speed: Adjustable in the range of 0-80 m/min, compliant with CE standards up to 25 m/min.

• Panel Return Speed: In the range of 0-80 m/min, compliant with CE standards at 0-25 m/min.

• Saw Feed Speed: Adjustable in the range of 0-150 m/min.

• Saw Return Speed: Adjustable in the range of 0-150 m/min.

• Saw Blade Height: 135 mm.

• Holder Opening Height: 125 mm.

• Max. Saw Cutting Height: 120 mm.

• Main Saw Motor Power: 37 HP.

• Scorer Saw Motor Power: 2.5 HP.

• Main Saw Diameter: 460 mm.

• Scorer Saw Diameter: 200 mm.

• Working Height: 970 mm.

• Weight: 13,000 kg (for Elevator FH6 430 model).

Features and Advantages

• Side Pressure: Side pressure according to the cut material can be adjusted precisely with a frequency inverter. This ensures compatibility with different materials and effective cuts.

• Guarantee: A 10-year warranty is provided for the saw carriage bed, ensuring long-lasting and reliable machine performance.

• Cutting Table: Solid steel cutting table increases durability and supports cutting precision.

• Side Supports: Servo motor-driven steel side supports ensure safe material support and smooth continuation of the cutting process.

• Automatic Loading: Automatic loading machines speed up production processes and increase labor efficiency.

• Holders: Dual-piston steel holders push the materials up to the cutting line, making the cutting process more efficient.

• Chip Guide System: There is a special chip guide system for easy disposal of chips, providing convenience for cleaning and maintenance.

• Dimension Adjustment: Electromagnetic precise pusher measurement adjustment helps achieve accurate and precise cuts.

• Construction: Wear-resistant rack and powerful construction provide long-lasting and durable use.

• Computer Control System: Computer-controlled system ensures minimum waste and excellent cutting quality.

• Saw Height Adjustment: Automatic saw height adjustment according to the number of chipboards to be cut works compatibly with materials of different thicknesses.

• Cutting Line: Specially designed cutting line ensures high efficiency with minimum trimming.

• Capacity: Satisfies the needs of large-scale productions with the capacity to size up to 6 sheets of chipboard and laminate.

• Cutting Program: Special HPO cutting program provides optimum waste and efficient sizing operations.

• Saw Dimensions: 135 mm saw height enables sizing multiple sheets simultaneously. With a 460 mm main saw and 200 mm scorer saw diameter, it offers a wide cutting area.

• Motor Power: 37 HP main saw and 2.5 HP scorer motor provide powerful and efficient performance.

• Spare Parts and Service: Prompt provision of spare parts and service support is provided under KADROMAK guarantee.

• Safety Standards: Designed in compliance with CE European safety standard.

• Pneumatic System: Pneumatic saw and scorer changing system provides easy and fast changes.

Schelling FH6 is an ideal choice for high-capacity, durable, and precise machine for industrial panel sizing needs. It enhances efficiency in large-scale production facilities with its high performance and user-friendly features, delivering excellent results.
