Filtered Source Smoke Extraction Machine

ProfAir M5P mini is a mobile filtration unit designed as a single-arm source smoke extraction machine. This unit completely cleans the air in the environment by filtering out welding fumes, similar harmful gases and fumes, as well as unpleasant odors. It prevents heat/cold loss by returning the cleaned air to the environment and provides energy savings.

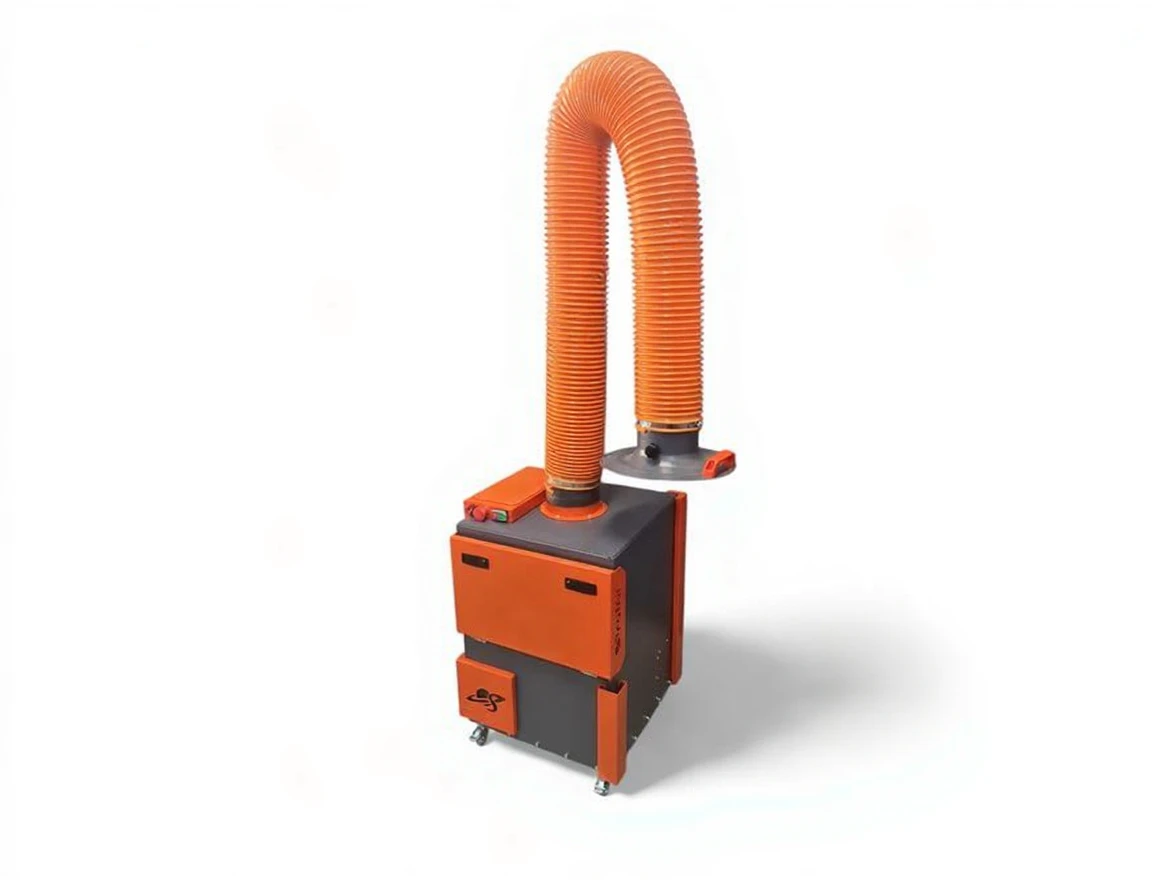

M5P mini Single-Arm Source Smoke Extraction Machine

The product has a single-arm structure with an acrobat arm of 2 meters in length and 160mm in diameter. The filters have the sensitivity to clean particles of size 1 μm and are based on MERV standards.

Recommended for laser marking and stainless steel processing, this unit is suitable for light smoke filtration. For high amperage and processes with intense smoke formation, M Series machines are recommended.

The product comes with a ProfAir F20D 2-meter acrobat arm and filter. It has a filter fullness control system.

It does not take up space in your work area with dimensions similar to a 250A welding machine.

Easy access for filter replacement (Filters can be changed without removing the acrobat arm)

ProfAir M5P mini Technical Specifications

• Voltage: 220V
• Power: 0.55 KW Motor
• Capacity: Fan Flow Rate: 1800m3/s – Air Purification Capacity: 850mᶟ/h – Pressure: 400Pa
• Noise Level: 69DB
• Weight: 55 KG
• Dimensions: 530X740X530mm
• Filter Type: Cassette
• Sensitivity: F9 Class, 9m2, 1 μm
• Cleanability: Disposable
