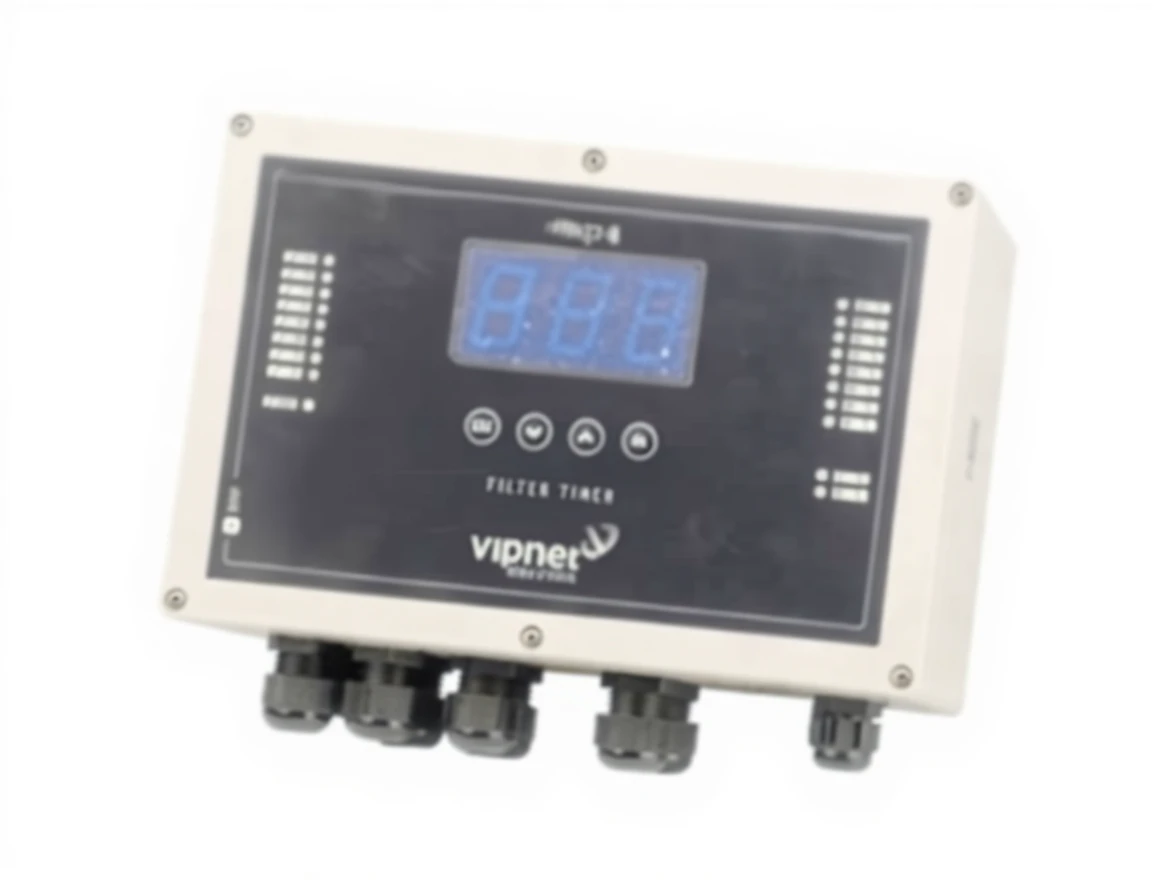

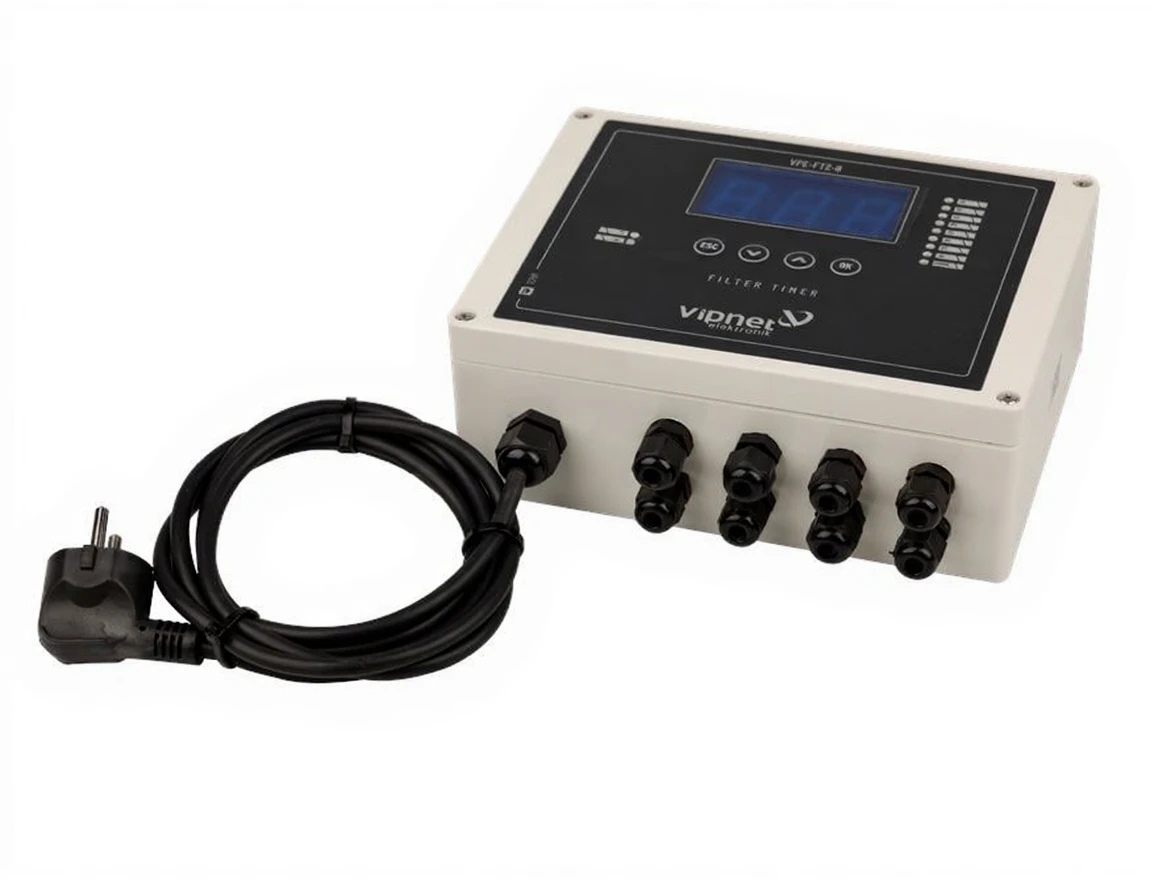

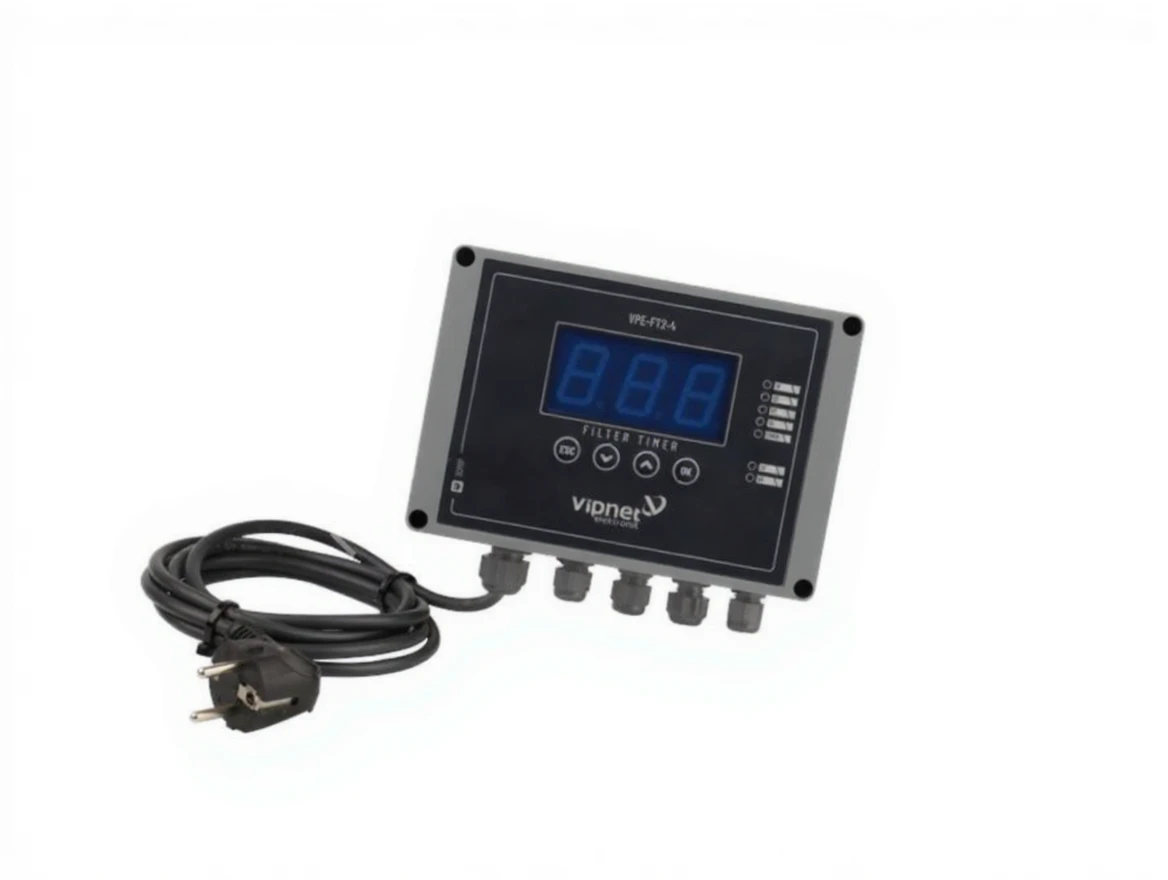

Filtre Zamanlayıcı

Brand

Model Type

VPE-FT2-X

• Filter Timer adjusts the active time of the valve during air discharge and the time between the air discharge valves.
• Filter Timer (4-8-16) consists of independent relay outputs.
• Air and speed settings can be adjusted from the Filter Timer program menu; the active time of the relay and the relay transition time can be set during air discharge.
• Thanks to the pressure transmitter, the system detects errors by measuring the air and provides an alarm to the user. For example, when the set value is not reached, an alarm output is generated after the set alarm time entered in the menu.
• Pressure-related settings can be made from the relevant menu.
• In addition, Filter Timer has local and remote (TCP) control modes. This way, the menu setting can be adjusted remotely or with the up, down, and exit (back) buttons on the device.
• A 220V AC or 24V DC valve can be connected to the device.

Technical Specifications

Product Code VPE-FT2-X

Input Voltage AC 220V

Control Voltage 24V DC / 220V AC

Control Power 18VA

Speed (Range/Time) 0.1 sec – 99.9 sec (Transition time between valves)

Speed Precision 0.1 sec

Air 01 sec – 99.9 sec (Valve open time)

Pressure Transmitter 0 – 999 mBar (Optional)

Relay Output 1-16 pieces
