Fine Screen Drum Filter
| Brand | Tidap |
|---|---|
| Model Type |
TE2000 |
Drum Filter
Tidap TE2000

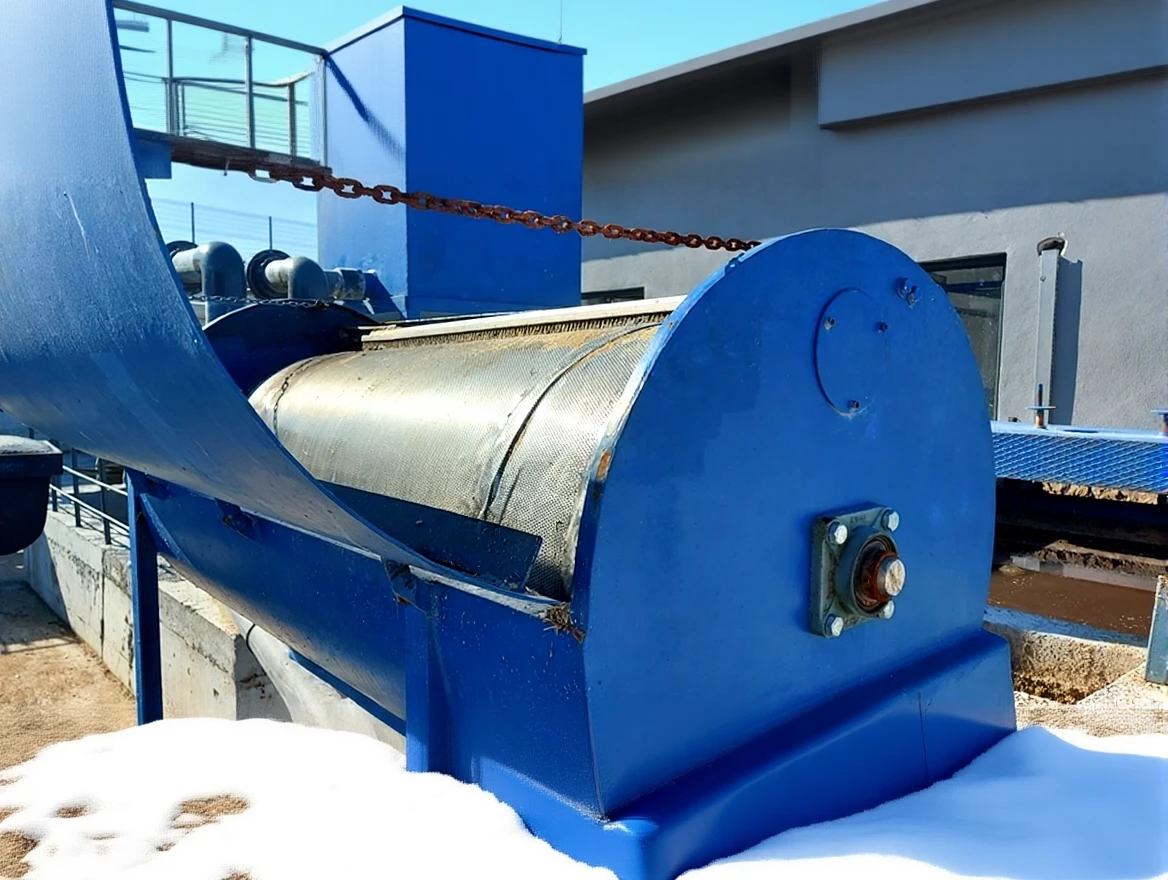

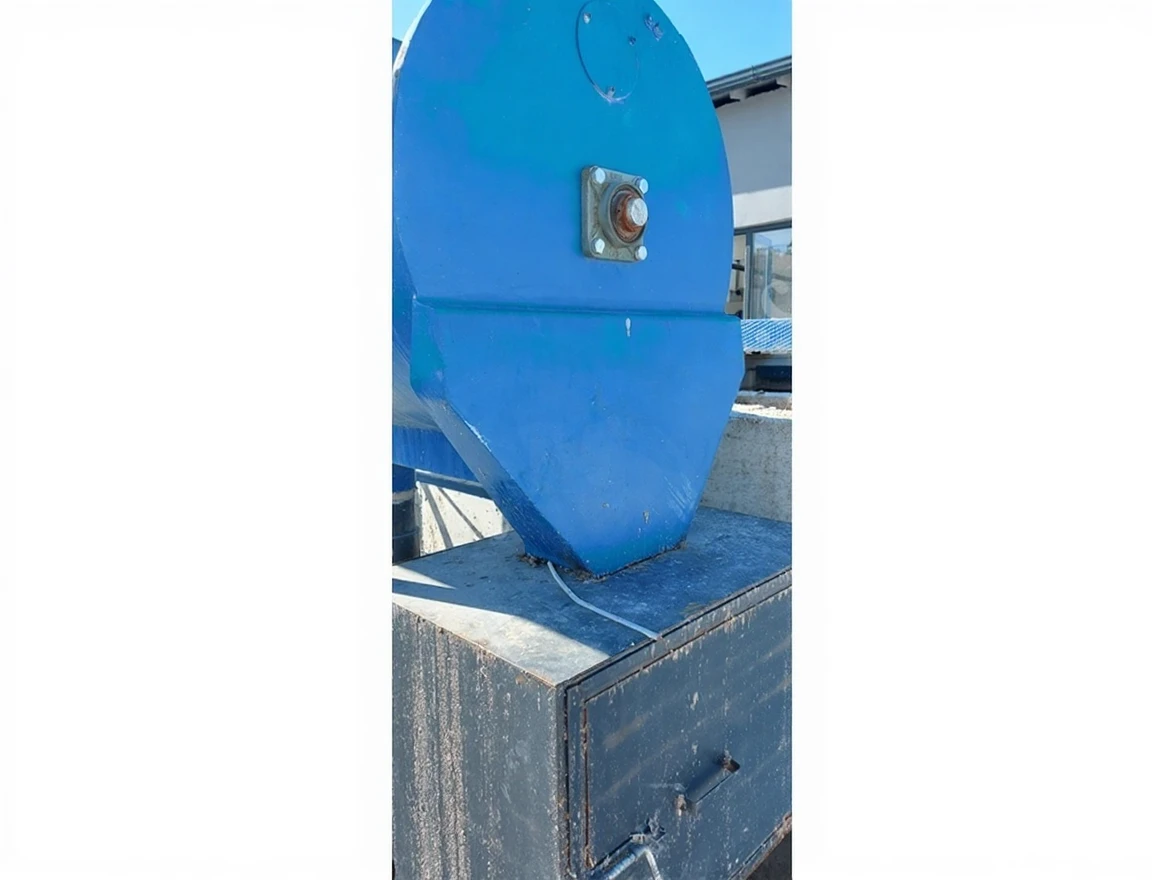

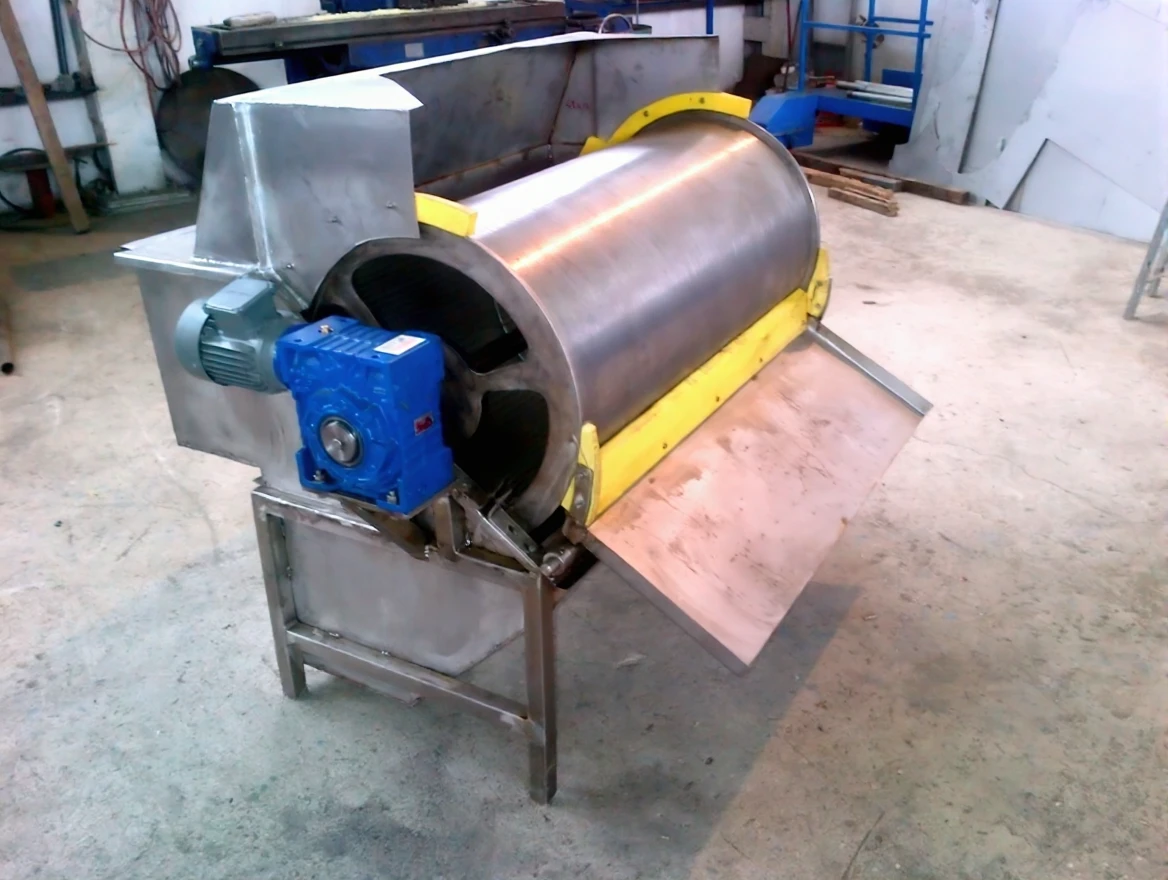

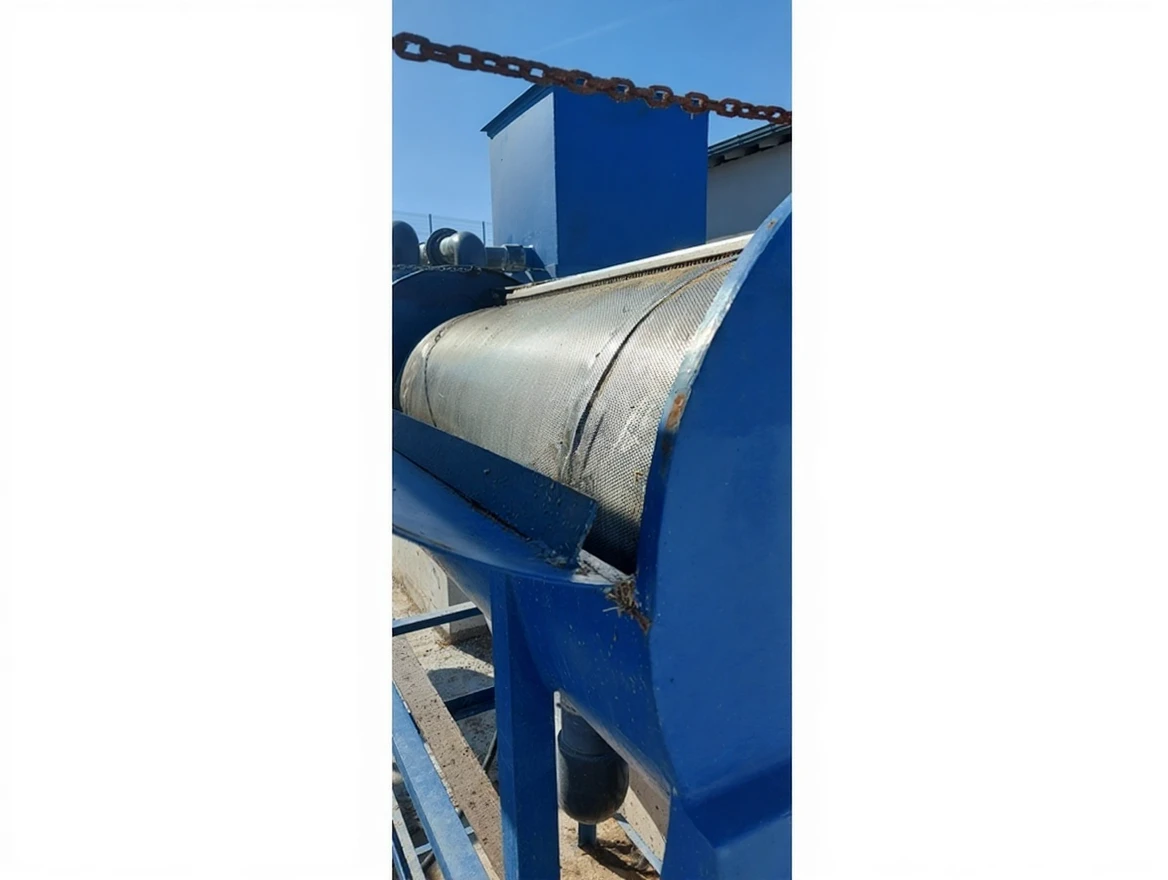

Fine screens with a rotary filter type, also known as drum filters, are equipment used for very fine separation (250-2000 microns). Water and wastewater flow into the cylindrical screen surface, where solid materials are retained inside the screen and collected by a surface cleaning system to be sent to the collection chamber.

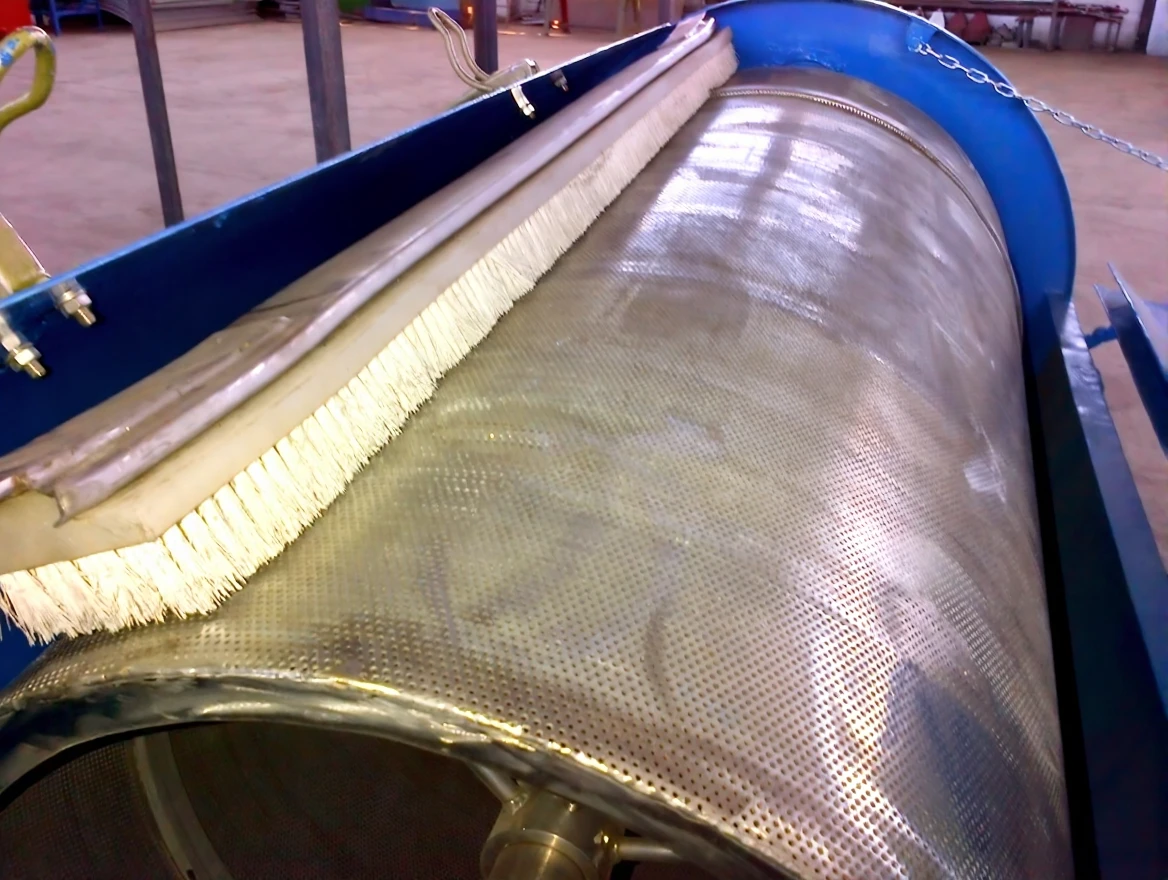

In drum filters that can also be manufactured with external flow, water and wastewater come from the outside to the screen surface, and after solid materials are retained on the surface, they are collected and removed by a cleaning brush. Rotary (drum) filters can be produced from stainless steel, galvanized, or carbon steel coated with suitable epoxy paint upon request.
Areas of Use for Tidap Rotary Drum Filter;
-
Wastewater Treatment Plants
-
Feedlots
-
Slaughterhouses and Abattoirs
-
Dairy and Dairy Products Facilities
-
Fruit and Vegetable Washing – Processing
-
Recycling – Recovery Sector
-
Mining
-
Processes requiring solid-liquid separation
-
Used in situations where process losses need to be prevented.
-
Screen material in AISI304 / AISI316 imported/local options
-
Internal/external flow types according to process needs
-
Motor-reducer
-
Includes water tank, automatic cleaning system.
-
It is a maintenance-free, long-lasting process equipment.
