Flawless Gas Detector Detecting Hydrocarbon Gases and Vapors
| Brand | Crowcon |
|---|---|
| Model Type |
IRmax |
Crowcon IRmax Gas Detector General Features
IRmax is a compact, low-power, and highly durable infrared (IR) gas detector that enables the rapid and accurate detection of methane, butane, propane, and many other hydrocarbon gases and vapors.
The IRmax infrared gas detection system offers continuous calibration options only through the detector, local gas/status indicator, remote gas/status indicator, or an IS calibration tool or handheld HART communication device.
Crowcon IRmax Technical Specifications
|
IRmax |

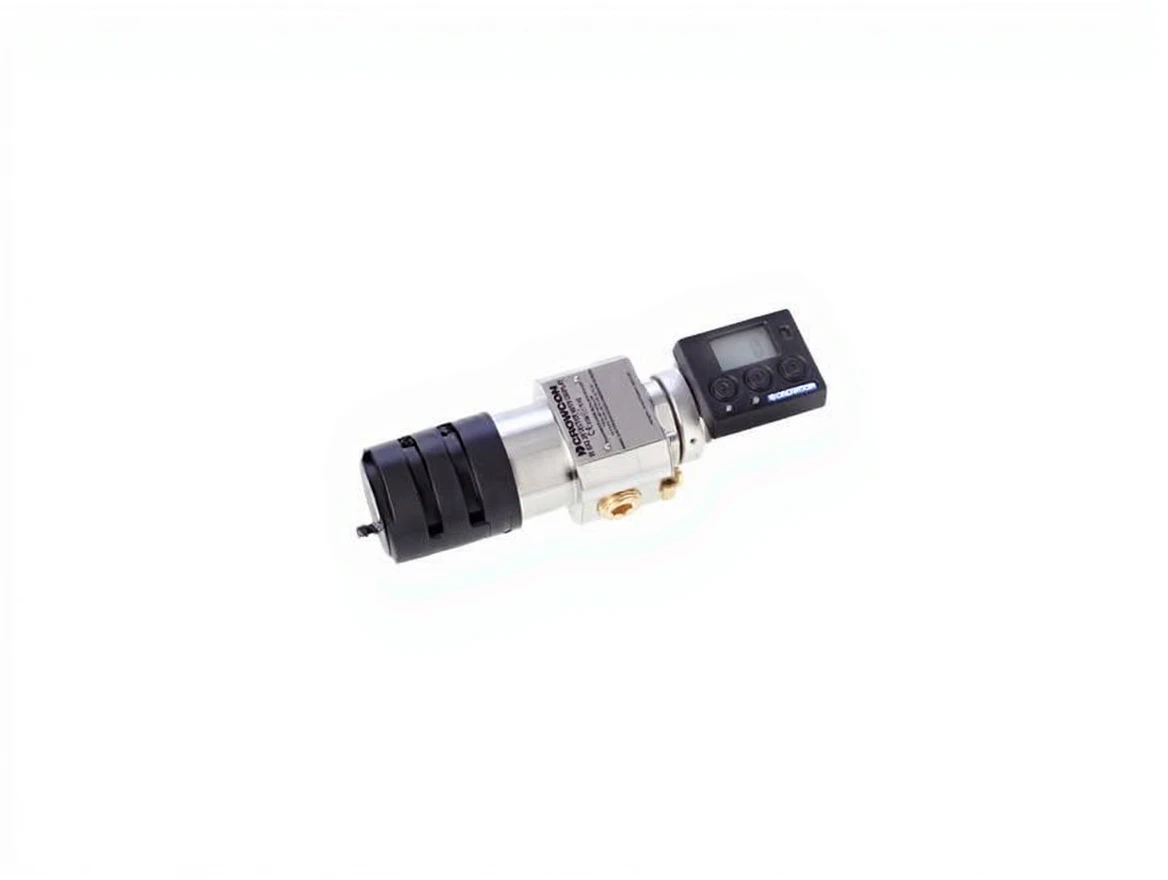

IRmax with Fixed IR Screen |
IRmax with IS Barrier Module |

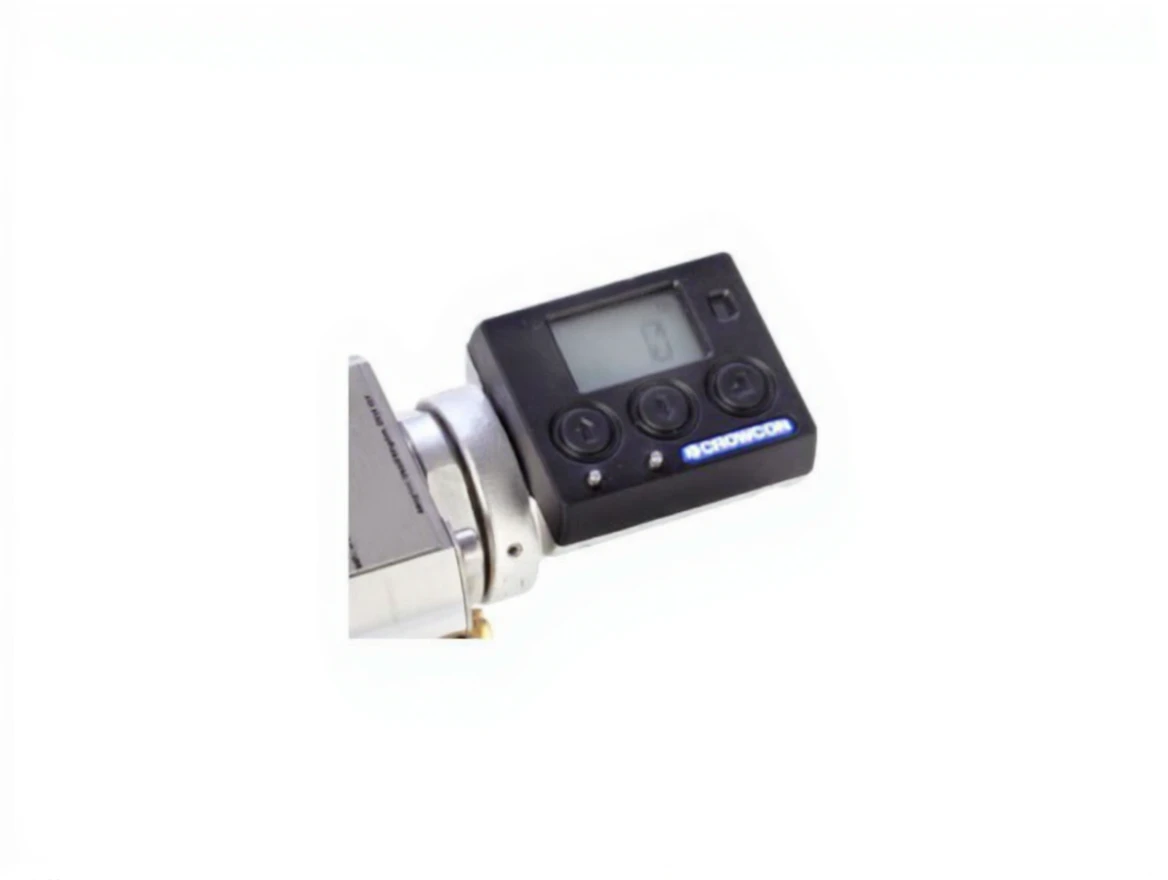

Remote IR Screen |
|
|
Size |
158 x 75 x 57 mm (6.2 x 2.9 x 2.3 in) |
230 x 75 x 57 mm (9 x 2.9 x 2.3 in) |
261 x 75 x 57 mm (10.3 x 2.9 x 2.3 in) |
60 x 54 x 48 mm (2.3 x 2.1 x 1.9 in) |
|
Weight |
1.58 kg (3.5 lbs) |
2 kg (4.4 lbs) |
2.4 kg (5.3 lbs) |
0.2 kg (0.4 lbs) |
|
Ingress Protection |
IP66 |
|||
|
Enclosure Material |
316 stainless steel |
|||
|
Power |
12-30 Vdc. < 1W |
|||
|
Connection |
One M20 or 1/2” NPT cable entry |
|||
|
Electrical Output |
4-20mA current sinking or sourcing |
|||
|
Operating Temperature |
-40°C to +75°C (-40°F to 167°F) |
|||
|
Humidity |
0% to 95% RH non-condensing |
|||
|
Pressure Range |
Atmospheric +/- 10% |
|||
|
Repeatability |
+/- 2% FSD |
|||
|
Zero Drift |
Annual maximum +/- 2% FSD |
|||
|
Response Time |
T-90 <4 seconds |
|||
|
Functional Safety |
IEC61508, EN50402 SIL 2 validation |
|||
|
Certifications |
Ex II 2 GD |
Ex II 2 G |
|
Ex II 2 GD |
|
EMC Compliance |
Directive 2014/30/EU: EN50270, FCC CFR47 Section 15B, ICES-003 |
|||
|
Zones |
Suitable for use in Zones 1 and 2. |
|||
