FLM 1500 30 – 65 Semi-Automatic Film Sealing Machine

Brand Folmak Makine
Model Type

FLM 1500 30 – 65

Category:
Description

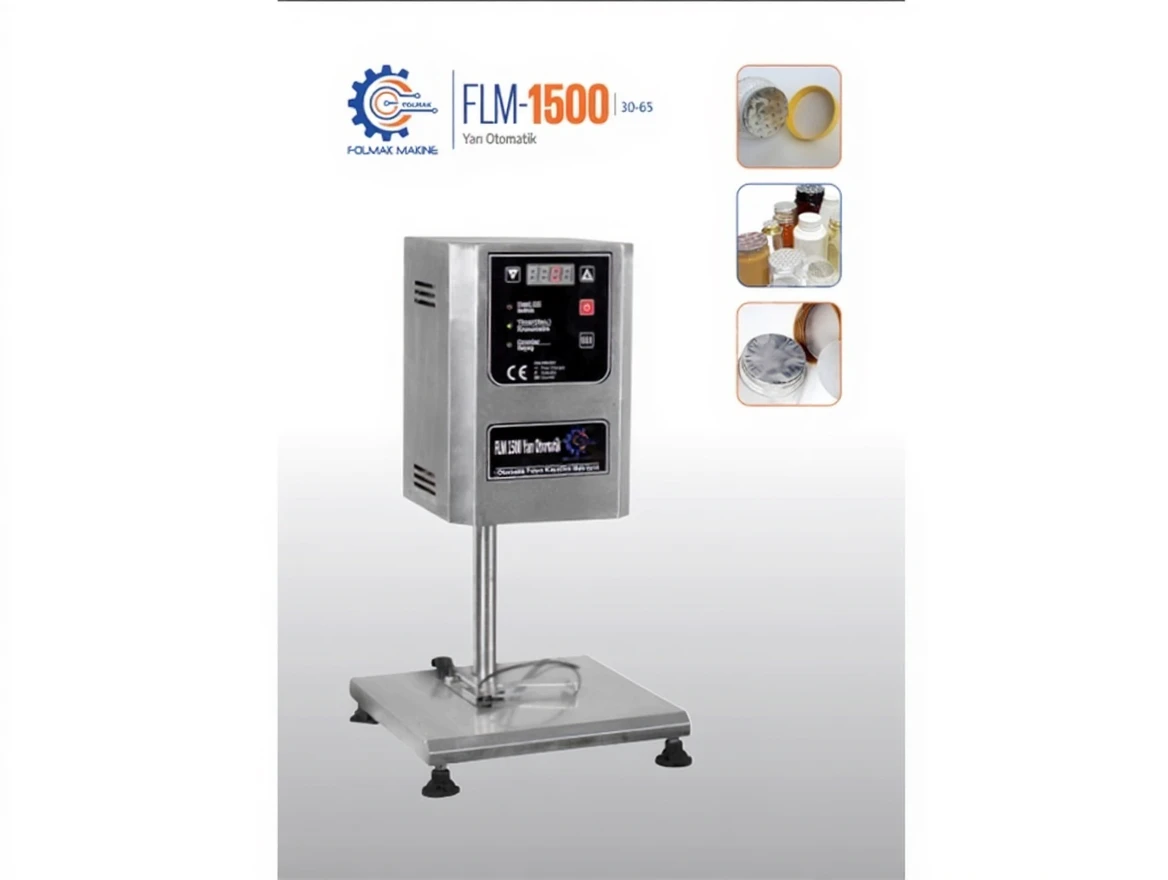

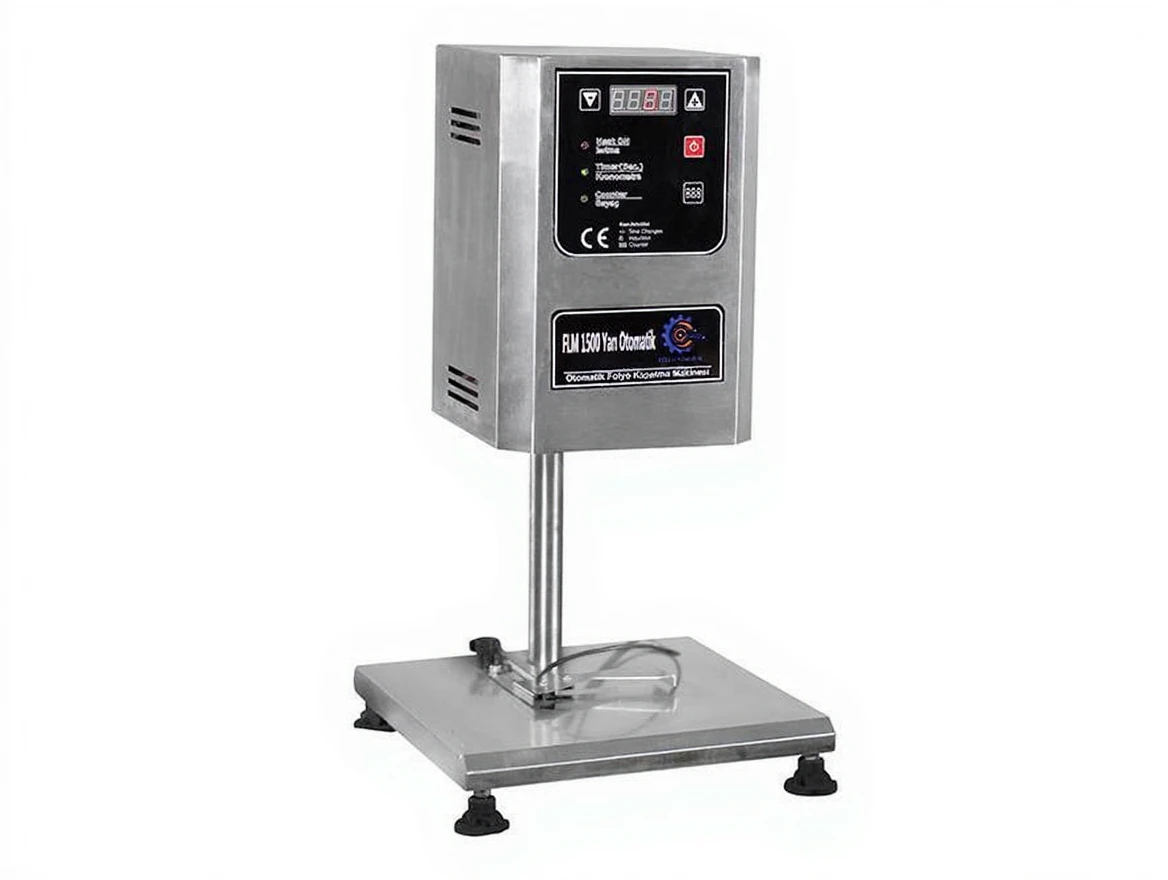

Folmak Machine FLM 1500
30 – 65 Semi-Automatic Foil Sealing Machine FLM 1500


• Designed with an electronic touch panel.
• The entire body and base are made of stainless steel.
• Unique efficiency is achieved with the appropriate design of the electronic circuit.
• It produces an average of 1,000 – 1,500 units per hour.
• The production capacity varies according to the lid diameters.
• It has a design that allows for easy setup on the table.
• The cardboard aluminum laminated foil (seal) placed inside the screw-on / sliding plastic lid adheres to the lid edge without touching it within one or two seconds after the filling process, providing a high-strength seal. It offers high protection for all solid, liquid, powder, and granule products presented in plastic or glass containers in food and other sectors where the lid needs to be sealed until it reaches the end user, and is widely used.
• It is a suitable machine for simple operation.
• It has a three-dimensional capability; the device is controlled with sensors and control buttons.
• With its unique design, it is a device that has the feature of adjustable height for different sizes of bottles and lids.
• It provides leak-proof sealing by adhering the induction foil to the mouth of all types of containers such as plastic, glass bottles, jars, and cans in approximately 2 seconds.
• The sealing time can be adjusted with its touch buttons. (With a precision of one-tenth of a second.)
• It shows the number of foils sealed on its digital display.
• The sealing systems under the lid provide barrier properties against oxygen and moisture in parallel with the product structures, preserving the freshness and properties of the products for a long time.
• It is used in the food, pharmaceutical, and industrial sectors.

Technical Information:
Brand: Folmak Machine
Model: FLM 1500 Semi-Automatic
Foil Diameter It Can Seal: 30mm – 65mm
Bottle / Jar Height: 5cm-30cm (Height adjustment can be made according to conveyor speed.)
Bottle / Jar Types: Non-metal glass or plastic products (ABS, PE, PET, PVC, GLASS)
Conveyor Speed: Tabletop use.
Foil / Seal Type: Cardboard Aluminum Laminated Foil inside the lid
Power: Adjustable 0.8KW – 2KW (It is recommended to increase the power for diameters smaller than 35mm, and to decrease the power for diameters over 40mm.)
Operating Voltage: 220V/50Hz
Operating Frequency: 55Khz(+/-) 5%
Dimensions (Width/Length/Height): 35mm x 35mm x 500mm
Weight: 10 Kg
During the induction process, the lid must be insulating (plastic type or glass); conductive (metal or similar) lids can reflect during the induction process, potentially damaging the induction machine.
