Fluke 110 True-RMS Digital Multimeter

Brand Fluke
Model Type

Fluke 110

Description

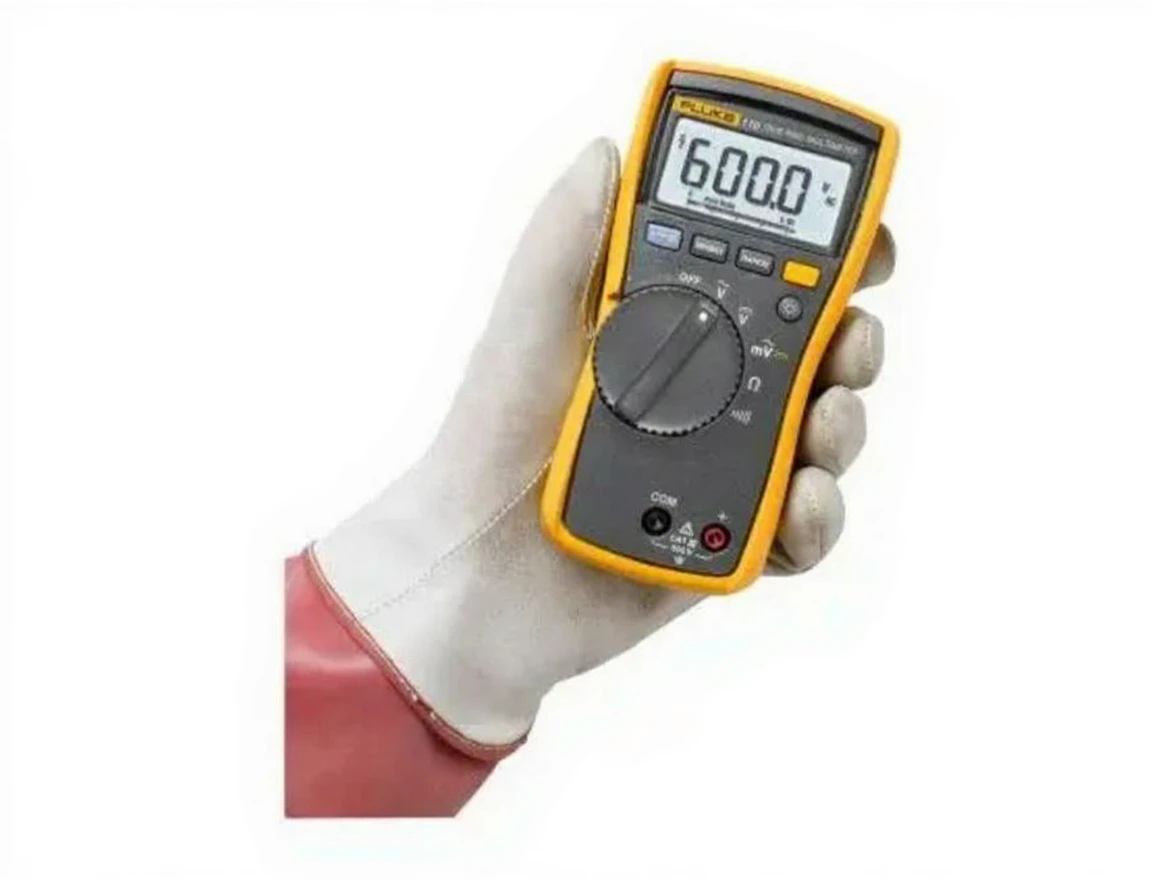

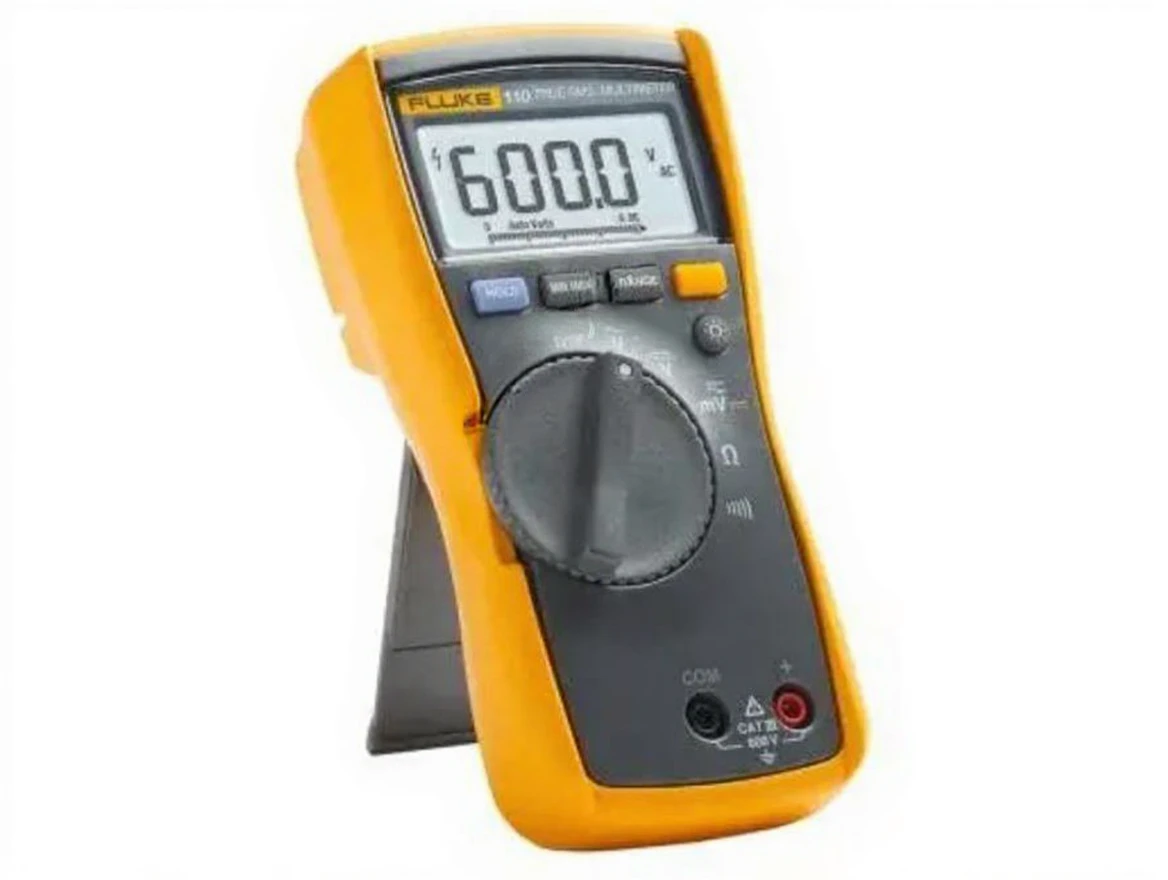

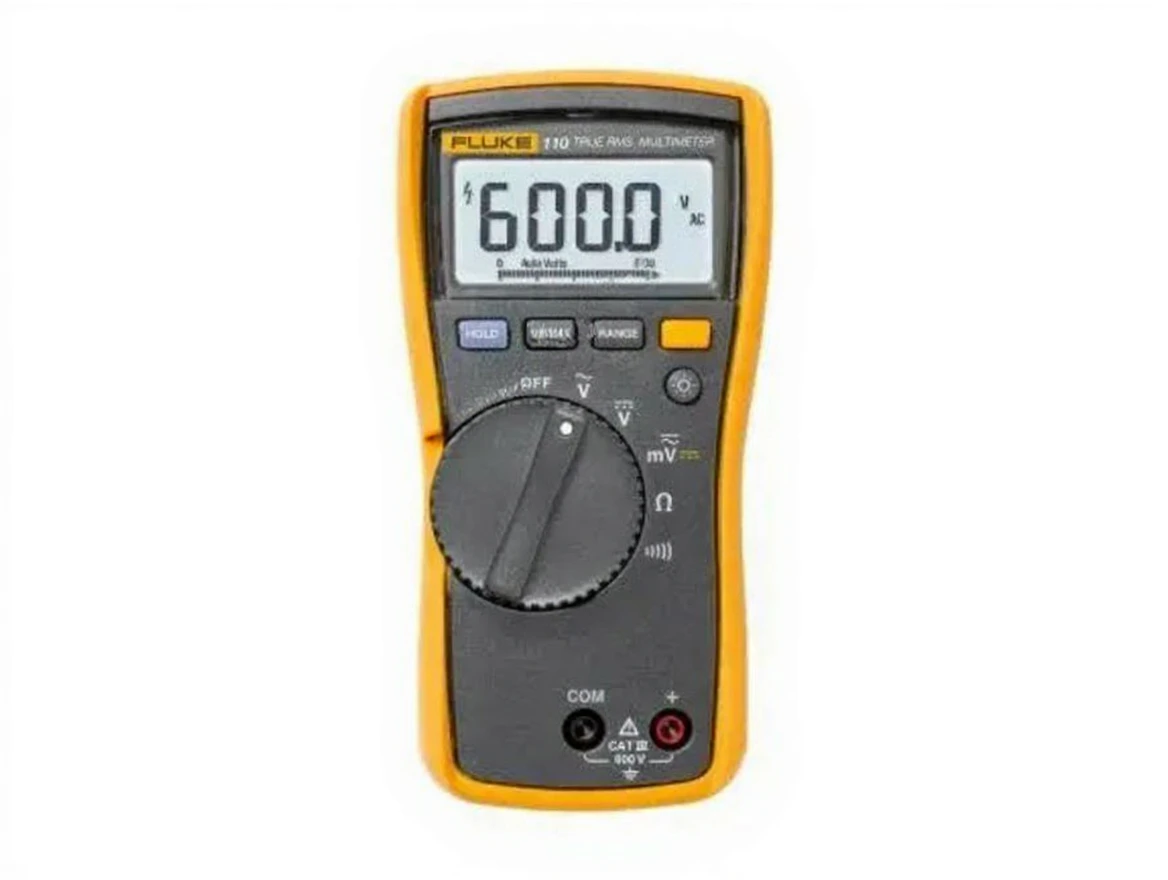

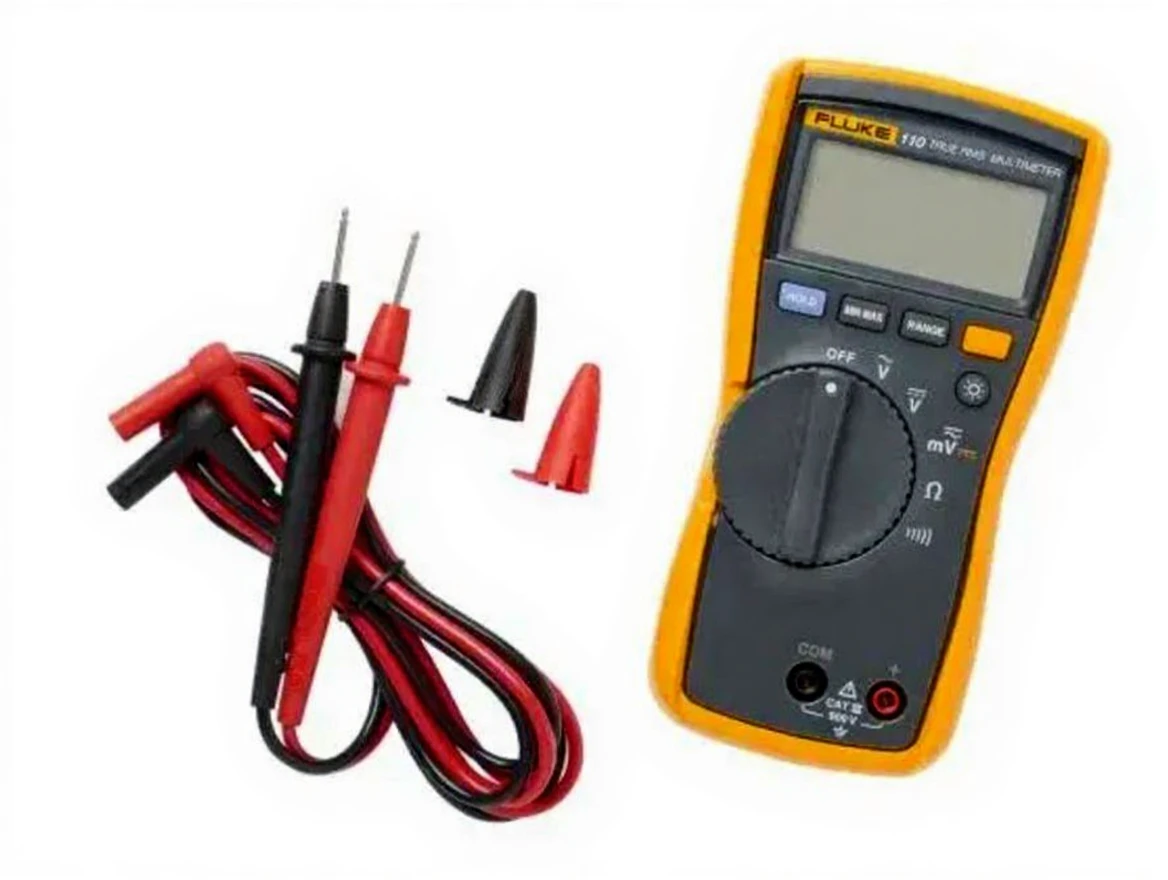

Fluke 110 True-RMS Digital Multimeter

It is a compact and durable digital multimeter designed for safe and accurate testing of electrical and electronic systems. Equipped with True-RMS measurement technology, this device provides reliable measurement of alternating currents and provides reliable results. Fluke 110 stands out with its user-friendly features and portable structure.

  • True-RMS Measurement: Allows accurate measurement of alternating currents, thus obtaining reliable results in complex electrical systems.

  • Low Voltage Measurement: It is suitable for low voltage applications and allows you to make safe measurements.

  • Automatic Test Modes: Equipped with automatic test modes for fast and effective measurement.

  • Big Screen: Large, easy-to-read display shows measurement results clearly.

  • Durable Design: It has a durable structure designed to withstand harsh field conditions.

  • Lightweight and Portable: Thanks to its compact size, it can be easily carried and used.

Areas of Use

  • Electrical Maintenance and Repair: Ideal for safe testing of electrical installations.

  • Electronic Systems: Used in measurement and testing of electronic components.

  • Low Voltage Applications: Suitable for control and maintenance of low voltage circuits.

Advantages

  • User friendly: It provides easy use thanks to its simple and understandable interface.

  • Quick Results: Saves time with automatic test modes.

  • Reliable Measurement: It provides the opportunity to make reliable and accurate measurements with True-RMS technology.

The Fluke 110 True-RMS Digital Multimeter is an indispensable tool for electricians and engineers. With its advanced features and user-friendly design, it helps ensure the security of systems by making reliable measurements.

Feature

Value

Maximum voltage (between any terminal and ground)

600V

Safety

IEC 61010-1, Pollution degree 2 IEC 61010-2-033, CAT III 600 V

view

Digital: 6,000 counts, 4 updates per second

bar chart

33 segments, 32 updates per second

Heat

Operating: -10℃ to 50℃, Storage: -40°℃ to 60℃

Battery

9 volt Alkaline, IEC 6LR61

Battery life

Typical 400 hours without backlight

DC Millivolt

Range:600.0mV,Resolution:0.1mV,Truth:±(0.5%2)

DC Volts

Range:6.000V / 60.00V / 600.0V,

Resolution:0.001V / 0.01V / 0.1V,

Truth:±(0.5%2)

AC Millivolt True-RMS

Range:600.0 mV / 6,000 V,

Resolution:0.1mV / 0.001V,

Truth:±(1.0 3%) 45 Hz to 500 Hz, ±(2.0 3%) 500 Hz to 1 kHz

AC Volt True-RMS

Range:60.00V/600.0V,

Resolution:0.01V / 0.1V,

Truth:±(1.0 3%) 45 Hz to 500 Hz, ±(2.0 3%) 500 Hz to 1 kHz

Continuity

6000 Ω, beep if less than 10 Ω, off if less than 250 Ω; Detects open or short circuits lasting 500 μs or longer. Accuracy: ±(0.9%2)

Resistance

Range:6.000 kΩ / 60.00 kΩ / 600.0 kΩ / 6.000 MΩ / 40.00 MΩ,

Resolution:0.001 kΩ / 0.01 kΩ / 0.1 kΩ / 0.001 MΩ / 0.01 MΩ,

Truth:±(0.9% 1) / ±(5% 2)

Capacity

Range:600.0 nF / 6.000 μF / 60.00 μF / 600.0 μF,

Resolution:0.1nF / 0.001μF / 0.01μF / 0.1μF,

Truth:±(1.0 3%) 45 Hz to 500 Hz, ±(2.0 3%) 500 Hz to 1 kHz
