Fluke 113 True Rms Dijital Multimetre

Brand Fluke
Model Type

Fluke 113

Description

The Fluke 113 True RMS Digital Multimeter is designed for basic electrical measurement needs, is reliable and easy to use. It is an ideal solution for both professional electricians and everyday users.

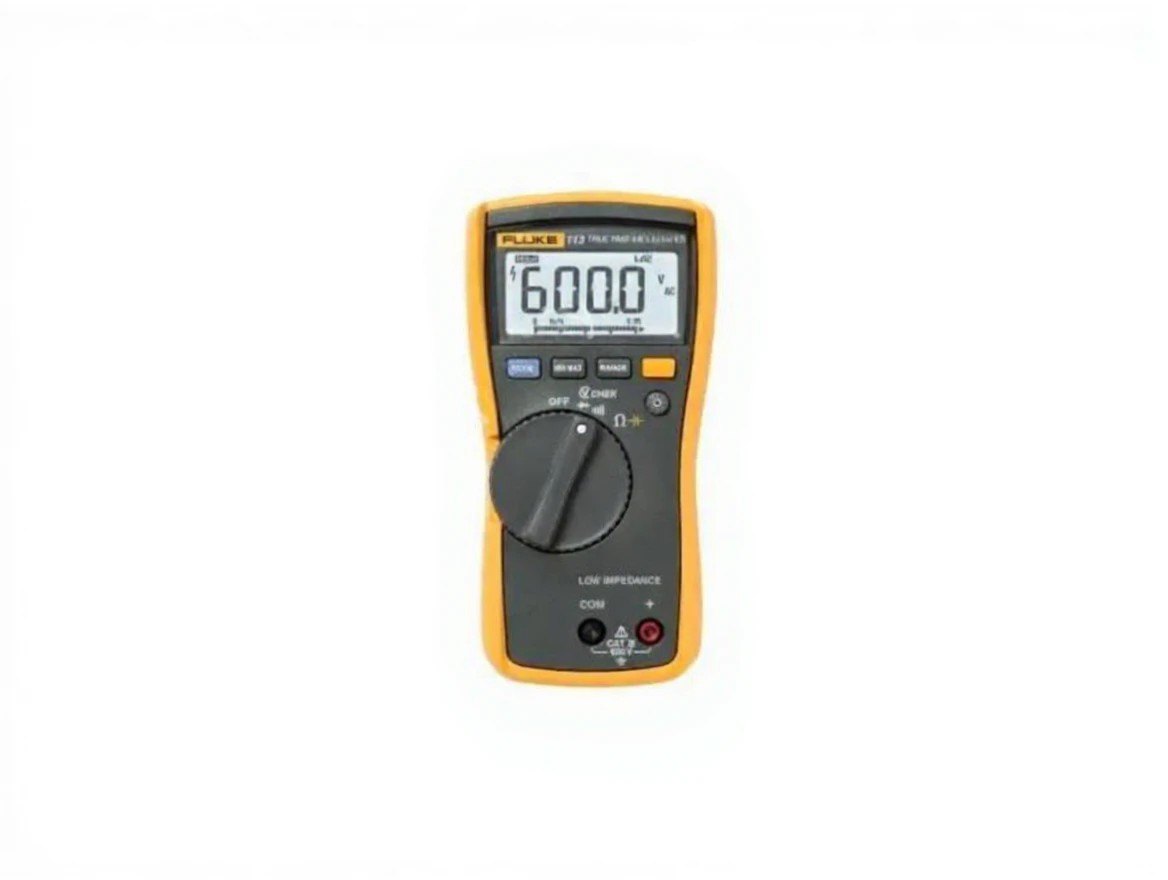

Fluke 113 True RMS Digital Multimeter

  • True RMS Measurement: Provides accurate measurements in AC signals.
  • Wide Measurement Range:
    • AC/DC Voltage Measurement: Up to 600 V
    • Resistance Measurement: Up to 60 kΩ
    • Continuity Test and Diode Test
  • Large Display and Backlight: Provides clear readings even in dark environments.
  • VoltAlert™ Non-Contact Voltage Detection: Ideal for quickly detecting circuits with electrical current.
  • Automatic and Manual Range Selection: Offers ease of use.
  • CAT III 600 V Safety Standard: Provides high security.
  • Package Contents:
    • Fluke 113 True RMS Digital Multimeter
    • TL75 Hard Point Test Leads
    • 9V Battery (Included with the device)
    • User Manual

The Fluke 113 is ideal for long-term use with its durable structure and compact design. It is produced in accordance with the CAT III 600 V safety standard and provides reliable performance in challenging conditions.

The Fluke 113 True RMS Digital Multimeter is a reliable, durable, and practical solution for basic electrical circuit measurements.

Feature Description
Maximum Voltage between Any Terminal and Ground 600 V
Display 3 3/4 digit, 6000 counts, update rate 4/sec
Operating Temperature -10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature -40 °C to 60 °C (-22 °F to 140 °F)
Temperature Coefficient 0.1 x (specified accuracy)/°C (above 18 °C or 28 °C)
Operating Altitude 2000 m
Storage Altitude 10,000 m
Relative Humidity 95% (between 10 °C and 30 °C)
75% (between 30 °C and 40 °C)
Battery Type 9 Volt Alkaline, ANSI 1604A / IEC 6F22
Battery Life Alkaline: Typical 300 hours without backlight
Drop Resistance Dropped from 1 meter according to IEC 61
Vibration Complies with MIL-PRF-28800, Level 2 conditions
Dimensions (HxWxD) 167.1 mm x 85.1 mm x 44.0 mm (6.58 in x 3.35 in x 1.73 in)
Weight 404 g (13.0 oz)
Safety Standards ANSI/ISA-S[ PHONE HIDDEN ]
CAN/CSA-C22.2 No. [ PHONE HIDDEN ]
UL [ PHONE HIDDEN ])
Category III, IEC/EN 61010-1 2nd Edition for 600 V
Pollution Degree 2
Complies with EMC EN61326-1 standards
EMI Regulations Compliant with FCC Part 15, Class B
