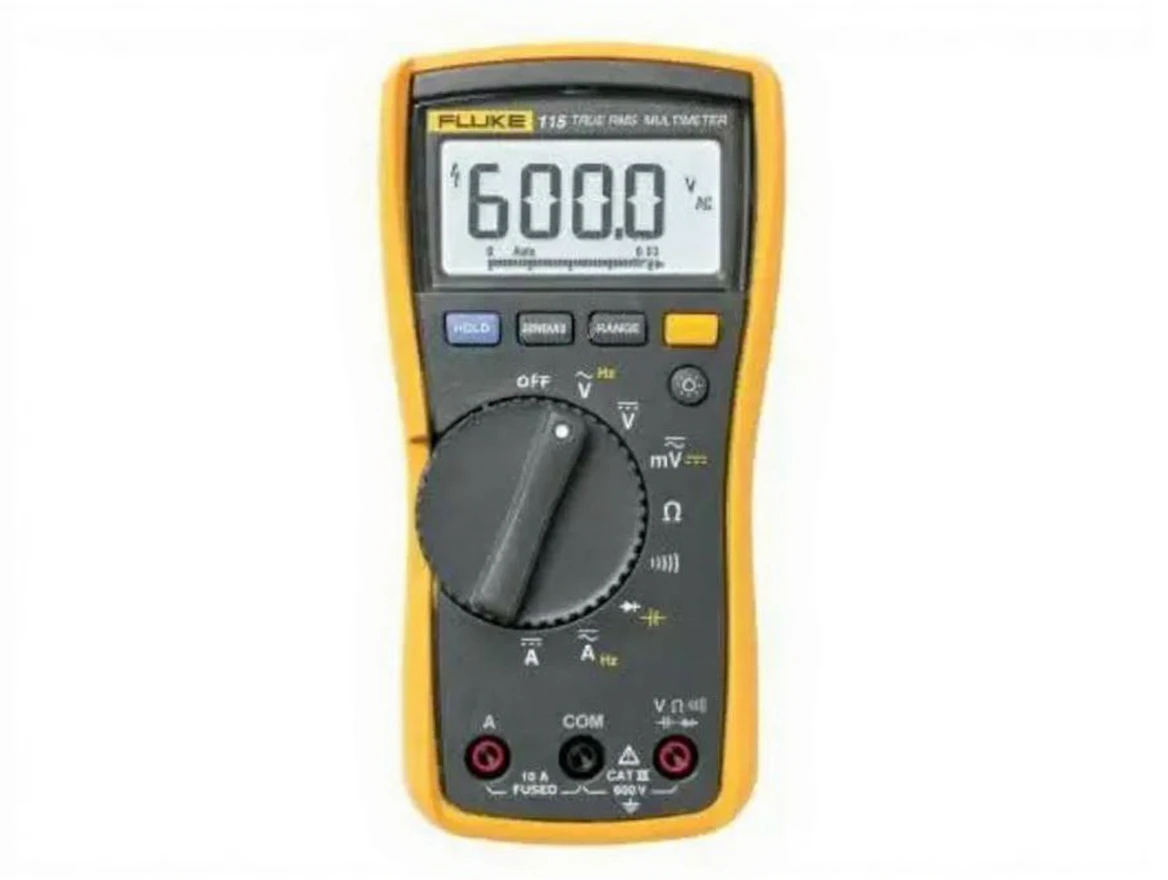

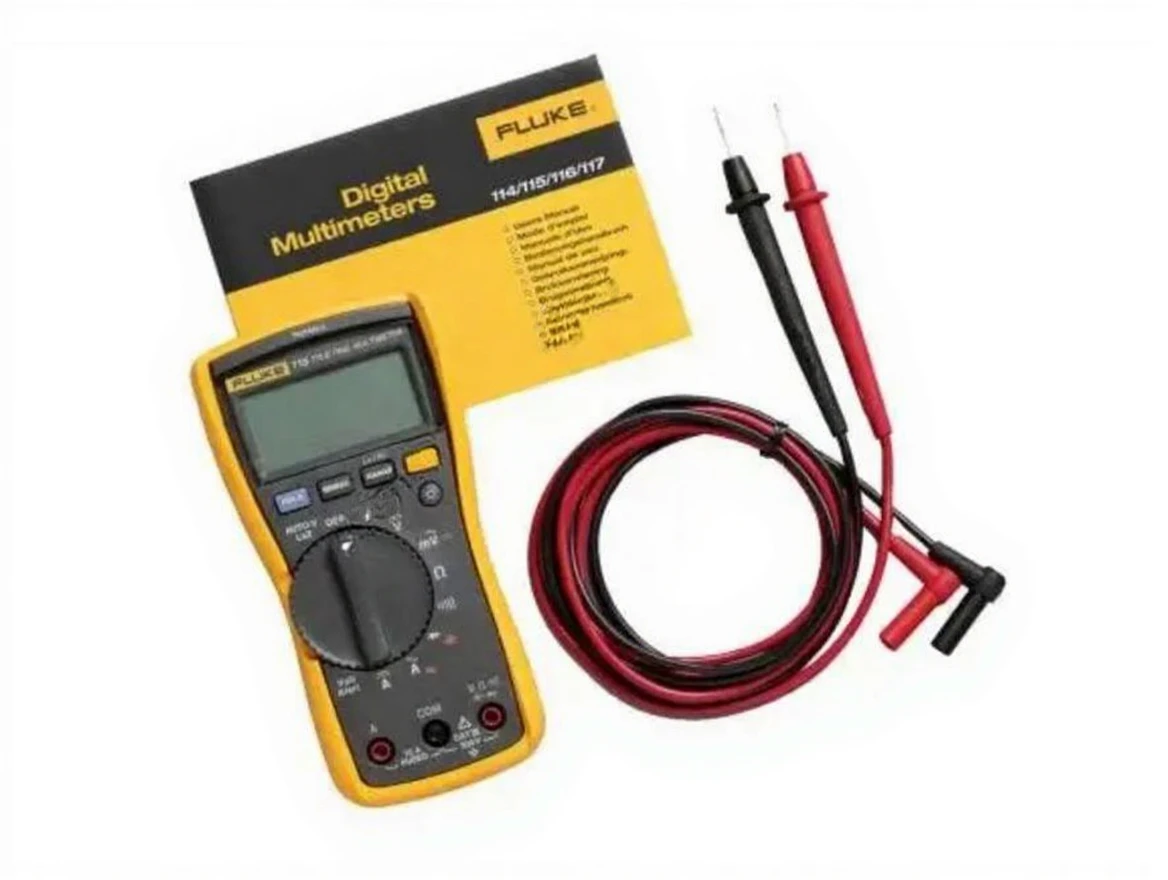

Fluke 115 – Kompakt True-RMS Dijital Multimetre

Brand

Fluke

Model Type

Fluke 115

Fluke 115 – Compact True-RMS Digital Multimeter

It offers a reliable, portable, and versatile solution for electrical measurements. Ideal for technicians and engineers for daily use, this device provides precise measurements and easy operation.

True-RMS Technology: Provides accurate results for AC voltage and current measurements, even in distorted signals.
Voltage Measurement Range: AC/DC voltage measurement up to 600 V.
Current Measurement Range: Continuous current measurement up to 10 A (up to 20 A for short periods).
Resistance Measurement: Resistance measurement up to 40 MΩ.
Capacitance Measurement: Capacitance measurement up to 10000 µF.
Frequency Measurement: Frequency measurement in the range of 50 Hz to 50 kHz.
Display: Backlit large LCD screen for easy data reading.
Safety Level: CAT III 600 V safety standard.
Compact Design: Lightweight and portable structure for practical use in field operations.
Min/Max and Average Measurement: Feature to easily track variable measurement values.

Applications

Maintenance and repair of electrical installations.
Testing of industrial and commercial electrical systems.
Measurement of motors, generators, and other electrical devices.
Control and analysis of electronic circuits.

Fluke 115 is an excellent choice for electrical technicians and engineers with its compact design, reliable performance, and versatility. It offers precise measurements with True-RMS technology and is durable in challenging work conditions.

Feature	Details
DC Millivolt	Range: 600 mV Resolution: 0.1 mV Accuracy: %0.5 + 2
DC Volt	Range: 6 V, 60 V, 600 V Resolution: 0.001 V, 0.01 V, 0.1 V Accuracy: %0.5 + 2
Auto Volt	Range: 600 V Resolution: 0.1 V Accuracy: %2.0 + 3 (DC 45-500 Hz), %4.0 + 3 (500 Hz – 1kHz)
AC Millivolt (True RMS)	Range: 600 mV Resolution: 0.1 mV Accuracy: %1.0 + 3 (DC 45-500 Hz), %2.0 + 3 (500 Hz – 1kHz)
AC Volt (True RMS)	Range: 6 V, 60 V, 600 V Resolution: 0.001 V, 0.01 V, 0.1 V Accuracy: %1.0 + 3 (DC 45-500 Hz), %2.0 + 3 (500 Hz – 1kHz)
Continuity	Range: 600 Ω Resolution: 1 Ω Accuracy: Open circuit beeper <20, closed circuit >250; detects open/short circuit of 500 μs or longer
Resistance	Range: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 40 MΩ Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.001 MΩ, 0.01 MΩ Accuracy: %0.9 + 2, %0.9 + 1, %5 + 2
Diode Test	Range: 2 V Resolution: 0.001 V Accuracy: %0.9 + 2
Capacitance	Range: 1000 nF, 10 μF, 100 μF, 9999 μF, 100-1000 μF, >1000 μF Resolution: 1 nF, 0.01 μF, 0.1 μF, 1 μF Accuracy: %1.9 + 2, %5 + 20
Lo-Z Capacitance	Range: 1 nF – 500 μF Accuracy: %10 + 2 (typical)
AC Current (True RMS)	Range: 6 A, 10 A, 20 A (max 30 seconds overload) Resolution: 0.001 A, 0.01 A Accuracy: %1.5 + 3
DC Current	Range: 6 A, 10 A, 20 A (max 30 seconds overload) Resolution: 0.001 A, 0.01 A Accuracy: %1.0 + 3
Hz (V or A Input)	Range: 99.99 Hz, 999.9 Hz, 9.999 kHz, 50.00 kHz Resolution: 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz Accuracy: %0.1 + 2

Brand	Fluke
Model Type	Fluke 115

Category: Test and Measurement Devices

Description

Feature	Details
DC Millivolt	Range: 600 mV Resolution: 0.1 mV Accuracy: %0.5 + 2
DC Volt	Range: 6 V, 60 V, 600 V Resolution: 0.001 V, 0.01 V, 0.1 V Accuracy: %0.5 + 2
Auto Volt	Range: 600 V Resolution: 0.1 V Accuracy: %2.0 + 3 (DC 45-500 Hz), %4.0 + 3 (500 Hz – 1kHz)
AC Millivolt (True RMS)	Range: 600 mV Resolution: 0.1 mV Accuracy: %1.0 + 3 (DC 45-500 Hz), %2.0 + 3 (500 Hz – 1kHz)
AC Volt (True RMS)	Range: 6 V, 60 V, 600 V Resolution: 0.001 V, 0.01 V, 0.1 V Accuracy: %1.0 + 3 (DC 45-500 Hz), %2.0 + 3 (500 Hz – 1kHz)
Continuity	Range: 600 Ω Resolution: 1 Ω Accuracy: Open circuit beeper <20, closed circuit >250; detects open/short circuit of 500 μs or longer
Resistance	Range: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 40 MΩ Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.001 MΩ, 0.01 MΩ Accuracy: %0.9 + 2, %0.9 + 1, %5 + 2
Diode Test	Range: 2 V Resolution: 0.001 V Accuracy: %0.9 + 2
Capacitance	Range: 1000 nF, 10 μF, 100 μF, 9999 μF, 100-1000 μF, >1000 μF Resolution: 1 nF, 0.01 μF, 0.1 μF, 1 μF Accuracy: %1.9 + 2, %5 + 20
Lo-Z Capacitance	Range: 1 nF – 500 μF Accuracy: %10 + 2 (typical)
AC Current (True RMS)	Range: 6 A, 10 A, 20 A (max 30 seconds overload) Resolution: 0.001 A, 0.01 A Accuracy: %1.5 + 3
DC Current	Range: 6 A, 10 A, 20 A (max 30 seconds overload) Resolution: 0.001 A, 0.01 A Accuracy: %1.0 + 3
Hz (V or A Input)	Range: 99.99 Hz, 999.9 Hz, 9.999 kHz, 50.00 kHz Resolution: 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz Accuracy: %0.1 + 2
