Fluke 116 – True-RMS Dijital Multimetre

Brand Fluke
Model Type

Fluke 116

Description

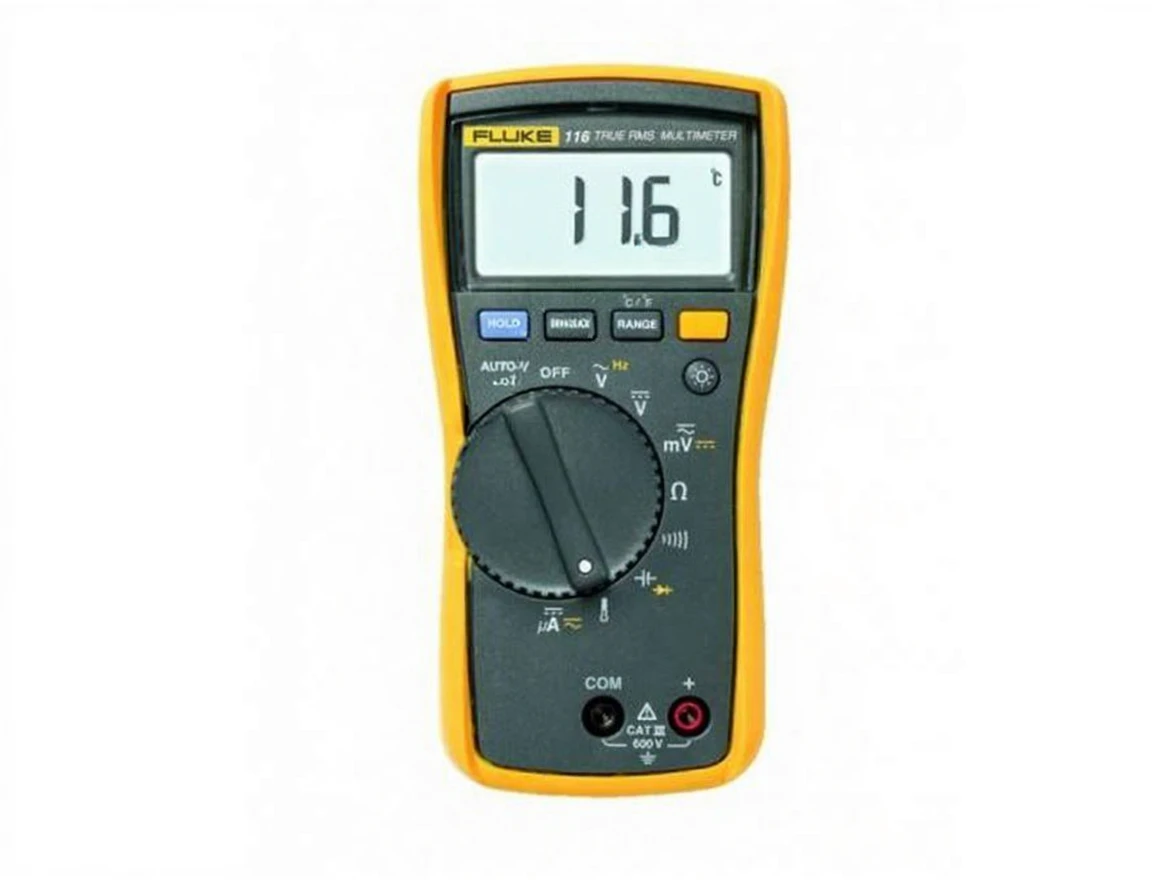

Fluke 116 – True-RMS Digital Multimeter

Specially designed for HVAC (Heating, Ventilation, and Air Conditioning) technicians, this high-quality digital multimeter is equipped with True-RMS measurement technology, providing reliable results by accurately measuring fluctuating currents. The Fluke 116 stands out with its durable structure and user-friendly features.

Features

  • True-RMS Measurement: Ensures accurate measurement of fluctuating currents, providing reliable results in complex electrical systems.

  • Temperature Measurement: The device comes with an integrated thermocouple, allowing for temperature measurements.

  • Low Voltage Measurement: Provides an ideal solution for low voltage applications, allowing you to measure safely.

  • Automatic Test Modes: Equipped with automatic test modes for quick and efficient measurements.

  • Large Display: The easy-to-read large display shows measurement results clearly.

  • Durable Design: Designed to withstand challenging field conditions, it has a sturdy structure.

Applications

The Fluke 116 is commonly used in the following areas:

  • HVAC Applications: Used in maintenance and repair of heating, ventilation, and air conditioning systems.

  • Electrical Maintenance and Repair: Ideal for testing electrical installations safely.

  • Temperature Controls: Used for temperature measurements and controls.

Advantages

  • User-Friendly: Provides easy usability with a simple and understandable interface.

  • Quick Results: Saves time with automatic test modes.

  • Reliable Measurement: Offers the possibility of making reliable and accurate measurements with True-RMS technology.

The Fluke 116 True-RMS Digital Multimeter is an essential tool for HVAC technicians and electrical engineers. With its advanced features and user-friendly design, it helps ensure the safety of systems by providing reliable measurements.

Feature

Value

Voltage Surge Protection

DC 600 V, CAT III, Pollution Degree 2 Compliant

Digital

6,000 count, 4 updates per second

Bar Graph

60 segments, 20 updates per second

Operating Temperature

-10°C to +50°C

Storage Temperature

-20°C to +60°C

Battery Type

9V Alkaline, NEDA 1604A / IEC 6LR61

Battery Life

DC Millivolt Accuracy

±(% reading + digits)

DC Millivolt Range/Resolution

600.0 mV / 0.01 V

DC Voltage Range/Resolution

600.0 V / 0.1 V

DC Voltage Accuracy

±(% reading + digits)

AC Millivolt True-RMS Range/Resolution

600.0 mV / 0.001 V

AC Millivolt True-RMS Range/Resolution

6000 mV / 0.01 V

AC Millivolt True-RMS Range/Resolution

600.0 V / 0.1 V

AC Volt True-RMS Accuracy

±(% reading + digits) 45 Hz to 500 Hz

Resistance Range

600.0 Ω / 0.01 Ω

Resistance Range/Resolution

6000 Ω / 0.1 Ω

Resistance Range/Resolution

60.00 MΩ / 0.01 MΩ

Resistance Accuracy

±(% reading + digits)

Capacitance Range/Resolution

1000 nF / 1 nF

Capacitance Range/Resolution

10.00 μF / 0.01 μF

Capacitance Range/Resolution

100.0 μF / 0.1 μF

Capacitance Accuracy

±(% reading + digits)

Diode Test

Yes

Diode Test Accuracy

±(% reading + digits)

Frequency Range

Normally 40 Hz to 400 Hz

Frequency Accuracy

±(% reading + digits) 45 Hz to 500 Hz
