Fluke 1503 – Insulation Resistance Tester 1Kv

Brand

Fluke

Model Type

Fluke 1503

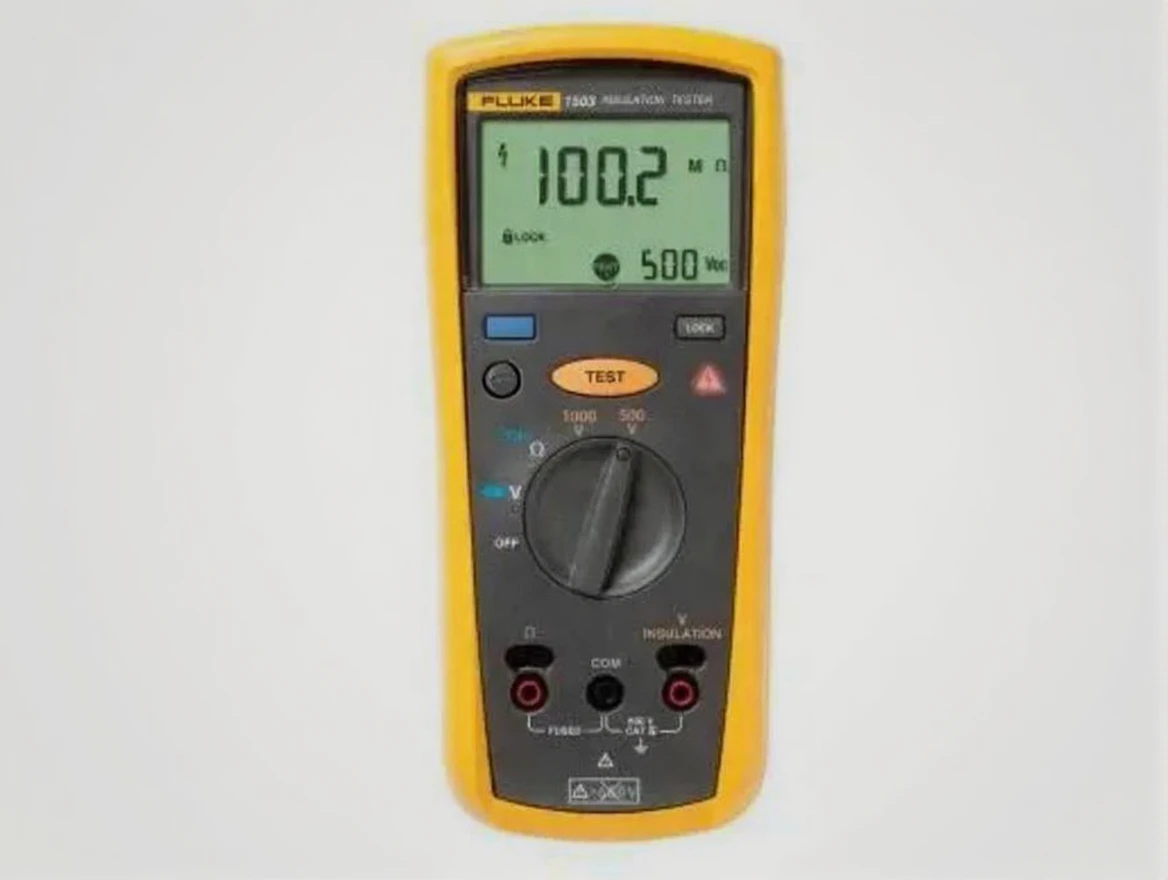

Fluke 1503 – Insulation Resistance Tester 1Kv

It is a compact and reliable device designed to measure the insulation resistance of electrical installations. This device is ideal for electricians and maintenance crews with a measuring capacity of up to 1 kV.

Insulation Resistance Test:
- Test voltages: 500 V and 1000 V.
- Maximum measuring range: 2000 MΩ.
Continuity Test:
- Low resistance measurement down to 20 Ω.
Automatic Power Off: Automatic shut-off feature when not used for a certain period of time to save energy.
Compact and Durable Design:
- Lightweight and portable structure.
- Resistant to harsh field conditions.
Security Level: CAT IV 600 V and CAT III 1000 V safety standard.
Easy to Use:
- Ergonomic design for one-handed use.
- Large backlit screen.

Application Areas

Insulation resistance testing of electrical installations.
Maintenance and control of industrial and commercial electrical systems.
Insulation testing of motors, generators, cables and electrical equipment.

Fluke 1503is a device that meets the needs of professionals in insulation resistance tests with its reliable performance, durable structure and easy use. It is suitable for both field studies and laboratory tests.

Feature	Detail
AC/DC Voltage Measurement	December:600.0V Resolution:0.1V Truth:±(2 3%) Input Impedance:3 MΩ (nominal), < 100 pF Common Mode Rejection Rate:> 60 dB (DC, 50 or 60 Hz) Overload protection:600V rms or DC
Ground Connection Resistance Measurement	Range/Resolution: 20.00Ω / 0.01Ω 200.0Ω / 0.1Ω 2000Ω / 1.0Ω 20.00 kΩ / 0.01 kΩ Truth:±(1.5% 3) Overload protection:2V rms or DC Open Circuit Test Voltage:> 4.0 V, < 8 V Short Circuit Current:> 200.0 mA
Insulation Properties	Measurement Range:0.01MΩ – 2000MΩ Test Voltage:500V, 1000V Test Voltage Accuracy:20%, -0% Short Circuit Current:1 mA nominal Automatic Discharge:< 0.5 seconds for C = 1 µF or less Live Circuit Indicator:The test is inhibited (if terminal voltage > 30 V) Maximum Capacitive Load:Can operate with 1 µF load Measurement Accuracy: 500V: ±(1.5% 5) 1000 V: ±(1.5% 5) (up to 2000 MΩ), ±(10% 3%) (above 2000 MΩ)
General Features	Maximum voltage that can be applied to any terminal:600V AC rms or DC Storage Temperature:-40°C to 60°C (-40°F to 140°F) Operating Temperature:-20°C to 55°C (-4°F to 131°F) Temperature Coefficient:0.05 x (specified precision) / °C (below 18°C or above 28°C) Relative humidity: 10°C – 30°C: 0% – 95% 30°C – 40°C: 0% – 75% 40°C – 55°C: 0% – 40% Vibration:MIL-PRF-28800F for Class 2 devices Coup:IEC 61010-1 2nd Edition (1 meter drop test, six sides, wooden floor) Electromagnetic Compatibility:EN 61326-1:1997 Security:ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, IEC/EN 61010-1 2nd Edition (600 V CAT IV) Certificates:CSA and TUV Battery Type:Four AA batteries (NEDA 15A or IEC LR6) Battery Life: Insulation test: 1000 tests Resistance measurement: 2500 tests Dimensions (H x W x D):5.0 cm x 10.0 cm x 20.3 cm (1.97 in x 3.94 in x 8.00 in) Weight:550g (1.2lb) IP Rating:IP40 Working Height:2000 m CAT IV 600 V, 3000 m CAT III 600 V Storage Height:12,000m Over Range Capacity:110% of range Included Accessories:TL224 Test Leads, TP74 Test Probes, clips (red PN 1958654 and black PN 1958646), case and remote probe

Brand	Fluke
Model Type	Fluke 1503

Category: Test and Measurement Devices

Description

Feature	Detail
AC/DC Voltage Measurement	December:600.0V Resolution:0.1V Truth:±(2 3%) Input Impedance:3 MΩ (nominal), < 100 pF Common Mode Rejection Rate:> 60 dB (DC, 50 or 60 Hz) Overload protection:600V rms or DC
Ground Connection Resistance Measurement	Range/Resolution: 20.00Ω / 0.01Ω 200.0Ω / 0.1Ω 2000Ω / 1.0Ω 20.00 kΩ / 0.01 kΩ Truth:±(1.5% 3) Overload protection:2V rms or DC Open Circuit Test Voltage:> 4.0 V, < 8 V Short Circuit Current:> 200.0 mA
Insulation Properties	Measurement Range:0.01MΩ – 2000MΩ Test Voltage:500V, 1000V Test Voltage Accuracy:20%, -0% Short Circuit Current:1 mA nominal Automatic Discharge:< 0.5 seconds for C = 1 µF or less Live Circuit Indicator:The test is inhibited (if terminal voltage > 30 V) Maximum Capacitive Load:Can operate with 1 µF load Measurement Accuracy: 500V: ±(1.5% 5) 1000 V: ±(1.5% 5) (up to 2000 MΩ), ±(10% 3%) (above 2000 MΩ)
General Features	Maximum voltage that can be applied to any terminal:600V AC rms or DC Storage Temperature:-40°C to 60°C (-40°F to 140°F) Operating Temperature:-20°C to 55°C (-4°F to 131°F) Temperature Coefficient:0.05 x (specified precision) / °C (below 18°C or above 28°C) Relative humidity: 10°C – 30°C: 0% – 95% 30°C – 40°C: 0% – 75% 40°C – 55°C: 0% – 40% Vibration:MIL-PRF-28800F for Class 2 devices Coup:IEC 61010-1 2nd Edition (1 meter drop test, six sides, wooden floor) Electromagnetic Compatibility:EN 61326-1:1997 Security:ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, IEC/EN 61010-1 2nd Edition (600 V CAT IV) Certificates:CSA and TUV Battery Type:Four AA batteries (NEDA 15A or IEC LR6) Battery Life: Insulation test: 1000 tests Resistance measurement: 2500 tests Dimensions (H x W x D):5.0 cm x 10.0 cm x 20.3 cm (1.97 in x 3.94 in x 8.00 in) Weight:550g (1.2lb) IP Rating:IP40 Working Height:2000 m CAT IV 600 V, 3000 m CAT III 600 V Storage Height:12,000m Over Range Capacity:110% of range Included Accessories:TL224 Test Leads, TP74 Test Probes, clips (red PN 1958654 and black PN 1958646), case and remote probe
