Fluke 1503 – İzolasyon Direnci Test Cihazı 1Kv

Brand

Fluke

Model Type

Fluke 1503

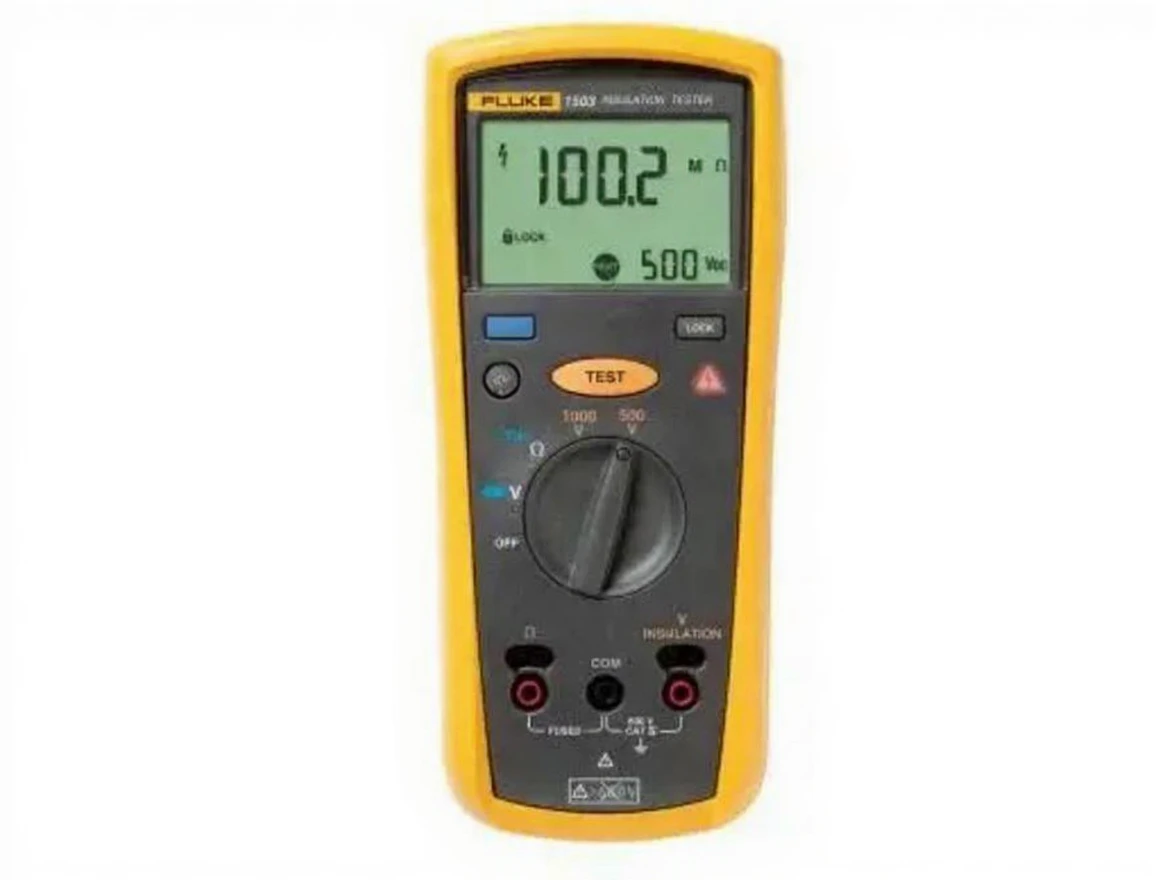

Fluke 1503 – Insulation Resistance Test Device 1Kv

A compact and reliable device designed to measure the insulation resistance of electrical installations. This device is ideal for electricians and maintenance teams with a measurement capacity of up to 1 kV.

Insulation Resistance Test:
- Test voltages: 500 V and 1000 V.
- Maximum measurement range: 2000 MΩ.
Continuity Test:
- Low resistance measurement down to 20 Ω.
Auto Shutdown: An automatic shutdown feature when not in use for a certain period of time for energy saving.
Compact and Durable Design:
- Lightweight and portable structure.
- Resistant to challenging field conditions.
Safety Level: CAT IV 600 V and CAT III 1000 V safety standard.
Easy to Use:
- Ergonomic design for one-handed use.
- Large and backlit display.

Applications

Insulation resistance testing of electrical installations.
Maintenance and control of industrial and commercial electrical systems.
Insulation testing of motors, generators, cables, and electrical equipment.

Fluke 1503 is a device that meets the needs of professionals in insulation resistance testing with its reliable performance, durable structure, and easy usability. It is suitable for both field work and laboratory testing.

Feature	Details
AC/DC Voltage Measurement	Range: 600.0 V Resolution: 0.1 V Accuracy: ±(%2 + 3) Input Impedance: 3 MΩ (nominal), < 100 pF Common Mode Rejection Ratio: > 60 dB (DC, 50 or 60 Hz) Overload Protection: 600 V rms or DC
Earth Bond Resistance Measurement	Range/Resolution: 20.00 Ω / 0.01 Ω 200.0 Ω / 0.1 Ω 2000 Ω / 1.0 Ω 20.00 kΩ / 0.01 kΩ Accuracy: ±(%1.5 + 3) Overload Protection: 2 V rms or DC Open Circuit Test Voltage: > 4.0 V, < 8 V Short Circuit Current: > 200.0 mA
Insulation Properties	Measurement Range: 0.01 MΩ – 2000 MΩ Test Voltage: 500 V, 1000 V Test Voltage Accuracy: +20%, -0% Short Circuit Current: 1 mA nominal Automatic Discharge: C = 1 μF or less in < 0.5 seconds Live Circuit Indicator: Test inhibited (terminal voltage > 30 V) Maximum Capacitive Load: Can operate with a load of 1 μF Measurement Accuracy: 500 V: ±(%1.5 + 5) 1000 V: ±(%1.5 + 5) (up to 2000 MΩ), ±(%10 + 3) (above 2000 MΩ)
General Specifications	Maximum Voltage that can be applied to any terminal: 600 V AC rms or DC Storage Temperature: -40°C – 60°C (-40°F – 140°F) Operating Temperature: -20°C – 55°C (-4°F – 131°F) Temperature Coefficient: 0.05 x (specified accuracy) / °C (below 18°C or above 28°C) Relative Humidity: 10°C – 30°C: %0 – %95 30°C – 40°C: %0 – %75 40°C – 55°C: %0 – %40 Vibration: MIL-PRF-28800F, Class 2 devices Shock: IEC 61010-1 2nd Edition (1 meter drop test, six sides, wood floor) Electromagnetic Compatibility: EN 61326-1:1997 Safety: ANSI/ISA [ PHONE HIDDEN ], CAN/CSA-C22.2 NO. [ PHONE HIDDEN ], IEC/EN 61010-1 2nd Edition (600 V CAT IV) Certifications: CSA and TUV Battery Type: Four AA batteries (NEDA 15A or IEC LR6) Battery Life: Insulation test: 1000 tests Resistance measurement: 2500 tests Dimensions (H x W x D): 5.0 cm x 10.0 cm x 20.3 cm (1.97 in x 3.94 in x 8.00 in) Weight: 550 g (1.2 lb) IP Rating: IP40 Operating Altitude: 2000 m CAT IV 600 V, 3000 m CAT III 600 V Storage Altitude: 12,000 m Overrange Capacity: 110% of range Included Accessories: TL224 Test Leads, TP74 Test Probes, clips (red PN 1958654 and black PN 1958646), case and remote probe

Brand	Fluke
Model Type	Fluke 1503

Category: Test and Measurement Devices

Description

Feature	Details
AC/DC Voltage Measurement	Range: 600.0 V Resolution: 0.1 V Accuracy: ±(%2 + 3) Input Impedance: 3 MΩ (nominal), < 100 pF Common Mode Rejection Ratio: > 60 dB (DC, 50 or 60 Hz) Overload Protection: 600 V rms or DC
Earth Bond Resistance Measurement	Range/Resolution: 20.00 Ω / 0.01 Ω 200.0 Ω / 0.1 Ω 2000 Ω / 1.0 Ω 20.00 kΩ / 0.01 kΩ Accuracy: ±(%1.5 + 3) Overload Protection: 2 V rms or DC Open Circuit Test Voltage: > 4.0 V, < 8 V Short Circuit Current: > 200.0 mA
Insulation Properties	Measurement Range: 0.01 MΩ – 2000 MΩ Test Voltage: 500 V, 1000 V Test Voltage Accuracy: +20%, -0% Short Circuit Current: 1 mA nominal Automatic Discharge: C = 1 μF or less in < 0.5 seconds Live Circuit Indicator: Test inhibited (terminal voltage > 30 V) Maximum Capacitive Load: Can operate with a load of 1 μF Measurement Accuracy: 500 V: ±(%1.5 + 5) 1000 V: ±(%1.5 + 5) (up to 2000 MΩ), ±(%10 + 3) (above 2000 MΩ)
General Specifications	Maximum Voltage that can be applied to any terminal: 600 V AC rms or DC Storage Temperature: -40°C – 60°C (-40°F – 140°F) Operating Temperature: -20°C – 55°C (-4°F – 131°F) Temperature Coefficient: 0.05 x (specified accuracy) / °C (below 18°C or above 28°C) Relative Humidity: 10°C – 30°C: %0 – %95 30°C – 40°C: %0 – %75 40°C – 55°C: %0 – %40 Vibration: MIL-PRF-28800F, Class 2 devices Shock: IEC 61010-1 2nd Edition (1 meter drop test, six sides, wood floor) Electromagnetic Compatibility: EN 61326-1:1997 Safety: ANSI/ISA [ PHONE HIDDEN ], CAN/CSA-C22.2 NO. [ PHONE HIDDEN ], IEC/EN 61010-1 2nd Edition (600 V CAT IV) Certifications: CSA and TUV Battery Type: Four AA batteries (NEDA 15A or IEC LR6) Battery Life: Insulation test: 1000 tests Resistance measurement: 2500 tests Dimensions (H x W x D): 5.0 cm x 10.0 cm x 20.3 cm (1.97 in x 3.94 in x 8.00 in) Weight: 550 g (1.2 lb) IP Rating: IP40 Operating Altitude: 2000 m CAT IV 600 V, 3000 m CAT III 600 V Storage Altitude: 12,000 m Overrange Capacity: 110% of range Included Accessories: TL224 Test Leads, TP74 Test Probes, clips (red PN 1958654 and black PN 1958646), case and remote probe
