Fluke 1507 – İzolasyon Test Cihazı 1000v

Brand

Fluke

Model Type

Fluke 1507

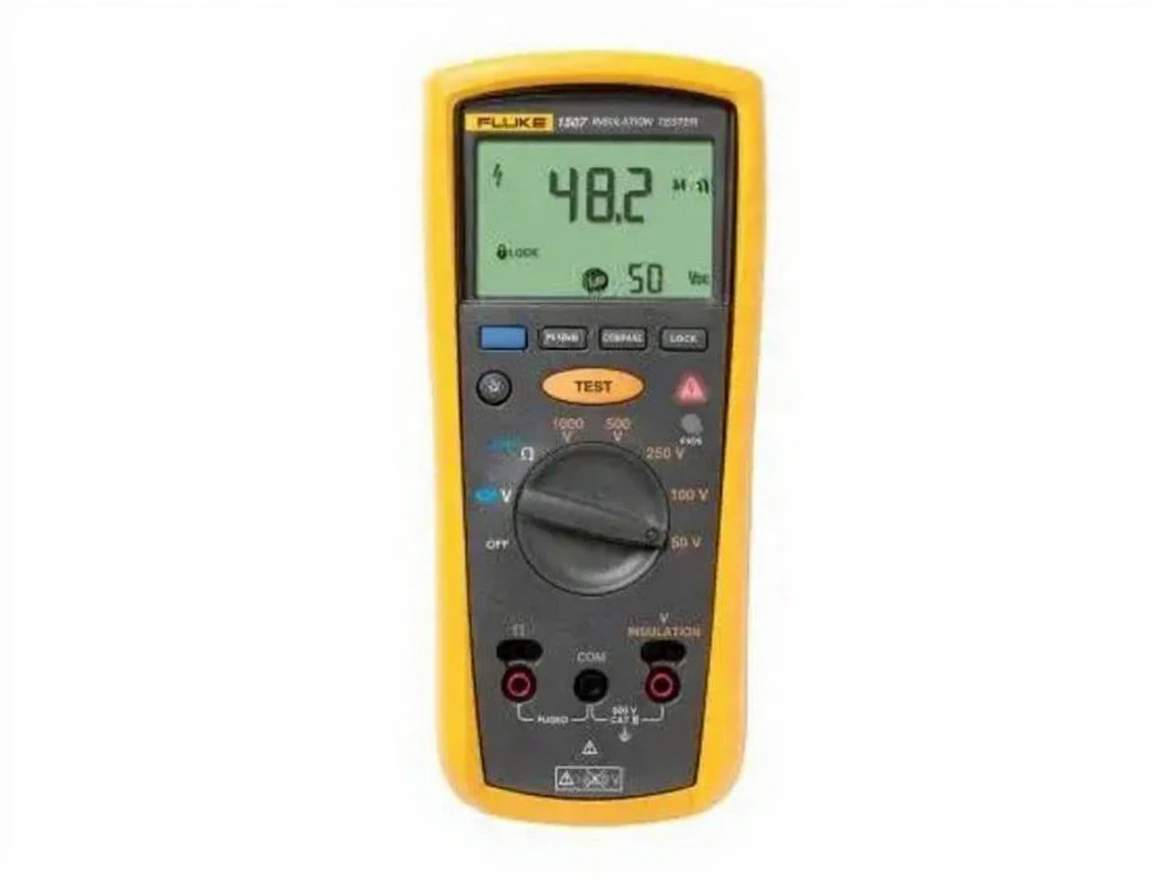

Fluke 1507 – Insulation Test Device 1000v

A versatile device designed to test the insulation resistance of electrical installations. With its compact, durable, and portable structure, it is ideal for both field work and maintenance applications. It provides a wide range of applications by offering test voltage up to 1000V.

Insulation Resistance Test:
- Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V.
- Maximum measurement range: 10 GΩ.
Continuity Test:
- Low resistance measurement up to 20 Ω.
- Automatic continuity check.
Automatic Test Functions:
- Polarization Index (PI) and Dielectric Absorption Ratio (DAR) calculations.
Remote Test Probe: Remote probe support for one-handed use.
Auto Power Off: Automatic shutdown feature when not in use for energy saving.
Compact and Durable Design:
- Lightweight and portable structure.
- Durability suitable for harsh field conditions.
Safety Level: CAT IV 600 V and CAT III 1000 V safety standard.
Easy to Use:
- One-handed use with ergonomic design.
- Backlit large display.

Applications

Insulation resistance testing of electrical installations.
Maintenance and control of industrial and commercial electrical systems.
Insulation testing of motors, generators, cables, and electrical equipment.
Measurement of polarization index and dielectric absorption ratio.

Fluke 1507 is a reliable insulation test device for professionals. With its versatile features and durable structure, it is suitable for both field work and laboratory tests.

Feature	Details
AC/DC Voltage Measurement	Range: 600.0 V Resolution: 0.1 V Accuracy: ±(%2 + 3) Input Impedance: 3 MΩ (nominal), < 100 pF Common Mode Rejection Rate: > 60 dB (DC, 50 or 60 Hz) Overload Protection: 600 V rms or DC
Ground Connection Resistance Measurement	Range/Resolution: 20.00 Ω / 0.01 Ω 200.0 Ω / 0.1 Ω 2000 Ω / 1.0 Ω 20.00 kΩ / 0.01 kΩ Accuracy: ±(%1.5 + 3) Overload Protection: 2 V rms or DC Open Circuit Test Voltage: > 4.0 V, < 8 V Short Circuit Current: > 200.0 mA
Insulation Characteristics	Measurement Range: 0.01 MΩ – 10 GΩ Test Voltage: 50 V, 100 V, 250 V, 500 V, 1000 V Test Voltage Accuracy: +20%, -0% Short Circuit Current: 1 mA nominal Automatic Discharge: Less than 0.5 seconds for C = 1 µF or less Live Circuit Indicator: Test inhibited (terminal voltage > 30 V) Maximum Capacitive Load: Can operate with 1 µF load Measurement Accuracy: 50 V: ±(%3 + 5) 100 V: ±(%3 + 5) 250 V: ±(%1.5 + 5) 500 V: ±(%1.5 + 5) 1000 V: ±(%1.5 + 5) (up to 2000 MΩ), ±(%10 + 3) (above 2000 MΩ)
General Features	Maximum Voltage that can be applied to any terminal: 600 V AC rms or DC Storage Temperature: -40°C – 60°C (-40°F – 140°F) Operating Temperature: -20°C – 55°C (-4°F – 131°F) Temperature Coefficient: 0.05 x (specified accuracy) / °C (below 18°C or above 28°C) Relative Humidity: 10°C – 30°C: %0 – %95 30°C – 40°C: %0 – %75 40°C – 55°C: %0 – %40 Vibration: MIL-PRF-28800F, Class 2 devices Shock: IEC 61010-1 2nd Edition (1 meter drop test, six sides, wooden floor) Electromagnetic Compatibility: EN 61326-1:1997 Safety: ANSI/ISA [ PHONE HIDDEN ], CAN/CSA-C22.2 NO. [ PHONE HIDDEN ], IEC/EN 61010-1 2nd Edition (600 V CAT IV) Certifications: CSA and TUV Battery Type: Four AA batteries (NEDA 15A or IEC LR6) Battery Life: Insulation test: 1000 tests Resistance measurement: 2500 tests Dimensions (H x W x D): 5.0 cm x 10.0 cm x 20.3 cm (1.97 in x 3.94 in x 8.00 in) Weight: 550 g (1.2 lb) IP Rating: IP40 Operating Altitude: 2000 m CAT IV 600 V, 3000 m CAT III 600 V Storage Altitude: 12,000 m Overrange Capacity: 110% of range Included Accessories: TL224 Test Leads, TP74 Test Probes, alligator clips (red PN 1958654 and black PN 1958646), case and remote probe

Brand	Fluke
Model Type	Fluke 1507

Category: Test and Measurement Devices

Description

Feature	Details
AC/DC Voltage Measurement	Range: 600.0 V Resolution: 0.1 V Accuracy: ±(%2 + 3) Input Impedance: 3 MΩ (nominal), < 100 pF Common Mode Rejection Rate: > 60 dB (DC, 50 or 60 Hz) Overload Protection: 600 V rms or DC
Ground Connection Resistance Measurement	Range/Resolution: 20.00 Ω / 0.01 Ω 200.0 Ω / 0.1 Ω 2000 Ω / 1.0 Ω 20.00 kΩ / 0.01 kΩ Accuracy: ±(%1.5 + 3) Overload Protection: 2 V rms or DC Open Circuit Test Voltage: > 4.0 V, < 8 V Short Circuit Current: > 200.0 mA
Insulation Characteristics	Measurement Range: 0.01 MΩ – 10 GΩ Test Voltage: 50 V, 100 V, 250 V, 500 V, 1000 V Test Voltage Accuracy: +20%, -0% Short Circuit Current: 1 mA nominal Automatic Discharge: Less than 0.5 seconds for C = 1 µF or less Live Circuit Indicator: Test inhibited (terminal voltage > 30 V) Maximum Capacitive Load: Can operate with 1 µF load Measurement Accuracy: 50 V: ±(%3 + 5) 100 V: ±(%3 + 5) 250 V: ±(%1.5 + 5) 500 V: ±(%1.5 + 5) 1000 V: ±(%1.5 + 5) (up to 2000 MΩ), ±(%10 + 3) (above 2000 MΩ)
General Features	Maximum Voltage that can be applied to any terminal: 600 V AC rms or DC Storage Temperature: -40°C – 60°C (-40°F – 140°F) Operating Temperature: -20°C – 55°C (-4°F – 131°F) Temperature Coefficient: 0.05 x (specified accuracy) / °C (below 18°C or above 28°C) Relative Humidity: 10°C – 30°C: %0 – %95 30°C – 40°C: %0 – %75 40°C – 55°C: %0 – %40 Vibration: MIL-PRF-28800F, Class 2 devices Shock: IEC 61010-1 2nd Edition (1 meter drop test, six sides, wooden floor) Electromagnetic Compatibility: EN 61326-1:1997 Safety: ANSI/ISA [ PHONE HIDDEN ], CAN/CSA-C22.2 NO. [ PHONE HIDDEN ], IEC/EN 61010-1 2nd Edition (600 V CAT IV) Certifications: CSA and TUV Battery Type: Four AA batteries (NEDA 15A or IEC LR6) Battery Life: Insulation test: 1000 tests Resistance measurement: 2500 tests Dimensions (H x W x D): 5.0 cm x 10.0 cm x 20.3 cm (1.97 in x 3.94 in x 8.00 in) Weight: 550 g (1.2 lb) IP Rating: IP40 Operating Altitude: 2000 m CAT IV 600 V, 3000 m CAT III 600 V Storage Altitude: 12,000 m Overrange Capacity: 110% of range Included Accessories: TL224 Test Leads, TP74 Test Probes, alligator clips (red PN 1958654 and black PN 1958646), case and remote probe
