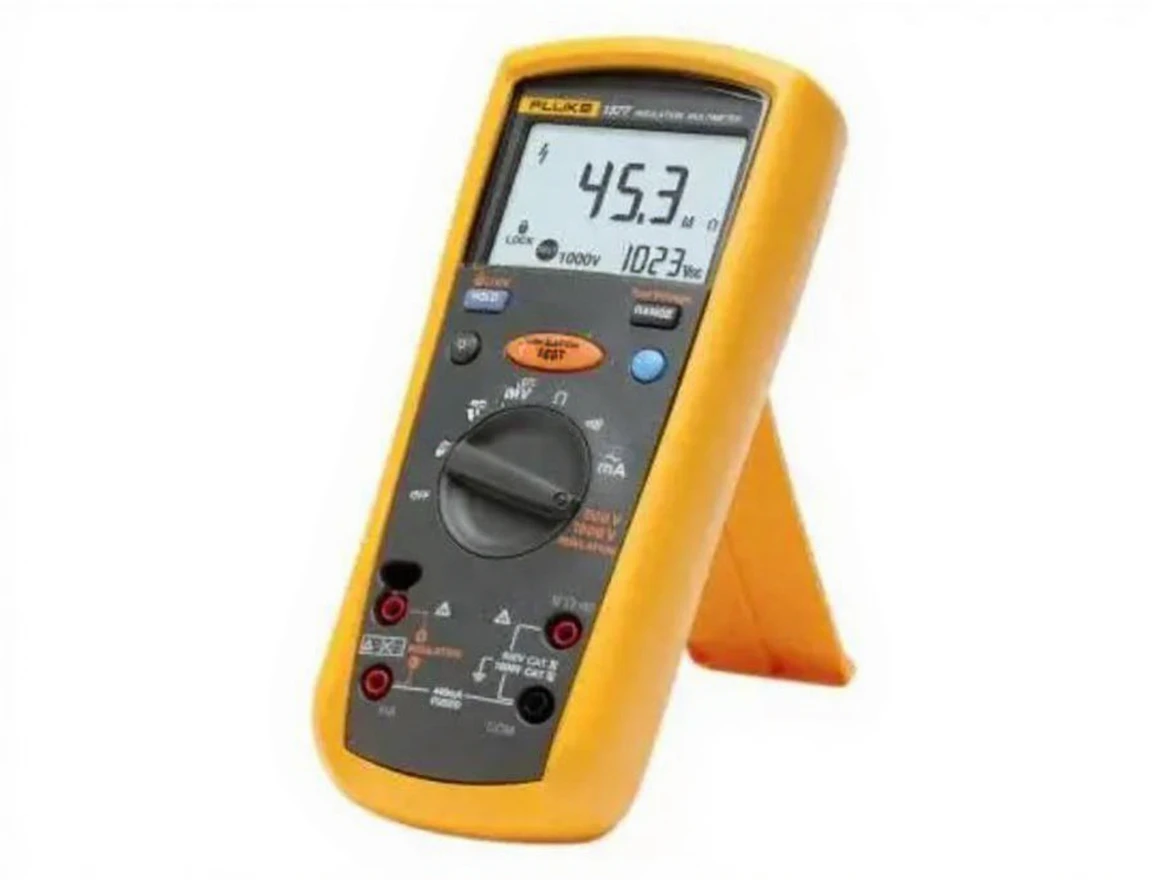

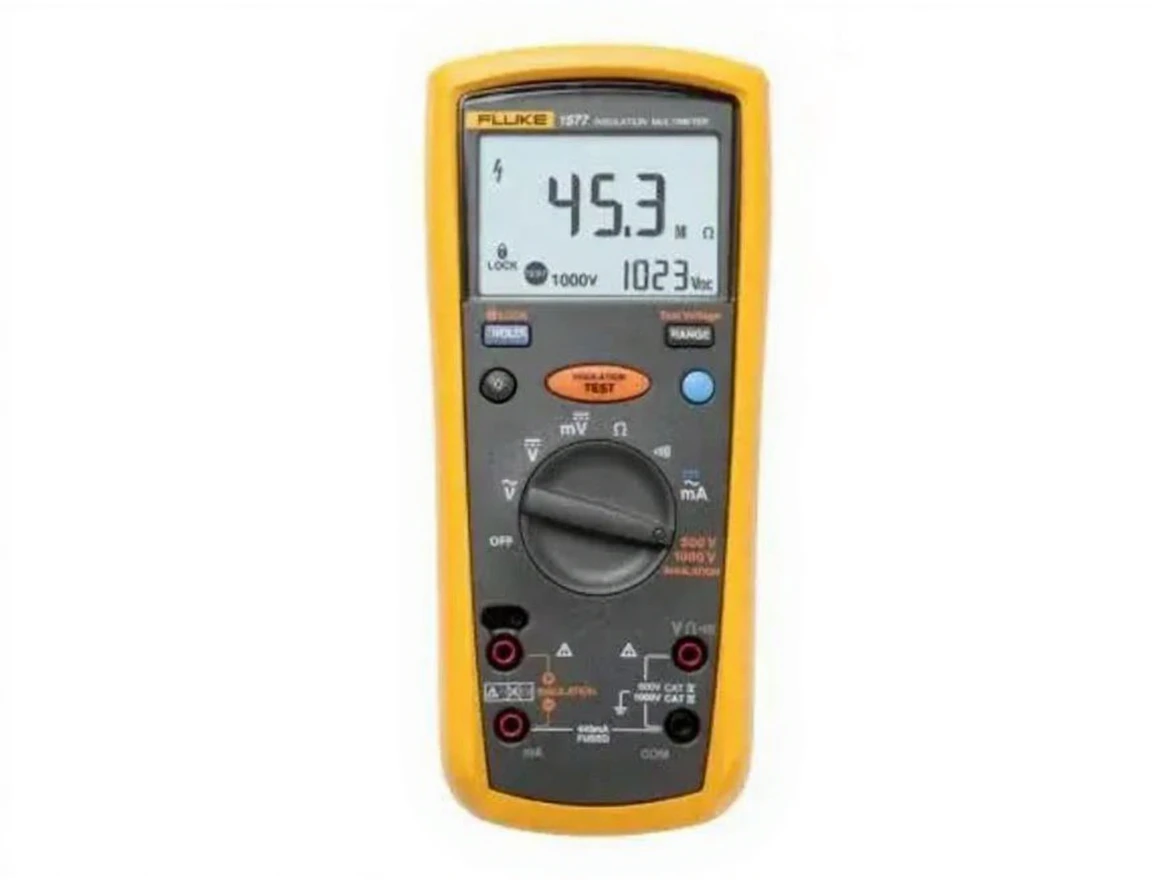

Fluke 1577 – İzolasyon Test Cihazı ve Multimetre 1000v

Fluke 1577 – Insulation Test Device and Multimeter 1000v

A compact and versatile device that combines insulation test device with digital multimeter. It provides test voltage up to 1000 V, measuring the insulation resistance of electrical equipment, as well as performing standard multimeter functions. With these features, it is very useful in industrial maintenance, electrical installations, and safety testing of equipment.

• Test Voltages: 500 V, 1000 V.

• Insulation Resistance Measurement Range: 0.1 MΩ – 600 MΩ.

• Automatic Discharge Function: Safely discharges energy in the circuit after the test.

• Safety Level: CAT IV 600 V and CAT III 1000 V safety standard.

• AC/DC Voltage Measurement: 0.1 mV – 1000 V.

• Resistance Measurement: 0.1 Ω – 50 MΩ.

• Continuity Test: Audible alert to check circuit continuity.

• Diode Test: Testing electronic circuit components.

• Display: Large, backlit LCD display.

• 2-in-1 Design: Combines insulation test device and multimeter features in one device.

• Compact and Portable: Ideal for field work with its lightweight structure.

• Auto Power Off: Saves energy to extend battery life.

• Easy to Use: Ergonomic design for one-handed operation.

Applications

• Insulation testing of electric motors, generators, and cables.

• Resistance and continuity checks of electrical installations.

• Industrial maintenance and safety testing.

• Testing of electronic circuit components.

The Fluke 1577 Insulation Test Device and Multimeter is a reliable and professional solution for both insulation testing and standard multimeter measurements. With its compact design, high safety standard, and versatile functionality, it is an ideal device for electrical technicians and maintenance teams.
