Fluke 1738 – 3 Faz Güç Kayıt Cihazı

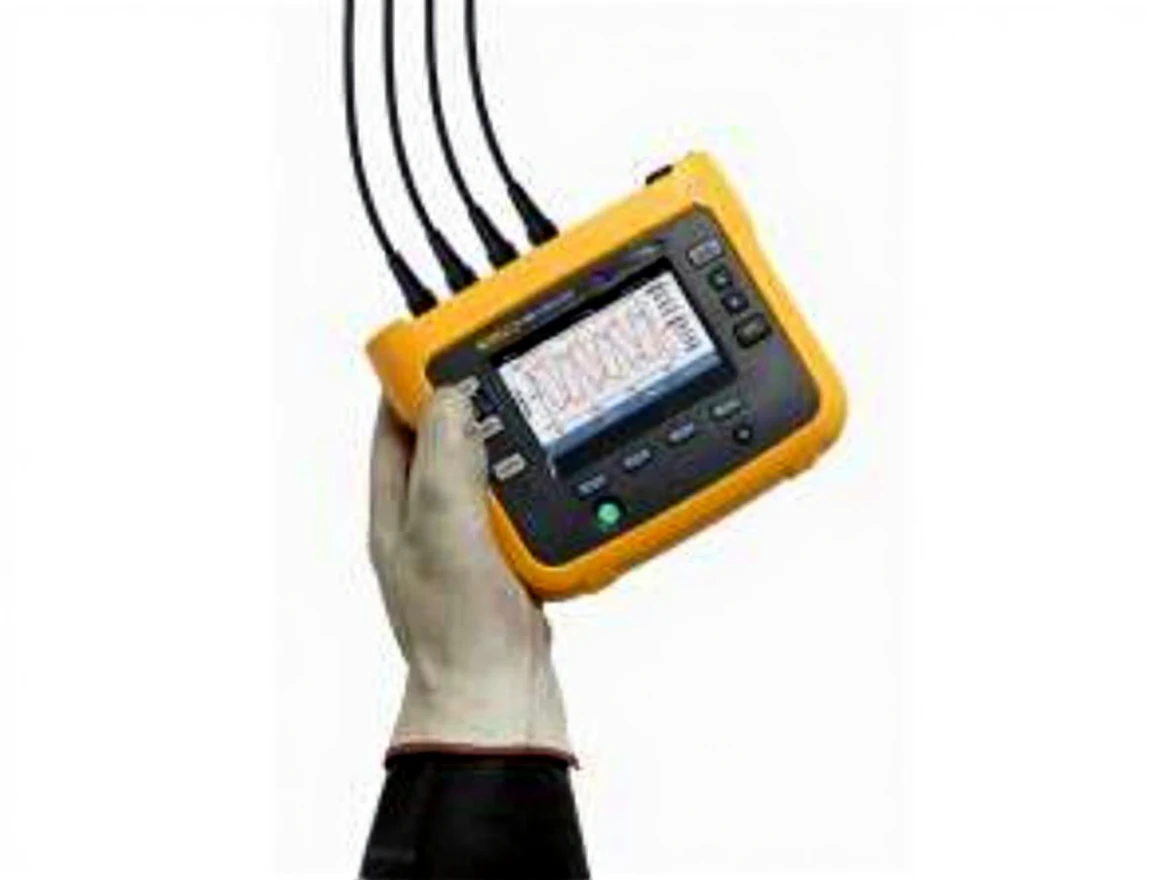

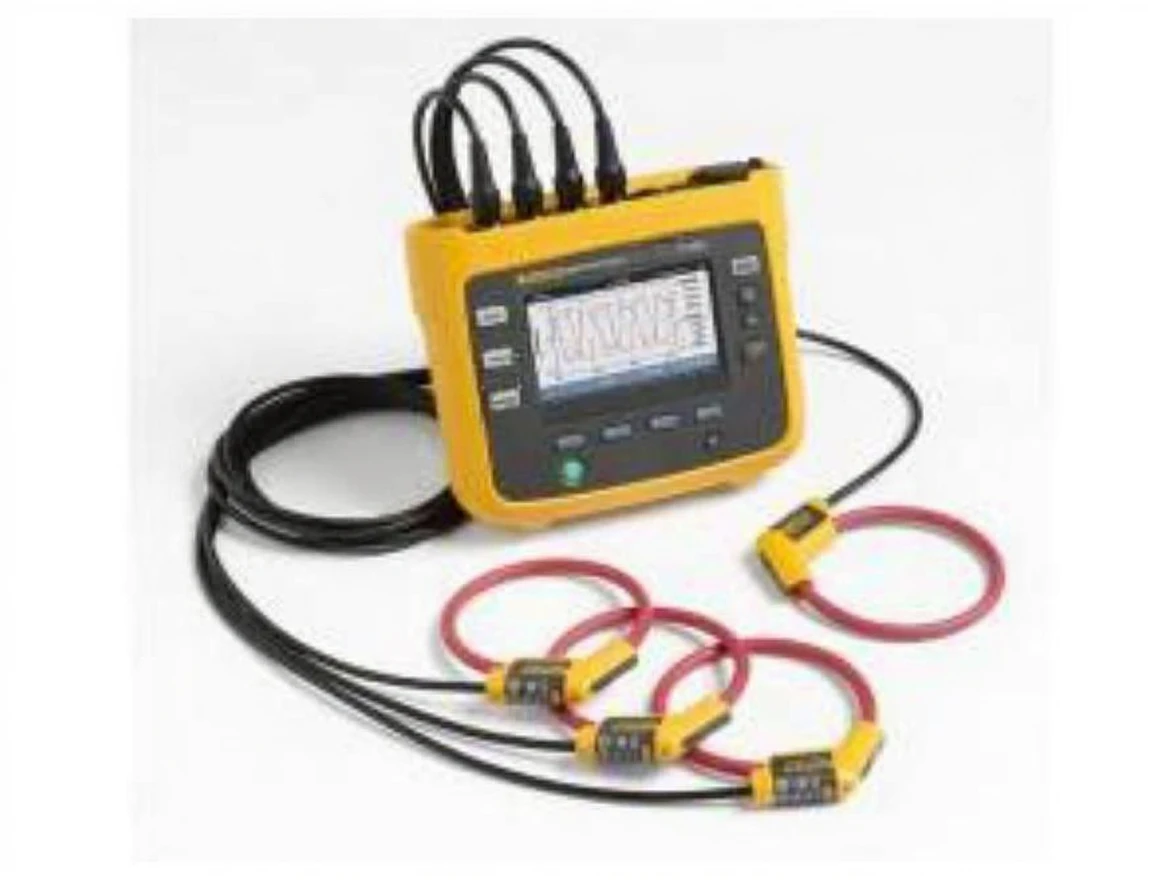

Fluke 1738 – 3 Phase Power Quality Logger

Designed to analyze the performance of electrical systems, energy consumption, and power quality in detail. With Fluke Connect feature, extensive data logging capacity, and user-friendly interface, it is ideal for increasing energy efficiency, evaluating power quality, and detecting problems.

• Advanced Power Analysis: Measures and analyzes voltage, current, power, energy, and harmonics in 3-phase systems.

• Fluke Connect: Wireless connection for transferring and sharing measurement data to mobile devices or computers.

• Comprehensive Data Logging: Records power quality parameters, harmonics, fluctuations, and energy consumption data.

• Screen Visualization: Display real-time measurement data graphically for detailed analysis.

• Long-Term Logging: Monitor energy consumption and power quality trends over a long period of time.

• Easy Setup: Quick and easy installation with color-coded connections and user-friendly interface.

• Safety Standards: CAT IV 600 V / CAT III 1000 V safety rating.

• Durable Construction: Robust design for challenging industrial environments.

• Voltage Measurement Range: 1000 V AC/DC.

• Current Measurement Range: 0.5 A – 6000 A (based on current probe).

• Power Measurement Range: Active, reactive, and apparent power measurement.

• Frequency Measurement: 50 Hz / 60 Hz.

• Harmonic Analysis: Harmonic measurement compliant with IEC 61000-4-7 standards.

• Fluctuation and Interruption Analysis: Power quality analysis compliant with IEC 61000-4-30 Class A standards.

• Data Memory: 8 GB internal memory.

• Display: Color touchscreen LCD display.

• Connectivity: Wi-Fi, Ethernet, and USB connectivity with Fluke Connect application.

• Dimensions: 210 x 130 x 50 mm.

• Weight: 1.2 kg.

Applications:

• Energy Efficiency Analysis: Measurement and analysis of electrical consumption for optimization.

• Power Quality Analysis: Detection of harmonic distortions, fluctuations, and interruptions in electrical systems.

• Industrial Energy Management: Monitoring and analyzing energy consumption in factories and facilities.

• Performance Testing of Electrical Installations: Evaluating installation performance with voltage, current, and power measurement.

• Mobile Data Sharing: Sharing and analyzing measurement data via mobile devices using Fluke Connect.

• Energy Consumption Trends: Evaluating energy consumption trends with long-term data logging.

Fluke 1738 offers top-of-the-line features for power quality analysis and energy management. It evaluates power quality in detail with fluctuation and interruption analysis compliant with IEC 61000-4-30 Class A standards. With its advanced technology and durable design, it provides a professional solution for energy management and power analysis processes.
