Fluke 289 – 50.000 Count AC+DC True RMS Multimetre
| Brand | Fluke |
|---|---|
| Model Type |
Fluke 289 |

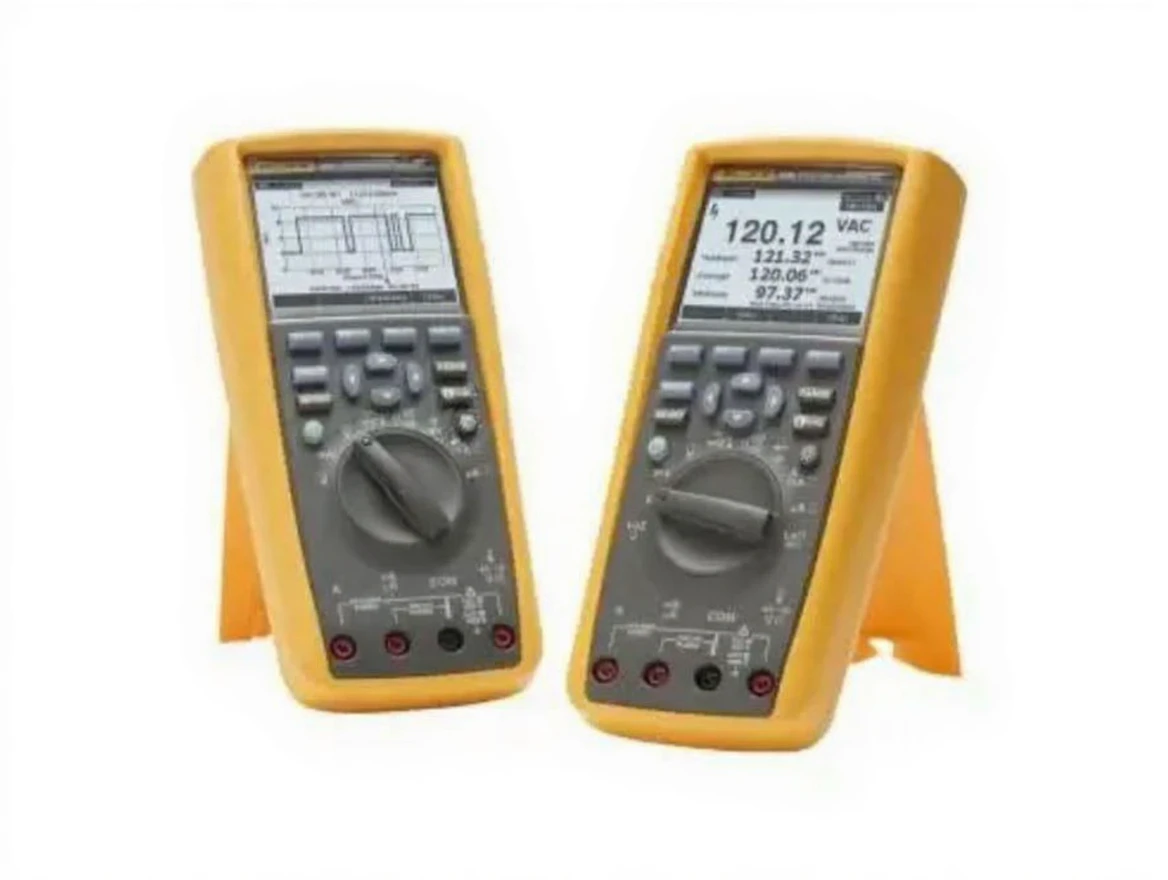

Fluke 289 – 50,000 Count AC+DC True RMS Multimeter
Designed with advanced fault detection and data logging features, this high-performance digital multimeter is ideal for professionals working in industrial maintenance, automation, and electronic applications. Here are the key features of the Fluke 289:
-
Advanced Data Logging: Records measurement data with the TrendCapture feature, allowing you to graphically view and analyze changes over time.
-
True-RMS Measurement: Provides accurate measurement of AC voltage and current for precise analysis of complex signals.
-
Large Color Display: High-resolution, backlit display for easy reading of measurement results.
-
Fluke Connect® Compatible: Wireless connectivity for sharing, storing, and analyzing measurement data (adapter optional).
-
High Accuracy: Detects even the smallest changes with a 50,000-count display resolution and wide measurement range.
-
AC/DC Voltage and Current Measurement: Up to 1000V voltage and 10A current measurement capacity.
-
Comprehensive Test Functions: Resistance, continuity, capacitance, frequency, temperature, and diode tests.
-
Low Pass Filter (LPF): Provides accurate measurements in motor drive systems with noisy signals.
-
MIN/MAX/AVG Record Feature: Tracks changes by recording minimum, maximum, and average values.
-
CAT IV 600V / CAT III 1000V Safety Rating: Ensures maximum protection while working with high safety standards.
-
Long Battery Life: Extended use with advanced power management.
Fluke 289 is an excellent solution for professionals working on complex systems for troubleshooting and applications requiring long-term data logging. It is commonly preferred in industrial maintenance, electronic engineering, and energy sectors due to its advanced features and reliability.
|
Feature |
Value |
|---|---|
|
DC Voltage |
50.000 mV – 1000.0 V (0.025% accuracy) |
|
AC Voltage |
50.000 mV – 1000.0 V (0.4% accuracy, True-RMS) |
|
DC Current |
500.00 µA – 10.000 A (0.05% accuracy) |
|
AC Current |
500.00 µA – 10.000 A (0.6% accuracy, True-RMS) |
|
Temperature (external probe) |
-200.0°C to 1350.0°C (-328.0°F to 2462.0°F) |
|
Resistance |
50.000 Ω – 500.0 MΩ (0.05% accuracy) |
|
Capacitance |
1.000 pF – 100 mF (1.00% accuracy) |
|
Frequency |
99.999 Hz – 999.99 kHz (0.005% accuracy) |
|
Connection |
Optional infrared connection (with Fluke ir3000 FC) |
|
Highest Voltage |
1000 V (between any terminal and ground) |
|
Battery Type |
6 AA alkaline batteries (IEC LR6) |
|
Battery Life |
Minimum 100 hours, 200 hours in logging mode |
|
Operating Temperature |
-20°C to 55°C |
|
Storage Temperature |
-40°C to 60°C |
|
Relative Humidity |
0 – 90% (0°C – 37°C), 0 – 65% (37°C – 45°C), 0 – 45% (45°C – 55°C) |
|
Electromagnetic Compatibility |
EMC EN61326-1 |
|
Vibration |
Random vibration compliant with MIL-PRF-28800F Class 2 |
|
Shock |
1-meter drop (IEC/EN 61010-1 3rd Edition) |
|
Dimensions (H x W x D) |
22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 inches) |
|
Weight |
870.9 g (28 oz) |
|
True-RMS AC Bandwidth |
100 kHz |
|
Megohm Range |
Up to 500 MΩ |
|
Logging Capacity |
15,000 data points |
|
Wireless Connection |
Optional |
