Fluke 376 FC – True RMS Wireless AC/DC Clamp Meter

Brand

Fluke

Model Type

Fluke 376 FC

Fluke 376 FC – True RMS Wireless AC/DC Clamp Meter

It is a measuring device with high precision and wireless connection features designed for AC and DC current measurements. Thanks to Fluke Connect technology, it offers the opportunity to wirelessly transfer and analyze measurement data to mobile devices. It is an ideal solution for industrial and commercial applications with its wide measurement capacity and iFlex current probe support.

Features:

AC/DC Current Measurement:It can make accurate and precise measurements up to 1000 A.
AC/DC Voltage Measurement:Provides reliable measurement up to 1000 V.
Resistance Measurement:It can measure resistance up to 60 kΩ.
TrueRMS technology:It provides accurate measurement without being affected by fluctuations in AC signals.
Measurement with iFlex Current Probe:Offers extended measurement capacity up to 2500 A with optional iFlex current probe.
Fluke Connect feature:It provides the opportunity to transfer and analyze data to mobile devices via Bluetooth.
Frequency and capacitance measurement:It can measure frequency and capacitance values precisely.
Big screen:Backlight feature that allows easy reading of measurement results.
Safety standards:It is produced in accordance with CAT IV 600 V / CAT III 1000 V safety standards.

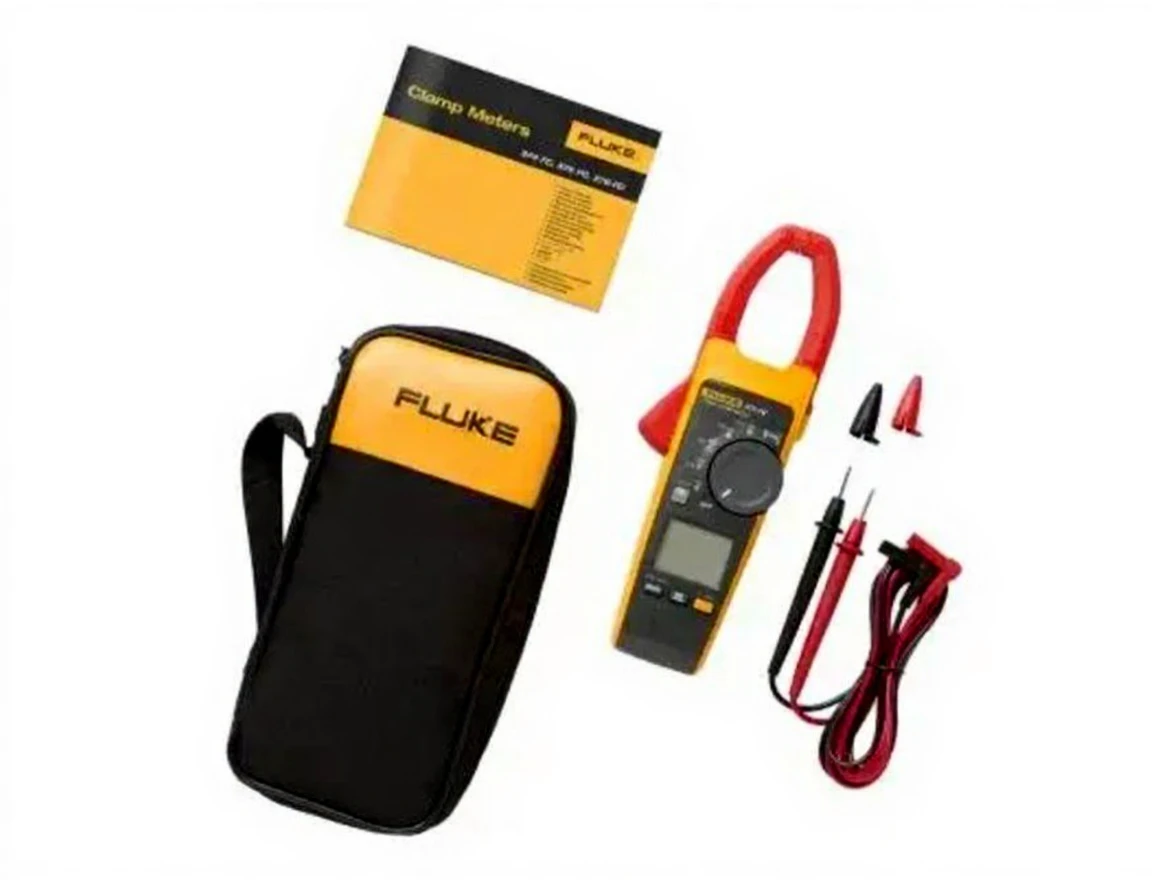

Set Content:

Fluke 376 FC True RMS Wireless AC/DC Clamp Meter
Expanded set including iFlex Current Probe
Hardened Test Leads
Carrying Bag
User Guide

Fluke 376 FC is a reliable device designed for professional technicians and electrical engineers. Thanks to its wireless connection features and wide measurement capacity, it helps to make fast and accurate diagnosis in electrical systems. It is the perfect tool for both industrial and commercial applications.

Feature	Value
AC Current (Through Jaw)	Range: 999.9A Resolution: 0.1A Accuracy: 2% ±5 steps (10 Hz – 100 Hz) 2.5% ±5 digits (100 Hz – 500 Hz) Crest Factor (50 Hz/60 Hz): 3 @ 500 A, 2.5 @ 600 A C.F. For >2 add 2%
AC Current (with Flexible Current Probe)	Range: 2500 A Resolution: 0.1 A (≤600 A), 1 A (≤2500 A) Accuracy: 3% ±5 digits (5 Hz – 500 Hz) Crest Factor (50 Hz/60 Hz): 3.0 @ 1100 A, 2.5 @ 1400 A, 1.42 @ 2500 A C.F. For >2 add 2%
Flexible Current Probe	i2500-10 Flex: A: Distance: 0.5 inch (12.7 mm), Error: ±0.5 % B: Distance: 0.8 inch (20.3 mm), Error: ±1.0 % C: Distance: 1.4 inches (35.6 mm), Error: ±2.0 % i2500-18 Flex: A: Distance: 1.4 inches (35.6 mm), Error: ±0.5 % B: Distance: 2.0 inches (50.8 mm), Error: ±1.0 % C: Distance: 2.5 inches (63.5 mm), Error: ±2.0 % i2500-36 Flex: A: Distance: 4.8 inches (122.2 mm), Error: ±0.5 % B: Distance: 5.3 inches (133.6 mm), Error: ±1.0 % C: Distance: 5.8 inches (147.6 mm), Error: ±2.0 % The measurement uncertainty assumes that the central primary conductor is in the optimum position, there is no external electric or magnetic field and is within the operating temperature range.
DC Current	Range: 999.9A Resolution: 0.1A Precision: 2% ±5 digits
AC Voltage	Range: 1000V Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V) Accuracy: 1% ±5 digits (20 Hz – 500 Hz)
DC Voltage	Range: 1000V Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V) Precision: 1% ±5 digits
mV DC	Range: 500.0mV Resolution: 0.1mV Precision: 1% ±5 digits
Frequency (with Chin)	Range: 5.0 Hz – 500.0 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger Level: 5 Hz – 10 Hz ≥10 A, 10 Hz – 100 Hz ≥5 A, 100 Hz – 500 Hz ≥10 A
Frequency (with Flexible Current Probe)	Range: 5.0 Hz – 500.0 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger Level: 5 Hz – 20 Hz ≥25 A, 20 Hz – 100 Hz ≥20 A, 100 Hz – 500 Hz ≥25 A
Resistance	Range: 60 kΩ Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ) Precision: 1% ±5 digits
Capacitance	Range: 1000 µF Resolution: 0.1 µF (≤100 µF), 1 µF (≤1000 µF) Precision: 1% ±4 digits
Mechanical Properties	Maximum Voltage: 1000V Battery: 2 AA, NEDA 15A, IEC LR6 Operating Temperature: -10 °C – 50 °C Storage Temperature: -40 °C – 60 °C Operating Humidity: 90% RH (10 °C – 30 °C), 75% RH (30 °C – 40 °C), 45% RH (40 °C – 50 °C) Working Altitude: 2000 m Storage Altitude: 12,000 m Size: 249 x 85 x 45mm Weight: 395g Jaw Opening: 34 mm Flexible Current Probe Diameter: 7.5 mm Flexible Current Probe Cable Length: 1.8 m
Security	IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V IP Rating: IEC 60529, IP30 (non-operating)
Electromagnetic Compatibility (EMC)	International: IEC 61326-1, IEC 61326-2-2 CISPR 11: Group 1, Class A USA (FCC): 47 CFR 15 subpart B Korea (KCC): Class A Equipment (Industrial Broadcast and Communications Equipment)
Temperature Coefficients	Add 0.1% to the specified precision for each °C above 28 °C or below 18 °C

Brand	Fluke
Model Type	Fluke 376 FC

Category: Electrical Test Equipment

Description

Feature	Value
AC Current (Through Jaw)	Range: 999.9A Resolution: 0.1A Accuracy: 2% ±5 steps (10 Hz – 100 Hz) 2.5% ±5 digits (100 Hz – 500 Hz) Crest Factor (50 Hz/60 Hz): 3 @ 500 A, 2.5 @ 600 A C.F. For >2 add 2%
AC Current (with Flexible Current Probe)	Range: 2500 A Resolution: 0.1 A (≤600 A), 1 A (≤2500 A) Accuracy: 3% ±5 digits (5 Hz – 500 Hz) Crest Factor (50 Hz/60 Hz): 3.0 @ 1100 A, 2.5 @ 1400 A, 1.42 @ 2500 A C.F. For >2 add 2%
Flexible Current Probe	i2500-10 Flex: A: Distance: 0.5 inch (12.7 mm), Error: ±0.5 % B: Distance: 0.8 inch (20.3 mm), Error: ±1.0 % C: Distance: 1.4 inches (35.6 mm), Error: ±2.0 % i2500-18 Flex: A: Distance: 1.4 inches (35.6 mm), Error: ±0.5 % B: Distance: 2.0 inches (50.8 mm), Error: ±1.0 % C: Distance: 2.5 inches (63.5 mm), Error: ±2.0 % i2500-36 Flex: A: Distance: 4.8 inches (122.2 mm), Error: ±0.5 % B: Distance: 5.3 inches (133.6 mm), Error: ±1.0 % C: Distance: 5.8 inches (147.6 mm), Error: ±2.0 % The measurement uncertainty assumes that the central primary conductor is in the optimum position, there is no external electric or magnetic field and is within the operating temperature range.
DC Current	Range: 999.9A Resolution: 0.1A Precision: 2% ±5 digits
AC Voltage	Range: 1000V Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V) Accuracy: 1% ±5 digits (20 Hz – 500 Hz)
DC Voltage	Range: 1000V Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V) Precision: 1% ±5 digits
mV DC	Range: 500.0mV Resolution: 0.1mV Precision: 1% ±5 digits
Frequency (with Chin)	Range: 5.0 Hz – 500.0 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger Level: 5 Hz – 10 Hz ≥10 A, 10 Hz – 100 Hz ≥5 A, 100 Hz – 500 Hz ≥10 A
Frequency (with Flexible Current Probe)	Range: 5.0 Hz – 500.0 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger Level: 5 Hz – 20 Hz ≥25 A, 20 Hz – 100 Hz ≥20 A, 100 Hz – 500 Hz ≥25 A
Resistance	Range: 60 kΩ Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ) Precision: 1% ±5 digits
Capacitance	Range: 1000 µF Resolution: 0.1 µF (≤100 µF), 1 µF (≤1000 µF) Precision: 1% ±4 digits
Mechanical Properties	Maximum Voltage: 1000V Battery: 2 AA, NEDA 15A, IEC LR6 Operating Temperature: -10 °C – 50 °C Storage Temperature: -40 °C – 60 °C Operating Humidity: 90% RH (10 °C – 30 °C), 75% RH (30 °C – 40 °C), 45% RH (40 °C – 50 °C) Working Altitude: 2000 m Storage Altitude: 12,000 m Size: 249 x 85 x 45mm Weight: 395g Jaw Opening: 34 mm Flexible Current Probe Diameter: 7.5 mm Flexible Current Probe Cable Length: 1.8 m
Security	IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V IP Rating: IEC 60529, IP30 (non-operating)
Electromagnetic Compatibility (EMC)	International: IEC 61326-1, IEC 61326-2-2 CISPR 11: Group 1, Class A USA (FCC): 47 CFR 15 subpart B Korea (KCC): Class A Equipment (Industrial Broadcast and Communications Equipment)
Temperature Coefficients	Add 0.1% to the specified precision for each °C above 28 °C or below 18 °C
