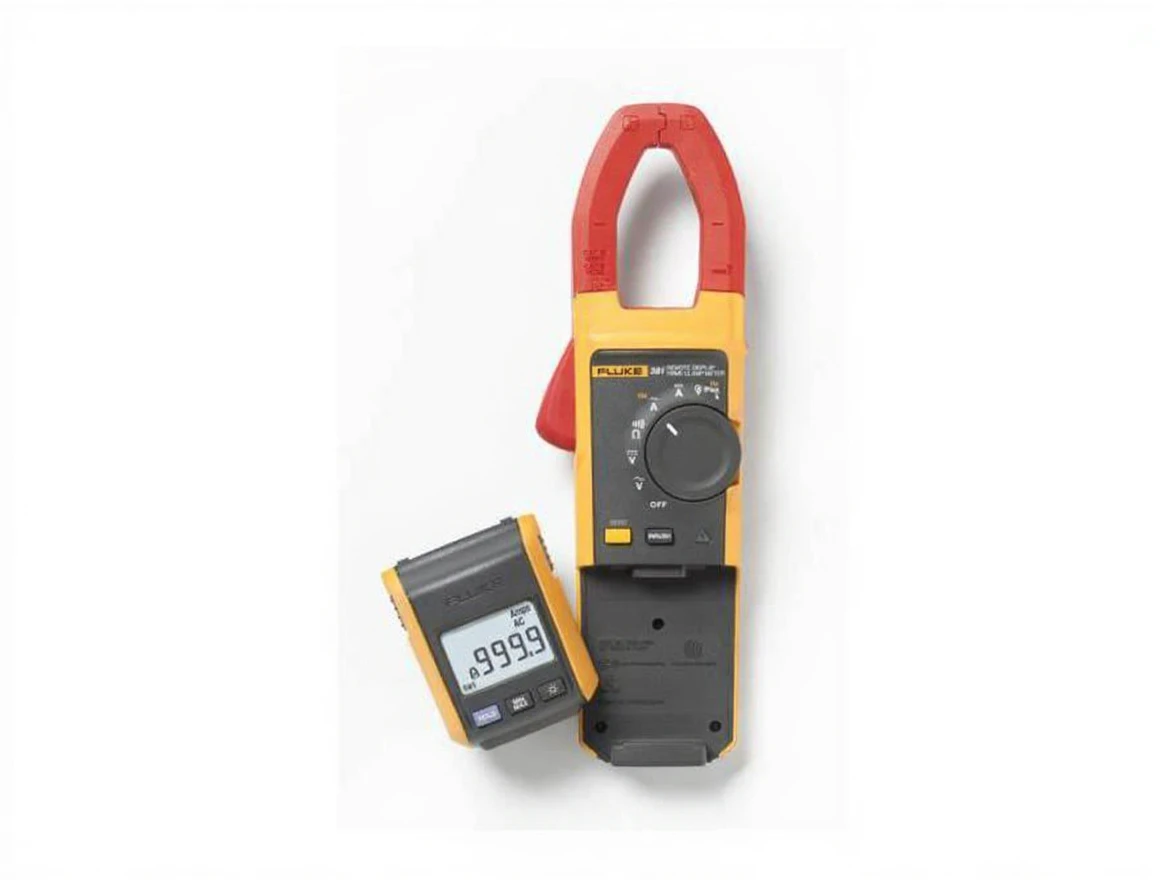

Fluke 381 Remote Display Clamp Meter (1)
| Brand | Fluke |
|---|---|
| Model Type |
Fluke 381 |
Description
Fluke 381 is a professional digital clamp meter designed for electricians and technicians, with remote display capability. This device provides users with a safe working environment while making current measurements with high accuracy.
- Current Measurement Range: Capable of measuring between 0.1 mA and 1000 A AC/DC.
- Remote Display: The 1.8 m (6 ft) wireless display allows users to see measurement results from a safe distance.
- True RMS Measurement: Calculates fluctuating current values accurately with True RMS measurement technology.
- Data Logging: Can record measurement data for analysis.
- Durability: With a rugged design, it offers reliable performance in harsh working environments.
Applications
Fluke 381 can be used in various fields:
- For maintenance and repair of electrical installations
- For inspection and analysis of industrial equipment
- For monitoring energy consumption of HVAC systems
Advantages
Advantages offered by Fluke 381:
- Easy to Use: Its user-friendly interface allows users of all levels to operate it easily.
- Safe Operation: The remote display feature keeps users away from hazardous areas.
- Reliable Results: Provides reliable measurement results with high accuracy and durability.
Fluke 381 Remote Display Clamp Meter is a portable and reliable device that offers all the features necessary for electrical measurements. It is an ideal choice for electrical applications.
| Feature | Value |
|---|---|
| AC Current Measurement Range | 0.1A – 1000A |
| AC Current Accuracy | ±(1.5% + 5 digits) |
| DC Current Measurement Range | 0.1A – 1000A |
| DC Current Accuracy | ±(2% + 5 digits) |
| Voltage Measurement Range | 600V AC/DC |
| Voltage Accuracy | AC: ±(1.5% + 5 digits), DC: ±(1% + 3 digits) |
| Resistance Measurement Range | 0.1Ω – 60MΩ |
| Resistance Accuracy | ±(1% + 5 digits) |
| Leakage Current Measurement | 0.1mA – 60A |
| Leakage Current Accuracy | ±(2% + 10 digits) |
| Data Recording | Min, Max, Average, Instantaneous |
| Display | 4.3 inch color LCD, 480×272 pixels |
| Wireless Connection | Bluetooth |
| Power Source | 2 x AA batteries |
| Operating Temperature | -10°C – 50°C (14°F – 122°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Weight | 1.1 kg (2.4 lb) |
