Fluke 561 – Çok Amaçlı Infrared Termometre
| Brand | Fluke |
|---|---|
| Model Type |
Fluke 561 |

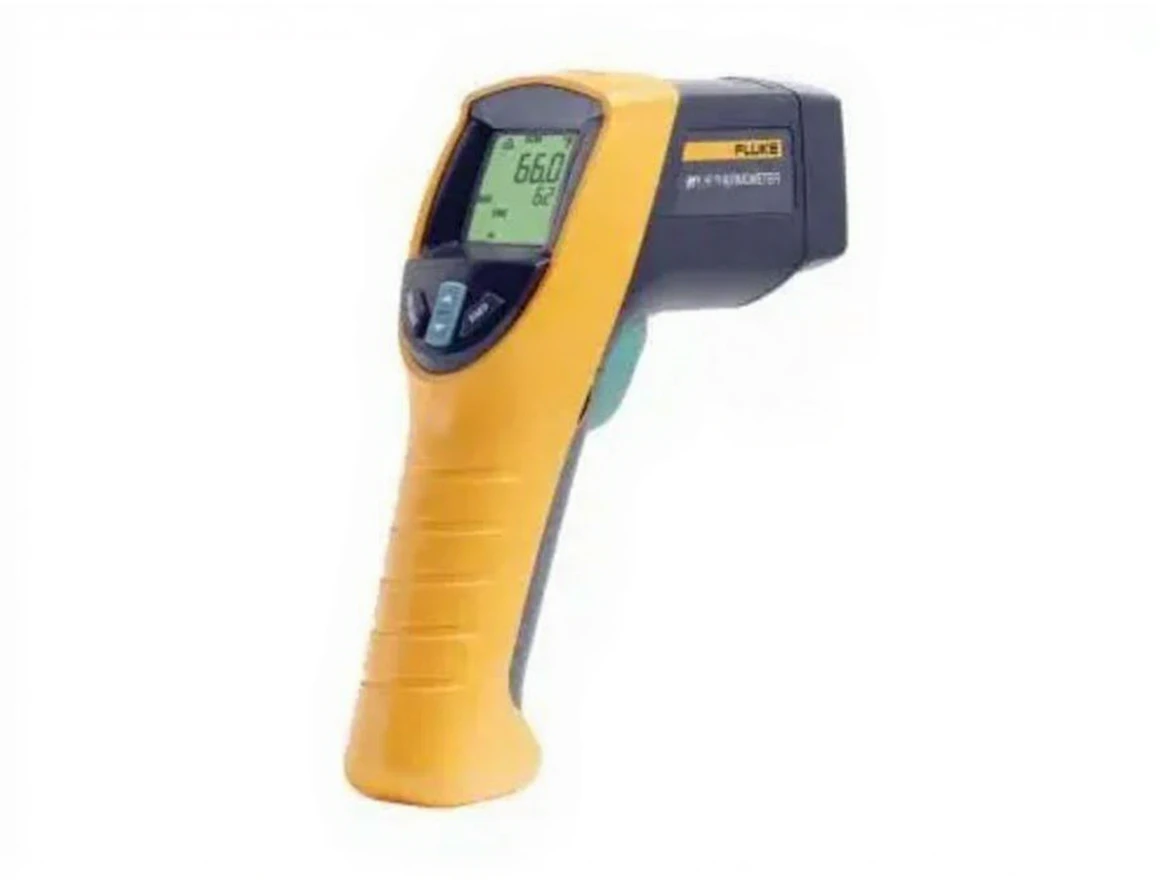

Fluke 561 – Wide Range Infrared Thermometer
A versatile device that can measure temperature both contactless and contact, making it ideal for HVAC/R systems, industrial applications, and building maintenance. Designed for quick and reliable temperature measurement, the Fluke 561 is ergonomic and durable, making it the perfect tool for professional users.
-
Non-Contact Infrared Measurement: Allows for fast and reliable temperature measurement from a distance.
-
Contact Measurement: Option to measure surface temperatures directly with an optional probe.
-
Wide Temperature Range: Can measure temperatures between -40°C and 550°C.
-
Spot Ratio: Provides accurate measurement on small targets with a 12:1 optical resolution.
-
Adjustable Emissivity: Allows for more accurate measurement based on different surface materials.
-
Fast Response Time: Instantly detects temperature changes.
-
Backlit Display: Ensures easy reading in low-light conditions.
-
Easy to Use: Ergonomic design for one-handed operation.
-
Durability: Sturdy construction suitable for harsh industrial environments.
The Fluke 561 Wide Range Infrared Thermometer comes with an optional probe, user manual, and battery. It is a reliable, durable, and versatile temperature measurement device designed for professional users. With both non-contact and contact measurement features, it has a wide range of applications.
|
Feature |
Value |
|---|---|
|
Temperature Range |
-40 to 550 °C (-40 to 1022 °F) |
|
Display Resolution |
0.1 °C (0.1 °F) |
|
Distance to Spot Size Ratio |
12:01 |
|
Easy Emissivity Selector |
Adjustable in three positions: Low (0.3), Medium (0.7), High (0.95) |
|
Display Accuracy |
±1 °C (±2 °F), whichever is greater |
|
Response Time |
500 ms (95% reading) |
|
Repeatability |
±0.5 °C (±1 °F), whichever is greater |
|
Spectral Response |
Between 8 μm and 14 μm |
|
Laser Pointer |
Single point laser |
|
Laser Off |
Laser turns off above 40 °C (104 °F) ambient temperature |
|
Laser Power |
Class 2 (II), Output <1 mW, Wavelength 630-670 nm |
|
Relative Humidity |
Between 10% and 90% RH without condensation |
|
Power |
2 AA alkaline or NiCd batteries |
|
Battery Life |
12 hours |
|
Display Hold |
7 seconds |
|
Backlit Display |
Yes, dual temperature LCD |
|
Warranty |
2 years |
|
Operating Temperature |
0°C to 50°C (32°F to 120°F) |
|
Storage Temperature |
-20°C to 65°C (-25°F to 150°F) |
|
MAX, MIN, DIFF Measurement Functions |
Yes |
|
K Type Thermocouple Mini Adapter Input |
Yes, compatible with standard industry K type probe |
|
K Type Thermocouple Cloth Hook and Loop Pipe Probe |
Yes, between 0°C and 100°C (32°F and 212°F) |
|
HVAC Measurement Guide |
Yes |
