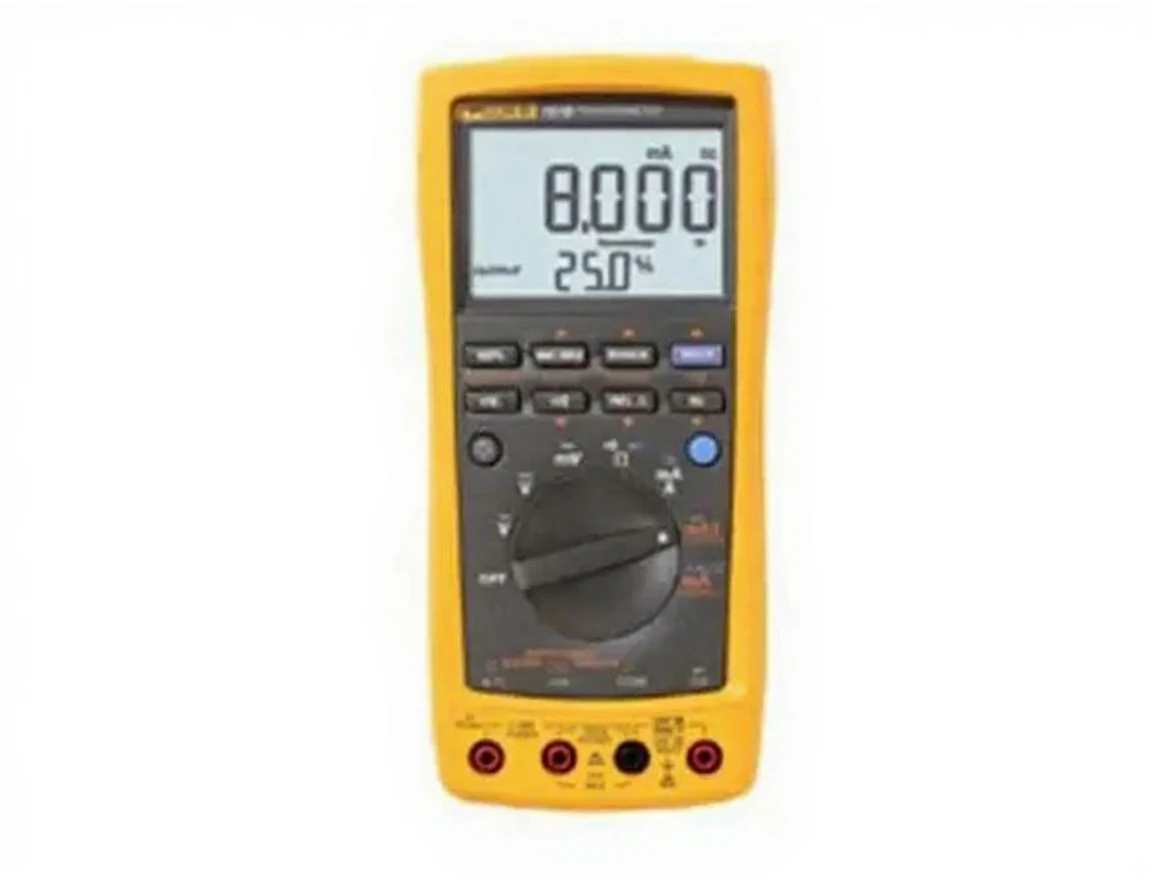

Fluke 787B Process Meter

A versatile device that combines the features of a precise digital multimeter and a loop calibrator. It is designed for maintenance, testing, and calibration tasks in process control systems. The Fluke 787B provides high accuracy, reliability, and portability, offering an ideal solution for field technicians and engineers.

• Multimeter Functions:

  • DC Current Measurement: Precise measurement in the range of 0-1 A.

  • DC Voltage Measurement: Measurement in the range of 0-1000 V.

  • Resistance Measurement: Measurement in the range of 0-40 MΩ.

  • Frequency Measurement: Measurement up to 20 kHz.

  • Diode Test and Continuity Check.

• Loop Calibrator Functions:

  • 4-20 mA Current Loop Measurement and Simulation.

  • Loop Power Provision: 24V loop power.

  • Precise current measurement with a %0.05 accuracy rate.

  • Manual or automatic adjustment of mA signals.

• Provides reliable results with a %0.1 accuracy rate.

• Dual display LCD shows both multimeter and loop calibrator values simultaneously.

• Compact and durable design ensures portability and resistance to harsh environments in the field.

• Features automatic shutdown for energy saving.

• Offers long battery life for extended field use.

The Fluke 787B combines the functions of both a digital multimeter and a loop calibrator. With its 24V loop power provision, it enables independent testing of transmitters. It measures and simulates 4-20 mA loop signals. The dual display feature allows simultaneous viewing of two different parameters. It is designed to withstand tough industrial environments and provides ease of use in the field with its compact design.

Applications:

• Measurement, simulation, and control of 4-20 mA signals in process control systems.

• Verification, calibration, and independent testing of transmitters.

• Testing of PLC analog inputs and outputs.

• Quick and easy current measurement for field maintenance operations.

• Monitoring current signals and achieving energy savings.

• Precise measurement and calibration needs in laboratory environments.

The Fluke 787B allows users to perform versatile tasks with a single device by combining the features of both a multimeter and a loop calibrator. The dual display feature enables viewing multiple parameters simultaneously. The loop power provision and precise current simulation features facilitate testing of transmitters and process control systems.

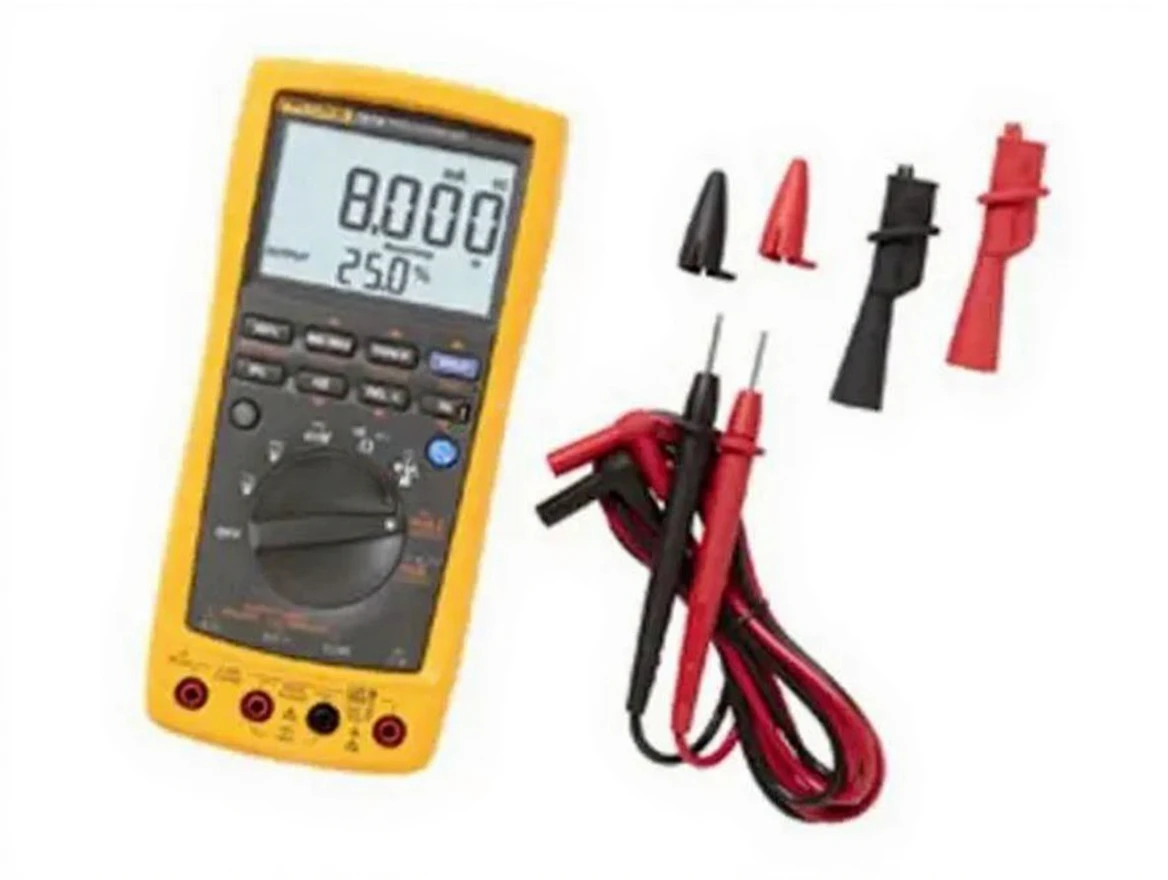

The device comes with a user manual, test leads, and a carrying case. It optimizes operations by providing reliable results in the field and laboratory environments.
