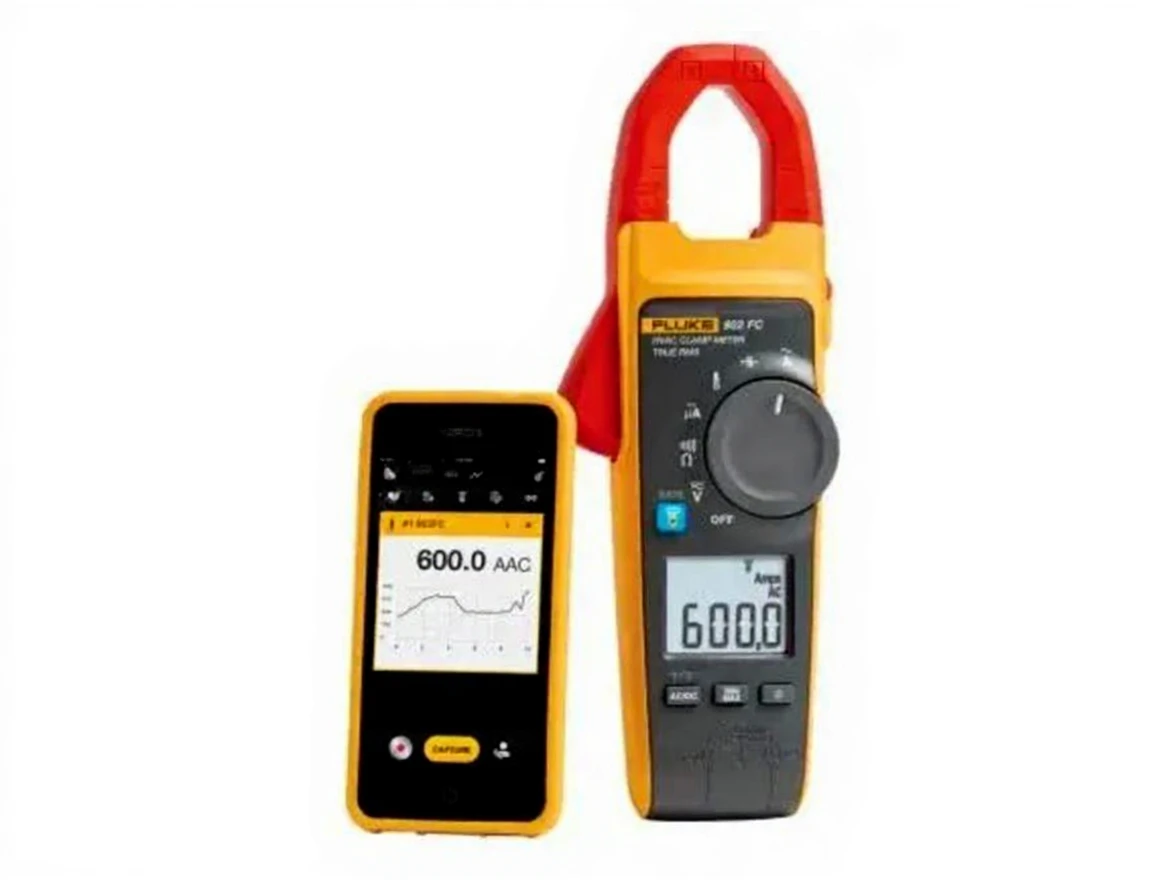

Fluke 902FC – True RMS HVAC Clamp Meter

Fluke 902FC – True RMS HVAC Clamp Meter

It is a device specially designed for maintenance, repair and installation operations in HVAC (heating, ventilation and air conditioning) systems. It provides precise and reliable results thanks to True RMS measurement technology. Fluke Connect technology allows you to share and store data wirelessly, making technicians’ work processes more efficient.

• Measurement Functions:

  • AC Current Measurement: up to 600 A.

  • DC Current Measurement: Up to 200 µA (ideal for flame sensor testing).

  • AC Voltage Measurement: up to 600 V.

  • DC Voltage Measurement: up to 600 V.

  • Resistance Measurement: up to 60 kΩ.

  • Capacitance Measurement: up to 1000 µF.

  • Frequency Measurement: up to 500 Hz.

  • Continuity Check: Beeper below 30 Ω.

• True RMS Measurement:For accurate and reliable results.

• Fluke Connect Technology:Wireless data sharing and reporting.

• Compact Design:Ergonomic structure for one-handed use.

• CAT III 600V Safety Level:Complies with high security standards.

• Backlit Display:Easily read data even in dark environments.

• Energy Saving:Auto shut-off feature.

• Low Energy Consumption:Long-term use in the field with long battery life.

Fluke 902 FC is a device specifically designed for HVAC technicians. True RMS technology provides high accuracy in AC and DC current measurement. It offers the opportunity to test critical points of HVAC systems with its low current measurement feature for flame sensor testing. Thanks to Fluke Connect technology, you can share and report measurement data wirelessly. Its ergonomic design and durable structure ensure easy use in the field and resistance to harsh environments.

Application Areas:

• Measurement of AC and DC current, voltage, resistance and capacitance in HVAC systems.

• Precise DC microamp measurement for flame sensor testing.

• Testing and maintenance of engines, compressors and HVAC equipment.

• Performance analysis of HVAC systems with frequency measurement.

• Checking circuits with continuity testing.

• Data sharing and reporting with Fluke Connect.

The Fluke 902 FC enables HVAC technicians to do their jobs more efficiently and reliably. Thanks to its compact design, durable structure and advanced features, it provides reliable results in the field and laboratory environment. The device comes with a user manual, test cables and a carrying case.
