Fs28 Plus Table Top Router Table
| Brand | Ozco |
|---|---|
| Model Type |
FS28 Plus |
Description

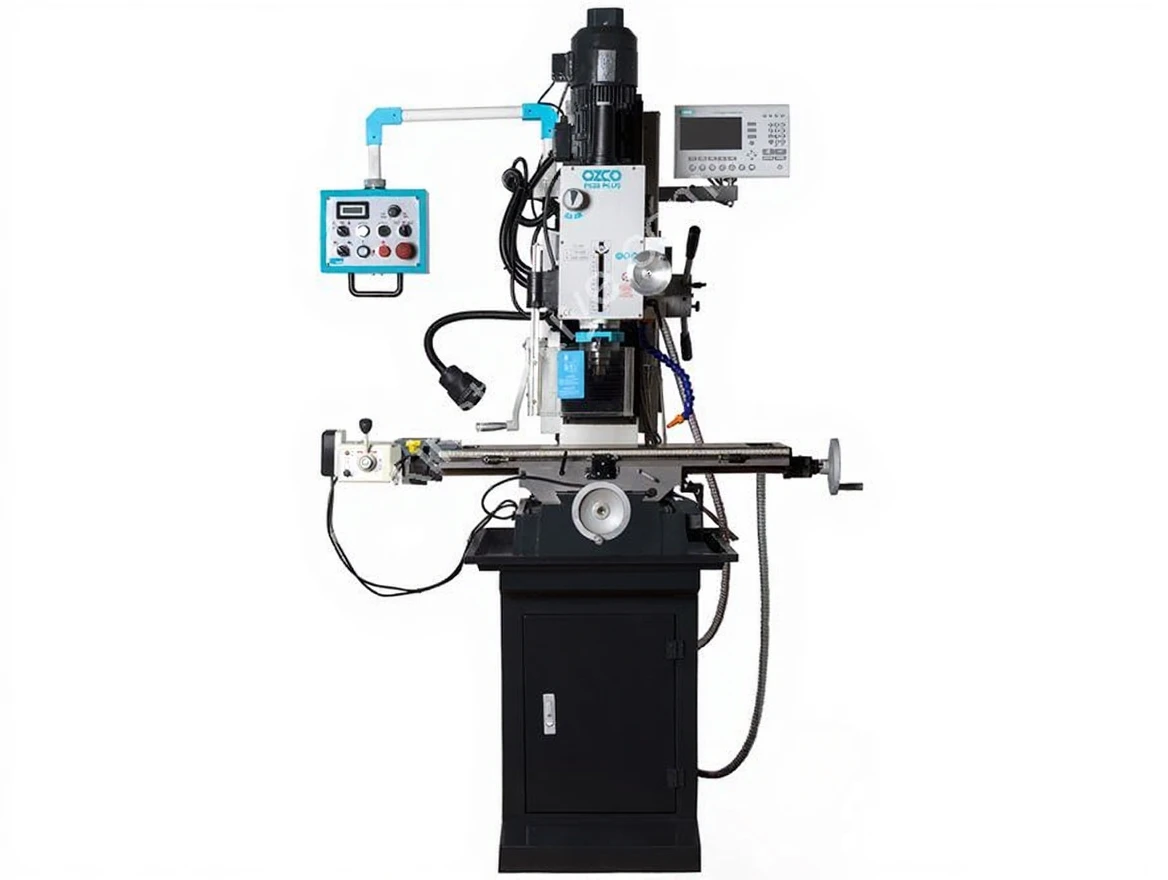

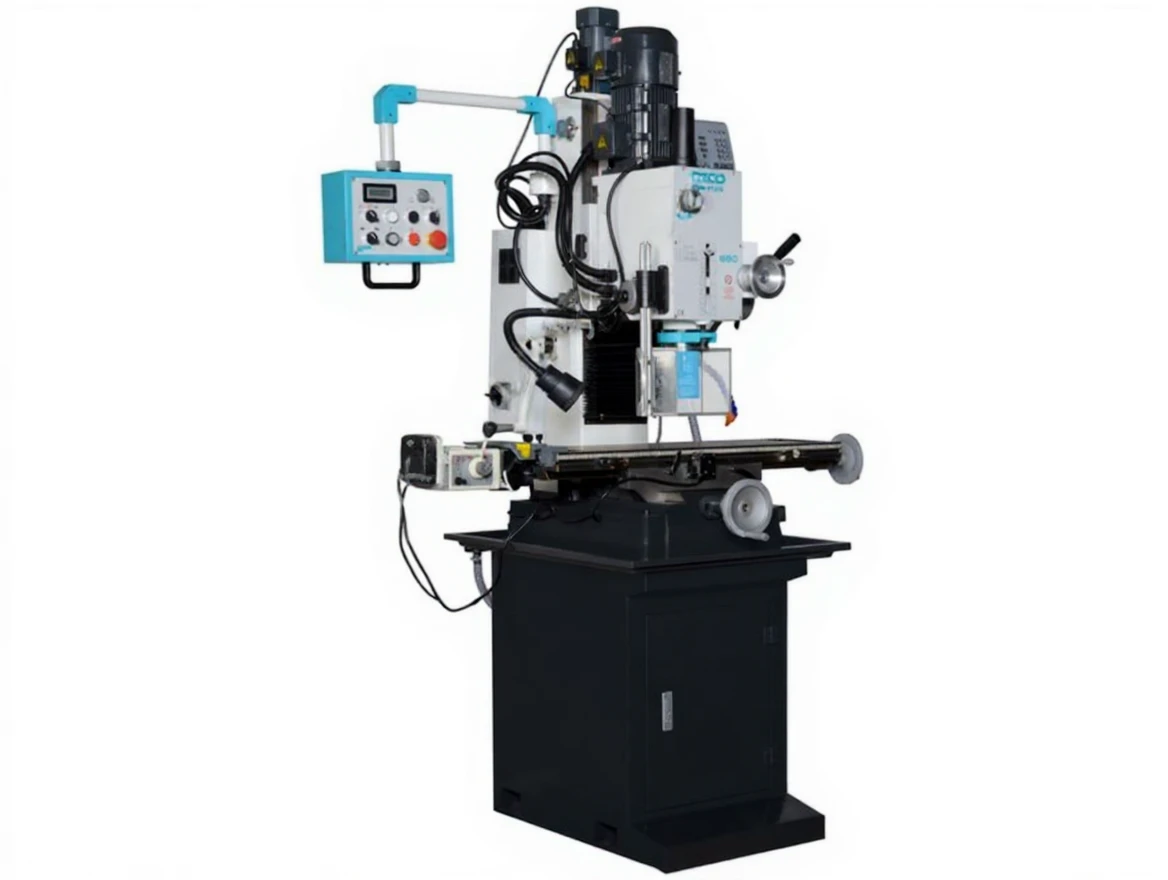

OZCO FS28 Plus Tabletop Milling Machine
OZCO FS28 Plus Tabletop Milling Machine Capacity
X-axis movement Manual: 560, Automatic: 480 mm, Y-axis movement 200 mm, Z-axis movement 430 mm.
OZCO FS28 Plus Tabletop Milling Machine Shipment Scope
Toolbox
General Features of OZCO FS28 Plus Tabletop Milling Machine

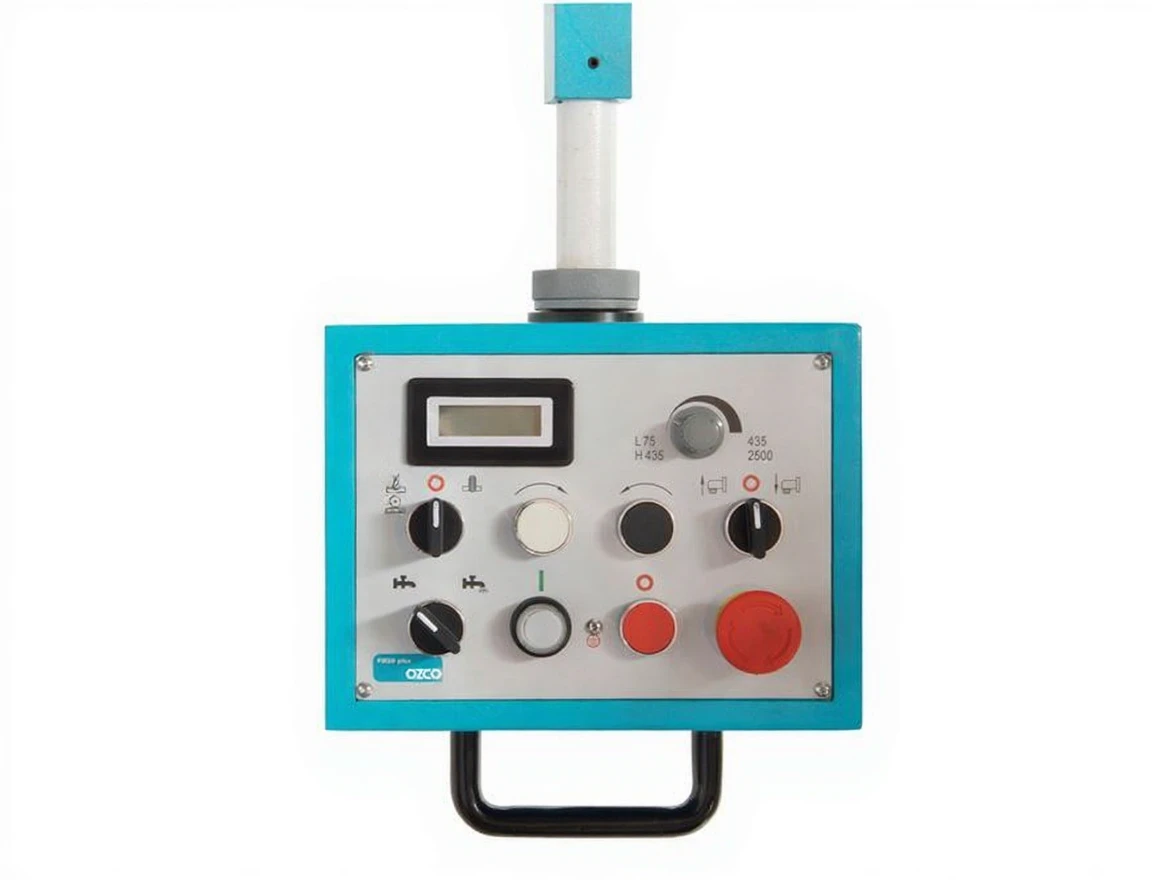

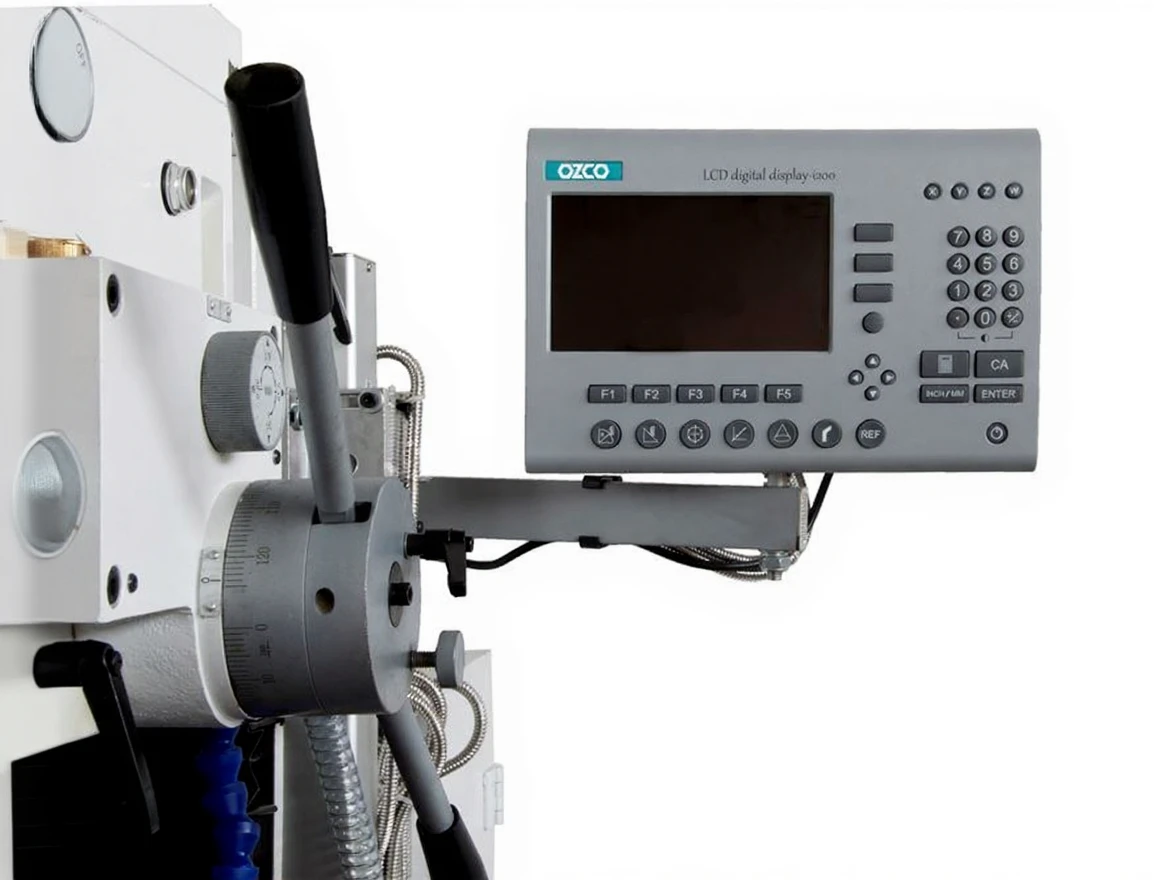

Variable speed adjustment (stepless) digital speed indicator, Heavy cast iron body, Powerful motor, X-axis electric motor – automatic, Z-axis electric motor – automatic, LCD digital display 3-axis coordinate reader, Guide pull mode, Height-adjustable safety switch guard, Cooling system, Lighting, Control panel, Machine-mounted steel table, Compliance with CE standards
Technical Specifications of OZCO FS28 Plus Tabletop Milling Machine
Motor Power 1.5 kW, 400 V
Drilling Capacity 32 mm
Finger Milling Capacity 28 mm
Surface Milling Capacity 63 mm
Table Dimensions 800×240 mm
X-axis Movement Manual: 560, Automatic: 480 mm
Y-axis Movement 200 mm
Z-axis Movement 430 mm
T Slot Dimensions 3×14 mm
Spindle Taper MK4
Spindle Speed 75-2500 rpm
Gear 2 (Variable Speed Adjustment)
Quill Movement 120 mm
Quill Feed 0.10, 0.18, 0.26 mm/rev
Head Swivel Angle 345°
Spindle-Table Distance 460 mm
Spindle-Column Distance 275 mm
Machine Dimensions (WxDxH) 1240x930x2100 rpm
Net Weight 480 kg
