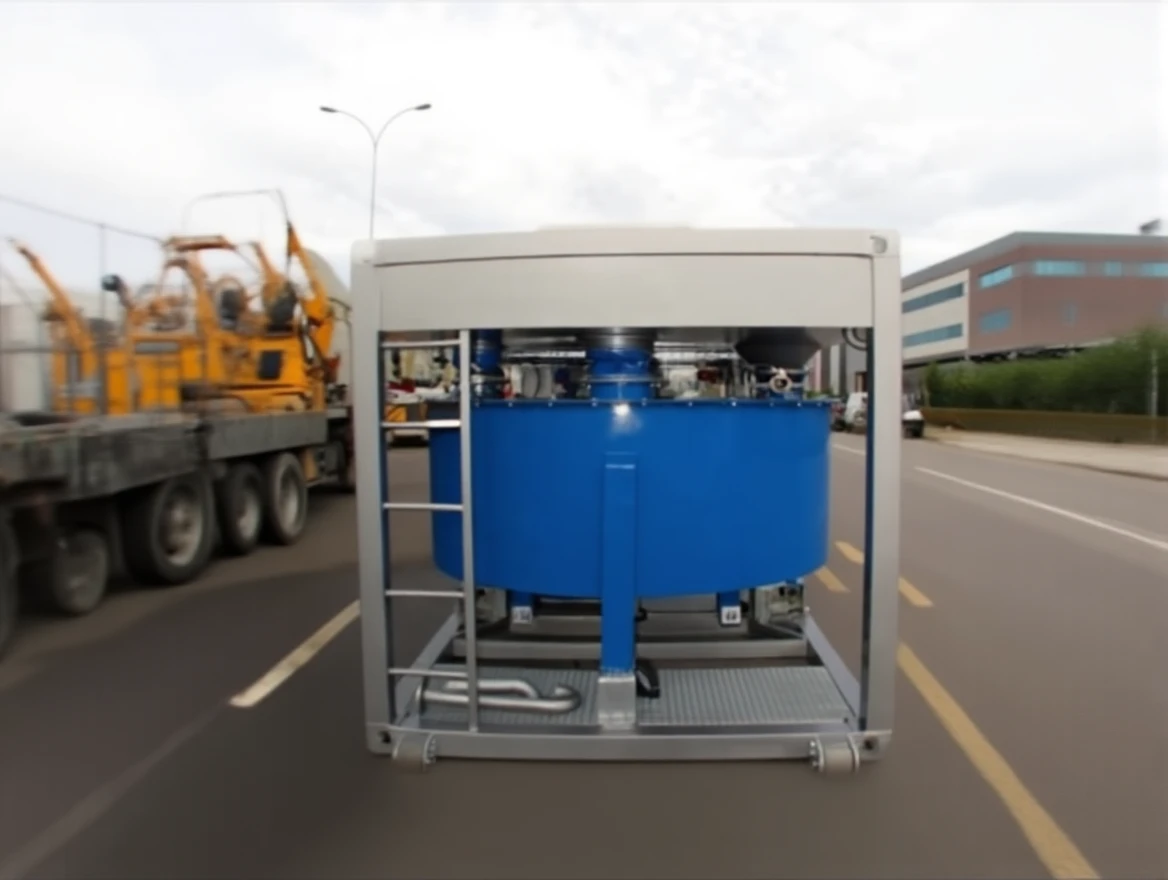

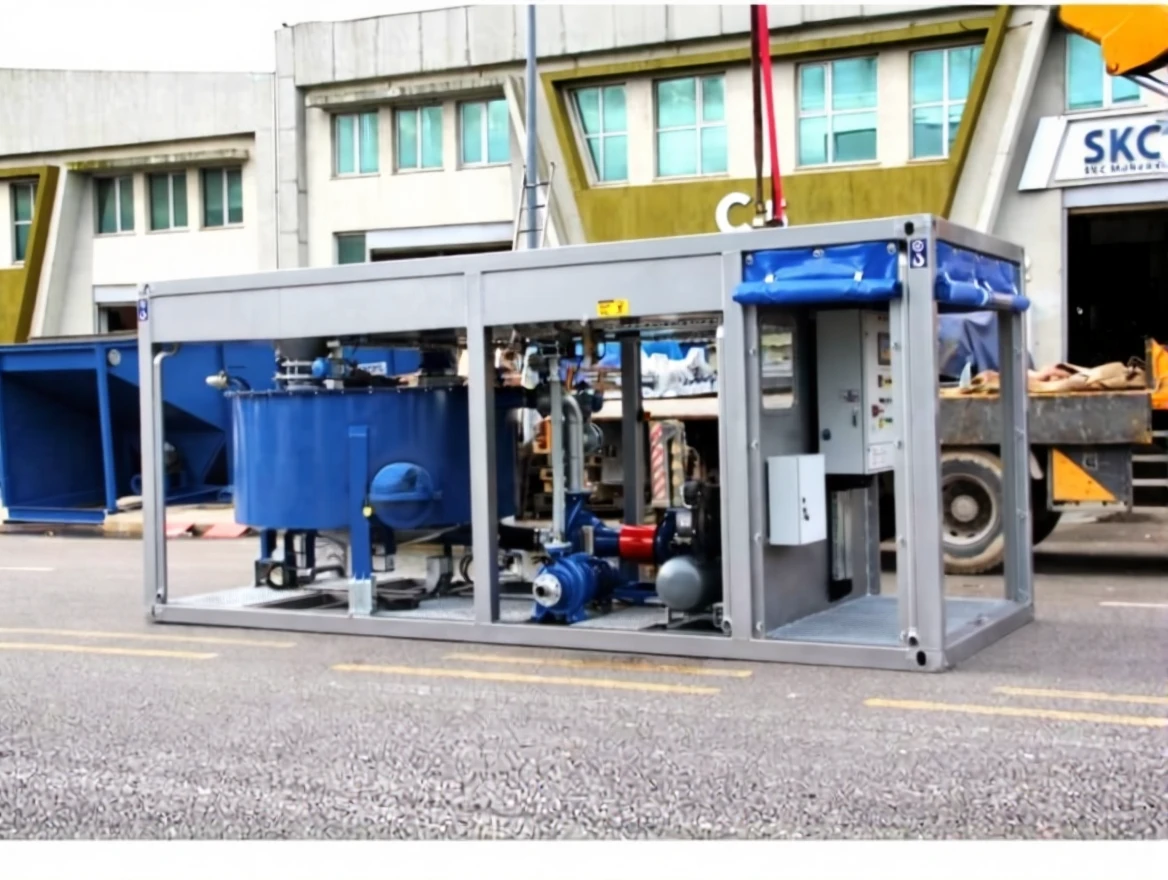

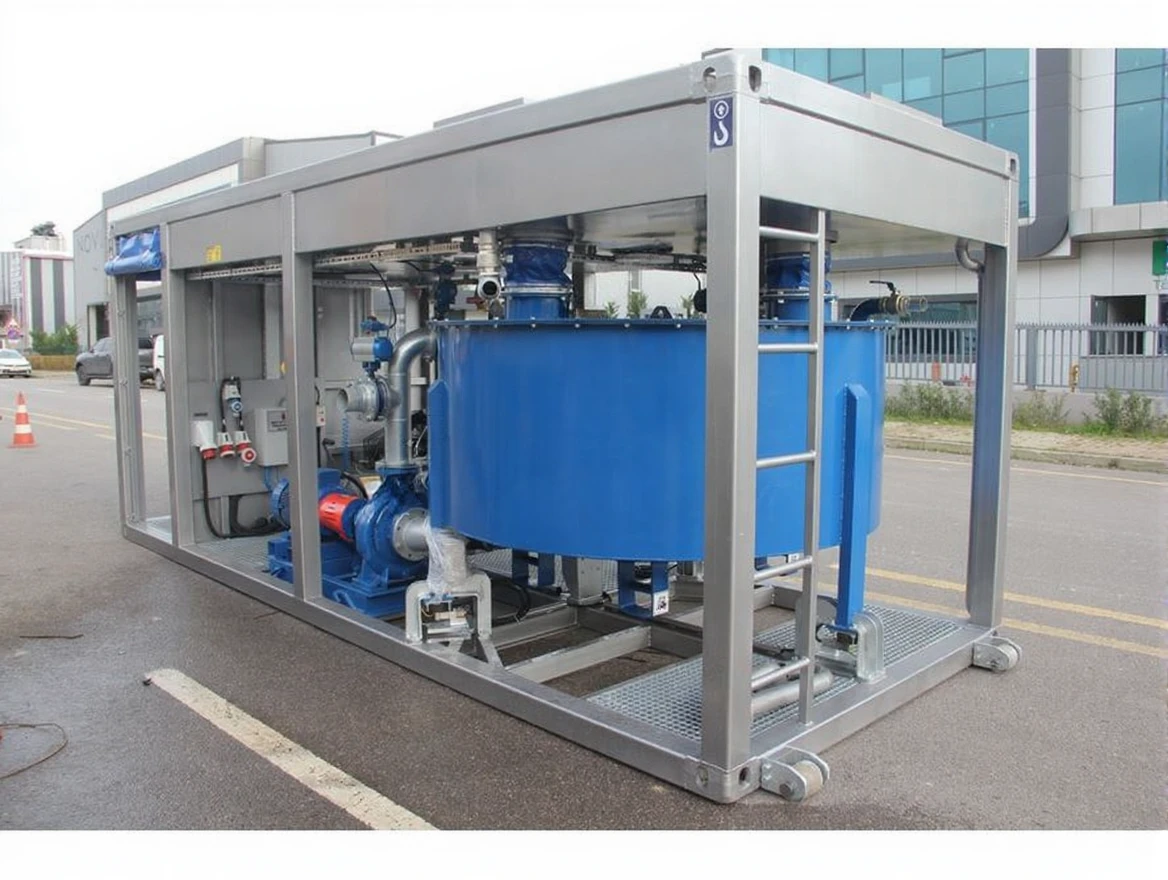

Fully Automatic Bentonite Mixer

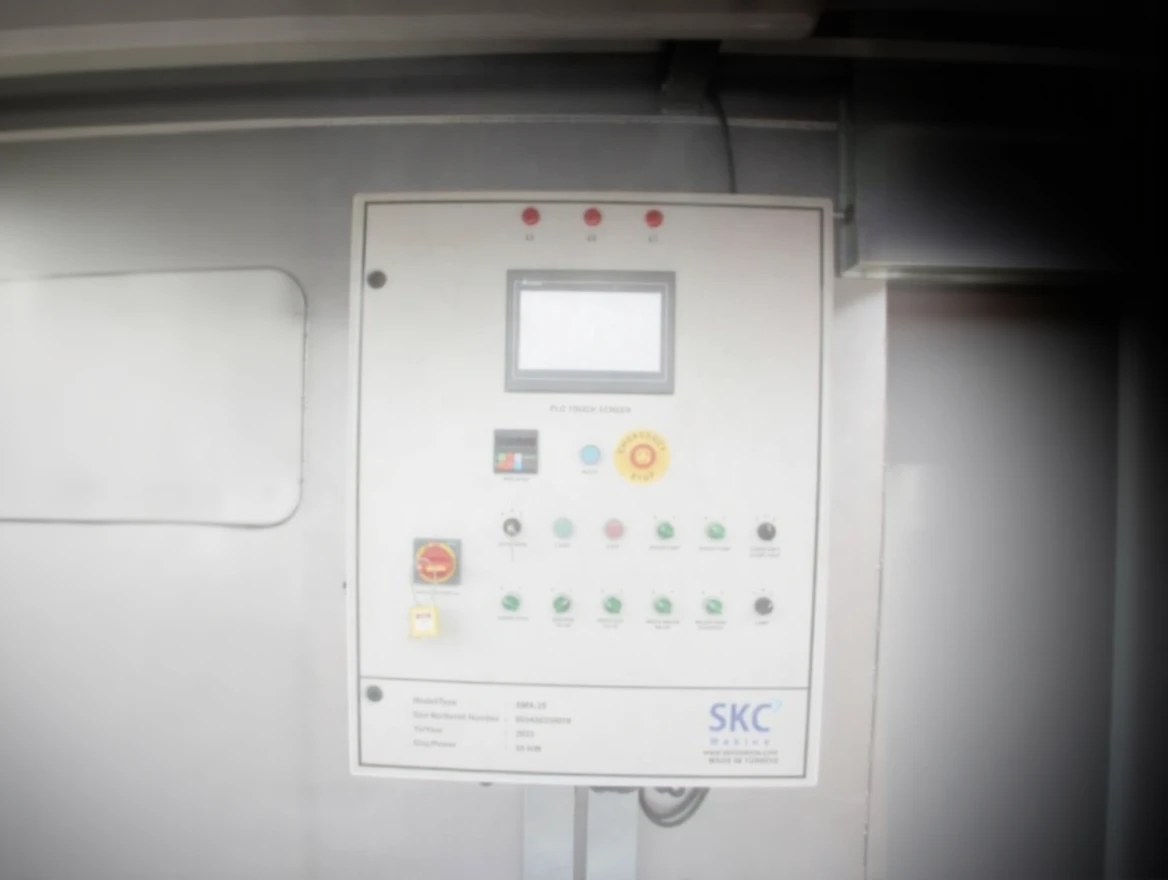

Load Cell PLC Weight System

• Max. Capacity: 25m³/h
• Total Power: 42kW
• Dimensions: 2200mm * 2450mm * 5800mm
• Weight: 5200kg

MIXER

• Capacity: 3m³
• Mixer Pump Flow Rate: 250m³/h
• Mixer Pump Motor: 22kW

WATER TANK

• Max. Capacity: 4.2m³

WATER TANK FILL PUMP

• Capacity: 60m³/h
• Power: 5.5kW

AIR COMPRESSOR

• Capacity: 350lt/min
• Air Tank: 100lt
• Power: 2.2kW

SCREW CONVEYOR

• Capacity: 52m³/h
• Power: 5.5kW
• Diameter: 219mm
• Length: 4100mm
