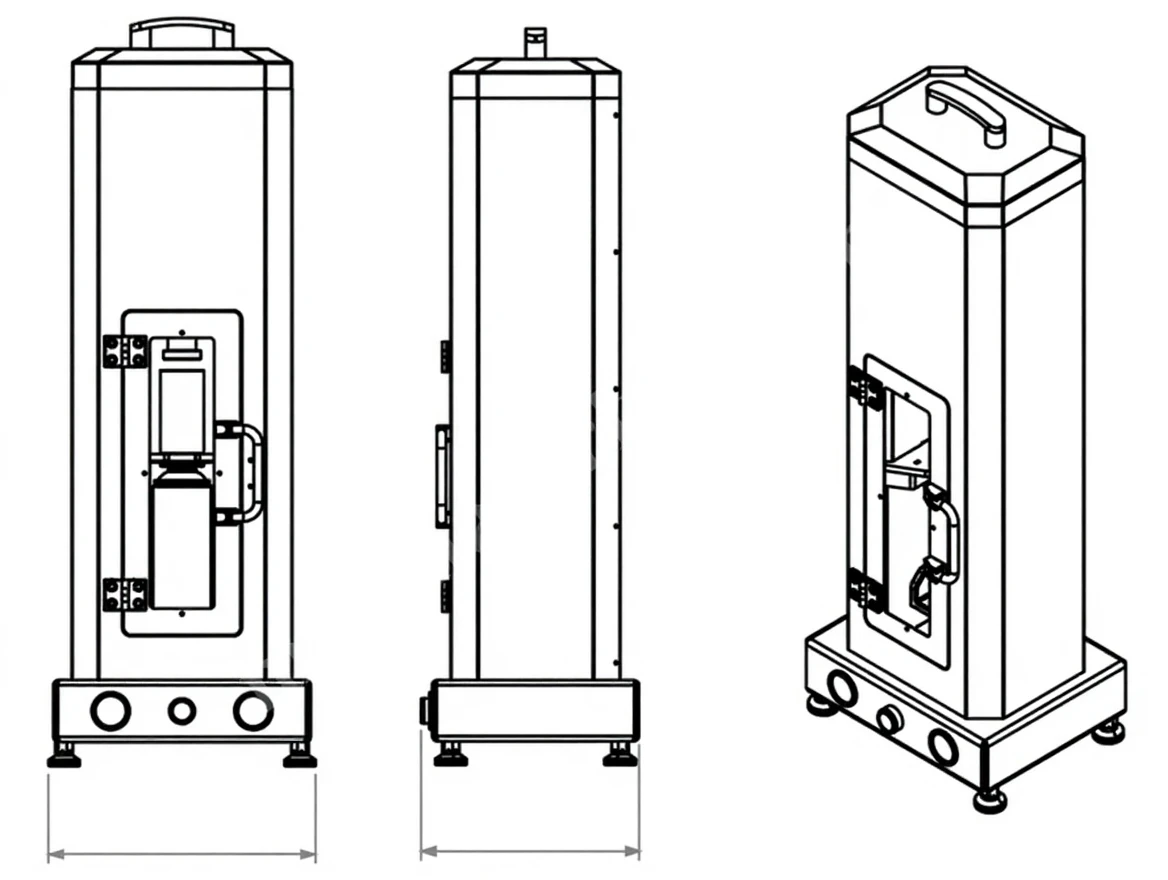

Fully Automatic Pneumatic Spray Paint Filling Machine

Girmaksan SPDM-TO-Pnomatic Fully Automatic Pneumatic Spray Paint Filling Machine

• The fully automatic spray paint filling machine is used to fill empty gas spray cans with paint, primer, varnish, and other chemicals in desired colors and shades.

• The Spray Paint Filling Machine is designed for single filling.

• The machine is compatible with all standard empty gas sprays (400 ml).

• The required air pressure for the filling process is 6-8 bar.

• The air pressure required for the operation of the machine is a 50 lt. air compressor.

• The machine has a 0-10 bar panel type manometer that shows the system operating pressure.

• There is a 10 mm pneumatic hose inlet for air entry at the back of the machine.

• Before filling the empty gas spray, the height adjustment will be done manually by hand.

• The machine has 1 filling chamber.

• There is 1 teflon that pushes into the chamber on the machine.

• The up-down movement of the pneumatic piston is performed by a 5/2 position valve.

• For the filling process, the front protective cover of the machine is closed, and then the lower compression system automatically compresses the empty gas spray by pressing the control button of the valve that controls the pneumatic piston. When the control button of the valve is pressed upwards, the lower compression system will automatically open back, and the upper pressure piston will retract, completing the filling process.

• The filling time for the empty gas spray is 0-5 seconds.

• After the filling process is completed, the return time is 2-3 seconds.

• The machine can fill 4-5 sprays per minute. (The filling process varies according to the user’s speed of filling the paint into the chamber and placing it in the machine).

• The machine is painted with 7024 electrostatic powder paint.

• The packaged weight of the machine is 27.5 kg.
