Fur Tanning and Dyeing Leather Cabinet

Fur Tanning and Dyeing Leather Cabinet

Product Features:

• Loading Capacity: The most significant advantage of this system is its loading capacity, which is twice as large compared to other systems.
  This allows for more efficient production and contributes to environmental benefits.

• Water Conservation: The system saves water and reduces chemical and human consumption, making it an eco-friendly solution.

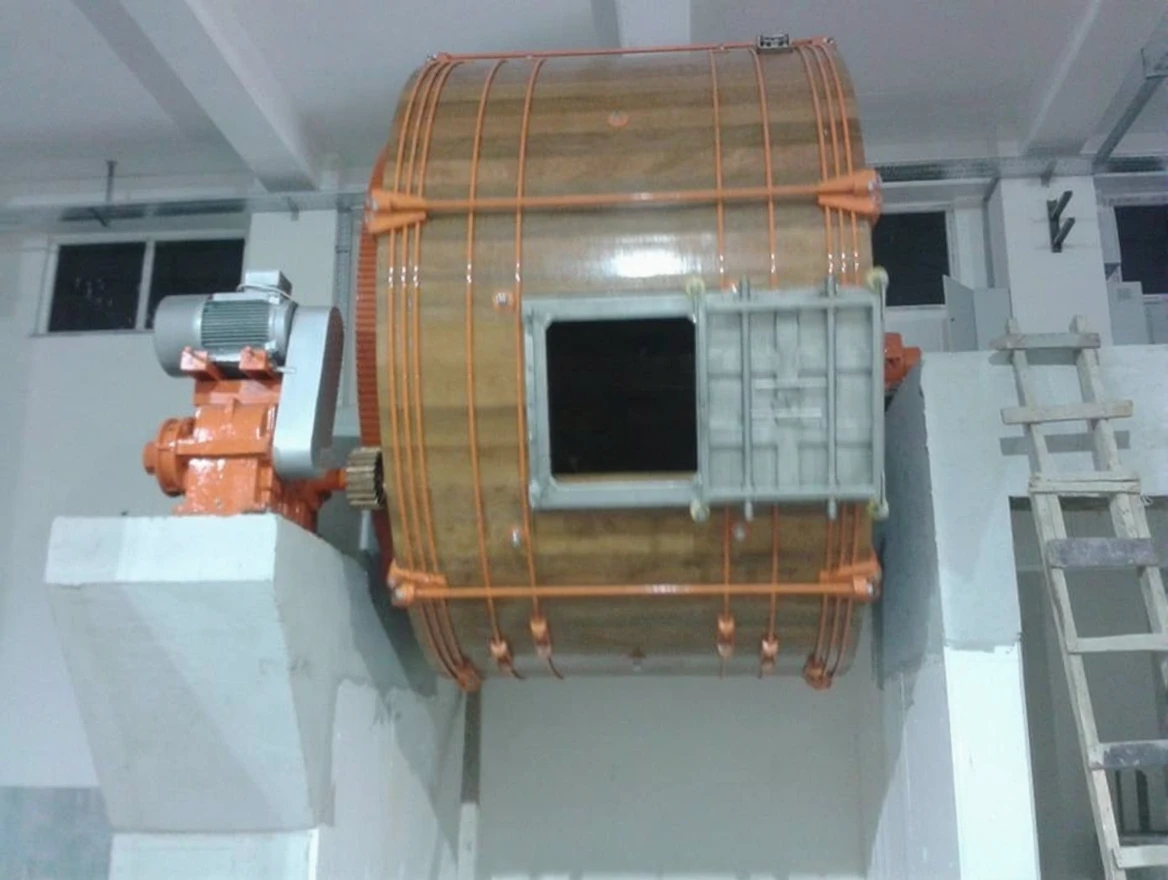

• Cabinet Doors: The loading and unloading doors are made from sliding stainless steel material.
  The large door dimensions are 900×900 mm.

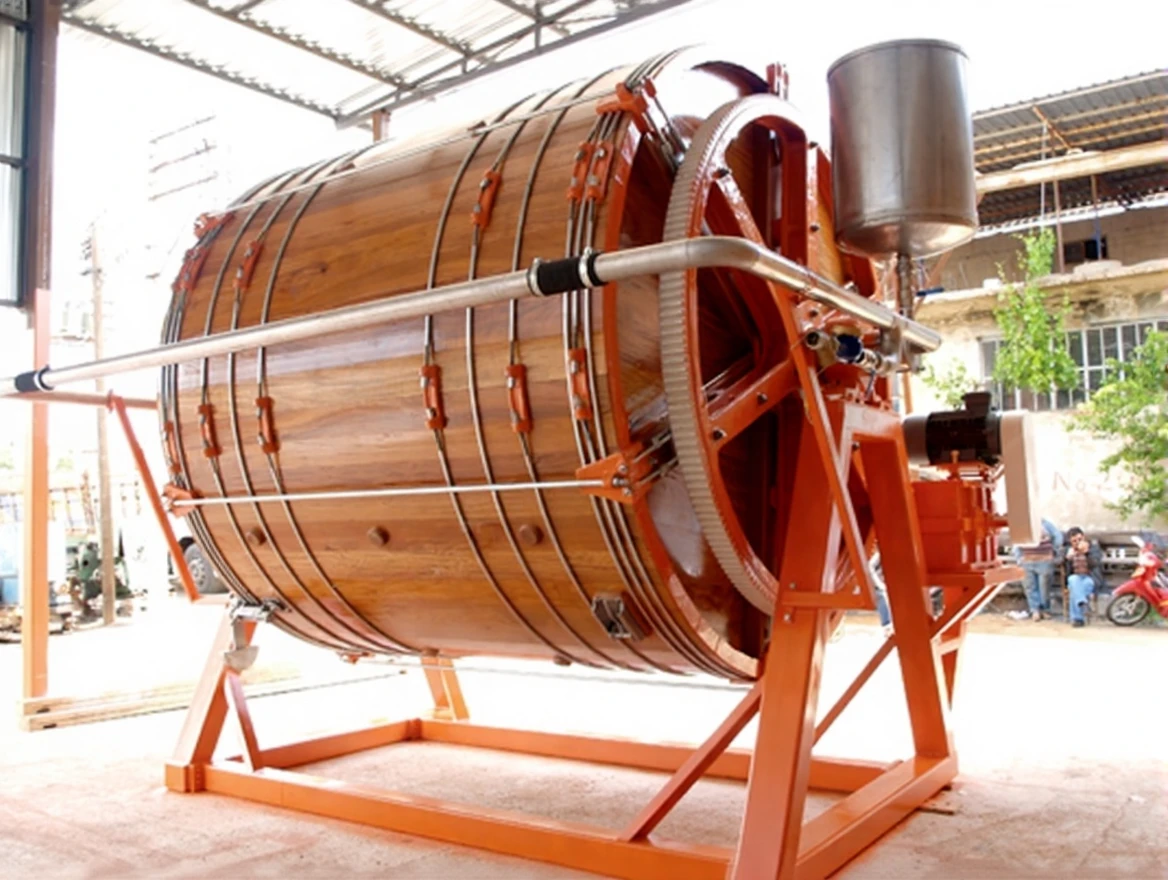

• Coupled Gear: The coupled gear has a diameter of 2800 mm and is made of steel.

• Star Hub: The central hub has a diameter of 2600 mm and is made from standard steel.

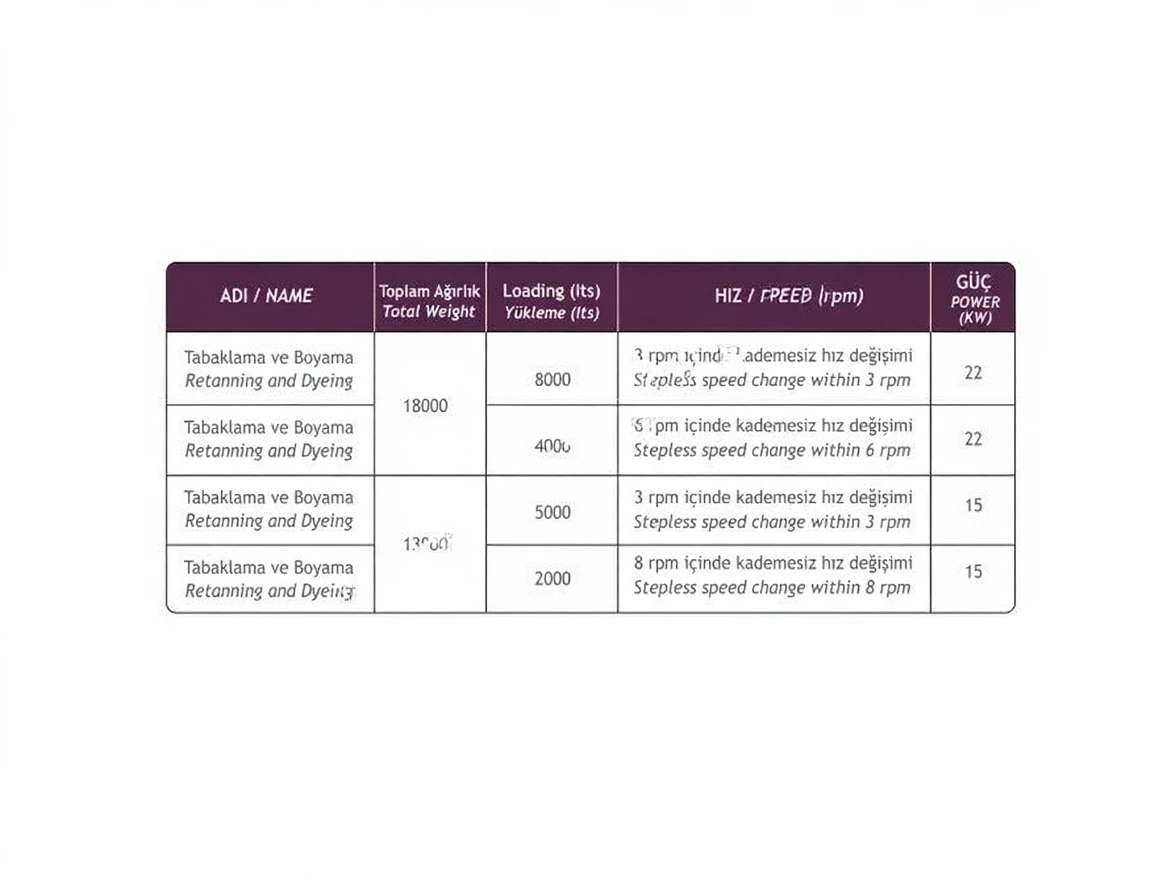

• Rotation Speed: The approximate rotation speed is 6.0 rpm (can be adjusted upon request).

• Motor: The motor is 22 kW / 15 kW. The system includes an inverter and a braking system.

• Drainage System: The drainage system is made of stainless steel, and each side has two drainage valves for efficient fluid discharge.

• Bearings: The cabinet bearings are made from high-quality bronze to withstand heavy-duty conditions.
  Optionally, roller bearing systems are available.

• Reinforced Wooden Structure: The outer frame of the cabinet is reinforced with a ring and goniometer system, ensuring durability and strength.

• Internal Rack System: Inside the cabinet, a specialized stainless steel rack system and mechanical motion are provided.

• Electrical Control Panel: The cabinet comes with a dedicated electrical control panel that monitors and controls:

  • Speed
  • Time
  • Internal temperature and cooling
  • Liquid tonnage control and tracking
