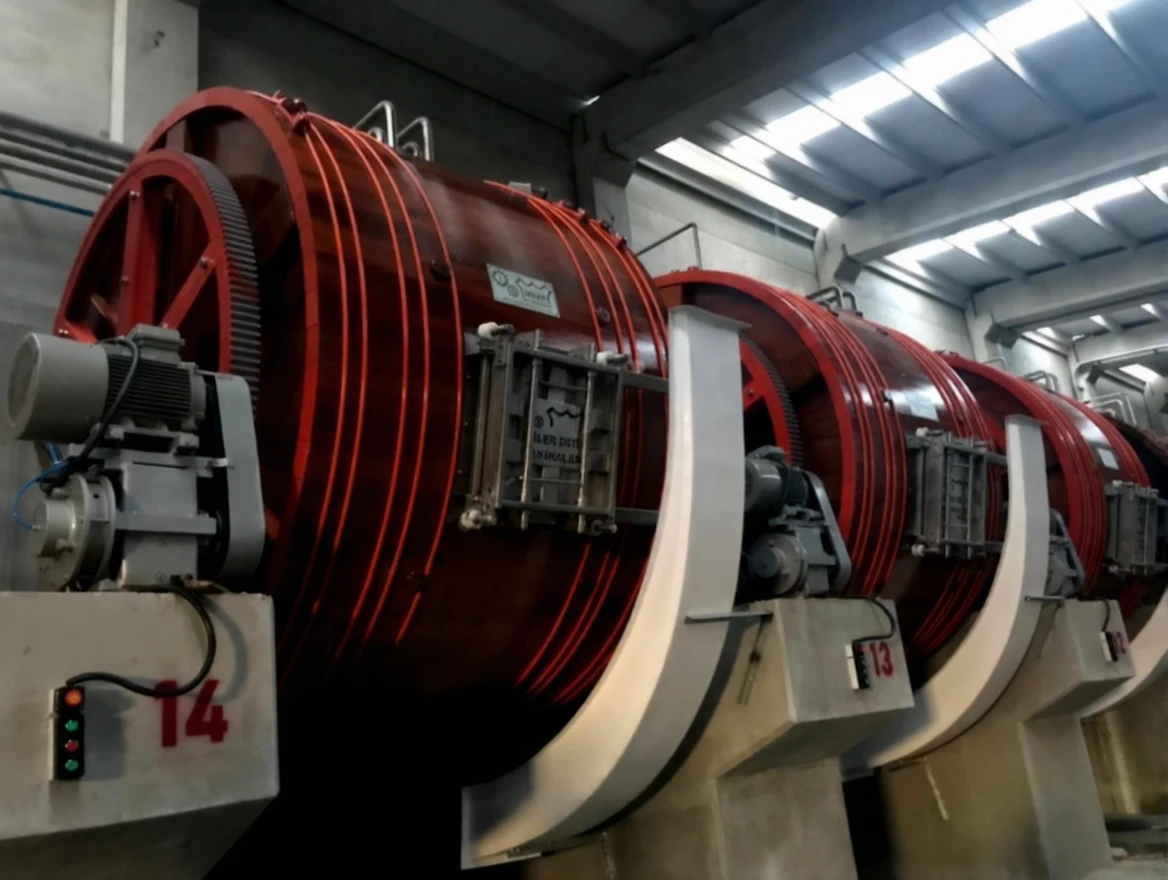

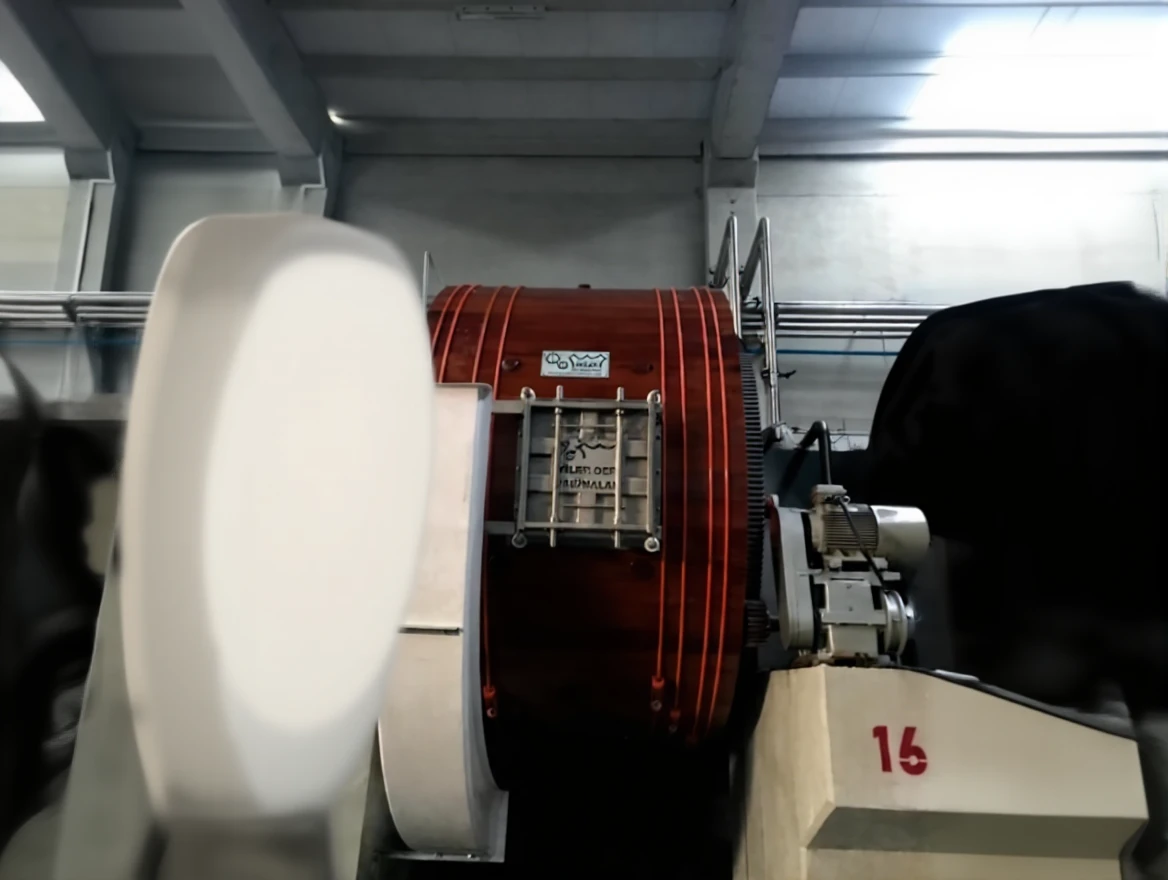

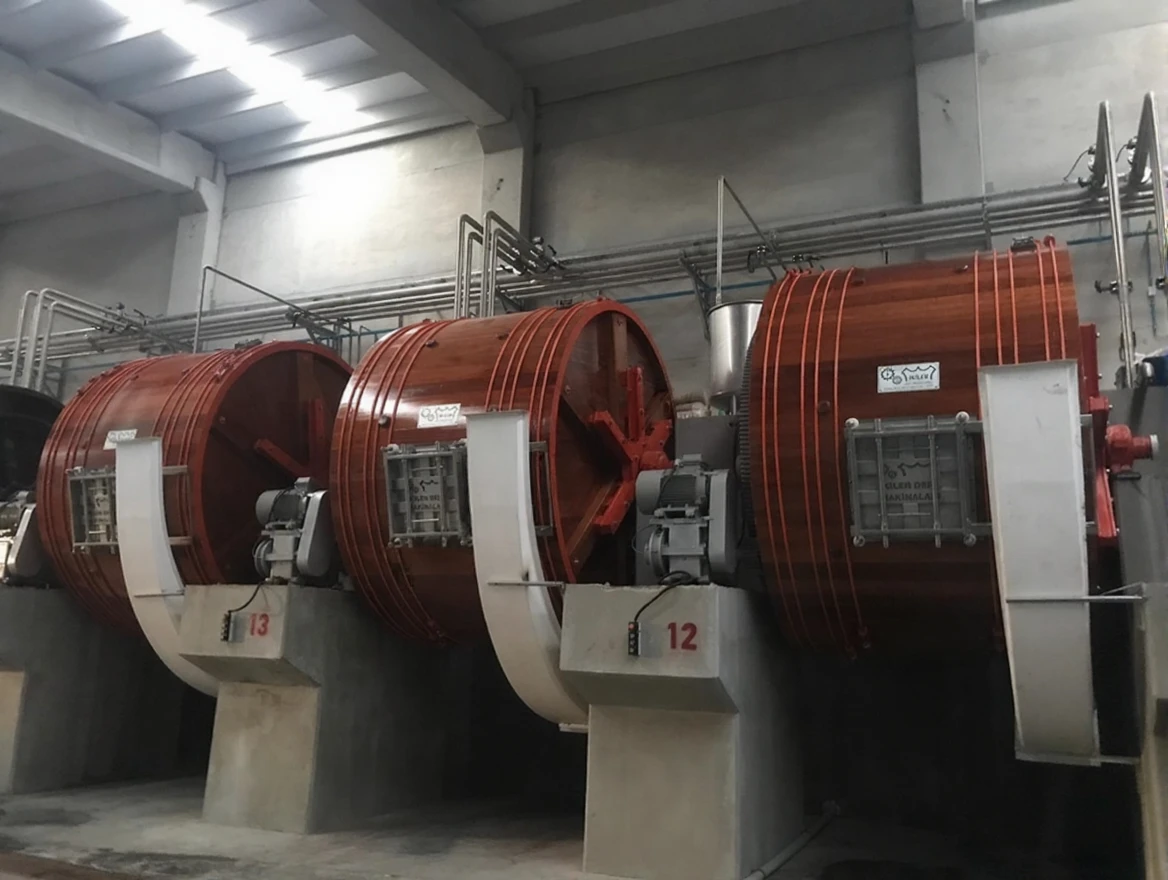

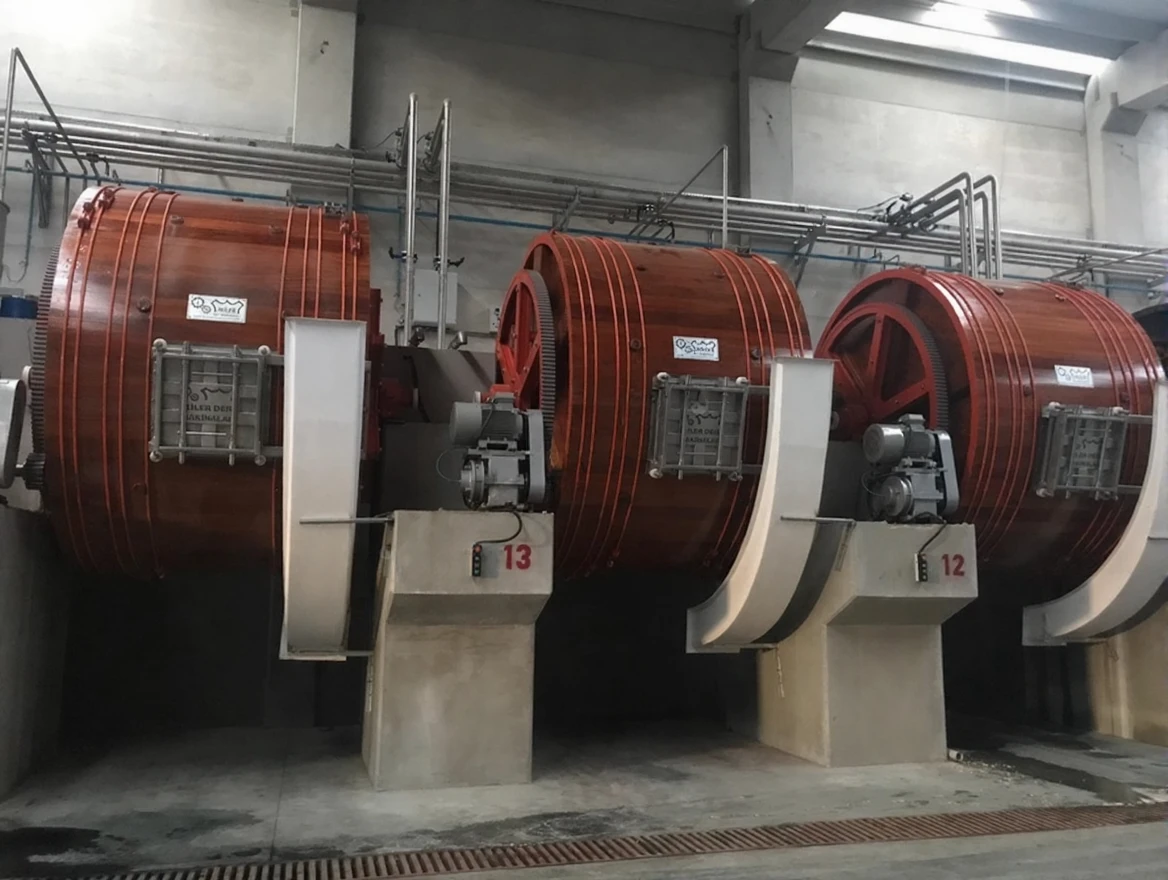

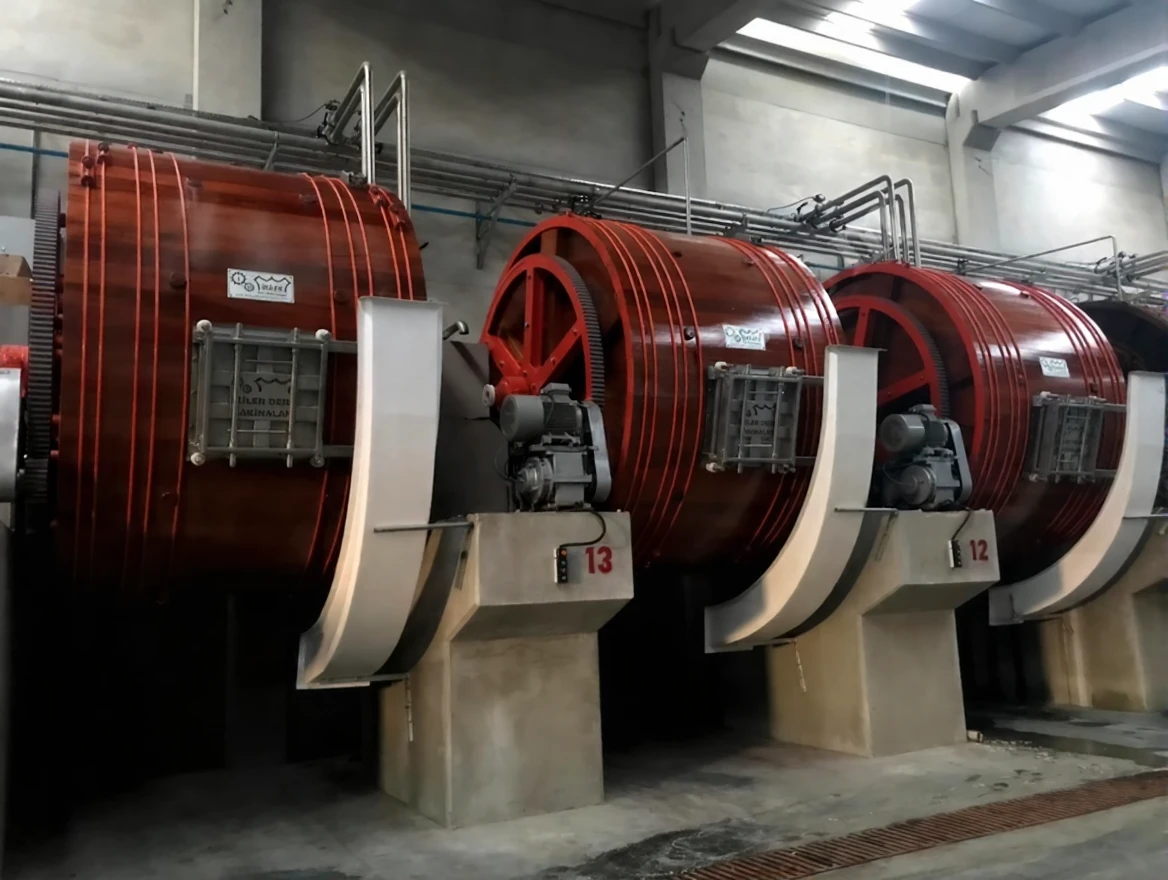

Fur Tanning and Dyeing Machine

Key Advantages:

• Loading Capacity: The most notable advantage is its loading capacity, which is double that of other systems.
• Water Conservation: This system saves water and reduces chemical consumption and human labor.
• Eco-Friendly Production: Ensures environmentally friendly production capabilities.

Construction Details:

• Loading and Unloading Covers: Made of sliding stainless steel material.
• Large Cover: Dimensions are 900×900 mm.
• Coupled Gear Diameter: 2800 mm, made of steel.
• Star Hub: Diameter of 2600 mm, made of standard steel.
• Speed: Approximately 6.0 rpm (adjustable upon request).
• Motor: 22 kW / 15 kW. Equipped with an inverter and braking system.
• Drainage System: Made of stainless steel with two discharge valves on each side.
• Cabinet Bearings: Made of high-quality bronze, suitable for heavy-duty bearing conditions.
• Roller Bearing Option: Available upon request.
• Reinforced Structure: The cabinet is strengthened with a hoop and miter system to enhance the wooden structure.
• Internal Mechanism: Includes a special stainless steel shelf system and mechanical movement with a shaft.
• Electrical Control Panel: Features speed control, time control, internal temperature and cooling control, and liquid tonnage monitoring.
