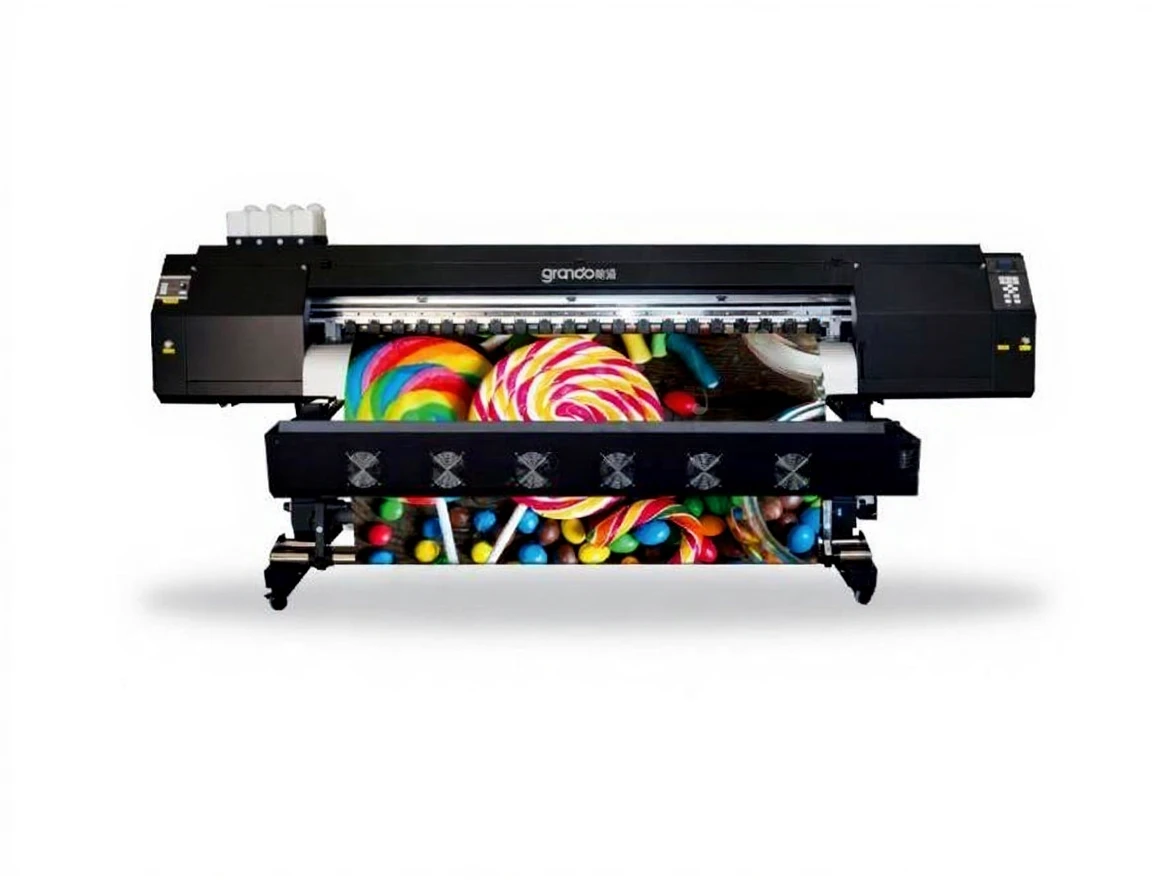

GD3202-S Eco Solvent Printing Machine
| Brand | Grando |
|---|---|
| Model Type |
GD3202-S |
Description
GD3202-S Eco-Solvent Printing Machine
Grando GD3202-S
Our wide-format inkjet printer range brings together our engineering and quality expertise with your desire for flawless performance and effortless production.
You can produce roll-to-roll indoor prints and long-term outdoor signs.
Wide applications in fields like light box posters, custom car stickers, building wraps, label printing, billboard advertisements, metro ads, shopping mall billboards, and more.
Technical Specifications
| Model | GD1802-S (DX5) | GD1802-S (13200) | GD3202-S (DX5) | GD3202-S (13200) |
|---|---|---|---|---|
| Print Head | Dual DX5 | Dual 13200 | Dual DX5 | Dual 13200 |
| Print Technology | Piezoelectric Inkjet | Piezoelectric Inkjet | Piezoelectric Inkjet | Piezoelectric Inkjet |
| Max. Print Width | 71.6 in. (1820 mm) | 128 in. (3250 mm) | 71.6 in. (1820 mm) | 128 in. (3250 mm) |
| Media Thickness | Max 59 mil (1.5 mm) | Max 59 mil (1.5 mm) | Max 59 mil (1.5 mm) | Max 59 mil (1.5 mm) |
| Weight | 132.2 lb (60 kg) | 176 lb (80 kg) | 132.2 lb (60 kg) | 176 lb (80 kg) |
| Print Width | 70.8 in. (1800 mm) | 126 in. (3200 mm) | 70.8 in. (1800 mm) | 126 in. (3200 mm) |
| Ink Type | Eco-Solvent Ink | Eco-Solvent Ink | Eco-Solvent Ink | Eco-Solvent Ink |
| Ink Cartridge Capacity | 4*4 CISS (1.5L ink tank, 220ml ink cartridge) | 66 CISS (6 colors), 88 CISS (8 colors optional) | 4*4 CISS (1.5L ink tank, 220ml ink cartridge) | 66 CISS (6 colors), 88 CISS (8 colors optional) |
| Colors | 4 colors (Cyan, Magenta, Yellow, Black) | 6 colors, 8 colors optional | 4 colors (Cyan, Magenta, Yellow, Black) | 6 colors, 8 colors optional |
| Max Resolution | 1440 dpi | 2400 dpi | 1440 dpi | 2400 dpi |
| Print Speed | 4 Pass (720×720 dpi): 333 sqft (31 sqm/h) | 3 Pass (360×1800 dpi): 590 sqft (55 sqm/h) | 4 Pass (720×720 dpi): 354 sqft (33 sqm/h) | 3 Pass (360×1800 dpi): 667 sqft (62 sqm/h) |
| 6 Pass (720×1080 dpi): 225 sqft (21 sqm/h) | 4 Pass (720×1200 dpi): 429 sqft (40 sqm/h) | 6 Pass (720×1080 dpi): 279 sqft (26 sqm/h) | 4 Pass (720×1200 dpi): 506 sqft (47 sqm/h) | |
| 8 Pass (720×1440 dpi): 182 sqft (17 sqm/h) | 6 Pass (720×1800 dpi): 290 sqft (27 sqm/h) | 8 Pass (720×1440 dpi): 193 sqft (18 sqm/h) | 6 Pass (720×1800 dpi): 334 sqft (31 sqm/h) | |
| Media Heating System | Integrated post-heater & Infrared Dryer & Fan system | |||
| Interface | USB 2.0 | USB 3.0 / LAN | USB 2.0 | USB 3.0 / LAN |
| Power Supply | AC 220V ±10%, 50/60 Hz | AC 220V ±10%, 50/60 Hz | AC 220V ±10%, 50/60 Hz | AC 220V ±10%, 50/60 Hz |
| Dimensions (with Stand) | 126 (W) x 26 (D) x 53 (H) in. | 180 (W) x 38 (D) x 62 (H) in. | 3190 (W) x 650 (D) x 1360 (H) mm | 4580 (W) x 970 (D) x 1580 (H) mm |
| Weight (with Stand) | 882 lb (400 kg) | 2204 lb (1000 kg) | 882 lb (400 kg) | 2204 lb (1000 kg) |
| Packaging Dimensions | Full Packaging: 3360 (W) x 950 (D) x 1560 (H) mm | Split Packaging: 3350 (W) x 820 (D) x 1030 (H) mm | Full Packaging: 3360 (W) x 950 (D) x 1560 (H) mm | Split Packaging: 3350 (W) x 820 (D) x 1030 (H) mm |
| Packaging Weight | Full Packaging: 1102.5 lb (500 kg) | Split Packaging: 1058.4 lb (480 kg) | Full Packaging: 1102.5 lb (500 kg) | Split Packaging: 1058.4 lb (480 kg) |
| Start-up Temperature | 59 °F — 90 °F [15°C – 32°C] (68 °F [20°C]) / Humidity: 35% – 80% (non-condensing) | |||
| Shut-down Temperature | 41 °F – 104 °F [5°C – 40°C] / Humidity: 20% – 80% (non-condensing) | |||
| Accessories | USB cable, media clips, user manual, waste bottle, ink cartridges, RIP software, etc. |
