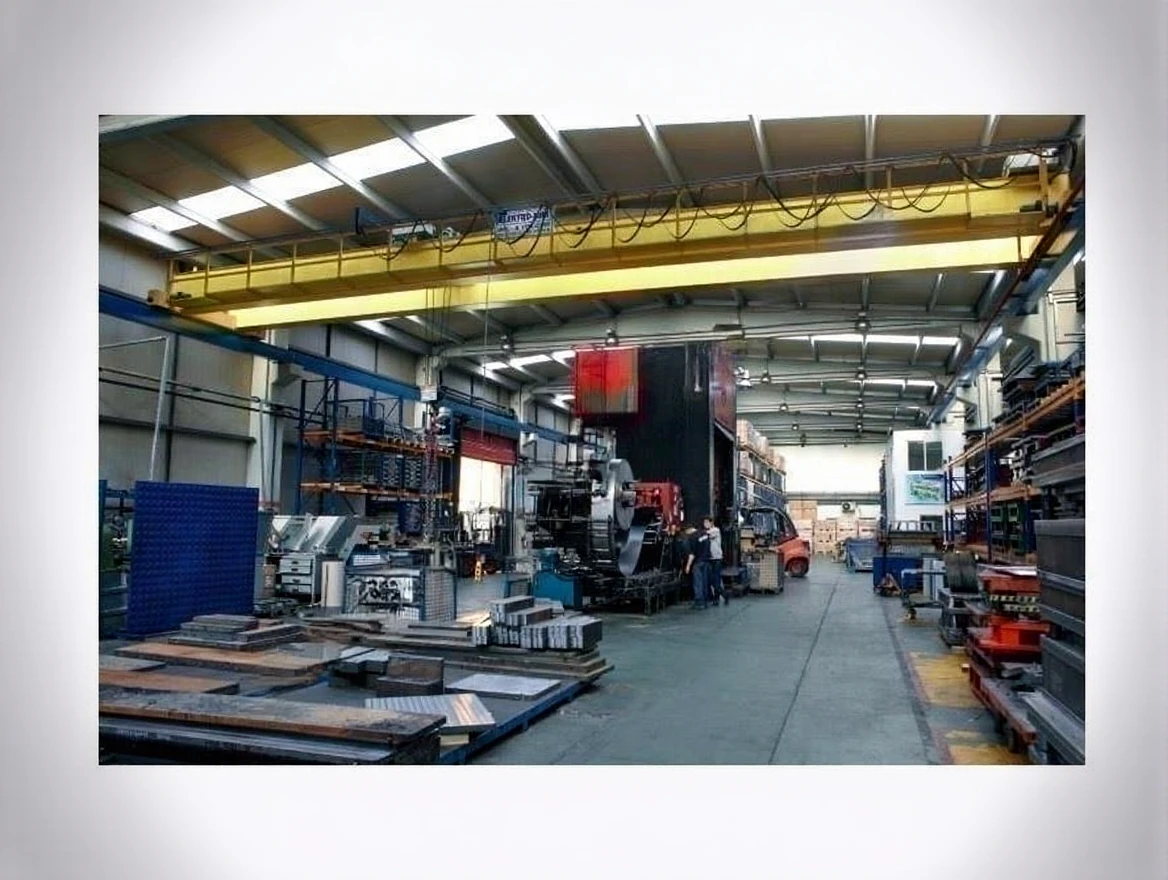

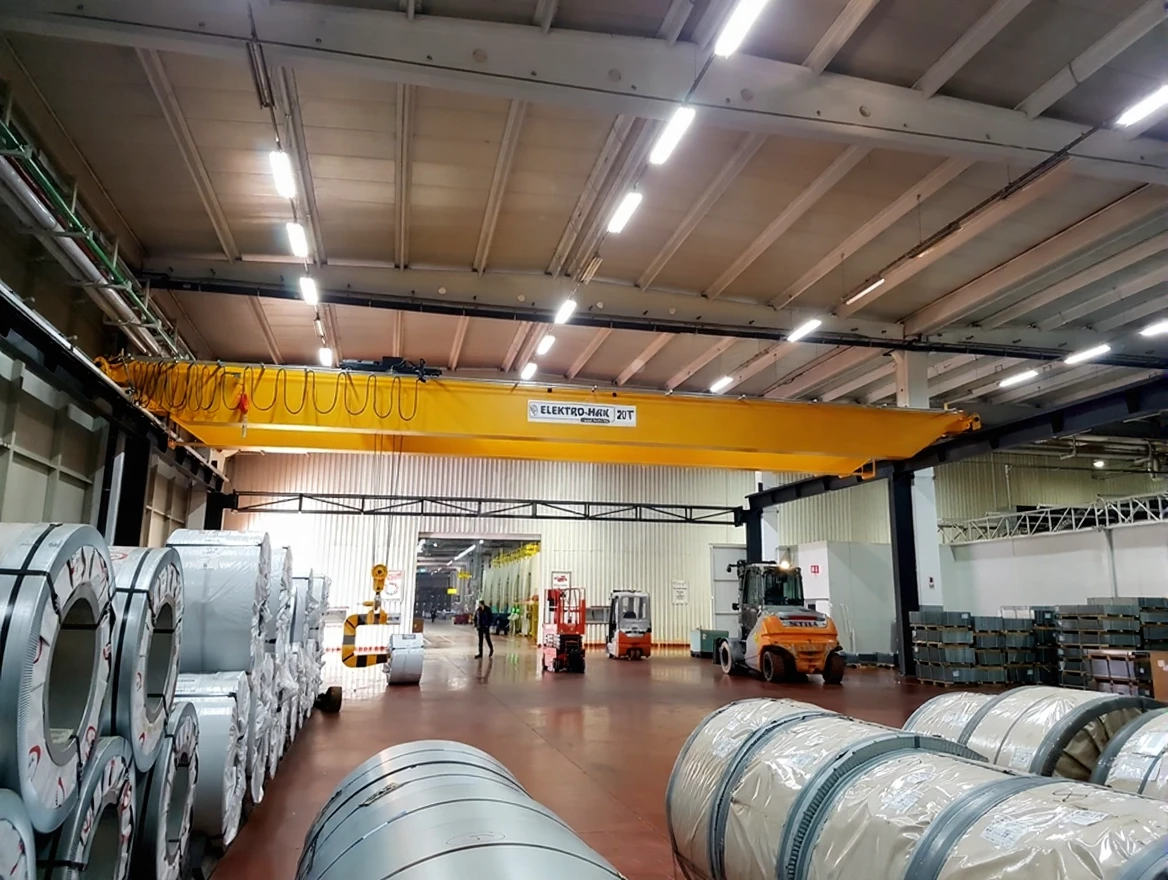

Gezer Bridge Crane Electric Machine E-Gkv
| Brand | Elektro-Mak |
|---|---|
| Model Type |
CKVS |
Travelling Crane Hoist Systems / General Features
Our standard travelling crane hoist systems are developed to provide you with optimum solutions. Their compact structures and advanced designs offer both very good approach distances and ease of maintenance. The minimized hook movement provides reduced load swing thanks to the offered frequency converter.
Our standard hoists that adapt to your building provide high performance. Side-mounted monorail trolleys, normal trolleys, and low-headroom trolleys ensure the most suitable design for your building.
|
GENERAL FEATURES |
|
|
Hoisting Capacity ( SWL ) |
800 – 80,000 kg |
|
Lifting Speed |
0…20 m/min |
|
Trolley Travel Speed |
0…40 m/min |
|
Crane Travel Speed |
0…50 m/min |
Technical Specifications
* FEM M3 (1Bm) – M6 (3m) Working Classes
* DIN H2B3 – H3B4 Lifting Class / Load Group
* Single Girder travelling crane hoist systems
* Double Girder travelling crane hoist systems
* Portal – Semi-portal hoist systems
* Frequency converter application
* Low headroom
* IP65 protection class, plug-socket type control
* Mechanical or electronic overload switch
* Best motor cooling through patented design (Turbine Effect)
* Thermal protection for motors
* Special hoists for explosive atmospheres (Ex-Proof)
* Full vertical lifting
* Remote control (Radio control) application
* Sway prevention system (Anti – Sway)
* Collision prevention system
* Encoder – PLC application
* Modular structure and ease of maintenance
* Electronic hoist status indicator
* Load weighing system
Our standard hoists are designed on a basis of high performance and efficiency.
