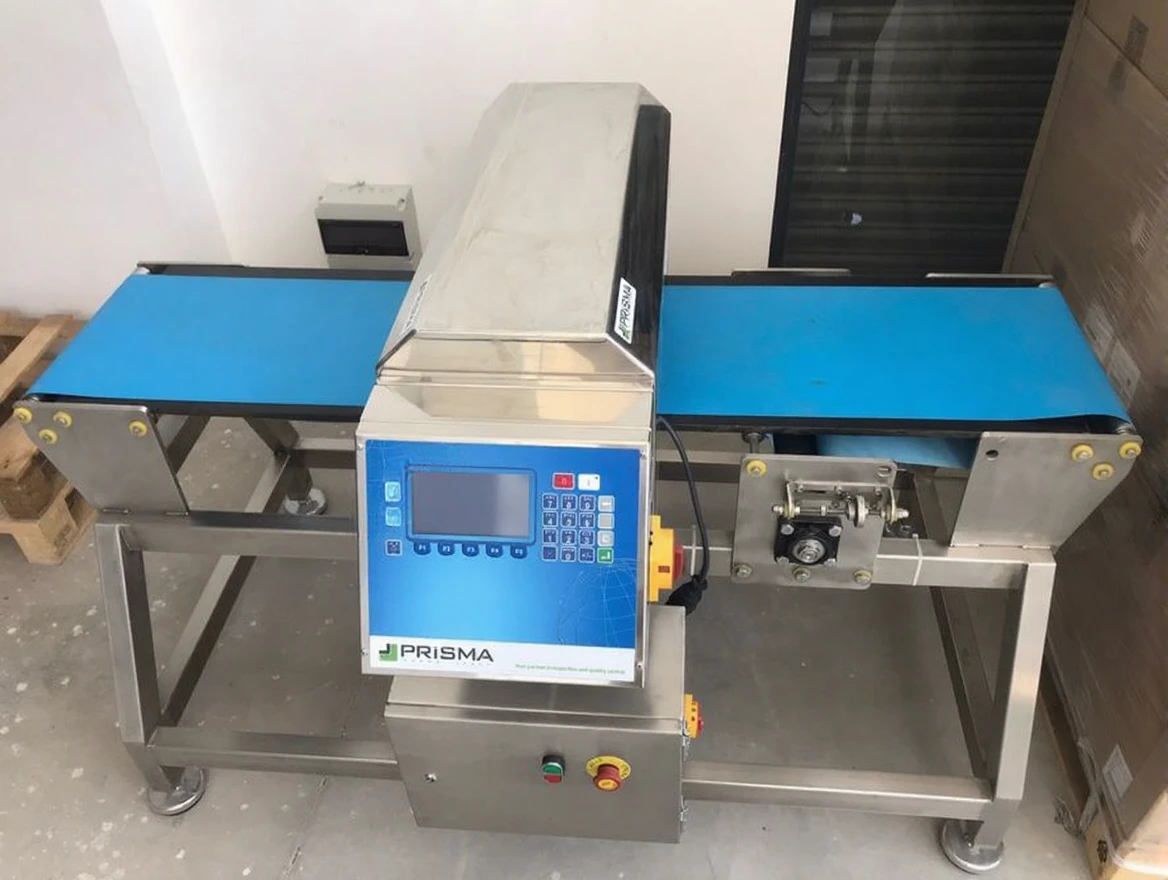

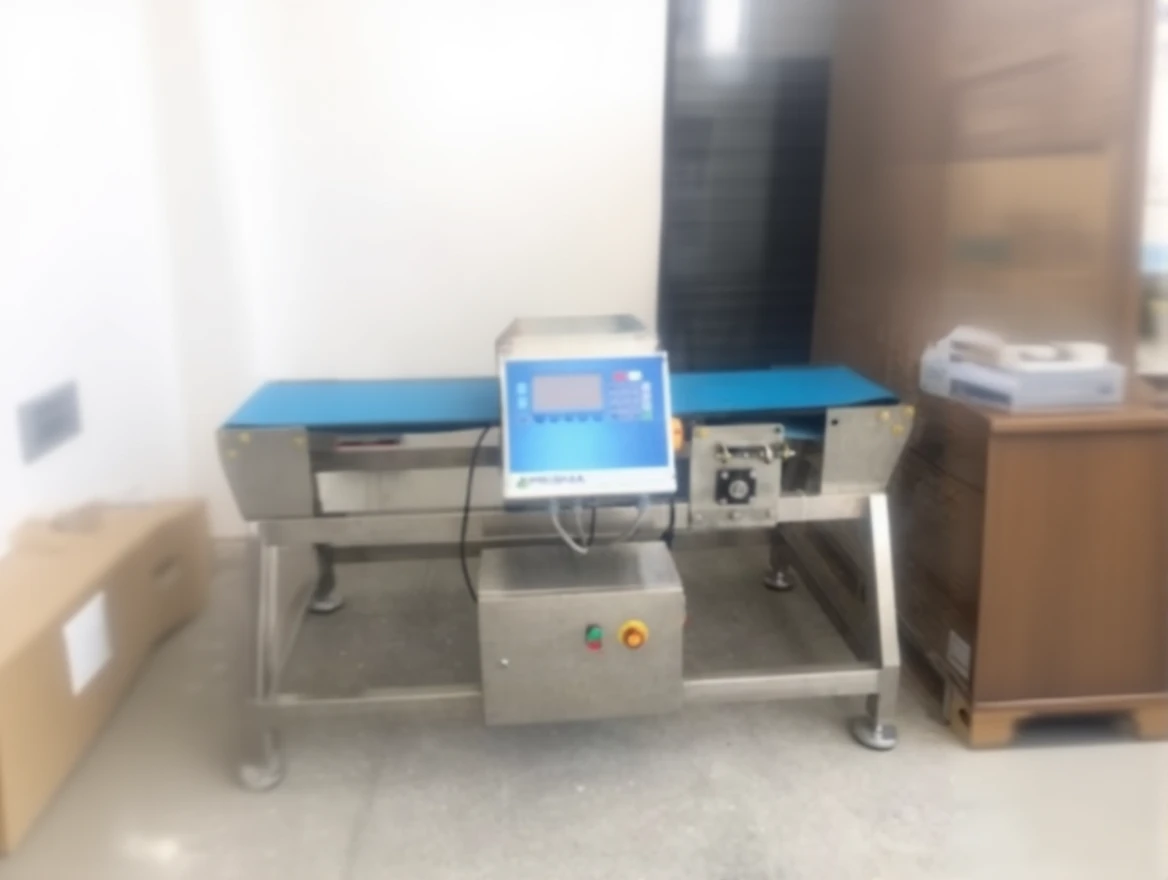

Gıda Metal Dedektör
| Brand | Bosforo |
|---|---|
| Model Type |
B-GMD-001 |
Description
| Feature / Hardware | Description |
|---|---|
| Main Application | Metal detector system for medium and large-sized, packaged or bulk products |
| Weighing Capacity | Up to 60,000 grams |
| Maximum Band Speed | Up to 65 meters per minute |
| Pneumatic Requirement | 0.6 MPa pressure – 1 Nl/min air consumption |
| Power Supply | 230 Volts – 50/60 Hz – Single phase |
| Power Consumption | Approximately 650 Watts |
| Body Material / Protection Class | Stainless steel structure – IP54 / IP65 protection level |
| Operating Temperature Range | Between +5°C and +40°C – For use in non-condensing environments |
| Detection Technology | Multi-frequency digital detector system |

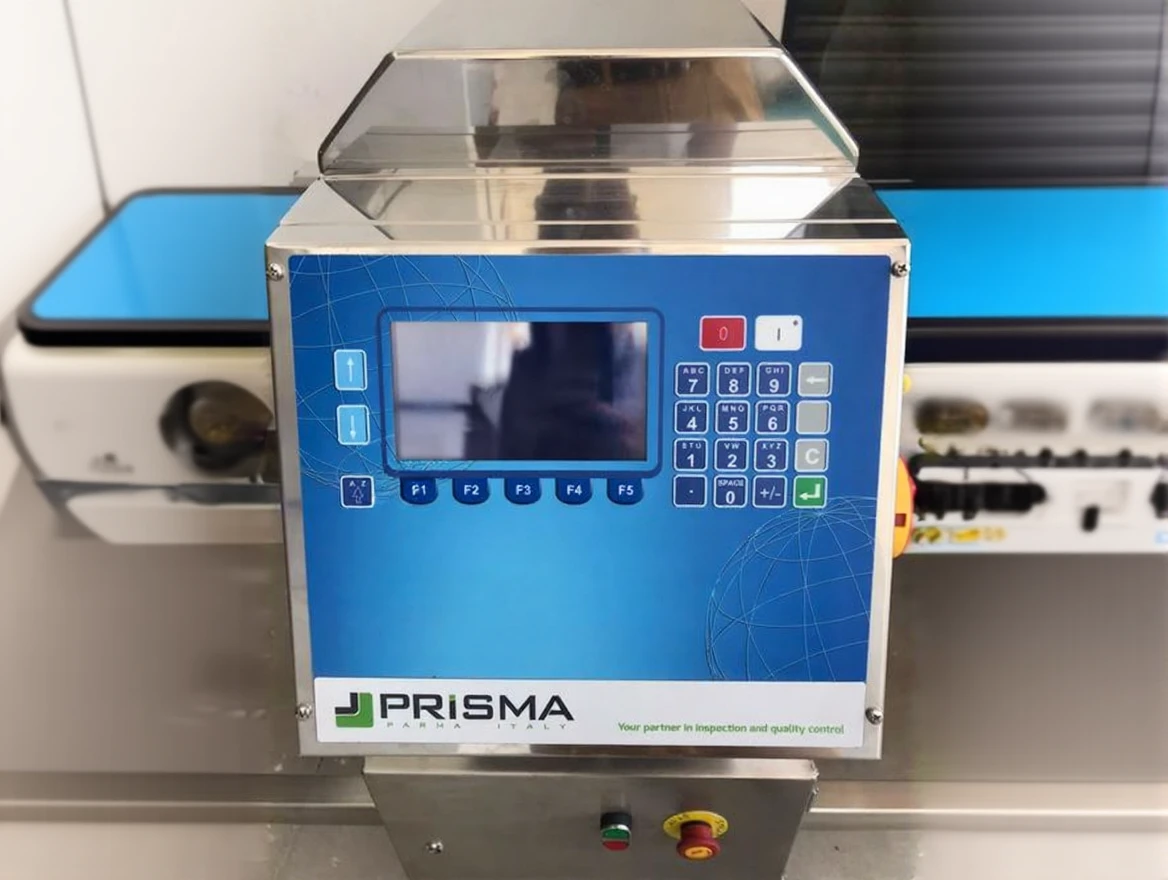

| User Interface | Alphanumeric graphic display, 3-level user password protection |
| Product Memory | Can store up to 100 different product programs in memory |
| Additional Functions | Automatic reset, self-testing, piece counter, statistical reports |
| Connections | RS-232 serial communication connection |
| Sensitivity | High sensitivity – Detection of ferrous, non-ferrous, and stainless metals |
| Interference Resistance | High immunity to electromagnetic interferences from the environment |
⚙️ Optional Hardware
-
Air blow or piston reject system
-
Reject box management (locked, sensor-equipped, etc.)
-
Product synchronization system (with photoelectric support)
-
Reject control photocell
-
USB and Ethernet interface (Industry 4.0 compliant)
-
Fast belt release system
-
Wheel-mounted mobile structure
-
Separate panel positioning
-
Calibration & validation (FAT/SAT, IQ/OQ documents)
