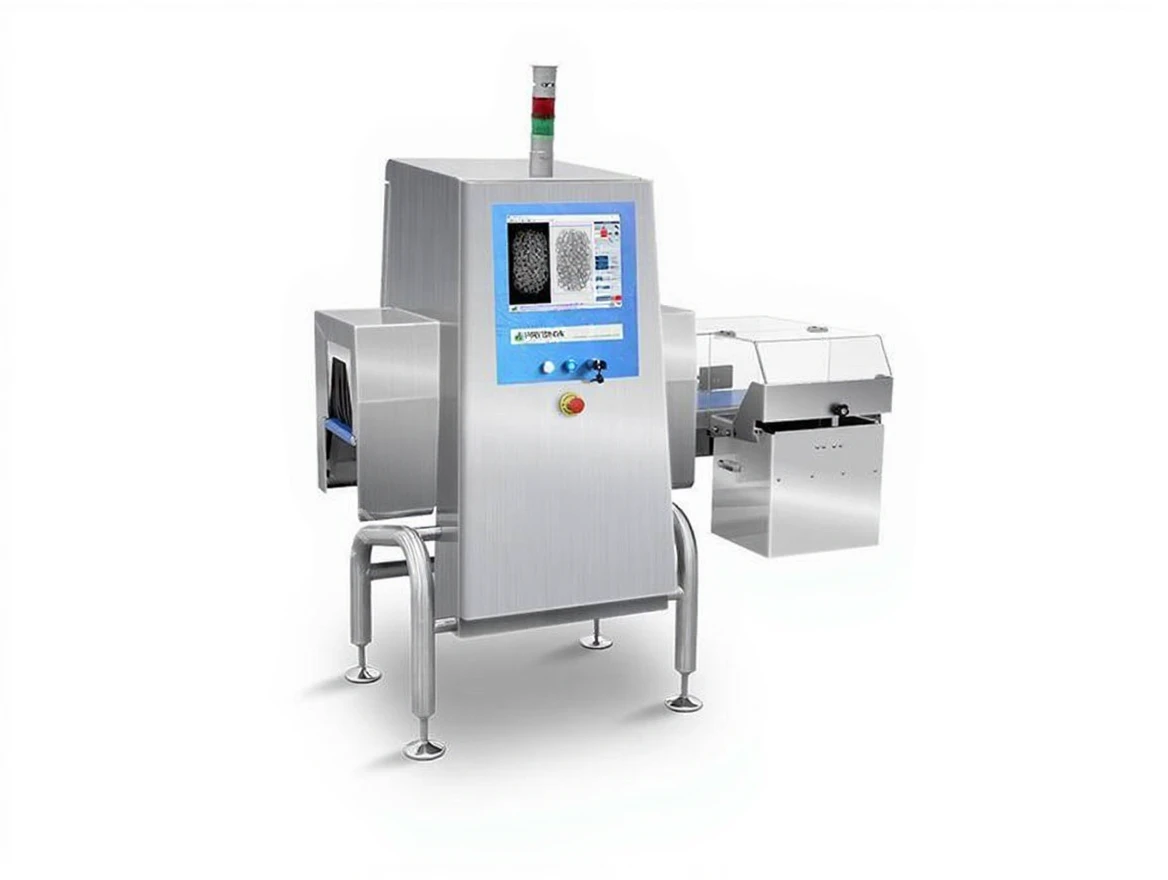

Gıda X-Ray Makinası
| Brand | Bosforo |
|---|---|
| Model Type |
B-GXM-001 |
| Feature / Hardware | Description |
|---|---|
| Reviewed Product Type | Packaged food products |
| Maximum Weighing Capacity | 5,000 grams |
| Detection Area | Max. 235 × 150 mm |
| Maximum Belt Speed | 65 meters per minute |
| Capacity (Product Production Speed) | 600 pieces per minute |
| Pneumatic Requirement (Air Pressure) | 0.6 MPa |
| Electric Supply | 230 V – 50/60 Hz – Single Phase |
| Power Consumption | Approximately 1,500 W |
| X-ray Generator | 100 W |
| X-ray Sensor | 250 mm linear sensor |
| X-ray Emission Level | Less than 1 µSv/hour inside the structure |
| Protective Curtains | Lead-free, FDA approved input and output curtains |
| Body Material / Surface Treatment | AISI 304 food-grade stainless steel, mirrored surface |
| Protection Class | IP65 |
| Operating Temperature Range | +5 °C to +35 °C, non-condensing closed environment |
| Electronic & User Interface | 15” color touchscreen TFT display; Linux operating system; 3-level password protection |
| Additional Software & Functions | EtherCAT I/O, USB & Ethernet connection, fault control function, event/acceptance rejection report archive, product visualization |
| Parasite Resilience |
High immunity to environmental interferences and fault-tolerant mode
|
Optional Hardware
-
Air blow or piston product rejection systems
-
Reject box management (locking or sensor-based)
-
Industry 4.0 compliant USB and Ethernet data interfaces
-
Rejection control photocell and box fill level sensor
-
Speed adjustable belt system
-
PC-based control electronic system
-
FAT/SAT, IQ/OQ, compliance certificates for ISO-FDA HACCP and BRC / Marks & Spencer standards
-
Easy detachable belt system and quick maintenance features
Device Advantages / Additional Features
-
High detection sensitivity and low maintenance requirement 100 W beam generator
-
Integrated into the production line, easy-to-clean compact design
-
Fast belt removal with FDA & EU approved TPU belt usage
-
User-friendly touchscreen interface and visual alarm system
-
100% closed security structure designed for operator safety and brand protection
