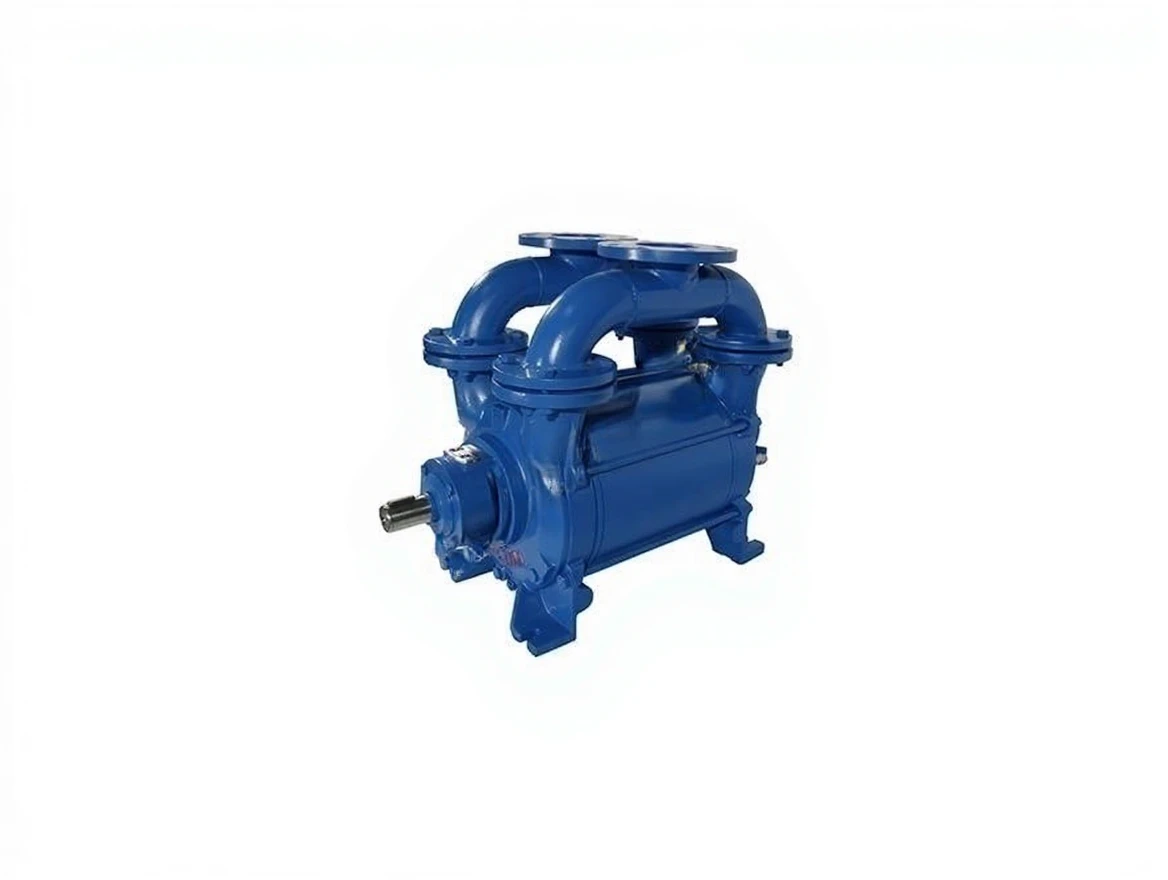

Gmvt 410/320 Vacuum Pump Single Stage
| Brand | Gücüm Pompa |
|---|---|
| Model Type |
GMVT 410/320 |
Description
Vacuum Pump Liquid Ring Single Stage
- Vacuum PumpHigh flow rate, less energy consumption.
- Step plates are stainless steel.
- They operate safely and efficiently.
- They can absorb all kinds of gases and vapors.
- They operate silently and without vibration.
- It does not require internal lubrication.
- Operating and investment costs are low.
- They operate with high efficiency for a long time without requiring maintenance.
- Rotating parts do not make metallic contact.
- They can be used in any environment with their wide material options.
- The compression of the absorbed gases is almost isothermal.
- They can absorb small amounts of liquid along with gas.
Guctim Pump GMVT 410/320 Technical Specifications
| MODEL | Entrance And Exit |
Absolute Pressure |
mbar | 400 | 200 | 100 | 80 | 60 | 40 | 33 | Service Water (lt/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| torr | 300 | 150 | 75 | 60 | 45 | 30 | 25 | ||||
| Vacuum | mmHg | -460 | -610 | -685 | -700 | -715 | -730 | -735 | |||
| Engine (kW) |
Transfer (d/d) |
Absorption Capacity (m³/h) | |||||||||
| GMVT 275/220 | DN 100 | 15 | 1450 | 630 | 640 | 620 | 580 | 540 | 450 | 50 | |
| GMVT 275/260 | DN 100 | 18.5 | 1450 | 710 | 730 | 710 | 680 | 630 | 550 | 55 | |
| GMVT 275/300 | DN 100 | 22 | 1450 | 800 | 830 | 810 | 785 | 720 | 650 | 60 | |
| GMVT 410/260 | DN 125 | 30 | 980 | 1100 | 1115 | 1050 | 1015 | 950 | 880 | 85 | |
| GMVT 410/320 | DN 125 | 37 | 980 | 1350 | 1365 | 1330 | 1310 | 1260 | 1200 | 90 | |
| GMVT 410/400 | DN 125 | 45 | 980 | 1670 | 1700 | 1700 | 1690 | 1670 | 1600 | 100 | |
| GMPT 520/400 | DN 200 | 55 | 735 | 2100 | 1900 | 1600 | 150 | ||||
| GMPT 520/530 | DN 200 | 75 | 735 | 2800 | 2600 | 2100 | 170 | ||||
| GMPT 520/600 | DN 200 | 90 | 735 | 3600 | 2700 | 2700 | 210 | ||||
