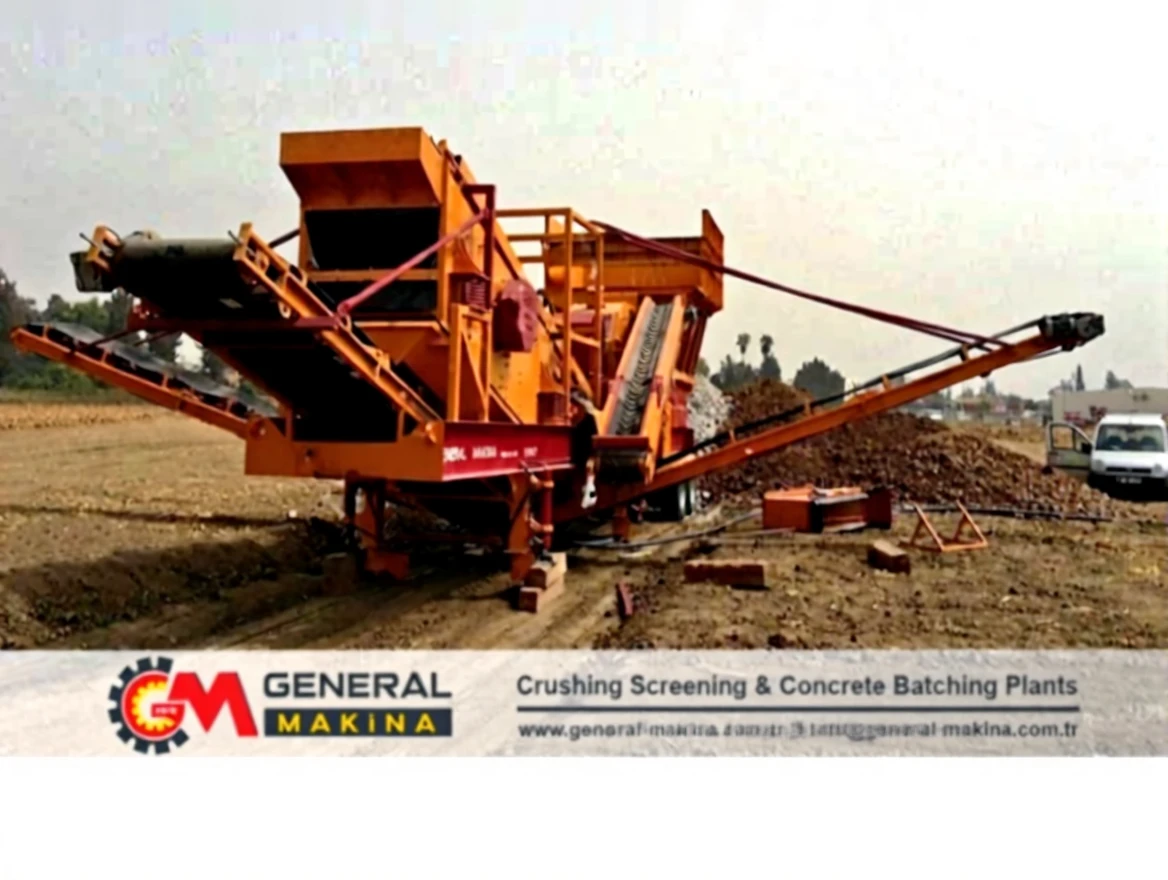

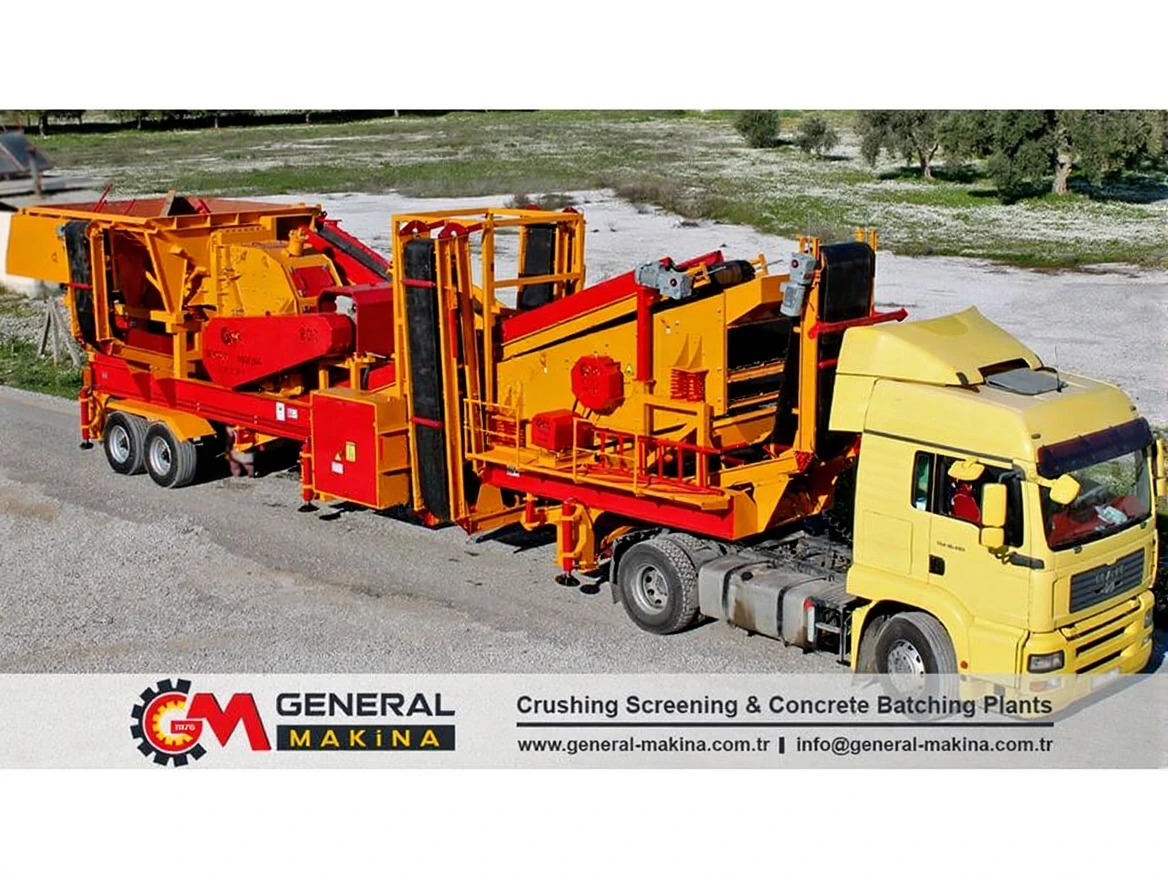

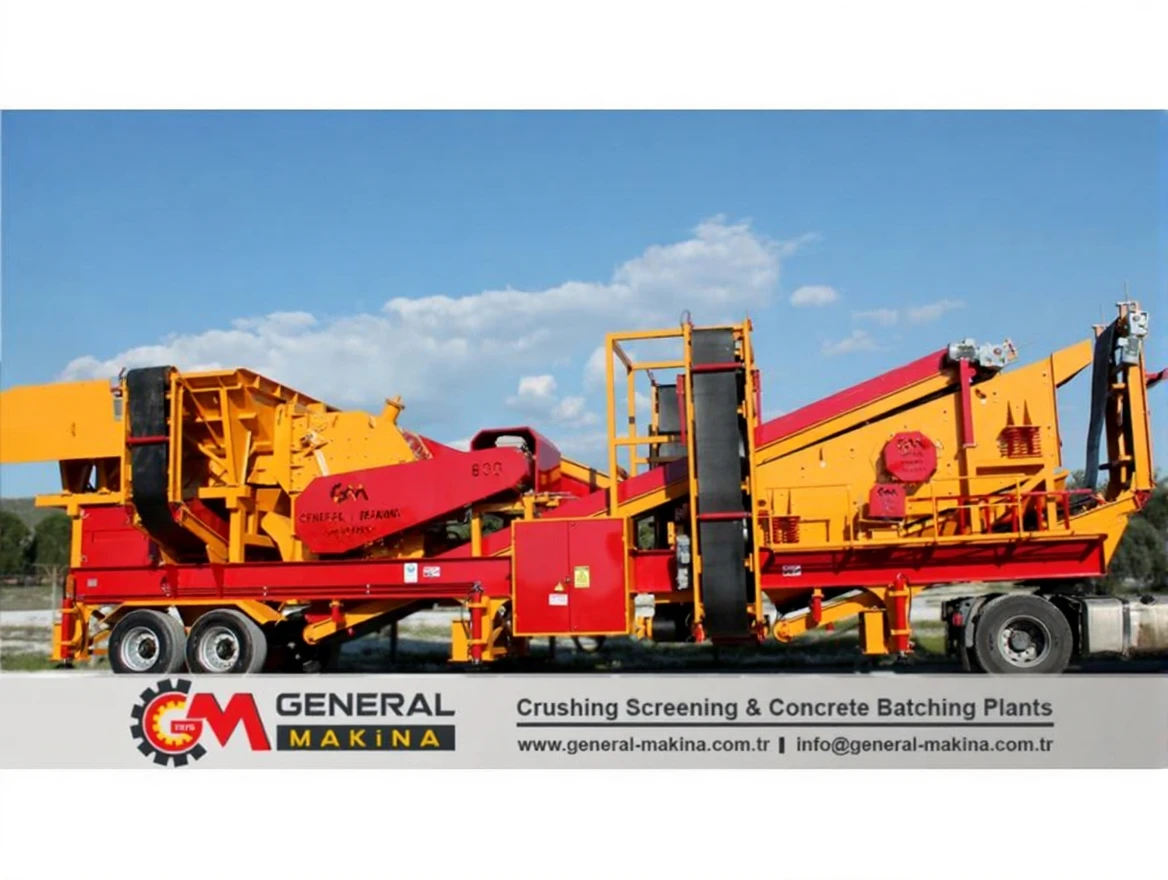

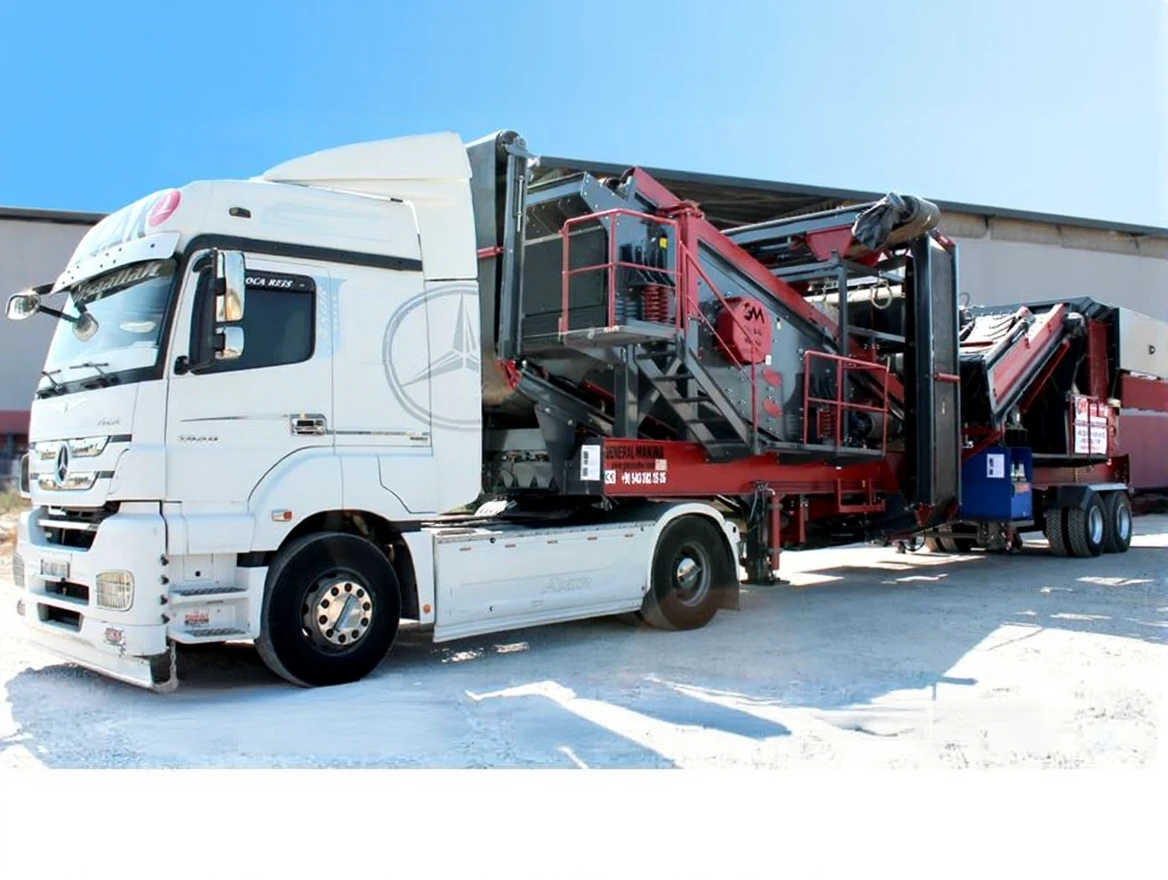

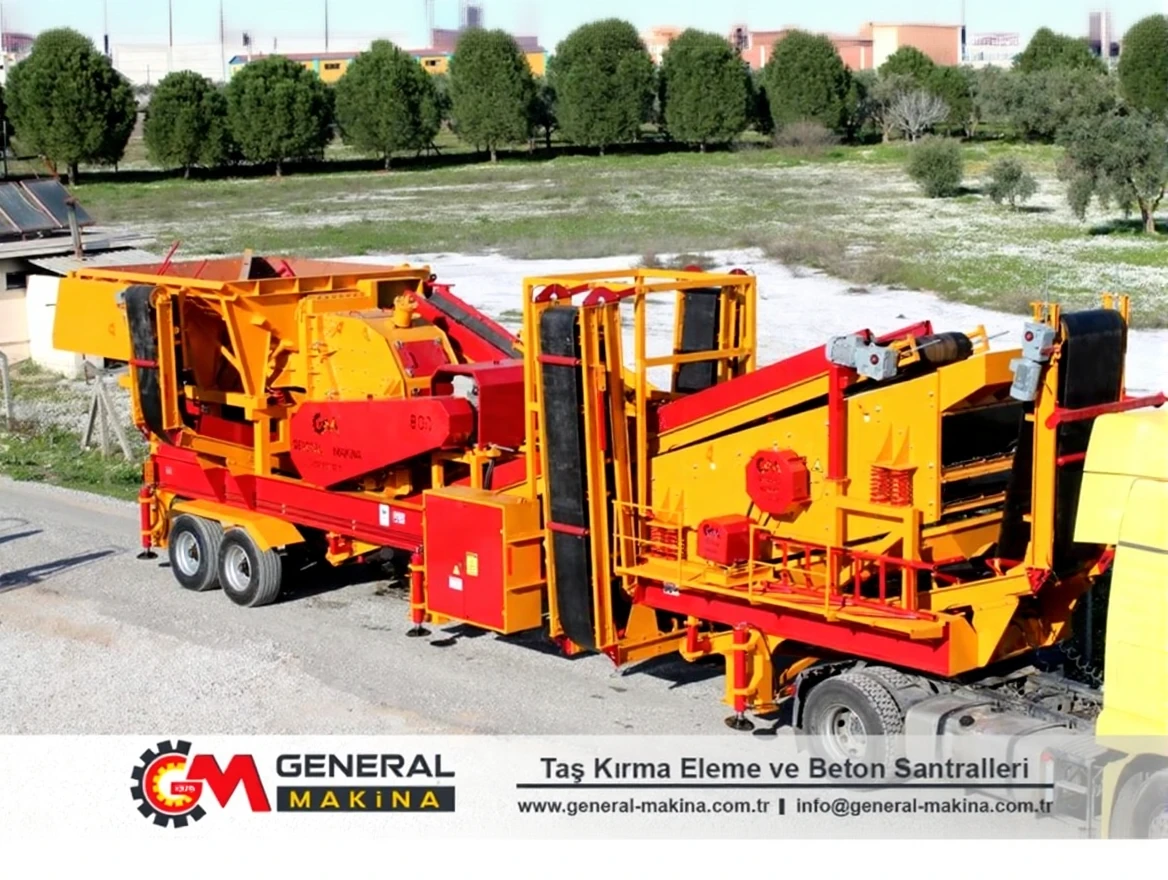

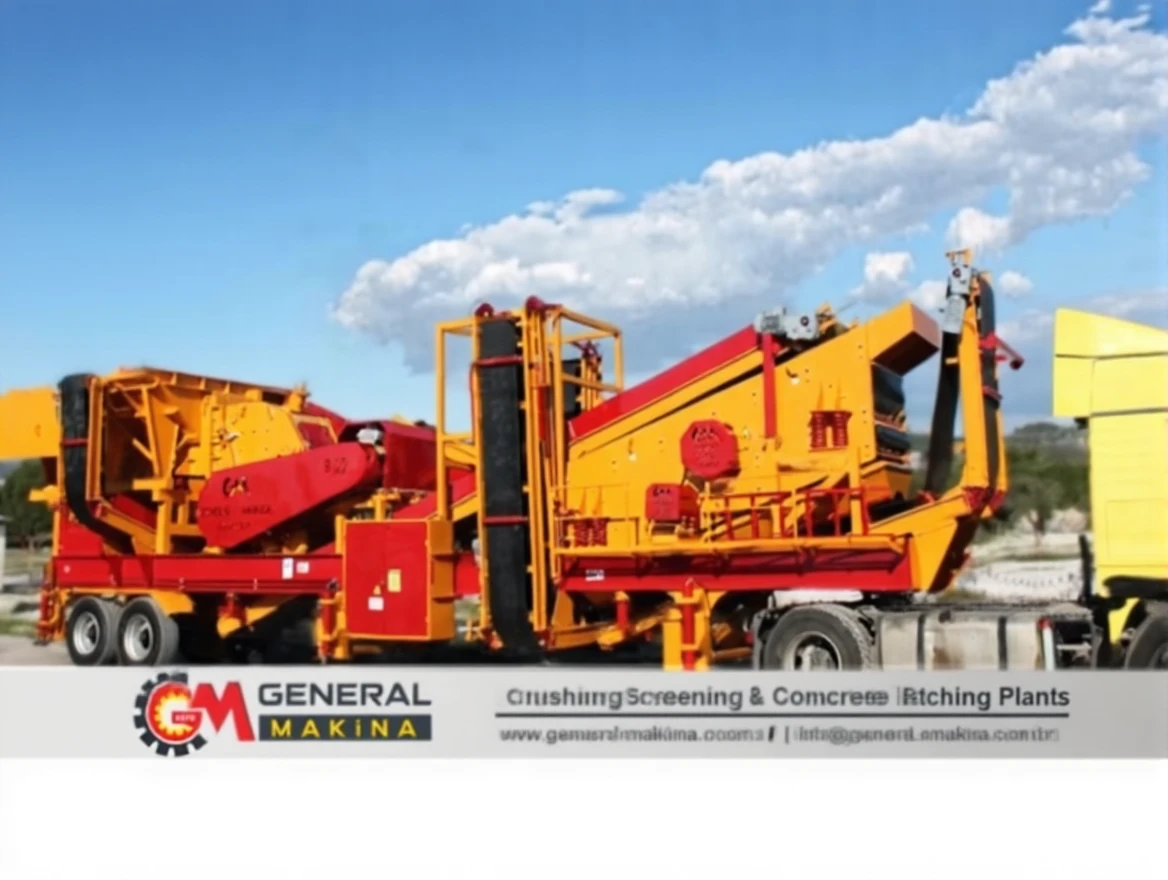

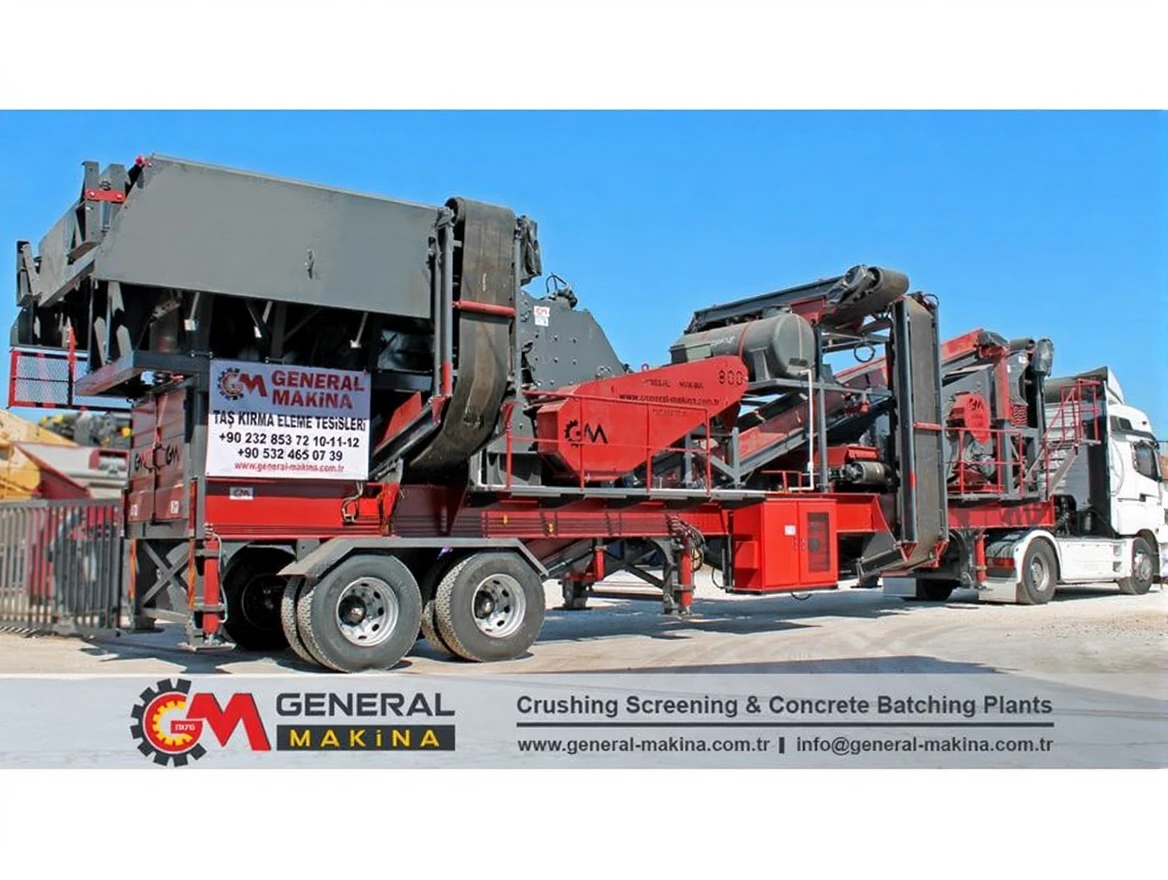

Gnr-800 Mobile Stone Crushing Screening Plant

General Makina Gnr-800

Gnr-800 Mobile Stone Crushing Screening Plant

MOBILE STONE CRUSHING SCREENING PLANT GNR-800
General 800 Mobile Crusher is a closed crushing screening plant with high reduction and cubic material ratio.
Liners can be replaced when worn
Double eccentric // Vibro-Motor Drive
Capacity: Bunker has a capacity of 15 m3.
Drive: 15 kW
Upper chambers: Made of 10 mm thick st37 standard sheet metal.
Side chambers: Made of 10 mm thick st37 standard sheet metal.
Inner lining: Replaceable type when worn 8 mm.
Bunker chambers are sufficiently reinforced with curved sheets.
Bunker is designed suitable for truck unloading.
There are sailor chains on the front cover of the bunker so that stones do not get into the machine during unloading of the truck.

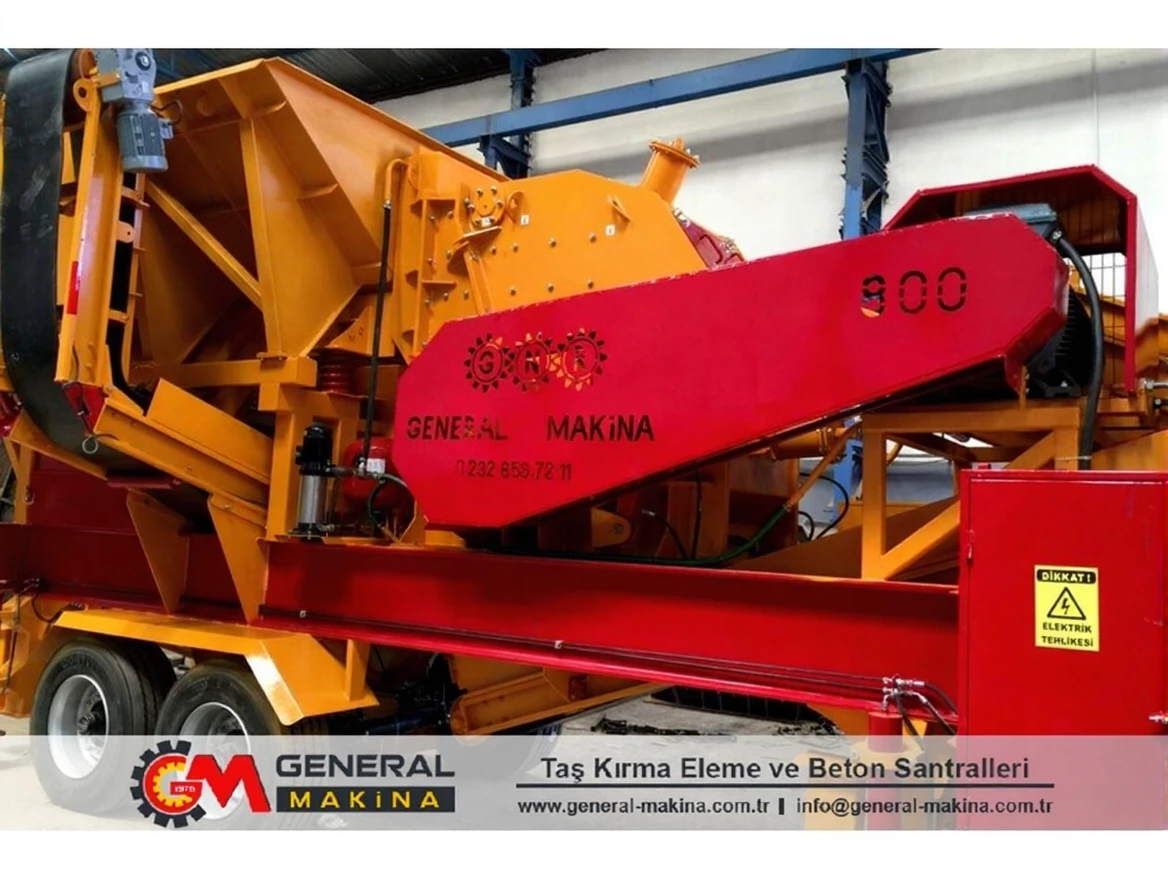

CRUSHER GENERAL 800
Rotor Size: 1100 x 800 mm
Motor: 160 kW 1500 rpm
Max Feed: 1000 mm.
Spring safety one piece manual
Shaft is 4140 alloy forged steel.
Bearings are SKF Brand heavy duty type.
Welded steel construction fixed chassis and engine are included in the price.
Crusher pallets, ribs are 16-18% Mn. +% 2.2 Cr. alloy
