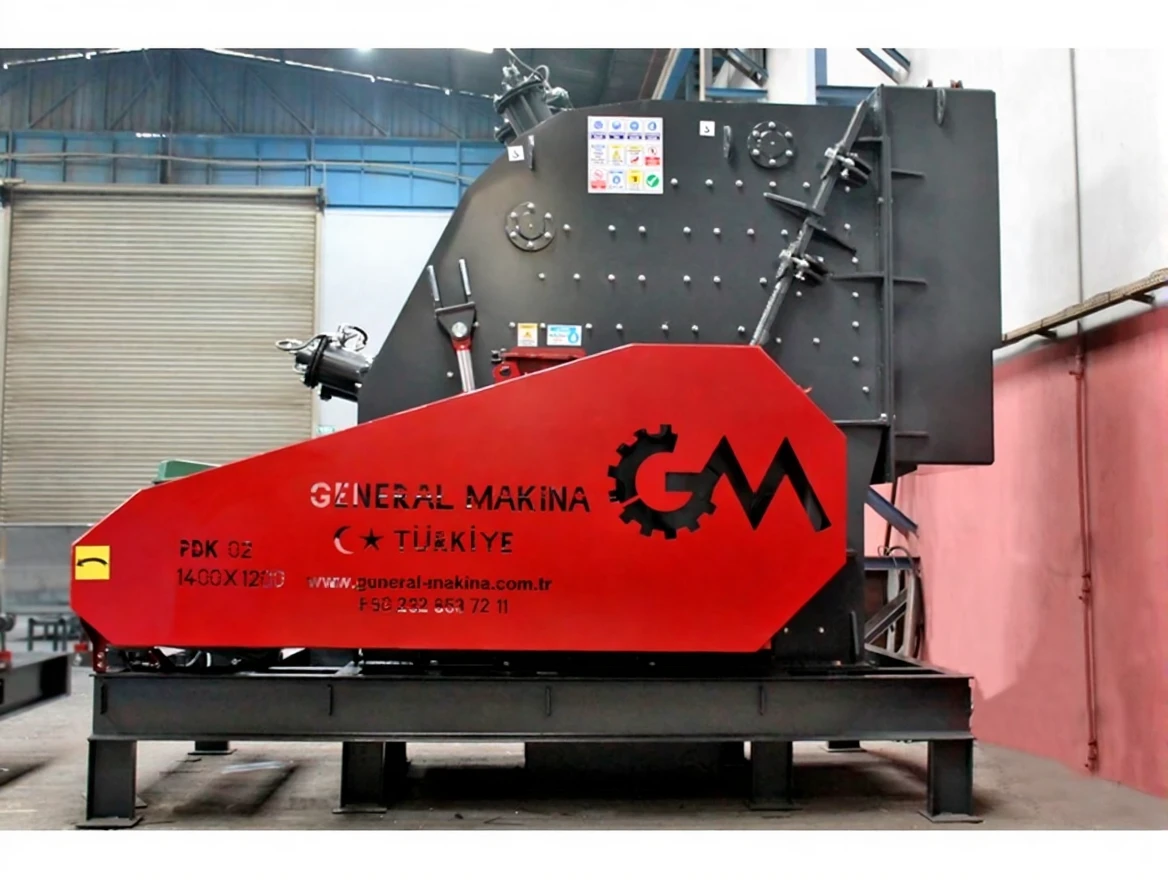

GNR PDK01 Fixed Primary Impact Crusher

General Makina GNR PDK01

Stationary Primary Impact Crusher

PRIMARY IMPACT CRUSHER FROM GENERAL MAKİNA

We have been bringing life to buildings as a result of your trust since 1976

Available from stock, take a look at our Breakers. General Makina has been producing domestically and abroad with ISO 9001 and CE quality certificates for 46 years.

They are high-capacity rotor crushers that take the load of the materials used as primary crushers (such as limestone, limestone, dolomite, granite, basalt) without being sent to the second crusher. Crusher pallets can be easily changed and with the advantage of easy assembly, they are used as a single machine instead of standard primary and secondary. Shrinkage rates are very high. It shrinks 75% of the product between 0 – 50 mm. It can turn it into a mobile device. They have a hydraulic opening body. They are wear-resistant crushers produced using 16-18 manganese or chrome options. Like primary impact crushers, they are the first rock crushers in stone crushing and screening plants.

General features of Primary Impact Crushers (PDK):
high capacity
High reduction rate
High rate of fine material production
cubic product
Ease of maintenance

GENERAL MACHINEPrimary Impact CrushersThey break medium hardness (less abrasive) stones in a controlled manner with the primary stage. It is possible to reduce a 1300 mm sized rock piece weighing 3000 kg to 0-100 mm size with Primary Impact Crusher. The rock entering the crusher is broken by the impact of the rotor pallets, first by the stone hitting the stone, and then by hitting the impact plates on the upper wing and the impact plates on the lower wing. The main body of the crusher is in two parts, the upper part can be opened completely with hydraulic cylinders and maintenance of the crusher can be done easily. It is also possible to easily replace the pallet impact plate and linings. The output product size is easily controlled by adjusting the clearance between the pendulums carrying the crusher impact plates and the rotor with a screw-spring or hydraulic mechanism (optional).

Your best choice for crushing materials such as limestone, limestone, dolomite, granite and basalt is General Makina Primary Impact Crushers. All our PDK crushers are under warranty and we manufacture PDK with ISO 9001 and CE quality certificates.
PDK crusher manufacturingcall for.

GENERAL MACHINE

Priced considering our budget prices.

Please contact us for detailed price information.
