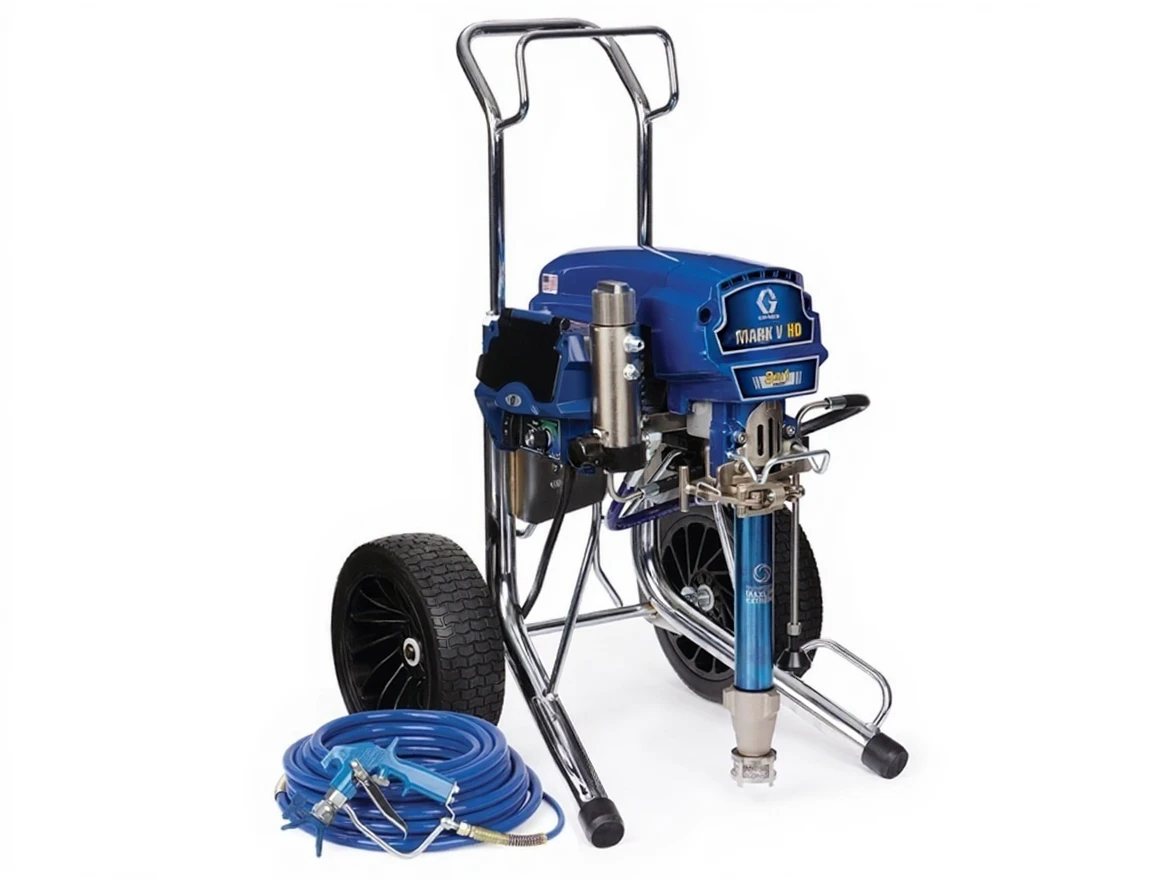

Graco Mark V HD 4.3 Litre / Minute Electric Airless Spraying Machine
| Brand | Graco |
|---|---|
| Model Type |
Mark V HD |
Graco Mark V HD 4.3 Litre / Minute Electric Airless Spraying Machine
Mark V HD is designed to help you achieve a higher flow rate to complete jobs faster. This unit provides 20% more productivity compared to Mark IV and comes with an upgraded Heavy Duty Texture Gun that can accommodate larger tip sizes for all texture coatings and a wide variety of primer and paint applications.
No challenges will remain on the job site. Mark HD IronMan Series electric airless texture sprayers are designed to meet the demanding requirements of large commercial and industrial jobs every day.
Endurance Vortex MaxLife Extreme Piston Pump
- Longest durability and service life
- Groundbreaking Vortex Spindle Technology
- Longest life seals and piston rod 3 times longer pump rod life
- Provides maximum versatility for whatever you spray Maximum versatility with long-life ceramic and stainless steel balls
ProConnect 2 Pump Replacement System
- Eliminates downtime that incurs high costs
- Change the pump in minutes
- No tools required, no pins or parts to lose
Puncture-Proof Tires
- Your tire will never go flat again
- Does not allow nails, screws, and other hard objects to penetrate the tires
SmartControl 4.0 with ProGuard Protection System
- Precise pressure control
- Provides consistent spray fan at all pressures with the lowest pressure range, without pressure fluctuations
- ProGuard prevents electrical damage caused by variable power conditions on the job site
- WatchDog Pump Protection System automatically prevents pump damage when material feed is very low
BlueLink Job and Sprayer Management System
- Simplify your job
- Track every sprayer: Exact location and hourly productivity values
- Stay informed about job progress: Productivity values and reporting at every location on demand
- Maximize uptime: Set maintenance times and alerts, and enter job site notes
Collecting-Protected MaxFlo 2
- Less buildup, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material buildup
- Continuous spraying with proper overflow protection for increased productivity
- Fluid channels optimized for the heaviest coatings
Crush-Resistant Inlet Filter
- Durable filtration
- Provides even flow across the filter with its crush-resistant design
FastFlush 2 System
- Fast cleaning is now even FASTER
- Clean the pump 6 times faster using half the water
- High flow rate powered by 60% higher motor speed
MaxPower Motor and Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with lifetime warranty
- Longest life drive
- Hardened steel gears provide extremely quiet operation and lifetime warranty
Additional Features
- Easy Out Filter Manifold
- Heavy Duty Fill Valve
- Durable, Sturdy Cart Design
Graco Mark V HD Technical Specifications
|
Fluid Hose Inside Diameter (inch) |
3/8 |
|---|---|
|
Fluid Outlet Size (inch) |
3/8 |
|
Fluid Outlet Size (mm) |
9.525 |
|
Fluid Outlet Thread Type |
NPSM |
|
Weight (kg) |
62 |
|
Pressure Control Type |
SmartControl 4.0 |
|
Replaceable |
Non-convertible |
|
Volume Per Cycle (cycle/gal) |
110 |
|
Phase |
1 |
|
Filter Mesh Size |
60 |
|
Frequency (Hz) |
50 |
|
Gallons Per Cycle |
110 |
|
Inlet Paint Filter |
Heavy Duty Rock Catcher |
|
Power Rating (kW) |
1.65 |
|
Power Source |
Electric |
|
Hose Inlet Diameter (cm) |
0.9525 |
|
Hose Inlet Diameter (inch) |
3/8 |
|
Hose Inlet Diameter (mm) |
9.525 |
|
Hose Reel Type |
Hose Rack |
|
Wet Material |
Galvanized Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Rice |
|
Maximum Flow Rate (L/min) |
4.3 |
|
Maximum Hose Length (m) |
30 |
|
Maximum Sound Pressure Level (dB(A)) |
82 |
|
Maximum Liquid Working Pressure (psi) |
3300 |
|
Maximum Tip Size (cm) |
0.0940 |
|
Maximum Tip Size (inch) |
0.037 |
|
Maximum Tip Size (mm) |
0.9398 |
|
Maximum Tip Size 1 Gun (cm) |
0.0940 |
|
Maximum Tip Size 1 Gun (inch) |
0.037 |
|
Maximum Tip Size 1 Gun (mm) |
0.9398 |
|
Maximum Working Pressure (MPa) |
22.7 |
|
Maximum Working Pressure (bar) |
227 |
|
Maximum Working Pressure (kPa) |
22700 |
|
Maximum Working Pressure (kg/cm²) |
22.7 |
|
Maximum Working Pressure (psi) |
3300 |
|
Minimum Generator Power (W) |
5000 |
|
Minimum Generator Power (kW) |
0 |
|
Model |
Mark HD |
|
Motor Size (kW) |
1.65 |
|
Motor Type |
Brushless DC |
|
Pump Sleeve Material |
MaxLife Extreme |
|
Pump Shaft Type |
MaxLife |
|
Pump Mounting Type |
ProConnect 2 |
|
Pump Type |
Endurance Vortex |
|
Spray Gun Type |
HD Blue Texture Gun |
|
Spray Type |
Airless |
|
Series |
V |
|
Number of Guns |
1 |
|
Type |
Airless Spraying Machine |
|
Total Width (cm) |
61 |
|
Total Width (mm) |
609.6000 |
|
Total Length (cm) |
66 |
|
Total Length (mm) |
660.4 |
|
Total Height (cm) |
74.9 |
|
Total Height (mm) |
749.3000 |
|
Compatible Replacement Pump |
17H836 |
|
Compatible Material |
Varnishes, Glass, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster, Abrasion-Resistant Paints, Fire-Resistant Paint, Blistering |
|
Voltage (V) |
230 |
|
Chassis Configuration |
Hi-Boy |
|
Outlet Paint Filter |
60 mesh stainless steel screen |
