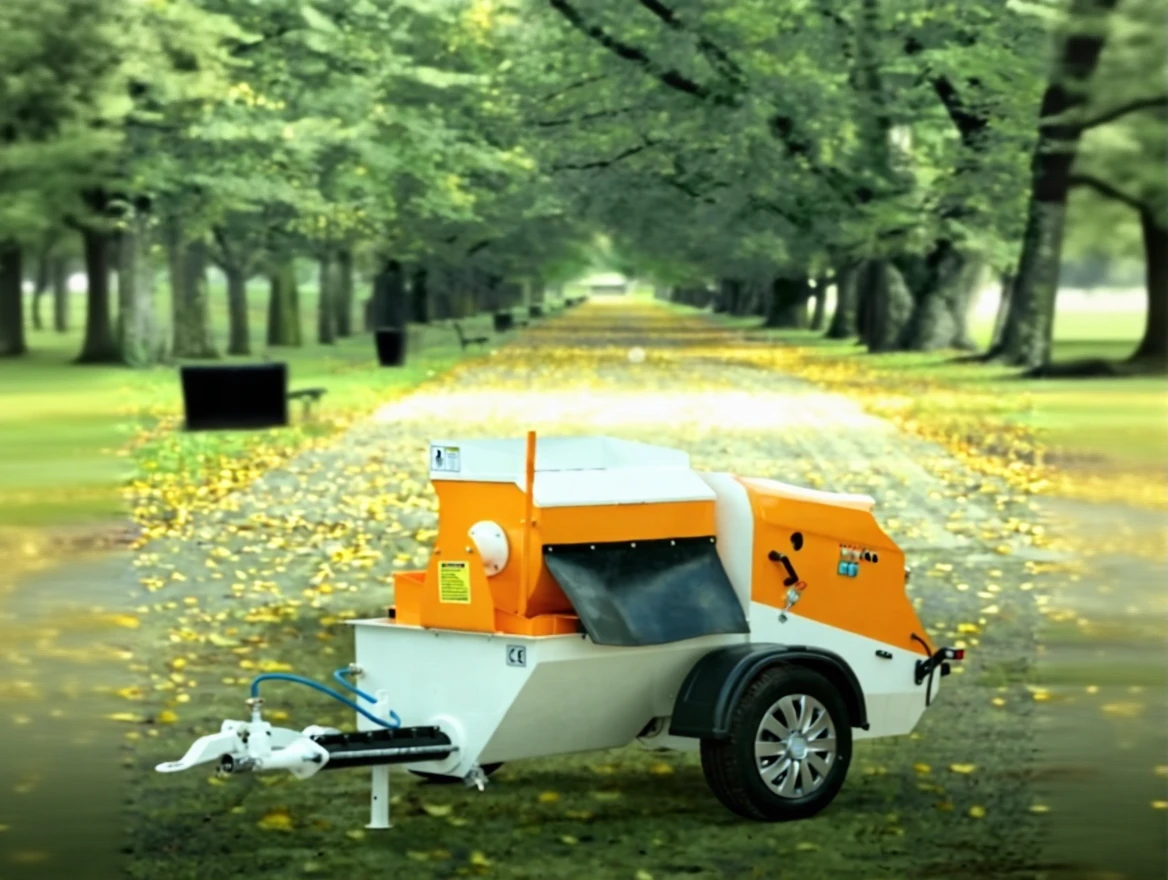

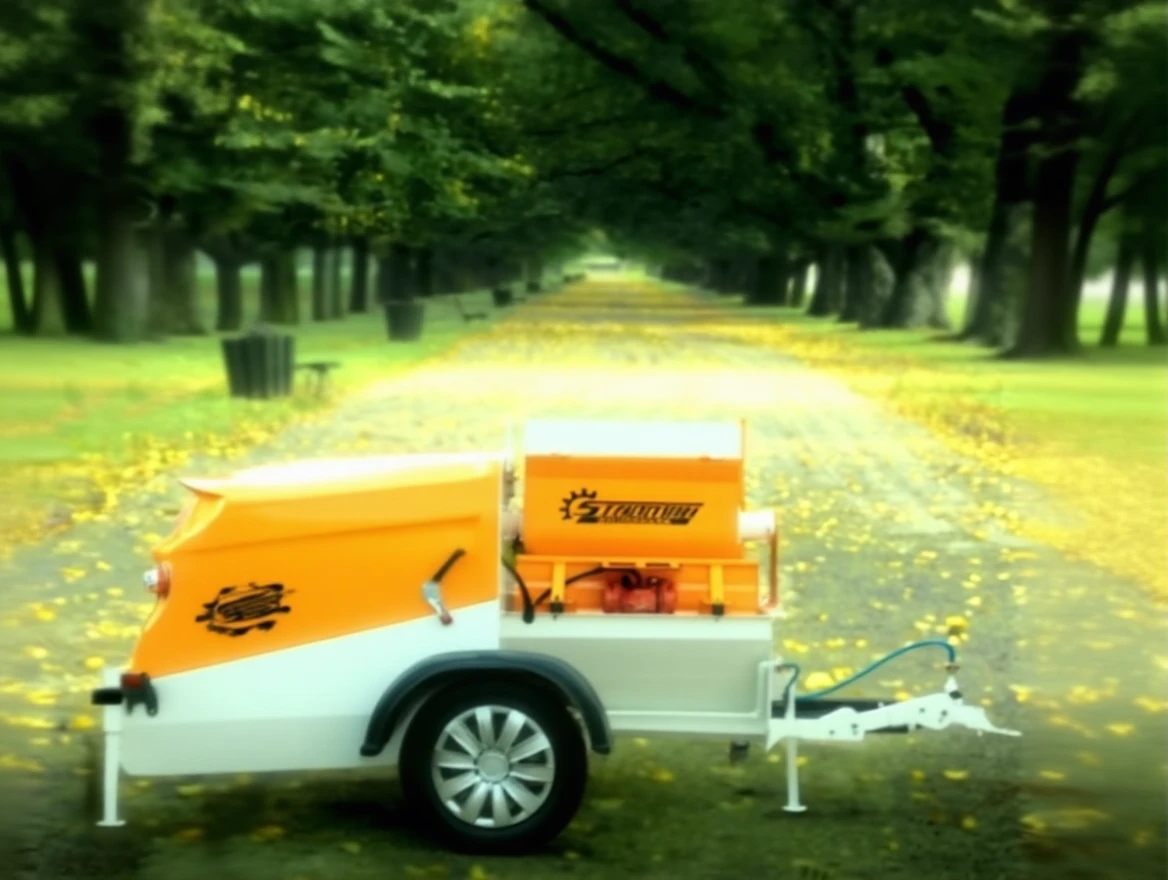

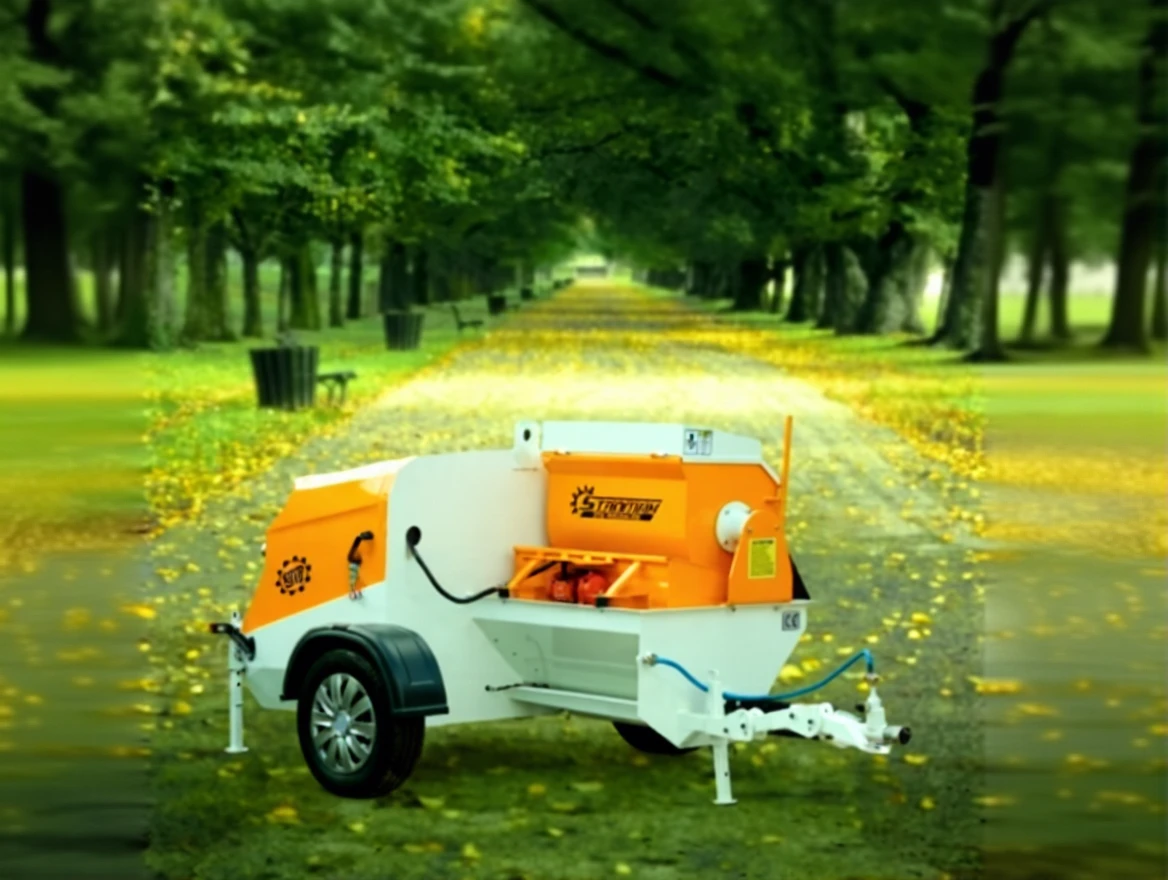

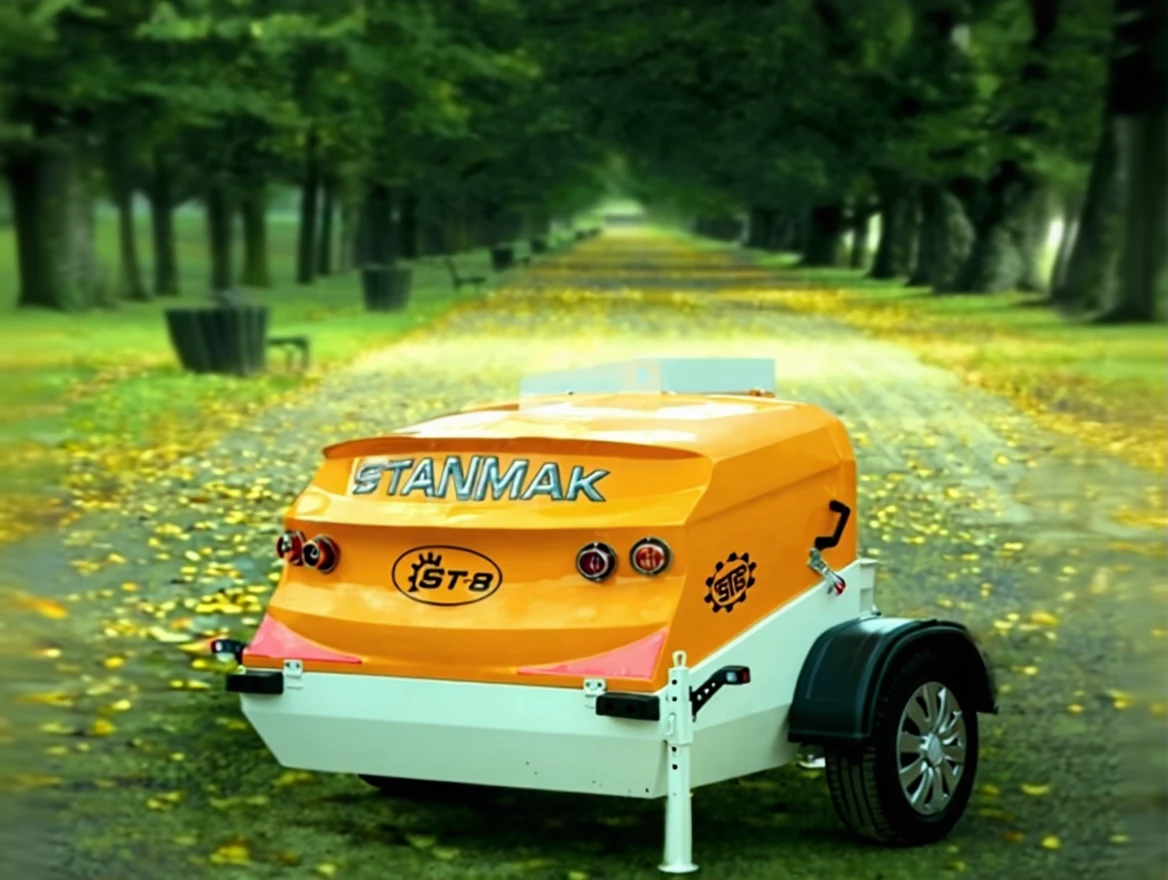

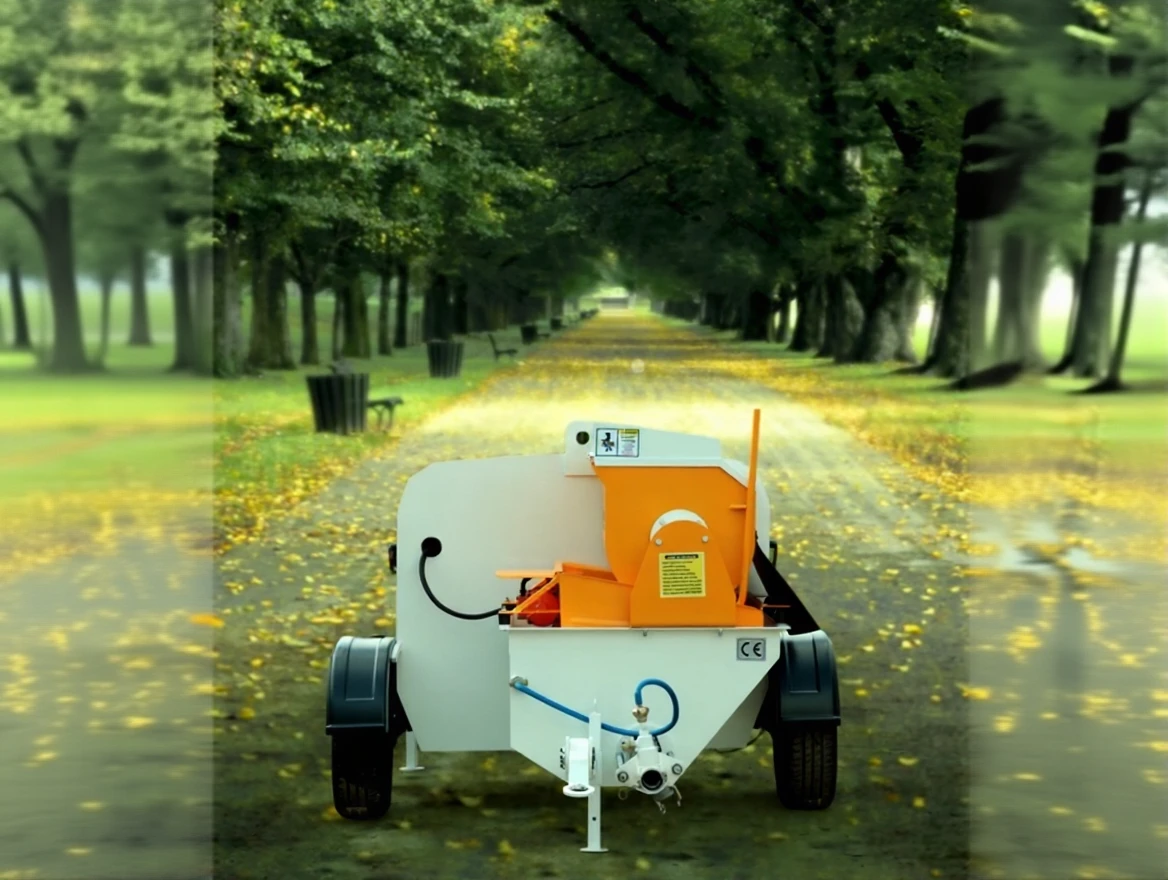

Helical Black Plaster Machine

Stanmak ST-8

40 Bar Helical Black Plaster Machine

● Material Used: Sand, Cement, Lime
● Pumping Capacity: 75 – 1/min
● Pumping Pressure: 40 bar
● Pumping Distance: 60 – 80m
● Pumping Height: 40m
● Operation: 400 V, 50 Hz
● Pump Motor: 5.5 kW
● Mixer Motor: 2 x 2.2 kW
● Compressor Capacity: 2.2 kW, 350 1/min
● Vibrator Screen: 8mm
● Remote Control: Manual
● Material Outlet: 2"
● Control Panel: 24 V
● Pumping Hose: 40 m

SAFETY FEATURES

-There is a centrifugal between the monoblock motor and the boiler body.

Thanks to this feature, the passage of the cement slurry into the motor reducer is 100% prevented.

-Automatic Shutdown with Air

-Smart Shutdown System – It detects the pressure in the discharge hose and ensures the automatic shutdown of the machine. This feature prevents the risk of a possible work accident.

-Retracting Feature – In case of blockage in the discharge hose, the pressure inside the hose is relieved.

-24 Volt Operator Control Panel

This feature prevents the operator from being exposed to electric current.

-Torsion Axle System – Safe Transport Feature

-Special Protection Systems for Electric Motors, Meter and Voltage Indicator Panel – Protects motors and the machine at high amperages thanks to phase protection systems and thermal relays.
