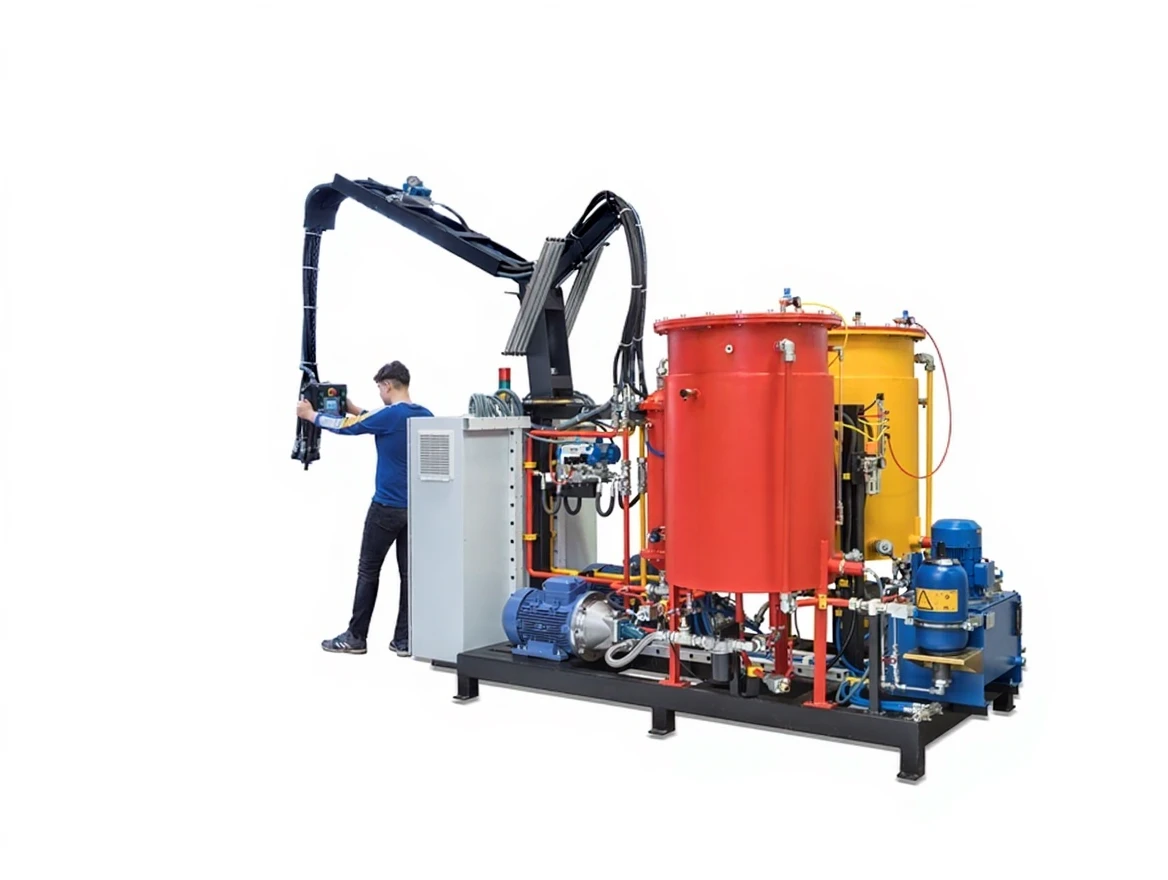

High Pressure Polyurethane Machine

Chemical gasket casting machine,

1. Mixing time: It is the time that the A and B components are mixed.

2.Reaction time: The time during which the adhesive foam system begins to react (after about 15-60 seconds*).

3. Rise time: the time during which the adhesive foam system expands to form the seal body (after about 15-180 seconds*).

4. Adhesion time is the time (after approximately 2-20 minutes*) that the sealing surface of the glue foaming system does not adhere at room temperature and can be touched without damage.

5. Installation time: The point of time (after approximately 20 minutes-12 hours*) at which adhesive foaming systems can be load bearing or sealed components can be installed.

Application products of two-component polyurethane: HVAC Air filter, HEPA air filter, Auto spare parts, Anti-explosion box, Auto fittings, Automobile assemblies, Automobile battery cover, Car interior door handle, Led lighting, jack, Mitsubishi waterproof box, Percolator filter, plastic cabinet, Plastic waterproof box, Lamp cover, Locks shell, Purification chamber door, Refrigerator door, Transformer protection cover, Street lighting, Waterproof cabinet, Transparent box, Air purification filter, ABS Enclosure Junction Box, Electrical Panels, Electrical Control Panels, Electrical Distribution Panels, Electrical Panels, ventilation cover, Explosion-proof light, Outdoor Lighting, including Brake lights, LED luminaire, Lighting luminaire, Transformer protection cover, Plastic waterproof box, etc.

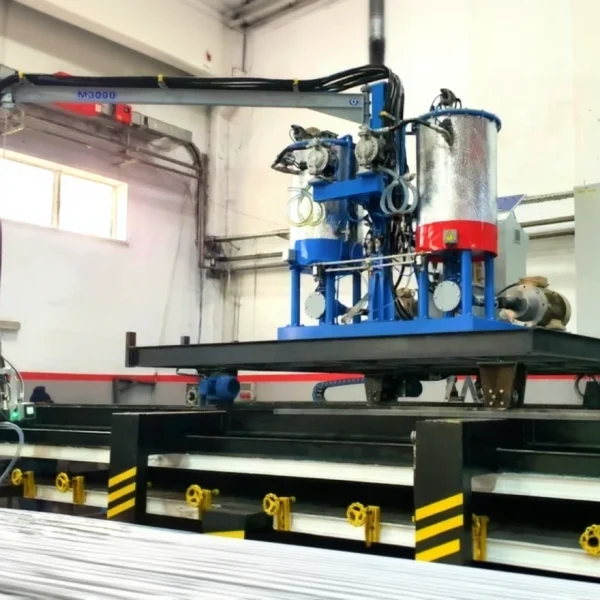

Polyurethane gasket casting machine,



PU polyurethane machine, 3-axis Movement range: X: 800 mm Y: 600 mm Z: 160 mm, speed: 0-4000mm/min, Switch Cabinets Distribution Boxes, Lighting, Enclosures, Air filters, Automotive, Lamps, ABB Water-proof box. Overall Dimensions: 2500mm*1300mm*2100mm( L x W x H), Nominal capacity: 4kw, Average consumption: 3kw, General area: 8m³-10m³, System Memory: 100 CAD drawings Components(AveB) – 2: Polyurethane A and Isocyanate B, Mains power supply: 400V 50HZ 3-phase (According to customers’ local industrial voltage), Output capacity : 0.05g/s-3g/s, Strip width: 2-10mm for both flat and concave applications, Working pressure : ≥0.6Mpa /component, Sheet Metal Equipments (Pu Gasket Machine, Electrical Cabinet Gasket Machine, PU gasket dispensing machine, gasket making machine, Intelligent CNC Seal Gluing Machine, Auto Seal Gluing Machine, FIPFG Machine, Glue Potting Machine, Customized Glue Seal Solution, Air Filter PU Gasket Machine, Lighting/Lamp Glue Potting Machine, Robot Gasket Mixing System… ) II. Electrical Switchboard Enclosure Accessories (PU & ISO Chemical, Lockset, Pull handle, Exhaust fan, Switches, Etc.). Applications on various industries: Switch Cabinets Distribution Boxes, Lighting, Enclosures, Air filters, Automotive, Lamps, ABB Water-proof box.



1. Mixing time: It is the time that the A and B components are mixed.

2. Reaction time: The time during which the adhesive foam system begins to react (after about 15-60 seconds*).

3. Rise time: the time during which the adhesive foam system expands to form the seal body (after about 15-180 seconds*).

4. Adhesion time is the time (after approximately 2-20 minutes*) that the sealing surface of the glue foaming system does not adhere at room temperature and can be touched without damage.

5. Installation time: The point of time (after approximately 20 minutes-12 hours*) at which adhesive foaming systems can be load bearing or sealed components can be installed.

Application products of two-component polyurethane: HVAC Air filter, HEPA air filter, Auto spare parts, Anti-explosion box, Auto fittings, Automobile assemblies, Automobile battery cover, Car interior door handle, Led lighting, jack, Mitsubishi waterproof box, Percolator filter, plastic cabinet, Plastic waterproof box, Lamp cover, Locks shell, Purification chamber door, Refrigerator door, Transformer protection cover, Street lighting, Waterproof cabinet, Transparent box, Air purification filter, ABS Enclosure Junction Box, Electrical Panels, Electrical Control Panels, Electrical Distribution Panels, Electrical Panels, ventilation cover, Explosion-proof light, Outdoor Lighting, including Brake lights, LED luminaire, Lighting luminaire, Transformer protection cover, Plastic waterproof box, etc.
